Battery Shunt 300A 2 X Volt, 2 X Rest, 1 X Temp

Description
Specifications

Features

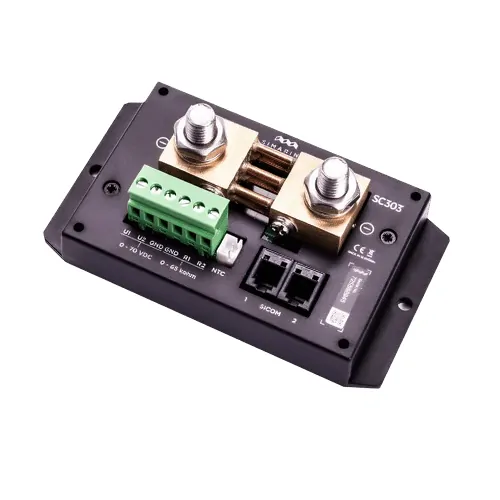

Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;

2 x Voltage Inputs
2 x Tank Level or Temperature Inputs
1 x Socket for Temperature Sensor with JST connector
1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications

Model	Simarine Combo Quadro Shunt Module
SI-SC303	300A Active Shunt
SI-SC503	500A Active Shunt
Voltage Range	6-35V
Temperature Range	-20 - +70°C
Power Consumption at 12V
Operating	1.2mA
Current Measuring Range
Per Channel - SC303	0.01 - 320A
Per Channel - SC503	0.01 - 700A
Accuracy	± 0,6 %
Resolution	0,01 A
Sampling rate	100 ms
Maximum Current
Continuous - SC303	300A
Continuous - SC503	500A
Peak current (<1 min) - SC303	400 A
Peak current (<1 min) - SC503	700A
Peak current (<5 min) - SC303	700 A
Peak current (<5 min) - SC503	1000A
Voltage drop at 300 A	50 mV
Maximum Voltage on Connections	35V
Voltage Inputs
Range	0-75V
Resolution	1mV
Accuracy	±0.2%
Sampling Rate	100ms
Resistance inputs
Range	0 Ohm - 65kOhm
Accuracy	± 3.0%
Temperature Sensor – NTC 10k
Range	-15 – +80 °C
Accuracy (-10 – 60 °C, 14 – 140 °F)	± 3.0%
Connectivity	Up to
Batteries	1
Temperature Sensors	3
Voltage and/or Resistance Sensors	2
SiCOM RJ9 Sockets	2
Installation and Dimension
Dimensions (length x width x depth)	120 x 120 x 60 mm
Battery Connection	M 10 bolts

Specifications

SKU	SI-SC303
Barcode #	SI-SC303
Brand	Enerdrive
Shipping Weight	1.0000kg
Assembled Length	0.150m
Assembled Height	0.100m
Assembled Width	0.150m

$193.00

SAVE $26.00

DON'T PAY RRP $219.00

Description

Features

Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;

2 x Voltage Inputs
2 x Tank Level or Temperature Inputs
1 x Socket for Temperature Sensor with JST connector
1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.

Free SIMARINE Android and iOS Apps:

Specifications

Model	Simarine Combo Quadro Shunt Module
SI-SC303	300A Active Shunt
SI-SC503	500A Active Shunt
Voltage Range	6-35V
Temperature Range	-20 - +70°C
Power Consumption at 12V
Operating	1.2mA
Current Measuring Range
Per Channel - SC303	0.01 - 320A
Per Channel - SC503	0.01 - 700A
Accuracy	± 0,6 %
Resolution	0,01 A
Sampling rate	100 ms
Maximum Current
Continuous - SC303	300A
Continuous - SC503	500A
Peak current (<1 min) - SC303	400 A
Peak current (<1 min) - SC503	700A
Peak current (<5 min) - SC303	700 A
Peak current (<5 min) - SC503	1000A
Voltage drop at 300 A	50 mV
Maximum Voltage on Connections	35V
Voltage Inputs
Range	0-75V
Resolution	1mV
Accuracy	±0.2%
Sampling Rate	100ms
Resistance inputs
Range	0 Ohm - 65kOhm
Accuracy	± 3.0%
Temperature Sensor – NTC 10k
Range	-15 – +80 °C
Accuracy (-10 – 60 °C, 14 – 140 °F)	± 3.0%
Connectivity	Up to
Batteries	1
Temperature Sensors	3
Voltage and/or Resistance Sensors	2
SiCOM RJ9 Sockets	2
Installation and Dimension
Dimensions (length x width x depth)	120 x 120 x 60 mm
Battery Connection	M 10 bolts
