Battery Monitor | Bluetooth - Round 500A

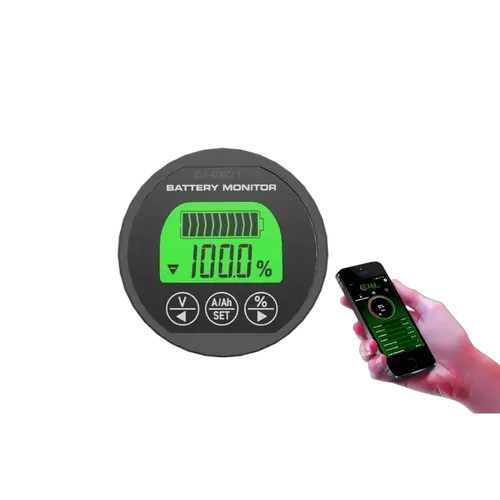

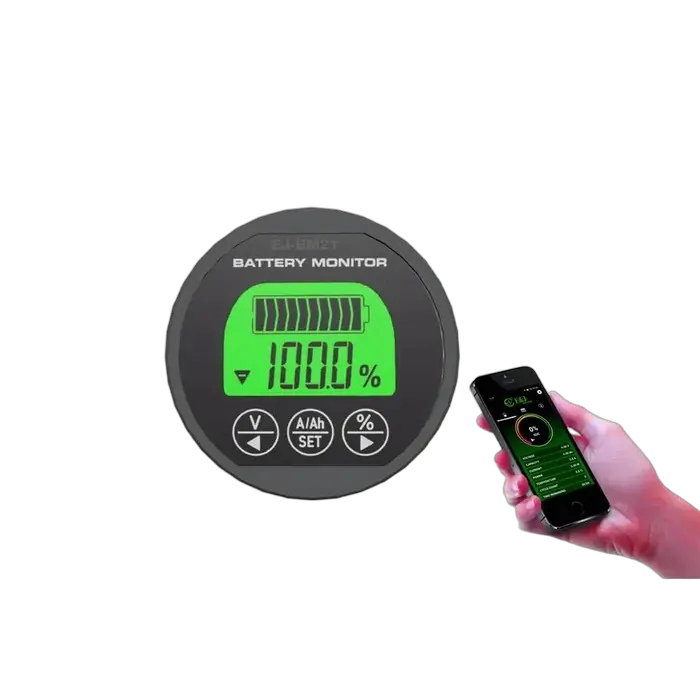

The BM21-500 Smart battery monitor is a high-precision meter that allows you to check the status of your battery via the display or your Smartphone with the smart battery monitor App.
Through the use of a 500A current shunt, the battery monitor measures the discharge or recharge currents and calculates the Ampere-hours(Ah) going in and out of the battery.
High-precision voltage measurements are taken and displayed in real-time through the use of a field-installed sense wire. BM21-500 battery monitor is compatible with all types of batteries, especially lithium, LiFePO4 batteries.
Contents:

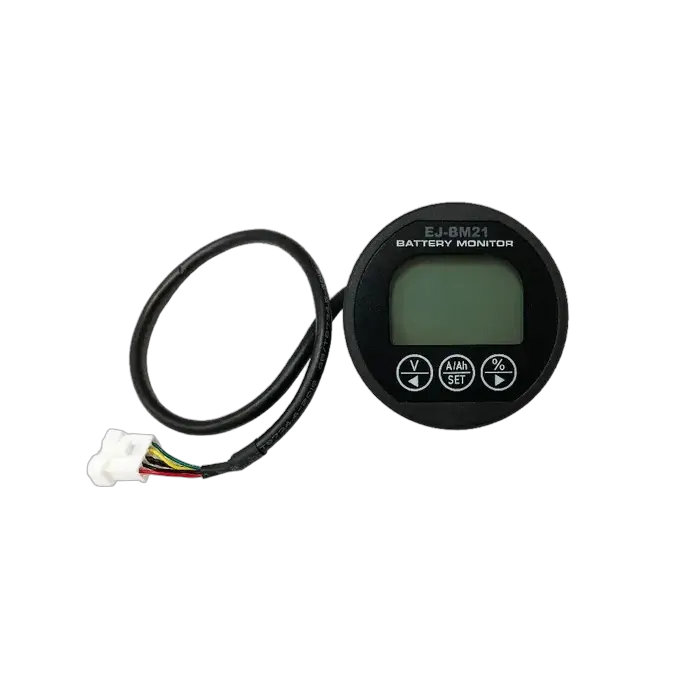

1 x Smart Bluetooth LCD Display. Approx 59mm OD

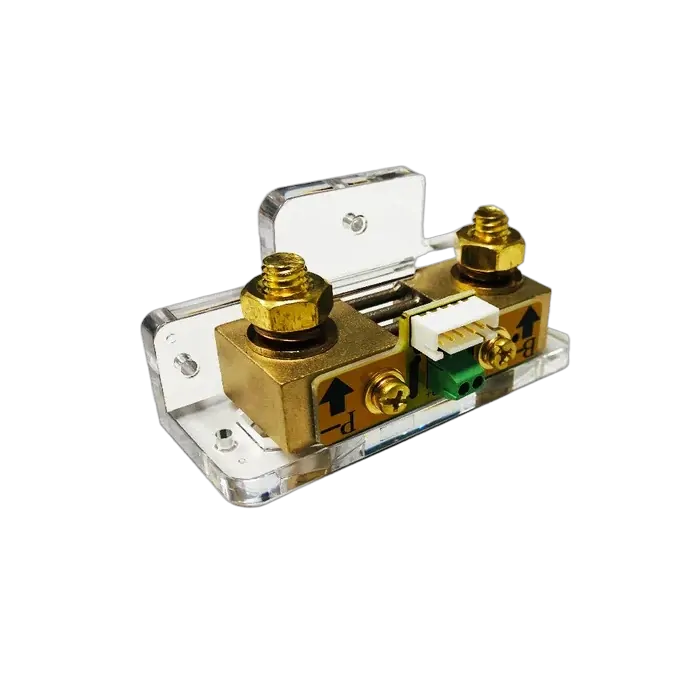

1 x 350 Amp (Cont.) - 500 Amp (Peak) Shunt

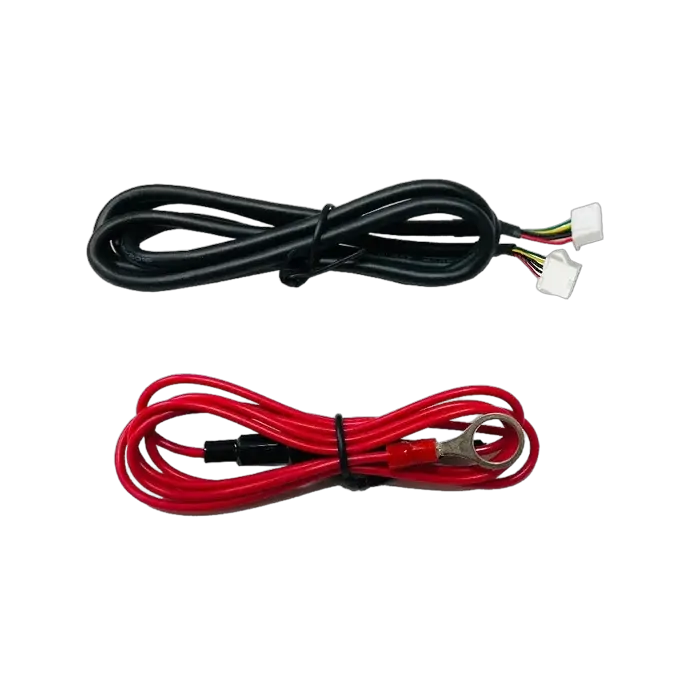

1 x 1m Extension Cable
1 x 1m Fused Battery sense wire

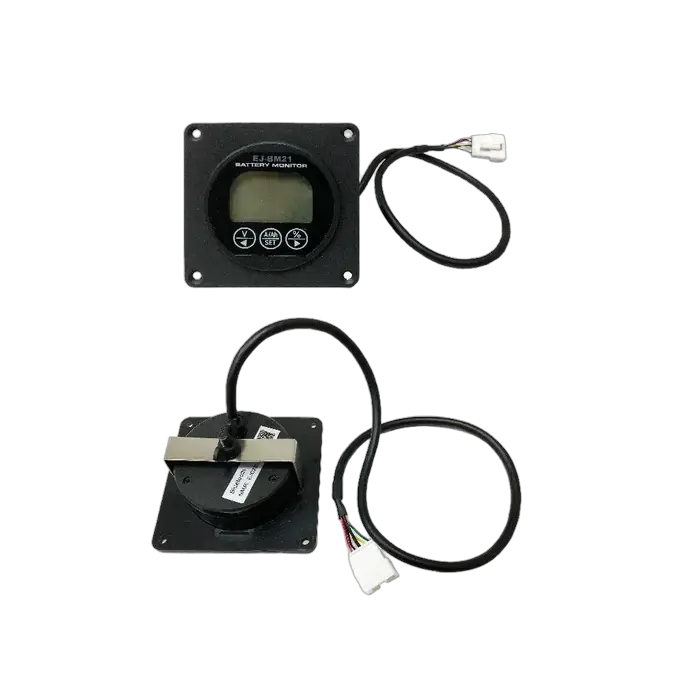

1 x Square plastic mounting plate
1 x Mounting hardware

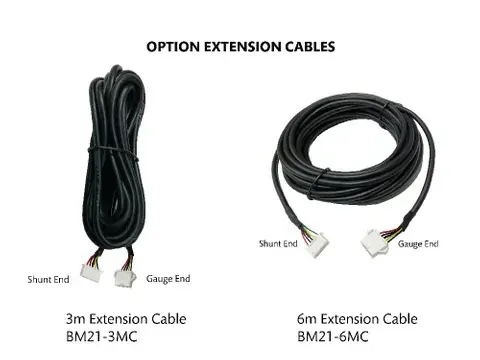

Optional:
3m Extension cable - BM21-3MC
6m Extension cable - BM21-6MC

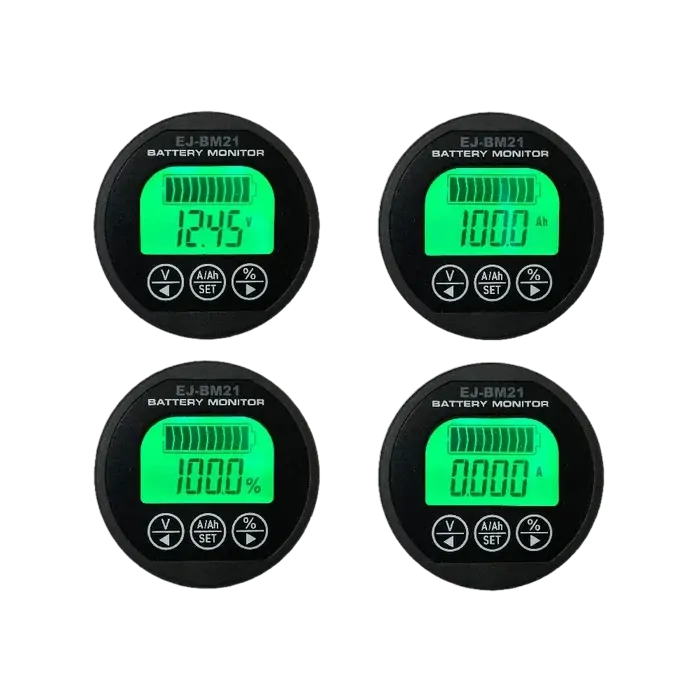

Displayed Data:
- Battery Capacity - Indicator
- Battery Voltage - Indicator
- Battery Current - Indicator
- Battery State of Charge (SOC)% - Indicator
- Charge & Discharge - Indicators
500A Shunt Specs:
| Specs | Min | Type | Max | Unit |
| Working Voltage | 8.0 | 80.0 | Volts | |
| Working Disspation | 10.0 | 12.0 | mA | |
| Standby Dissipation | 0.5 | 0.8 | mA | |
| Sleep Dissipation | 50.0 | 60.0 | uA | |
| Capacity Accuracy | +/- 1.0 | % | ||
| Voltage Accuracy | +/- 1.0 | % | ||
| Current Accuracy | +/- 1.0 | % | ||
| Backlight On Current | 40.0 | 50.0 | mA | |
| Backlight Off Current | 40.0 | 40.0 | mA | |
| Capacity Setting Value | 0.1 | 999 | Ah | |
| Sampler Working Current | 50.0 | 500. | A | |
| Temperature Range | 0 | 20 | 35 | Degree C |
| Weight | 65.0 | grams | ||
| Size | 59x20 | mm | ||
-
Brand:
-
Warranty Information:
-
24 Months
| SKU | BM21-500 |
|---|---|
| Barcode # | OEBC558182 |
| Brand | Electro Parts |
| Shipping Weight | 0.0700kg |
