Description

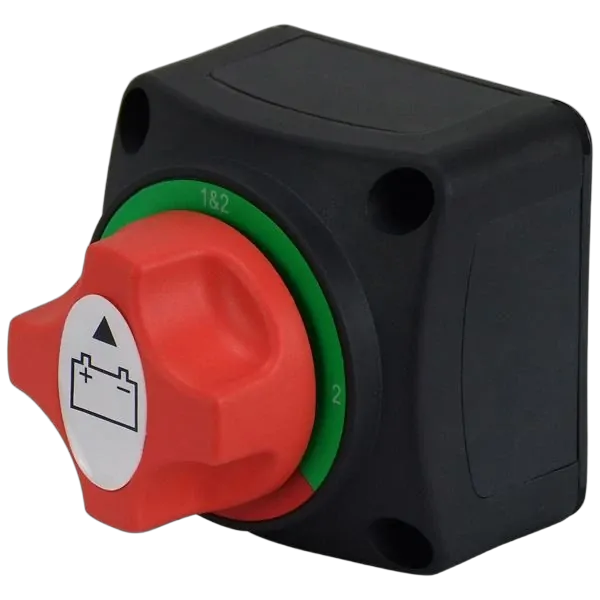

- Compact battery isolator switch 4 position for dual batteries.
- Surface mounted with slide-out cable entry panels.
- Switching positions (off / 1 / 1&2 / 2).
- 1000A @ 12V for 30 seconds.500A @ 24V for 30 seconds.250A @ 50V for 30 seconds.300A @ 12V continuous load maximum.150A @ 24V continuous load maximum.75A @ 50V continuous load maximum.
- Mounting screws supplied.
- 1 year warranty.
| Part No. | 530786 |
| Cranking Rating | 1000Amps |
| Dimensions (L x W x D) | 69mm x 69mm x 74mm |
| Terminal Stud Size | 5/16"-18UNC |
| Mounting Holes | Dia. 5mm r/h |
| Unit Qty | 1 |
| Function | 4 |
| Volts | 12/24V |
| Max. Continuous Load | 300Amps |
Specifications
| SKU | 530786 |
|---|---|
| Barcode # | 9330420195606 |
| Brand | Relaxn |
| Shipping Weight | 1.0000kg |

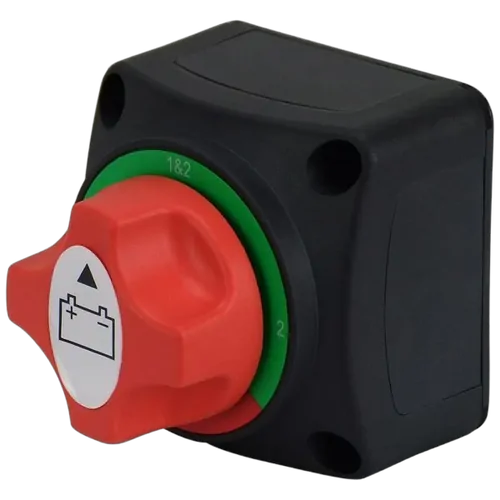

Battery Isolator Switch 4 Pos Compact
SKU: 530786
In stock
Sale price
$48.99
More infoMake 4 payments of $12.25 over 8 weeks and get it now!
Calculate Shipping
Description
- Compact battery isolator switch 4 position for dual batteries.
- Surface mounted with slide-out cable entry panels.
- Switching positions (off / 1 / 1&2 / 2).
- 1000A @ 12V for 30 seconds.500A @ 24V for 30 seconds.250A @ 50V for 30 seconds.300A @ 12V continuous load maximum.150A @ 24V continuous load maximum.75A @ 50V continuous load maximum.
- Mounting screws supplied.
- 1 year warranty.
| Part No. | 530786 |
| Cranking Rating | 1000Amps |
| Dimensions (L x W x D) | 69mm x 69mm x 74mm |
| Terminal Stud Size | 5/16"-18UNC |
| Mounting Holes | Dia. 5mm r/h |
| Unit Qty | 1 |
| Function | 4 |
| Volts | 12/24V |
| Max. Continuous Load | 300Amps |
Specifications
| SKU | 530786 |
|---|---|
| Barcode # | 9330420195606 |
| Brand | Relaxn |
| Shipping Weight | 1.0000kg |
