Description

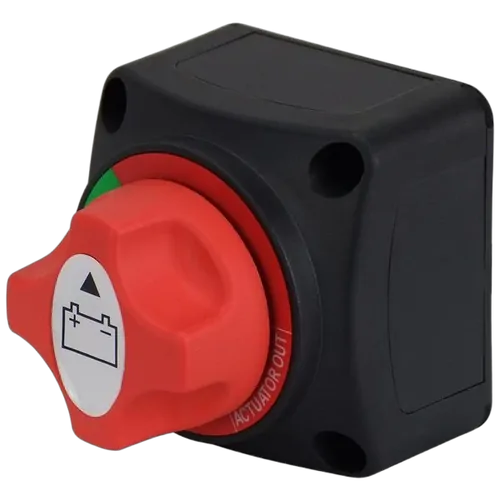

- Compact battery isolator switch 2 position for single battery.
- Robust weather resistant battery switch, features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications.
- Suitable for applications up to 50VDC.
- 1000A @ 12V for 30 seconds.500A @ 24V for 30 seconds.250A @ 50V for 30 seconds.300A @ 12V continuous load maximum.150A @ 24V continuous load maximum.75A @ 50V continuous load maximum.
- Mounting screws supplied.
- 2 position features - On / Off.
- 1 year warranty.
| Part No. | 530781 |
| Cranking Rating | 1000Amps |
| Dimensions (L x W x D) | 69mm x 69mm x 74mm |
| Terminal Stud Size | M10 x 19mm |
| Mounting Holes | Dia. 5mm r/h |
| Unit Qty | 1 |
| Function | 2 |
| Volts | 12/24V |
| Max. Continuous Load | 300Amps |
| Note | Depress knob Before turning from "Actuator Out" to "Off" position. |
Specifications
| SKU | 530781 |
|---|---|
| Barcode # | 9330420201994 |
| Brand | Relaxn |
| Shipping Weight | 1.0000kg |
