4,500kg Maximum towing capacity 450kg MAX. T.W.
Tested and compliant with ADR62/02.
Tested up to 6,750kg (Longitudinal Tension).
Solid steel shank with dual gussets for superi
Use with 50mm 3.5t OR 70mm 4.5t tow balls. (sold separatly)
Reversible shank and ball platofmr give great drop or rise height.
16 stage adjustments maximum rise 286mm,max drop 305mm. (32mm increments)
Mulit-pin holes give 3 length adjustments. 315-340-365mm.
H.T. 3/4” bolts, Nyloc locking nuts and toothed conical washers gives superior strength
Powder coated enamel finish gives greater protection from the elements.
Compatible with Hitchmaster DO35 & DO45, Treg, McHitch, Hitch-EZY, Alko, OZ Hitch 4.5T & ARK Couplings. Also Suitable for the Ford Ranger short shank tow bar.

MANUFACTURED TO MISTER HITCHES STRICT QUALITY AND SPECIFICATIONS.

*PLEASE NOTE DISPATCH TIMES FOR THIS ITEM MAY BE DELAYED*

SKU MHABM45-S2
Barcode # 000006791988
Brand Mister Hitches
Shipping Weight 16.5000kg

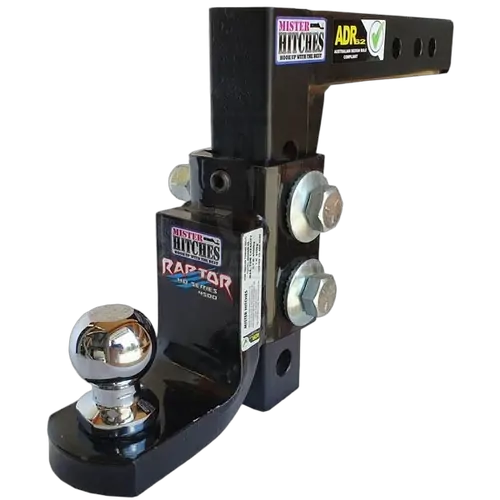

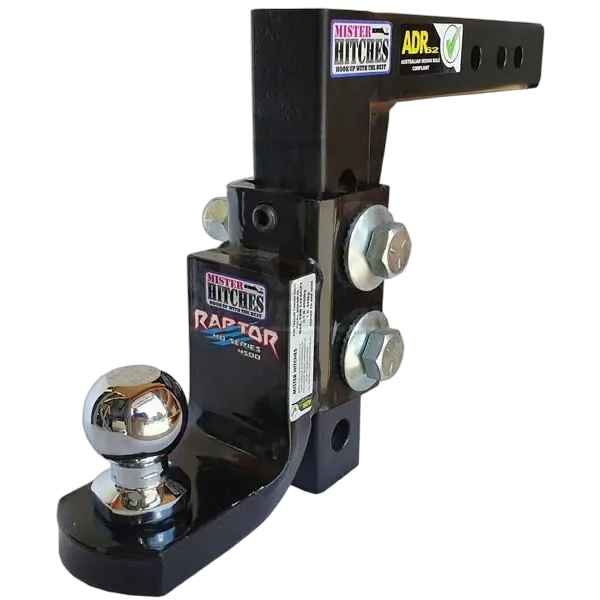

Ball Mount Raptor 4500Kg Adr Adjustable Long Shank

SKU: MHABM45-S2
Sold out
Sale price
$400.99
RRP $754.00
Earn 4,000 Outback Rewards Points
Sale price
$400.99
DON'T PAY RRP $754.00
PayPal Checkout
4 payments of $100.25

afterpay More info.

Make 4 payments of $100.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $100.25
This Raptor Ball Mount from Mister Hitches has a weight rating of 4500kg, and is adjustable to suit your towing needs with a long shank.

Calculate Shipping

4,500kg Maximum towing capacity 450kg MAX. T.W.
Tested and compliant with ADR62/02.
Tested up to 6,750kg (Longitudinal Tension).
Solid steel shank with dual gussets for superi
Use with 50mm 3.5t OR 70mm 4.5t tow balls. (sold separatly)
Reversible shank and ball platofmr give great drop or rise height.
16 stage adjustments maximum rise 286mm,max drop 305mm. (32mm increments)
Mulit-pin holes give 3 length adjustments. 315-340-365mm.
H.T. 3/4” bolts, Nyloc locking nuts and toothed conical washers gives superior strength
Powder coated enamel finish gives greater protection from the elements.
Compatible with Hitchmaster DO35 & DO45, Treg, McHitch, Hitch-EZY, Alko, OZ Hitch 4.5T & ARK Couplings. Also Suitable for the Ford Ranger short shank tow bar.

MANUFACTURED TO MISTER HITCHES STRICT QUALITY AND SPECIFICATIONS.

*PLEASE NOTE DISPATCH TIMES FOR THIS ITEM MAY BE DELAYED*

SKU MHABM45-S2
Barcode # 000006791988
Brand Mister Hitches
Shipping Weight 16.5000kg
