•     4.5T Rating
•     Max. drop: 210mm
•     Max. rise: 188mm
•     450kg Ball Weight
•     7/8” or 1-1/4” Ball or Pin

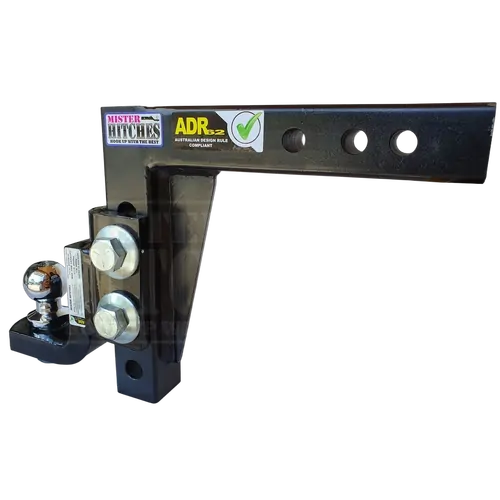

MISTER HITCHES RAPTOR 4.5T ADJUSTABLE BALL MOUNT HITCH

*Towball sold seperately
FEATURES

- Max. Gross Trailer Weight: 4500kg
- Max. Tow Ball Weight (Ball load): 450kg
- Tested to comply with ADR62/02.
- Reversible solid steel shank (Max. drop: 210mm / Max. rise: 188mm).
- Shank has 3 pin holes to allow for additional set up configurations & lengths.
- The following optional shank kits are available with extra height adjustments;
 MHABM45-S2: Max. drop: 305mm / Max. rise: 286mm
 MHABM45-S3: Max. drop: 370mm / Max. rise: 350mm
- Both the ball platform and the shank are fully reversible, providing 16 stages of adjustment.
- Compatible with either 50mm (3500kg, 7/8” dia. shank) or 70mm (4500kg, 1-1/4” dia. shank) tow balls.
- The included reducing bush (Fig. 3) & washer (Fig. 4) allows the fitment of standard 50mm (3500kg) tow balls.
- H.T. bolts, conical toothed washers & nyloc nuts for added strength & security.
- Ball platform features an anti-rattle Allen/Hex head screw (Allen/Hex key tool included).
- 25mm thick / 75mm wide, reversible ball platform for stronger ball loading.
- 25 year warranty.
- Powder coated enamel finish on shank & platform, while hardware is zinc plated to reduce corrosion.
- Compatible with most off-road couplings, including the following; Hitchmaster DO35 & DO45, McHitch,
Poly Block couplings (including Treg & Trigg), AL-KO, Hitch-Ezy & Ark.

*PLEASE NOTE DISPATCH TIMES FOR THIS ITEM MAY BE DELAYED*
