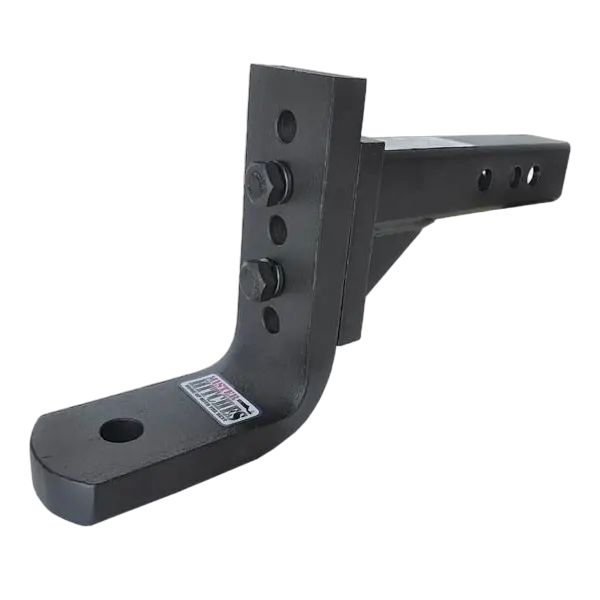

This extra heavy duty adjustable tow ball mount hitch from Mister Hitches has a weight rating of 4000kg. With 6 stages of drop and rise variants this adjustable tow ball mount hitch is designed to suit your towing needs with 3 drilled holes. This ensures that your trailer stays level when towing. Not all vehicles are and ideal height to tow large caravans or trailers. Towing a caravan at even a slight angle can spell disaster over speed bumps and cause unnecessary wear and tear on the tow ball. The extra heavy-duty adjustable ball mount by Mister Hitches is a lifelong addition to your camping artillery no matter what you end up towing.
Features:
-
ADJUSTABLE & REVERSIBLE - 12 STAGES
-
6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
-
6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM
-
9MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
-
USES 12.9 GRADE HIGH TENSILE 16MM BOLTS
-
25MM X 75MM HEAVY DUTY BALL PLATFORM
-
BLACK POWDER COATED FINISH
-
ROBOTIC WELDED FOR CONSISTENT QUALITY
-
CNC MACHINED FOR MAXIMUM ACCURACY
-
MADE TOUGH FOR AUSSIE CONDITIONS
-
FITS 2" X 2" TOWBAR RECEIVERS
Specifications:
-
GROSS TRAILER WEIGHT: 4000KG
-
TONGUE WEIGHT: 400KG
-
BALL HOLE SIZE: 7/8"
-
MAX DROP: 190MM
-
MAX RISE: 165MM
-
LENGTH: 305MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)
- Shank length to back of mounting plate 235mm
- Shank first hole location from end 50mm, second hole 75mm, third hold 115mm
- Shank mounting plate 125x73mm
- Tongue height 190mm ball mount face (220mm true length)
- Tongue top mounting hole for shank from top of tongue 30mm, second 60mm, third 90mm, fourth 120mm, fifth 150mm
- Tongue ball mount spacing from tongue back plate 90mm
SKU | MHABM-5XHD |
---|---|
Barcode # | 000006793692 |
Brand | Mister Hitches |
Shipping Weight | 12.0000kg |
Assembled Length | 0.300m |
Assembled Height | 0.090m |
Assembled Width | 0.190m |
