HITCH FEATURES:

  • ADJUSTABLE AND REVERSIBLE SHANK & BALL PLATFORM
  • THE SHANK IS REVERSIBLE AND THE BALL PLATFORM IS REVERSIBLE, ALLOWING MANY HEIGHT CONFIGURATIONS
  • 5 HOLE - 12 STAGES OF ADJUSTMENT
  • 6 STAGES OF DROP DOWN TO 186MM
  • 6 STAGES OF RISE UP TO 166MM
  • 2 X HITCH PIN HOLES TO GIVE GREATER ADJUSTMENT
  • A GENUINE MISTER HITCHES PRODUCT - DESIGNED IN AUSTRALIA



  • SUITS MOST 40MM x 40MM SMALL CAR TOW BAR RECEIVERS EG. SUBARU, HONDA, KIA, MAZDA SOME COMMODORES.
  • MATTE BLACK SEAGUARD BLACK POWDER COATED DROP FORGED STEEL
  • ROBOTIC WELDED FOR STRENGTH AND CONSISTENCY
  • 40MM SQUARE SHANK
  • HEAVY DUTY 19MM X 75MM BALL PLATFORM
  • 19MM BACKING PLATE
  • INCLUDES 2 x 16mm 12.9 GRADE HIGH TENSILE BOLTS
  • 25 YEARS WARRANTY
  • BALL PLATFORM IS REVERSIBLE AND SO IS THE SHANK



  • MAXIMUM G.T.W (GROSS TRAILER WEIGHT) = 1800KG
  • MAXIMUM T.W (TONGUE WEIGHT) = 180KG
  • MAX. DROP = 186MM
  • MAX. RISE = 166MM
  • HAS STANDARD 7/8" TOW BALL HOLE AND STANDARD 5/8"PIN HOLE
  • LENGTH (FROM CENTRE OF PIN HOLES TO CENTRE OF TOW BALL HOLE): 237MM & 267MM
  • LENGTH (FROM CENTRE OF PIN HOLE TO END OF SHANK (VEHICLE END): APPROX 50MM & 80MM
  • ROBOTIC WELDED
SKU MHABM-40
Barcode # 000006793586
Brand Mister Hitches
Shipping Weight 8.0000kg

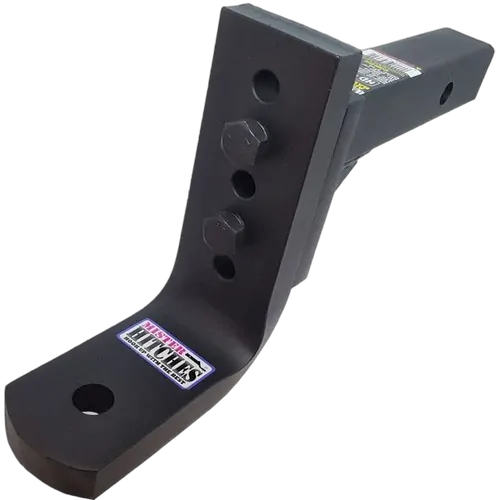

Ball Mount Adjustable 12 Stage 40 X 40mm Shank 1800Kg

SKU: MHABM-40
In Stock
In stock
Sale price
$99.00
RRP $287.00
Earn 990 Outback Rewards Points
Sale price
$99.00
DON'T PAY RRP $287.00
PayPal Checkout
4 payments of $24.75

afterpay More info.

Make 4 payments of $24.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $24.75
This Ball Mount from Mister Hitches has a weight rating of 1800kg, and is adjustable to suit your towing needs with a 12 stage shank.
