Description
Specifications

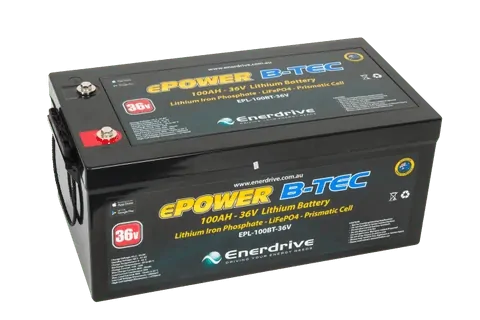

| Normal Specification | EPL-100BT-36V |
|---|---|
| Nominal Voltage | 38.4V |
| Nominal Capacity | 100Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Standard Charge Specification (Lithium profile charger required) | |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 43.20 ̴ 43.80V |
| Standby (Float) Voltage | 40.5 ̴ 41.40V |
| Maximum Charge Current | 50A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤33A |
| Standard Discharge Specification | |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 33.00 ̴ 43.80V |
| Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤33.60V |
| Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
| Over-Charge Protection | |
| Over-charge Protection Per Cell | 3.90V ± 0.03V |
| Over-charge Release Per Cell | 3.60V ± 0.05V |
| Over-charge Release Method | Discharge below release voltage |
| Over-Discharge Protection | |
| Over-discharge Protection Per Cell | 2.80V ± 0.05V |
| Over-discharge Release Per Cell | 3.20V ± 0.05V |
| Over-discharge Release Method | Apply Charge/Voltage ≥38.4V |
| Over Current Protection | |
| Discharge Over Current | 110A for 30s – 450A for 1s |
| Protection Reset Time | 5s Auto Release |
| Over Current Release Method | Disconnect Load |
| Over Temperature Protection | |
| Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
| Release at 50°C ± 5°C | |
| Battery Charge Over Temperature | Protection to 55°C ± 5°C |
| Release at 45°C ± 5°C | |
| Short Circuit Protection | Auto release after 5s |
| Mechanical Characteristics | |
| Dimensions | Length 519mm |
| Width 273mm | |
| Height 222mm | |
| Weight | Approx 37.7 Kg |
| Storage Information | |
| Temperature & Humidity Range | ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH |
| ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH | |
| Self-discharge Rate | ≤ 3% Per Month |
Note: Specifications subject to change without notice.
Specifications
| SKU | EPL-100BT-36V |
|---|---|
| Barcode # | EPL-100BT-36V |
| Brand | Enerdrive |
| Shipping Weight | 37.7000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.250m |
| Shipping Length | 0.530m |
