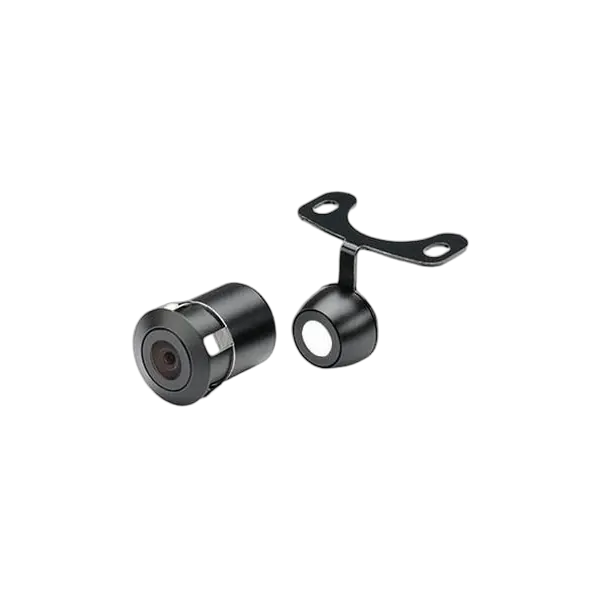

12/24V SURFACE/BUMPER MOUNT ¼” CAMERA
Product specifications:
SERIES 1
- Imaging Clip: 1/4” Full Colour CMOS
- Imaging Sensor: PC7070
- Lens: Full Glass
- Viewing Angle: 110° Wide Viewing Angle (Horizontal) 170° Wide Viewing Angle (Diagonal)
- Video Format: PAL/NTSC (Switchable)
- Parking Guidelines: Yes (Selectable) Type (Adjustable) Height & Width (Adjustable)
- One Button Control: Image Orientation Select, Video Mode Select, Guideline Type Adjust, Guideline Height Adjust, Guideline Width Adjust
- Image Orientation: Mirror, Normal, Upside-Down Mirror, Upside-Down Normal (Switchable)
- Minimum Illumination: 0.3 Lux
- Water/Dust Protection: IP67
- Power Input: 12V DC
- Mounting: Number Plate or In-Bumper
- Connection: RCA
- Dimensions: 16.5mm x 23mm (D)
INCLUDED
- Dual Mounting Heads (Butterfly and Bumper Fit)
- Installation Manual
- Installation Hardware
- Metal Hole Saw for Bumper Fit Installation
- 6m Camera to Monitor Lead (RCA Male) with Power Wire for reverse triggering
SKU | SD20 |
---|---|
Barcode # | 9321886014884 |
Brand | Axis |
Shipping Weight | 3.0000kg |
Assembled Length | 0.200m |
Assembled Height | 0.200m |
Assembled Width | 0.200m |
