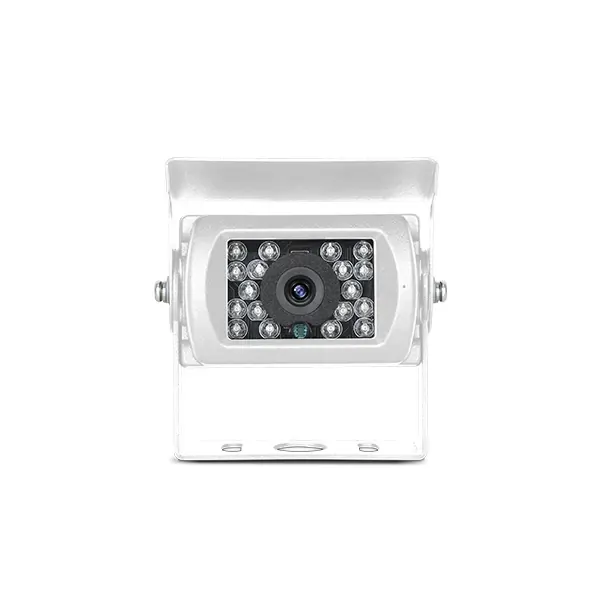

The CC08W is a heavy duty waterproof camera that connects easily to Axis LCD monitors offering a clear image of the reversing area, providing drivers with peace of mind.

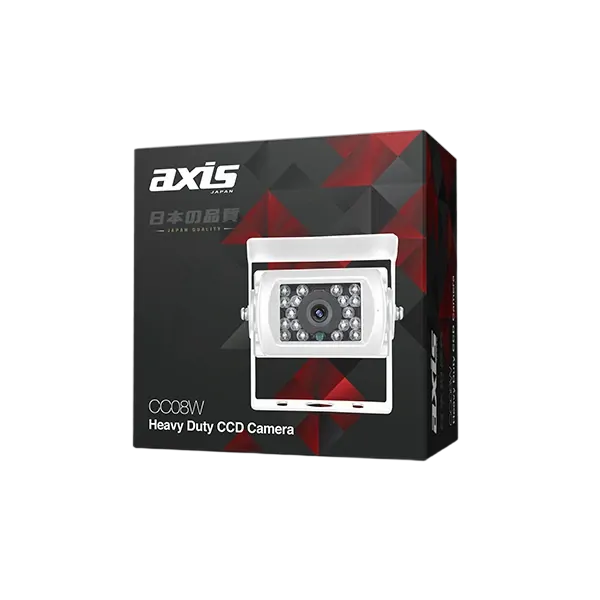

AXIS HEAVY DUTY CAMERA WHITE

– Image Sensor: 1/3” Sony CCD
– Auto Lens: f2.9mm
– Electronic Shutter: Auto
– Diagonal Viewing Angle: 120°
– Horizontal Viewing Angle: 90°
– Signal System: PAL
– Resolution: 700 TV Lines
– Sync System: Internal
– Orientation: Mirror Image
– Night Vision: Yes, 18 LED
– Illumination: 0 Lux with IR on
– Ingress Protection: IP69K
– Microphone: Yes
– Operating Temperature: -20°C ~ 70°C
– Dimensions: 70W x 45H x 60D mm (Excl Bracket)
– Connection: Terminated 4-Pin Male
– Power Supply: 12V DC (From Monitor)
– Extention Cable: 15m 4 Pin Male to 4 Pin Female
