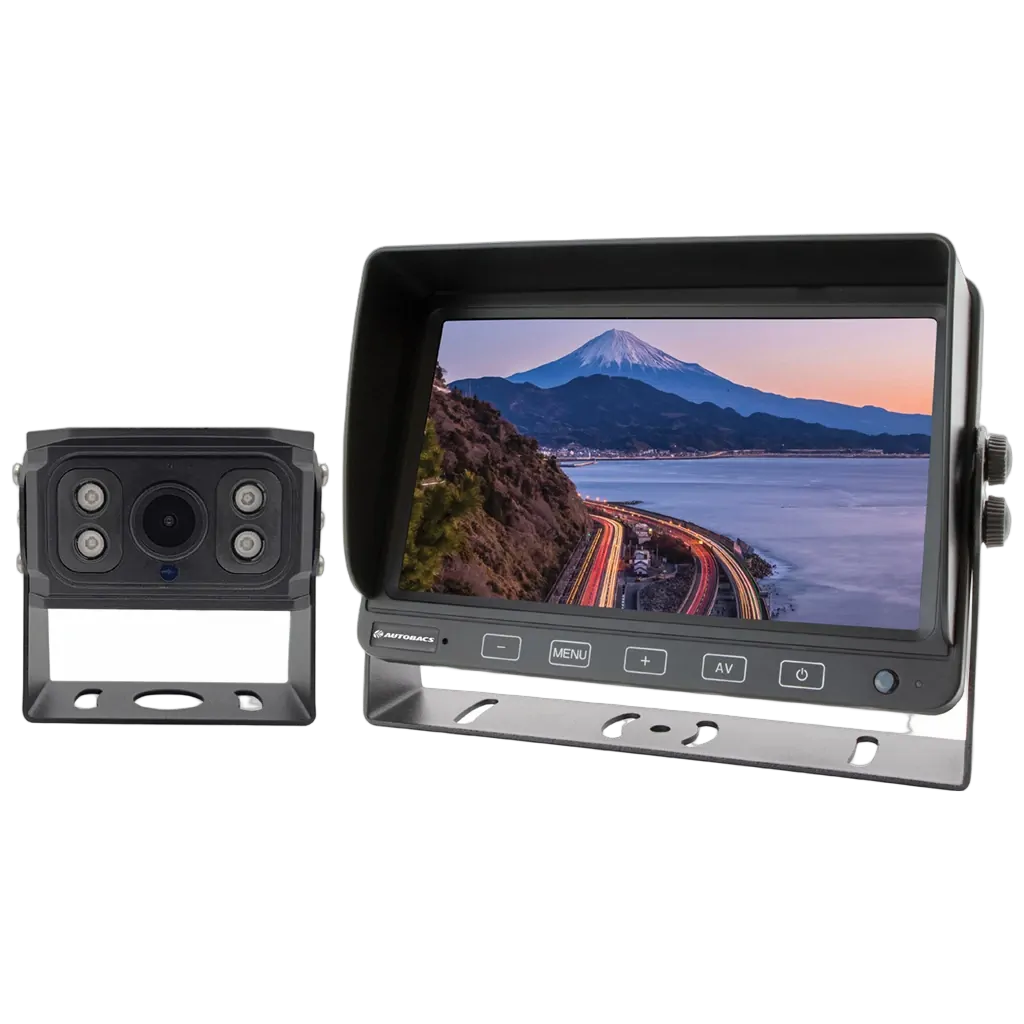

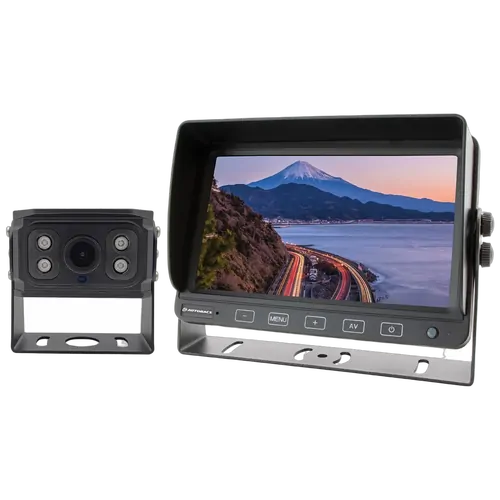

A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy-Duty construction makes it suitable for trucks, machinery and vehicles. The HD7130K also has the added flexibility of connecting up to 3 cameras. (1 camera included)

7” MONITOR SPECIFICATIONS
– TFT Panel: New Grade A LCD
– LCD Size: 7-Inch Diagonal
– Display Format: 16:9
– Resolution: (1024 x 600)
– Brightness: < 500 CD/M2
– Viewing Angles: 70° Left/Right/Up/Down
– Video System: Auto PAL/NTSC Select
– Video Connect: (3 x 4-Pin Male)
– Camera Triggers: (3 – CAM 1, CAM 2 & CAM3)
– Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
– Buttons: Touch Sensitive
– Guidelines: Selectable On/Off
– Audio: Built-in
– Operating Temp: -20°C to +70°C
– Power Input: 10-32V DC (Negative Ground)
– Dimensions: (179W x 122H x 28Dmm excluding bracket)
– Operating Temp: -20°C ~ +60°C

CAMERA SPECIFICATIONS
– Image Device: 1/3” IMX225LQR-C
– Diagonal Viewing Angle: 105°
– Horizontal Viewing Angle: 85°
– Signal System: PAL
– Effective Pixels: 1280H x 720V
– Resolution: 720p
– Sync System: Internal
– Orientation: Mirror Image
– Night Vision: 18 Infrared LED’s
– Illumination: 0.01 Lux with IR on
– Ingress Protection: IP68
– Integrated Microphone: Yes
– Operating Temp: -20 to 70° C
– Power Consumption: 3W, 250mA
– Dimensions: 98.3W x 67.7H x 68D mm
(including Bracket)
– Connection: Terminated 4-Pin Female
– Power Supply: 12V DC
