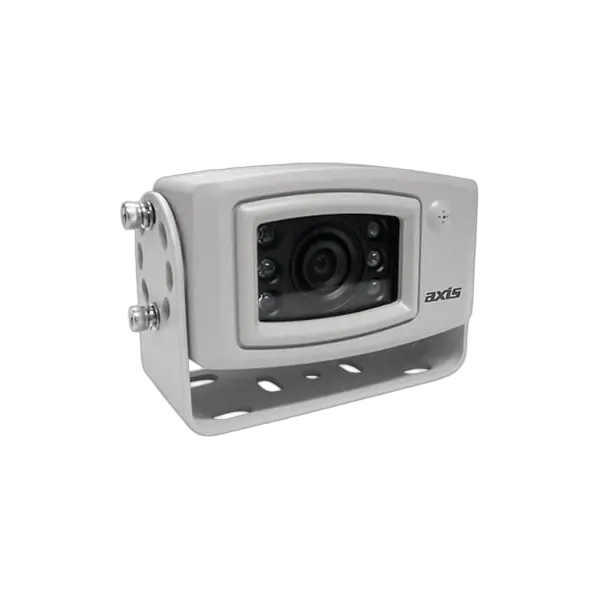

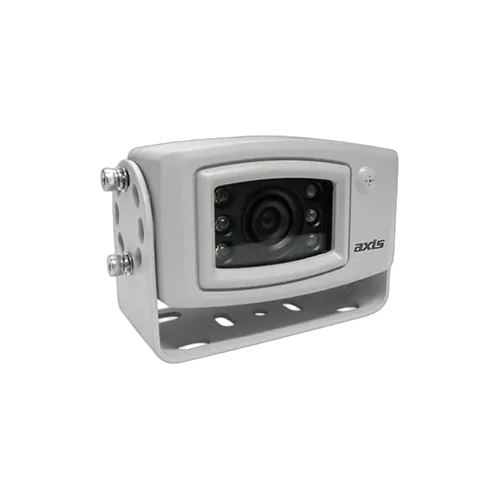

HEAVY DUTY TRUCK TYPE 1/3” CAMERA

Product specifications:

•     Image Device: 1/3” CCD
•     Diagonal Viewing Angle: 130°
•     Signal System: PAL
•     Effective Pixels: 752H x 582V
•     Resolution: 532 TV Lines
•     Picture Element: 0.47MP
•     Sync System: Internal
•     Orientation: Mirror (Modification possible for Non-Mirror)
•     Night Vision: Yes, 6 IR LEDs
•     Illumination: 0 Lux with IR LED on
•     Ingress Protection: IP69K
•     Integrated Microphone: Yes
•     Operating Temp: -30 to 80°C
•     Power Consumption: 100-170mA
•     Dimensions: 96W x 61D x 54H mm (Excluding Bracket)
•     Chassis: White, Diecast Aluminium
•     Connection: Terminated 4 Pin Male
•     Power Supply: 12V DC (9-14V)

INCLUDED:

•     Installation Manual
•     20m 4 Pin (Male) to 4 Pin (Female) Extension Cable
•     40cm Adapter Cable 4-Pin(F) to 2 RCA (Video-Yellow; Audio-White)
•     Mounting Bracket
•     Installation Hardware
•     2 Year Warranty
