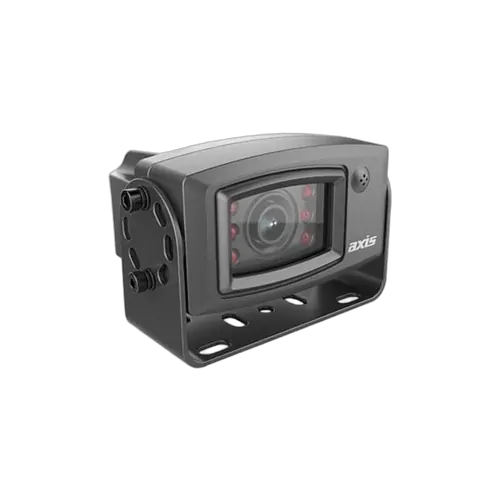

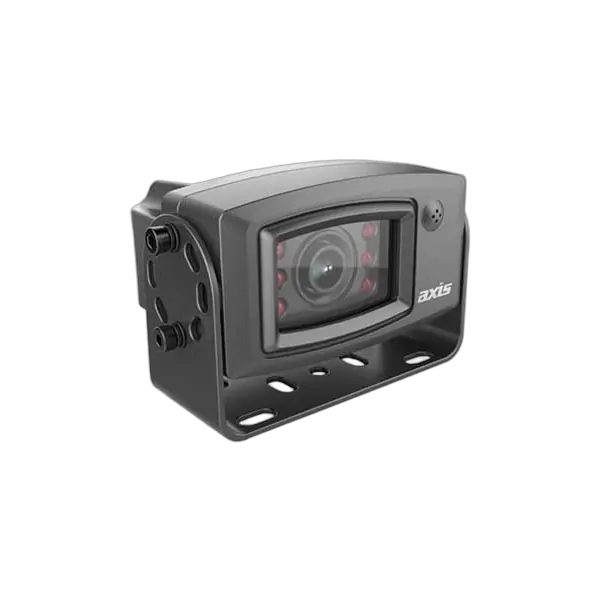

HEAVY DUTY TRUCK TYPE 1/3” CAMERA
Product specifications:
- Image Device: 1/3” CCD
- Diagonal Viewing Angle: 130°
- Signal System: PAL
- Effective Pixels: 752H x 582V
- Picture Element: 0.47MP
- Sync System: Internal
- Resolution: 532 TV Lines
- Orientation: Mirror (Modification possible for Non-Mirror)
- Night Vision: Yes, 6 IR LEDs
- Illumination: 0 Lux with IR LED on
- Ingress Protection: IP69K
- Integrated Microphone: Yes
- Operating Temp: -30 to 50°C
- Power Consumption: 100-170mA
- Dimensions: 96W x 61D x 54H mm (Excluding Bracket)
- Chassis: Charcoal, Diecast Aluminium
- Connection: Terminated 4 Pin Male
- Power Supply: 12V DC (9-14V)
INCLUDED:
- Installation Manual
- 20m 4 Pin (Male) to 4 Pin (Female) Extension Cable
- 40cm Adapter Cable 4 Pin(F) to 2 RCA (Video-Yellow; Audio-White)
- Mounting Bracket
- Installation Hardware
- 2 Year Warranty
SKU | ECC80 |
---|---|
Barcode # | 9321886003291 |
Brand | Axis |
Shipping Weight | 3.0000kg |
Assembled Length | 0.200m |
Assembled Height | 0.200m |
Assembled Width | 0.200m |
