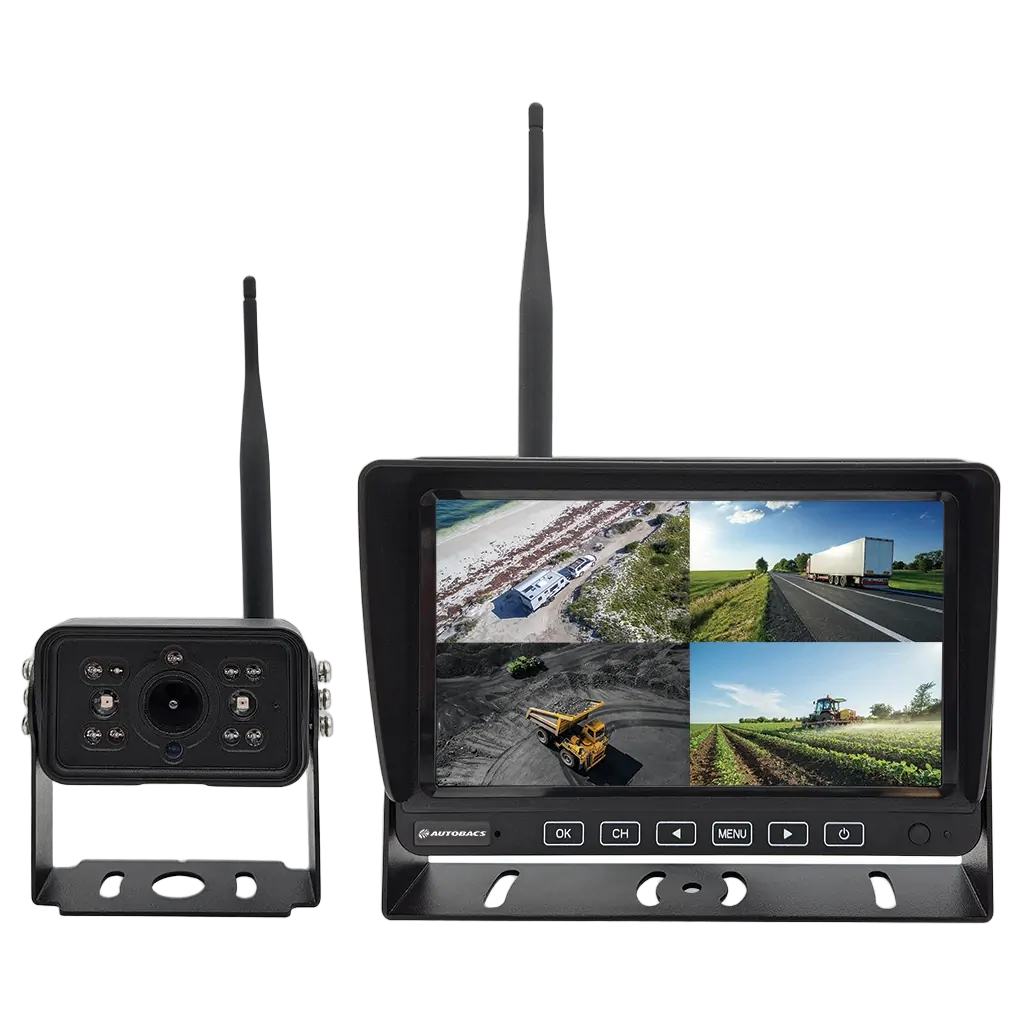

The HD74WK 7 inch high resolution wireless reversing system enhances driving safety. This system features a top-of-the-line camera with audio capabilities, capable of providing crystal-clear visuals even in low light conditions. With its quad view functionality, you can easily pair up to 4 cameras and monitor multiple angles, ensuring complete visibility of your vehicle’s surroundings.






Specifications
MONITOR

• Video decoding: NTSC and PAL
• Cameras Supported: Up to 4 cameras
• Resolution: 1024 x 600
• Contrast: 800
• Brightness: 500cd/m2
• Viewing Angle 85° (Left/Right/Up/Down)
• Viewing options: Single/Split Screen/Quad
• Reversing guidelines: Selectable On/Off
• Operating frequency: 2.412~2.4835 GHz
• Time delay: 180ms max
• Operating Voltage: 10-32V DC
• Current consumption: <400mA at 12V
• Operating temperature: -20°C~+70°C
• Storage temperature: -30°C~+80°

  Dimensions

Excluding Mount & Sunvisor: 179mm x122mm x 28mm

Including Mount & Sunvisor: 197mm x137mm x 63mm

CAMERA

• • Image Sensor: 1/2.9 inch Starlight HD
• • Active pixel array: 1920 x 1080
• • Viewing Angle: 120° Diagonal, 103° Horizontal
• • Resolution: 1000 TV lines
• • IP Rating: IP69K
• • Minimum Illumination: 0.1 lux
• • Operating Frequency: 2.412~2.4835GHz
• • Transmitter power: 20dbm
• • Operating voltage: 10-32V DC
• • Current Consumption: <300mA at 12V
• • Operating Temperature: -20°C~+70°C
• • Storage Temperature: -30°C~+80°C
• • Dimensions

Excluding Mount: 79mm x 49mm x 54mm

INCLUDED

• Monitor
• Camera
• Sunshade
• U-Bracket
• Wiring Harness
• Camera DC Power Cable
• Antennas
