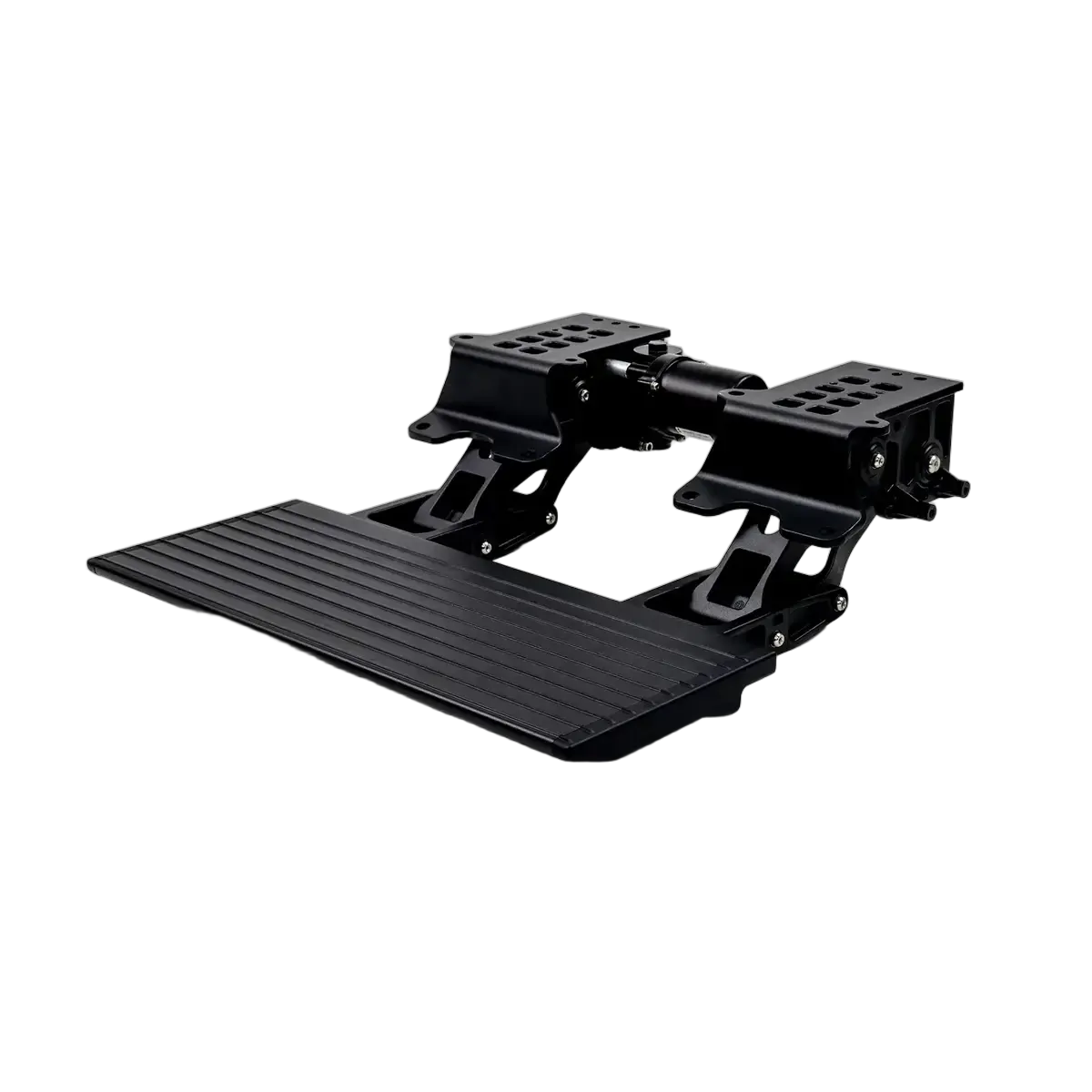

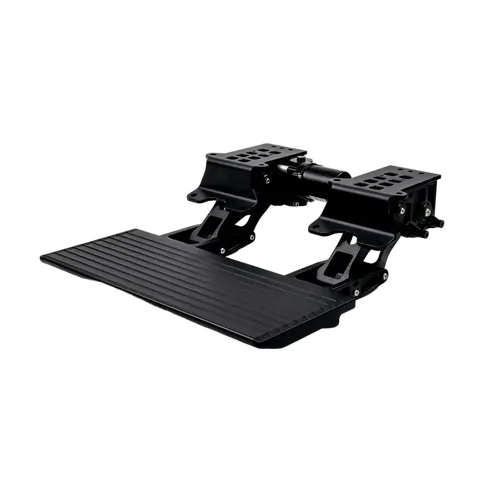

Elevate your caravan set up with the Aussie Traveller Premium Electric Doorstep. Carefully crafted to enhance your travel experience, this step is designed to add a touch of luxury to your journey. The step automatically extends open when you open the door, eliminating the need to search for the switch or manually extend the step when entering or exiting your caravan or RV.
Our Premium Electric Doorstep combines durability with a sophisticated matte black finish. Made from high-quality materials, designed to withstand the rigors of regular caravan use, while also enhancing the appearance of your vehicle. For added versatility the step can also be wired with a switch for full control on how you use the step.
Features:
- Sleek matte black finish
- Automatically extends when caravan door is opened
- Strong & durable
- Compact when retracted
- Luxury level doorstep experience
- Product weight 12.4kg

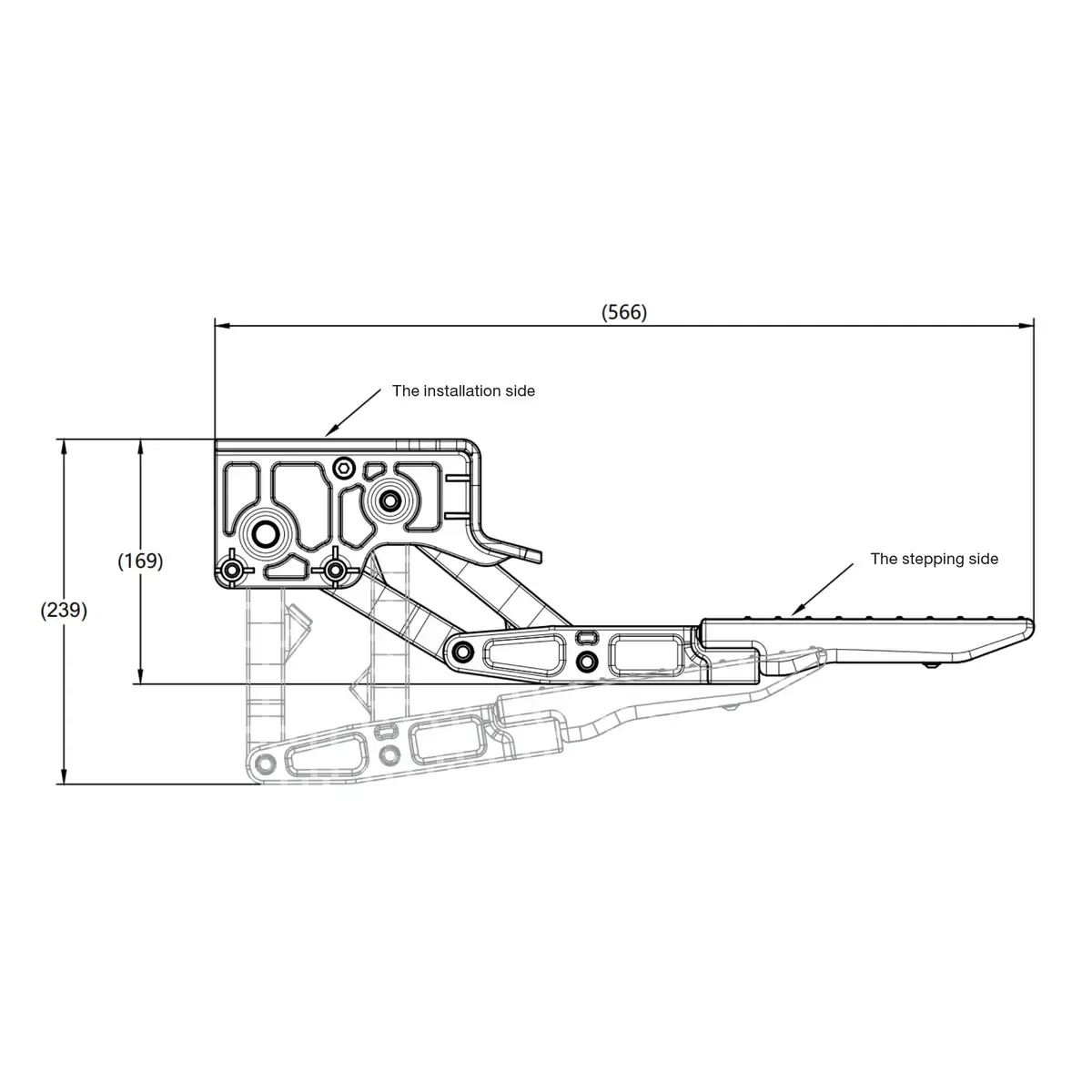

DIMENSIONS (W×L): 230×550mm
MOTION SPELL: 2.0S for the EDS extension from beginning to the fullest extent and 2.0S for the EDS retraction from beginning to the fullest extent
VOLTAGE Normal Voltage: 12V; Work Voltage: 6-12V (EDS stops working if the voltage <9V or >16V)
ELECTRICAL CURRENT: Non-load current of the motor: 2A; Max Instantaneous Current ≤7A; Locked Rotor Current ≤30A
ANTI-PINCH FORCE: Protect users from being pinched as the EDS extends/retracts, with anti-pinch force ≤100N
DOOR STEP ENDURANCE: 100,000 cycles of extension and retraction without anomaly
WORKING NOISE: Motor noise ≤50dB, overall noise ≤60dB
WORKING TEMP: Working temp range for EDS: -40˚C to 85˚C
STATIC BEARING CAPACITY: Greater than 280kg
MOTOR PROTECTION GRADE: Protection Grade: IP67
VEHICLE COMMUNICATION INTERFACE: Communication Interface: CAN/LIN
SURFACE SPRAYING: Salt Spray Test for over 720h and no surface corrosion detected
H/L TEMP ENDURANCE: The machine could still perform the two states(extension/retraction) over 100 times respectively after being placed in an environment with a temp of -40˚C for 40 hours, and then heated the environment to (+23±3) ˚C and kept it there for 4 hours.
H/L TEMP SHOCK: The machine managed to demonstrate a smooth cycle of extension and retraction, and qualified anti-pinch force and the noise level.
| SKU | 40900010001080 |
|---|---|
| Barcode # | OEBC686091 |
| Shipping Weight | 13.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.096000000m3 |
