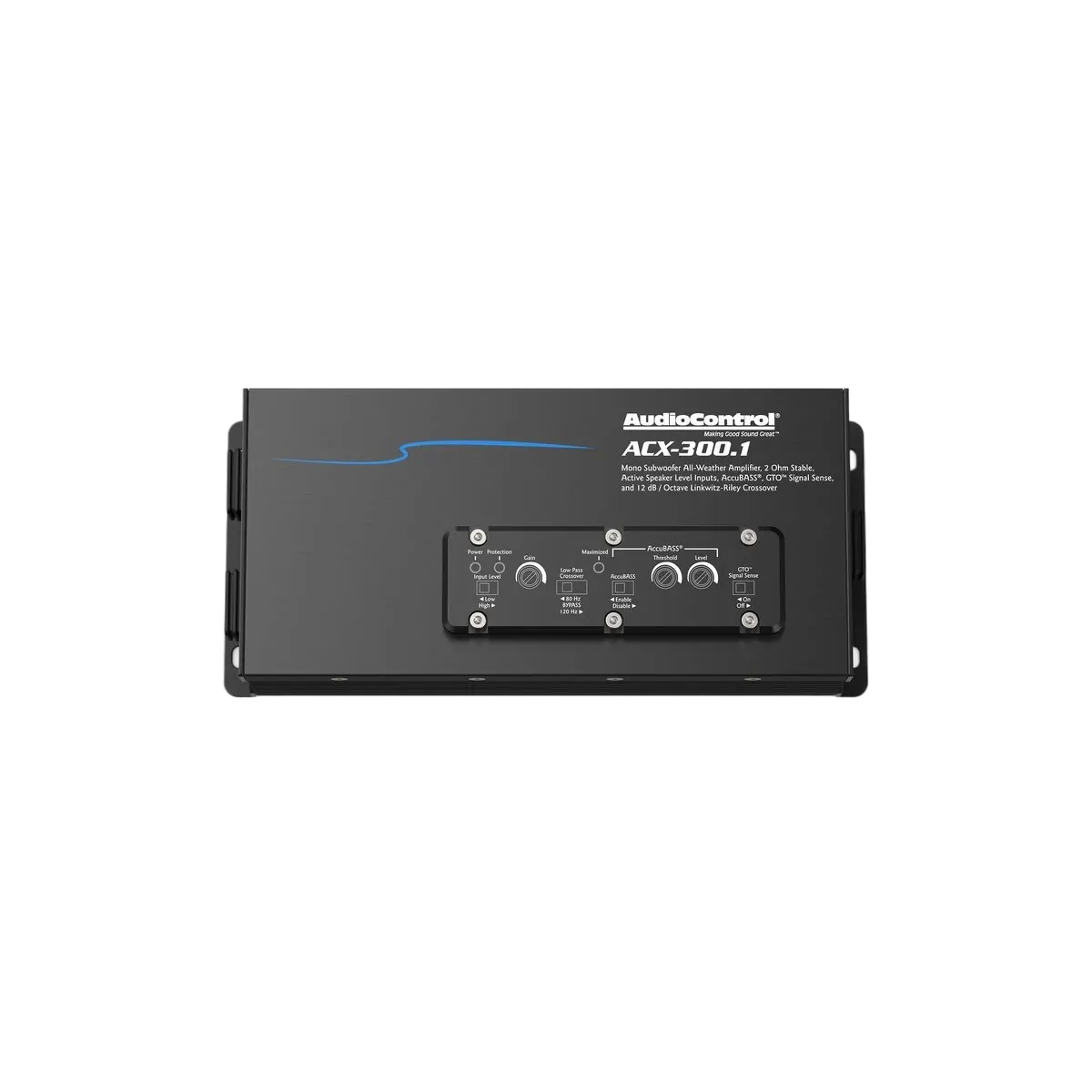

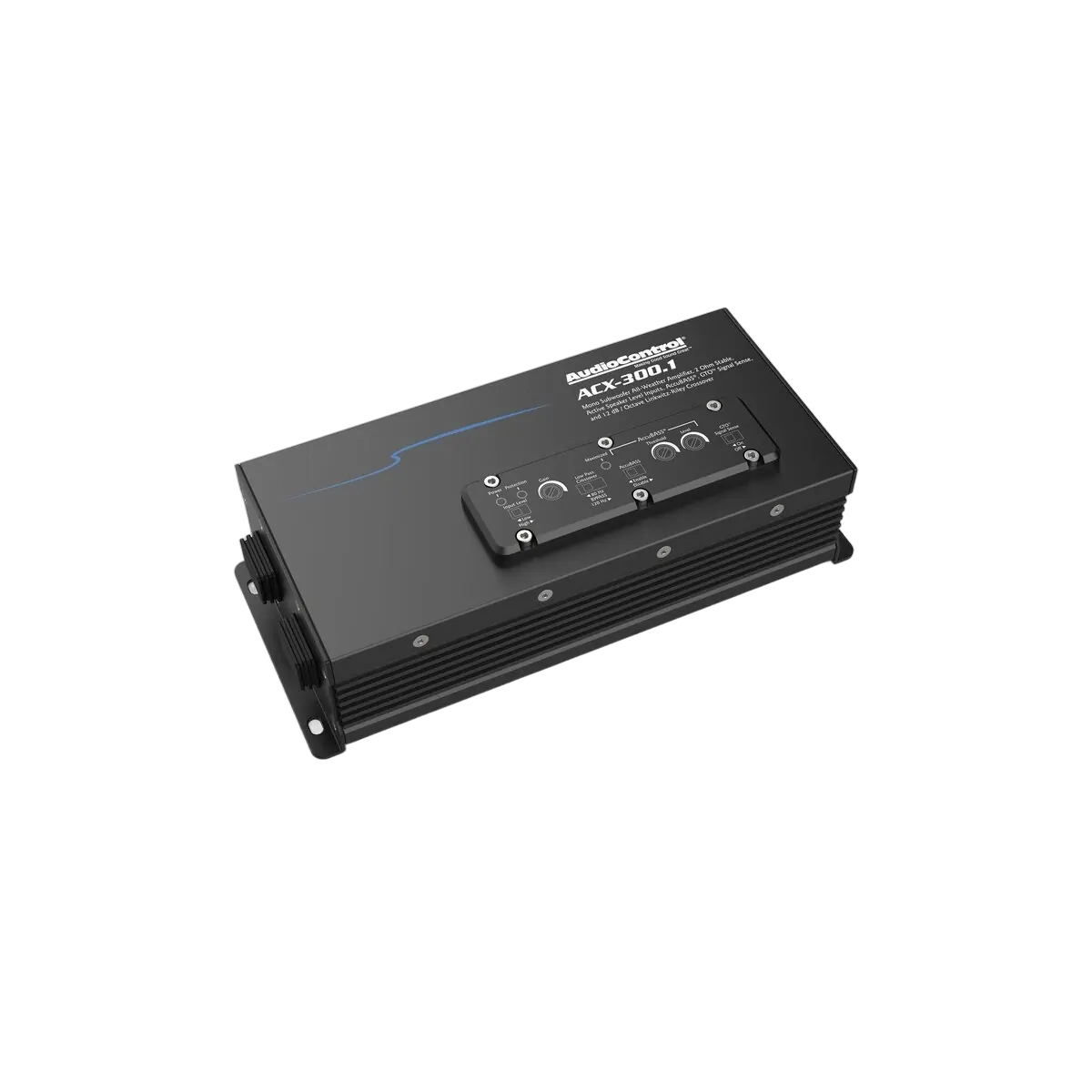

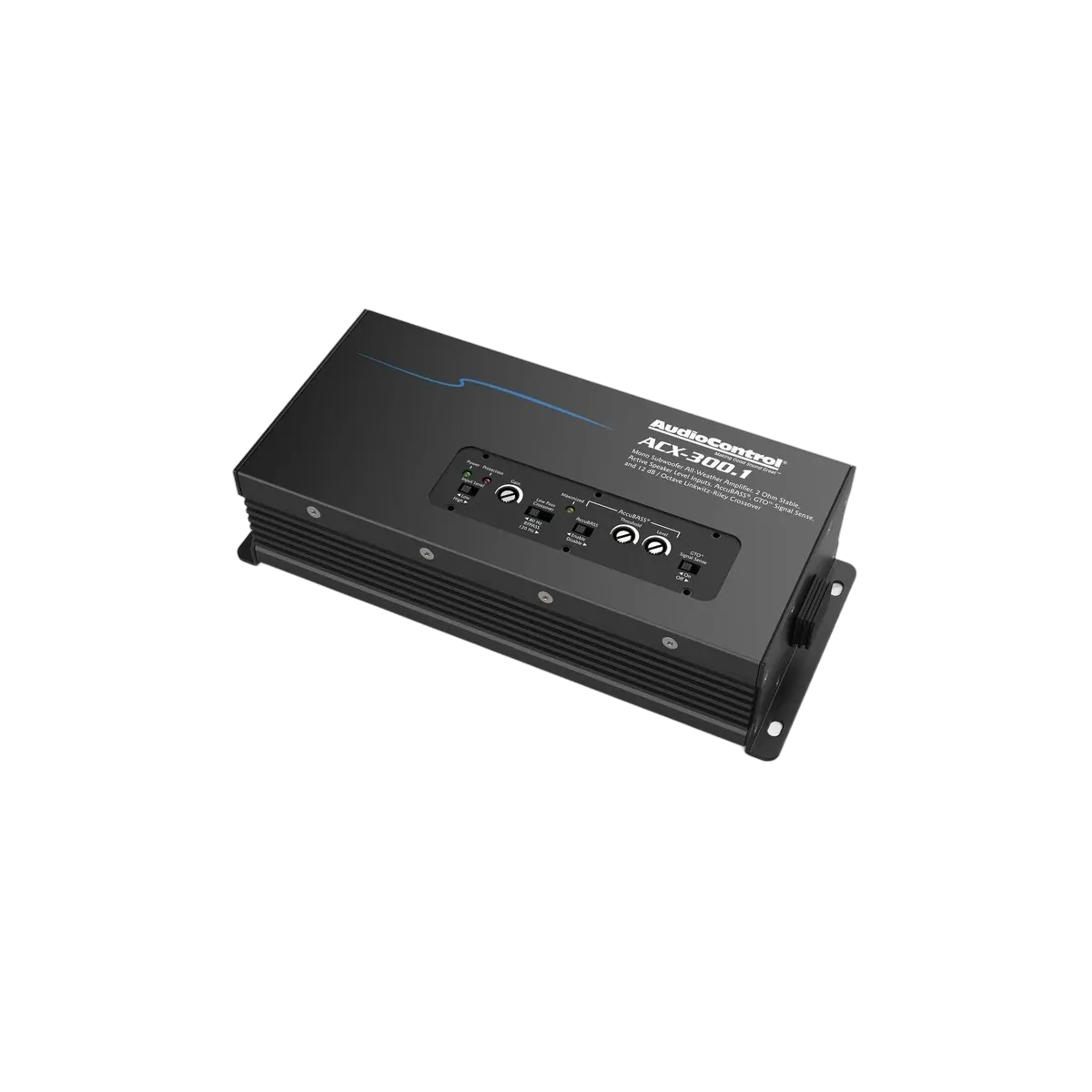

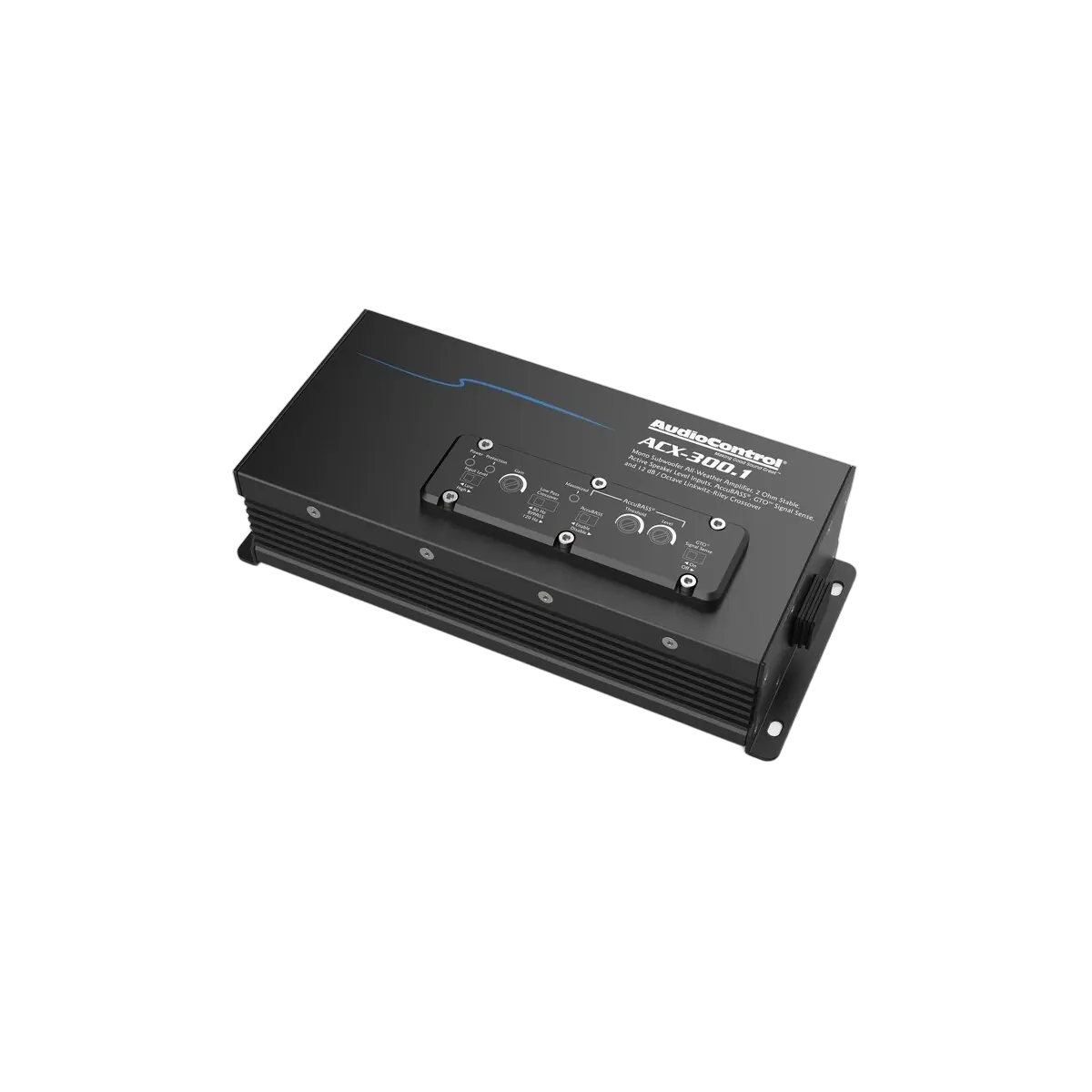

All Weather 1 Channel Amplifier
AudioControl’s ACX-300.1 all-weather amplifier delivers honest power levels to
the sound system in your boat, utv, motorcycle, and more.
Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl's range of ACX Amplifiers are designed for this exact reason.
Don't let extreme conditions get in the way of rocking out to your favourite sound track on your next overland or seagoing adventure.
Designed to withstand the elements, these small footprint amplifiers are the perfect solution for your next adventure
Big On Power
Don't let the small size of the ACX Amplifiers fool you. They may be small but the ACX-300.1 packs a punch with conservative 175w RMS at 4 ohm and 300w RMS at 2 ohm, enough to power a subwoofer or two with ease.
Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACX Series offer smooth, clean and detailed audio output to keep any audiophile happy.
Outdoor Proof Connections
Unlike regular amplifiers, the AudioControl ACX Series amplifiers feature waterproof quick connect style connections and a solid aluminum extrusion construction.
Sealed tight from the elements, these ACX amplifiers feature a IPX6 rating great for use with Marine and off road applications without loss of audio quality.
Control At Your Fingertips
Control your subwoofer bass level with ease using the optional ACR-1 Bass controller, compatible with the ACX-300.1 Monoblock amplifier thanks to the ACR port
(Available Separately)
Accurately Restored Bass
Using patented technology, each AudioControl D-4.800 includes the AccuBASS processor system.
Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.
What Do You Get?
Specifications
Inputs
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 2
- Speaker Level Input Voltage Range: 1 V – 12 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 175 W x 1 RMS
- 2 Ω – 300 W x 1 RMS
Performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
- THD+N: < 0.05%
- IPX Rating: IPX6
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
Whats In The Box
- Mono amplifier (attached 12" power/ground/input/output harnesses)
- 7" Power & ground harness (10 ga.)
- 7" Speaker output harness
- 16.5' ACR-1 Remote Level Control cable w/ a RJ-14 plug on one end and a male 3.5mm plug on other end (ACR-1 Remote Level Control not included)
- Power & ground connector (empty)
- 2 Crimp-on terminals for power & ground harness
- Harness locking pin
- 2 Rubber grommets
- Four 3/4" screws
- Quickstart guide
Product Overview Video
| Rated Continuous (RMS) Power @ 14.4v |
4Ω – 175 W RMS / 2Ω – 300 W RMS |
|---|---|
| High level Input Voltage |
12 V rms (120 Watts Per Channel) |
| Input Channels |
2 Channel RCA + 2 Channel High Level |
| RCA Pre-Outs |
NONE |
| Remote Turn On Feature |
YES |
| Total Harmonic Distortion Rating |
< 0.05% |
| Crossover Frequency |
Selectable 80Hz / 120Hz / Bypass |
| Crossover Type |
Independent 12 dB Linkwitz-Riley Crossovers |
| Dimensions |
9.0″W x 3.875″D x 2.25″H |
| SKU | ACX-300.1 |
|---|---|
| Barcode # | 851523007829 |
| Brand | AudioControl |
| Shipping Weight | 1.5000kg |

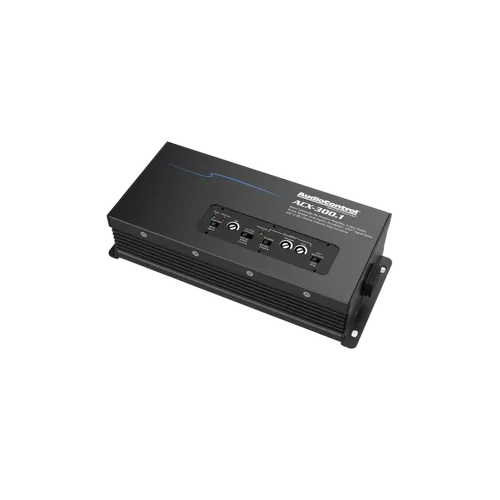

Audiocontrol Mono Block All Weather Amplifier
