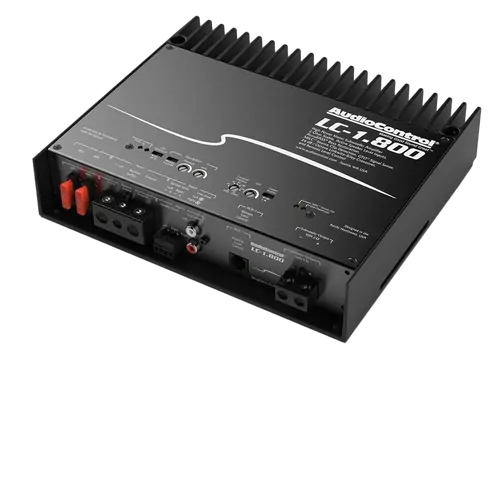

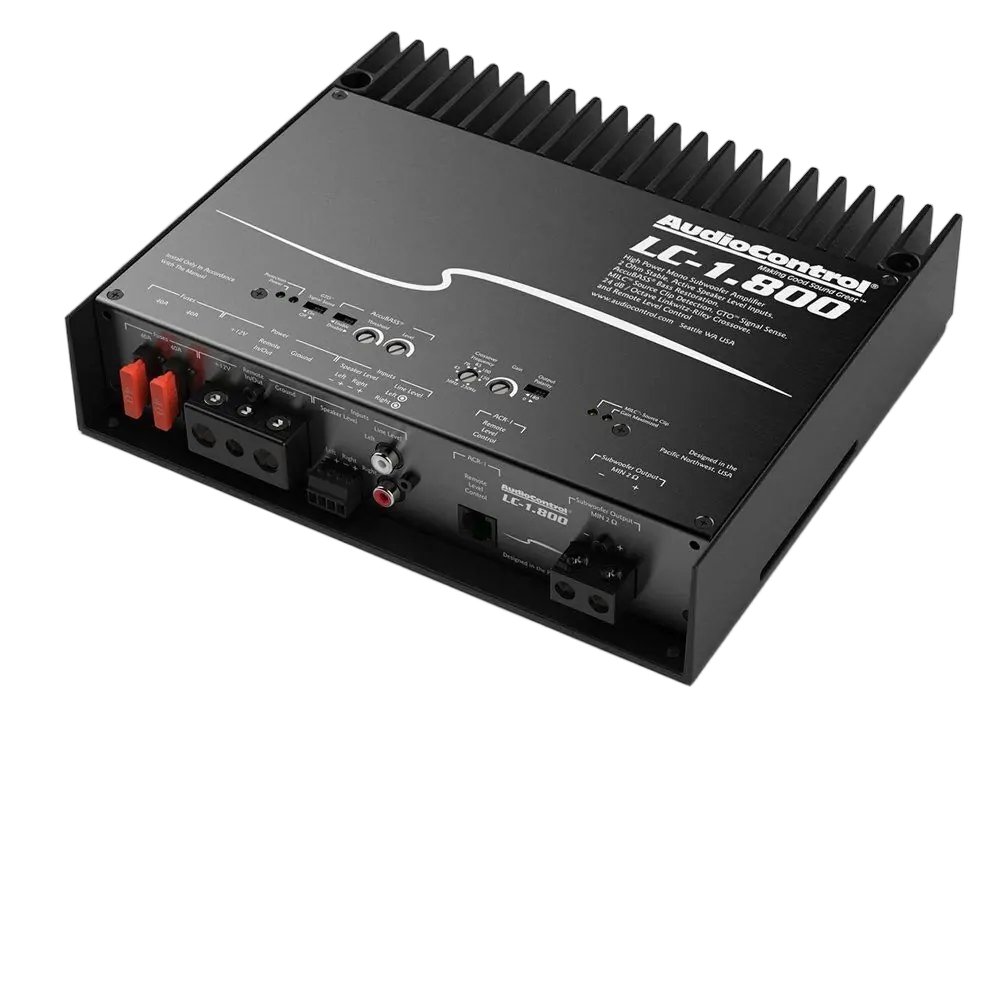

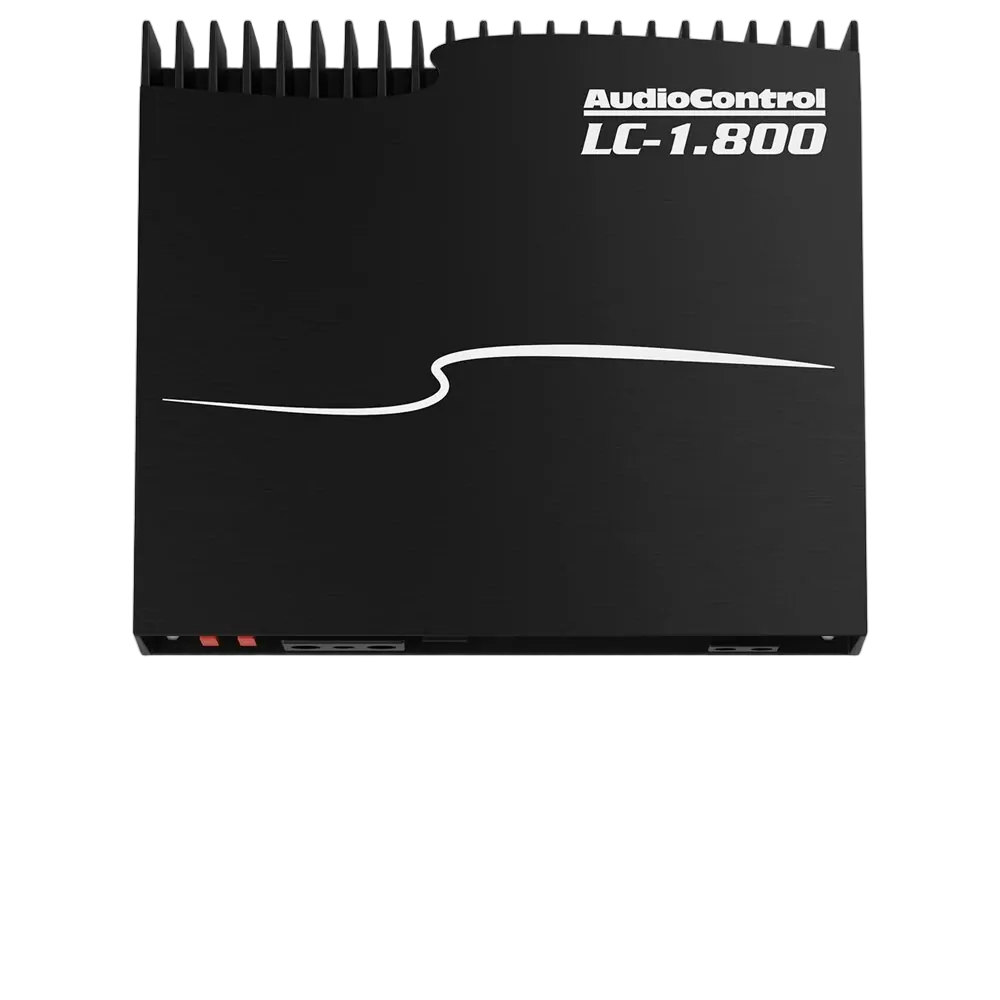

Monoblock Amplifier
When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.800 is no exception.
The Power You Need
With a long heritage of home audio, AudioControl's 800w Monoblock Amplifier offers some serious grunt matched with amazing sound quality.
Thanks to its efficient Class-D topology, the LC-1.800 offers full 10Hz to 30kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.
With over 800 Watts RMS at 2 Ohm, this packs a serious punch for many subwoofer installations.
The Input You Need
Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.
Accepting up-to 400 watts per channel with its high level speaker input using the same technology found in our LC range of interfaces, the LC-1.800 makes easy work of your factory audio system.
Using an aftermarket headunit?
We've got you covered with 2 channels of low level RCA input
Maximum Sound Quality
Modern vehicles have all the features you need, just sometimes not the sound quality you wanted. This can be improved by adding an aftermarket amplifier.
The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.
All of this can easily be adjusted using the precision indented rotary pot controls and high quality switches at the top of the amplifier for easy setup and control.
Get That BASS!
Using patented technology, each AudioControl LC-1.800 includes the AccuBASS processor system.
Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.
Plug & Play Your Audio Away
With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.
Available for a select wide range of makes and models including:
- Audi
- BMW
- Citroen
- Ford
- Holden
- Honda
- Hyundai
- GM
- KIA
- Mazda
- Skoda
- Subaru
- Toyota
- Volkswagen and more!
(available Separately. Please check compatibility)
What Do You Get?
Specifications

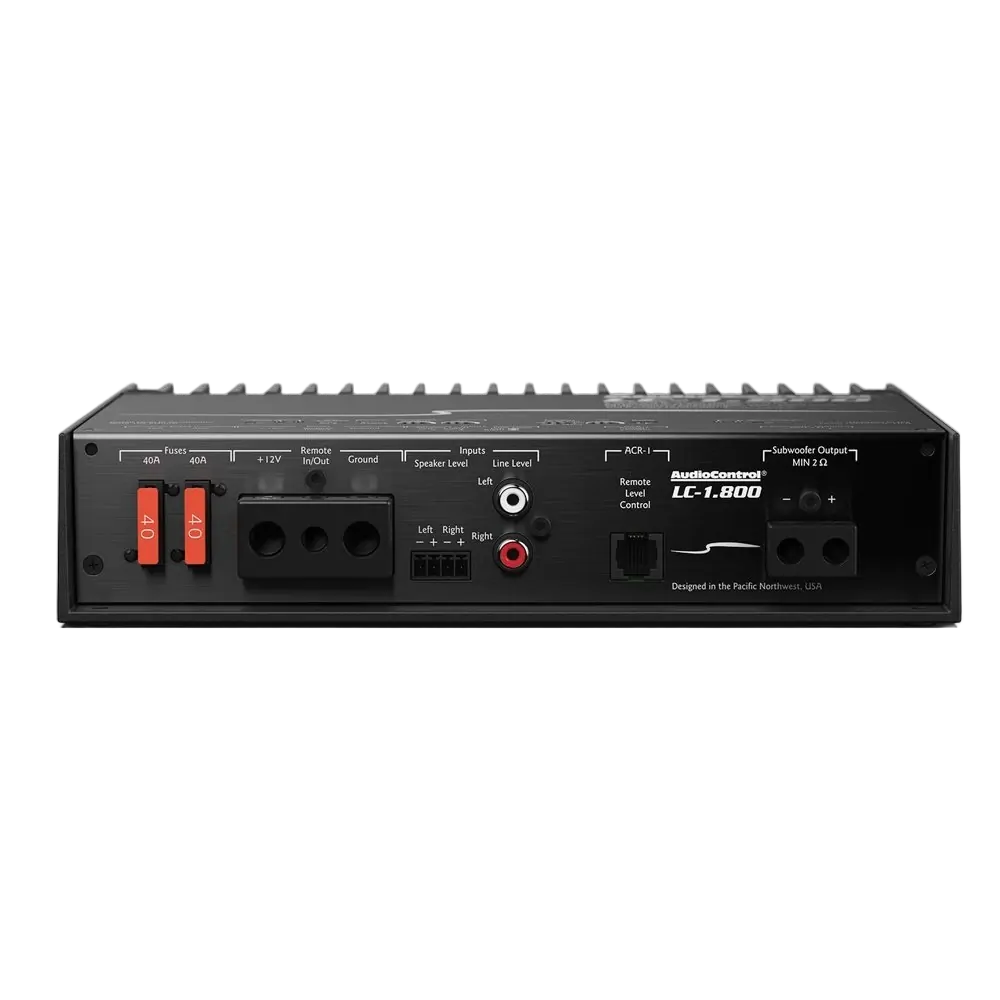

Inputs
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 2
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 500 W RMS
- 2 Ω – 800 W RMS
Performance
- Frequency Response: 10 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 500 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 2 x 40 A
- Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
- PFM Subsonic Filter: 24 Hz
Whats In The Box
1x Amplifier
1x Speaker Connector
2x 40 Amp Fuse
1x Manual
1x Awesomeness
Product Overview Video
Rated Continuous (RMS) Power @ 14.4v |
4Ω – 500w RMS / 2Ω – 800w RMS |
---|---|
High level Input Voltage |
40v (400 Watts) Per Channel |
Input Channels |
2 Channel RCA + 2 Channel High Level |
RCA Pre-Outs |
2 Channel Stereo |
Remote Turn On Feature |
YES |
Total Harmonic Distortion Rating |
0.01% |
Crossover Frequency |
Adjustable From 30 Hz – 230 Hz |
Crossover Type |
24 dB/octave Linkwitz-Riley |
Dimensions |
9″W x 7.95″D x 2.1″H |
SKU | AC-LC-1.800 |
---|---|
Barcode # | 851523007386 |
Brand | AudioControl |
Shipping Weight | 1.5000kg |
