Selected Part Number: AC-LC-6.1200
General Product Information



6 Channel Amplifier


Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.



Maximum Sound Quality

The AudioControl LC6.1200 Amplifier offers two great features for unlocking amazing sound in your vehicle. Serious power and extensive control. The amplifier can be setup as either 6,5 or 3 channel configurations to suit your needs.



Designed for us with many different combinations including

  • Active 2 Way Component Speakers + Passive Rear
  • Active 3 Way Component Speakers
  • Front and Rear Speakers with Subwoofer
  • Front Speakers and Dual Subwoofers

You could even use it for 3x Subwoofers!



Big On Output

With a long heritage of home audio, AudioControl's 6 Channel Matrix Amplifier offers some serious grunt matched with amazing sound quality.



Thanks to its efficient Class-D topology, the LC-6.1200 offers full 20Hz to 20kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.



With up to 200 Watts RMS per channel and over 400w Bridged, this packs a serious punch with its 6 channels of output.



We've even included an assignable stereo RCA output for additional amplifier connection. Great for external mono block amplifiers.



The Input You Need

Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.



With 8 Channels of high level input accepting up-to 400 watts per channel using the same technology found in our LC range of interfaces, the LC-6.1200 makes easy work of taking all of these signals and giving you the smooth full range output you want.



Using an aftermarket headunit?

We've got you covered with 6 channels of low level RCA input for direct control of each channel.



Get That BASS!

Using patented technology, each AudioControl LC6.1200 amplifier includes the AccuBASS processor system.



Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.







Complete Control

Modern vehicles have all the features you need, just sometimes not the sound quality you wanted. This can be improved by adding an aftermarket amplifier.



Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units.



The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.



All of this can easily be adjusted using the precision indented rotary pot controls and high quality switches at the top of the amplifier for easy setup and control.



Control At Your Fingertips

Control your subwoofer bass level with ease using the optional ACR-1 Bass controller, compatible with the LC-6.1200 6 channel amplifier thanks to the ACR port now featured on each LC Series Amplifier.



(Available Separately)



Plug & Play Your Audio Away

With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.



Available for a select wide range of makes and models including:

  • Audi
  • BMW
  • Citroen
  • Ford
  • Holden
  • Honda
  • Hyundai
  • GM
  • KIA
  • Mazda
  • Skoda
  • Subaru
  • Toyota
  • Volkswagen and more!



(Available Separately. Please check compatibility)







What Do You Get?

Specifications

Inputs

  • Preamp Inputs: 6 Balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms



Outputs

Rated Continuous (RMS) Power at 14.4V:

  • 4 Ω – 125 W x6 RMS
  • 2 Ω – 200 W x6 RMS
  • 4 Ω – 400 W RMS BRIDGED
  • Assignable Stereo RCA Output



Performance

  • Frequency Response: 10 Hz – 30 kHz
  • Signal to Noise: 102 dBA, Ref 200 W @ 4 Ohm
  • THD+N: < 0.1%
  • Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 3 x 40 A
  • Crossover: 3-Way Linkwitz-Riley, Adjustable from 30Hz – 5000Hz
  • GTO Turn On Circuitry
  • AccuBass Bass Restoration
  • Channel Summing
  • MILC Maximum Input Level Control (Patent Pending)
  • PFM Subsonic Filter
  • Optional ACR-1 Bass Controller (Not Included)



Whats In The Box

1x Amplifier

1x Speaker Connector

3x 40 Amp Fuse

1x Manual

1x Awesomeness

Check Out These Recommended Accessories

6000 Series RCA Lead

Part Number: SI6217

Plug & Play Harness

Part Number: AC-AMPH-3M

Remote Bass Controller

Part Number: AC-ACR-1

4GA Amplifier Wiring Kit

Part Number: SK4241

Product Overview Video

Important Product Compatibility Information
Rated Continuous (RMS) Power @ 14.4v

4 Ω – 125 W x 6 RMS / 2 Ω – 200 W x 6 RMS / 4 Ω – 400 W BRIDGED RMS

High level Input Voltage

40v (400 Watts) Per Channel

Input Channels

6 Channel RCA + 8 Channel High Level

RCA Pre-Outs

2 Channel Stereo

Remote Turn On Feature

YES

Total Harmonic Distortion Rating

0.01%

Crossover Frequency

Adjustable From 30 Hz – 300 Hz

Crossover Type

Independent 12 dB Linkwitz-Riley Crossovers

Dimensions

12.0"W x 8.0"D x 2.1"H

Product Vehicle Applications
SKU AC-LC-6.1200
Barcode # 841992124837
Brand AudioControl
Shipping Weight 5.0000kg

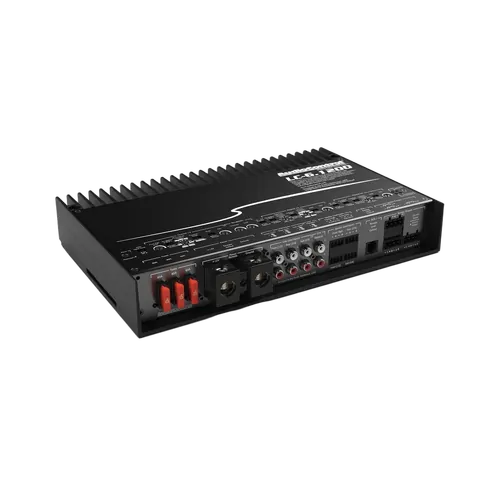

Audiocontrol Lc Series 6 Channel Amplifier W/Lc8I
