Selected Part Number: AC-LC-4.800
General Product Information

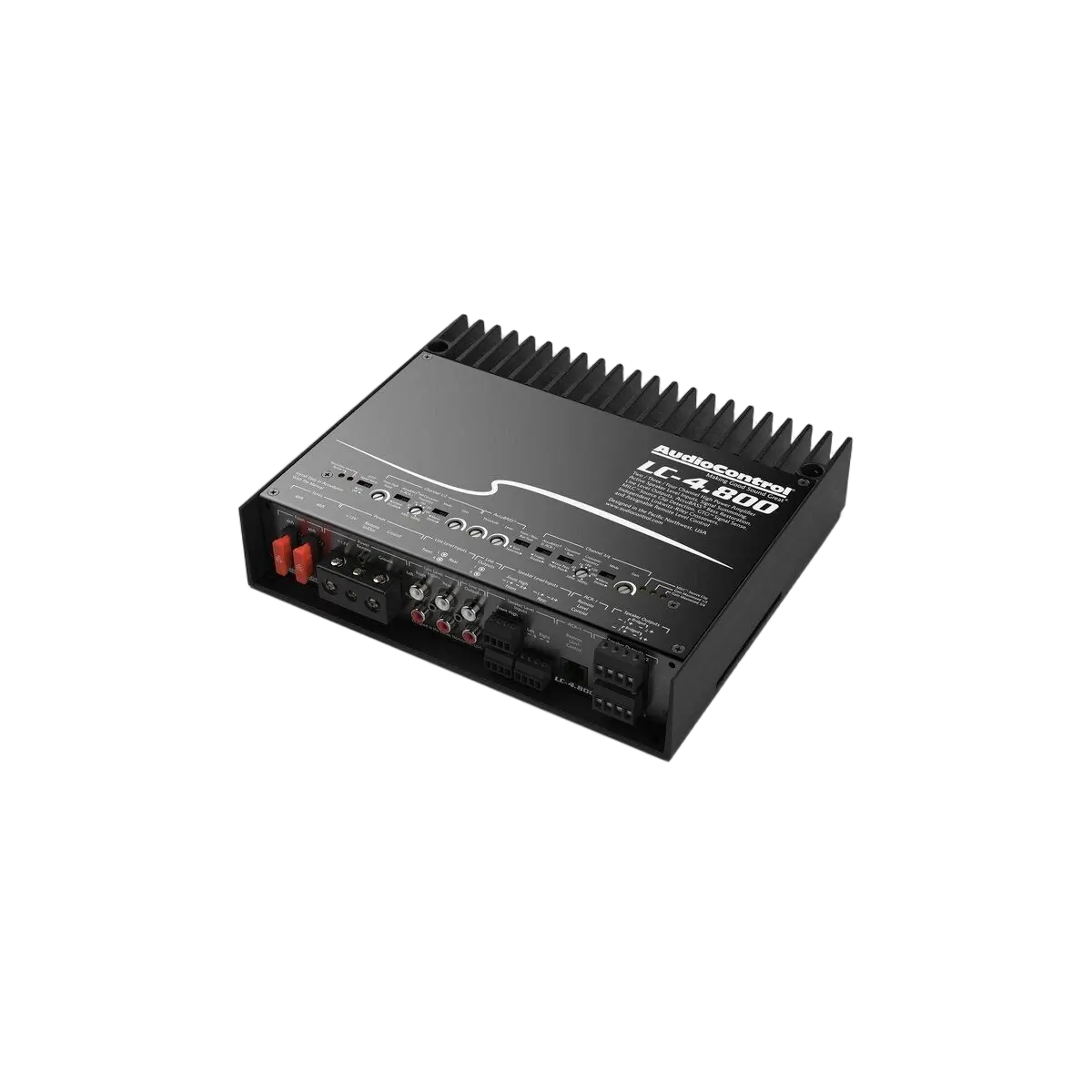

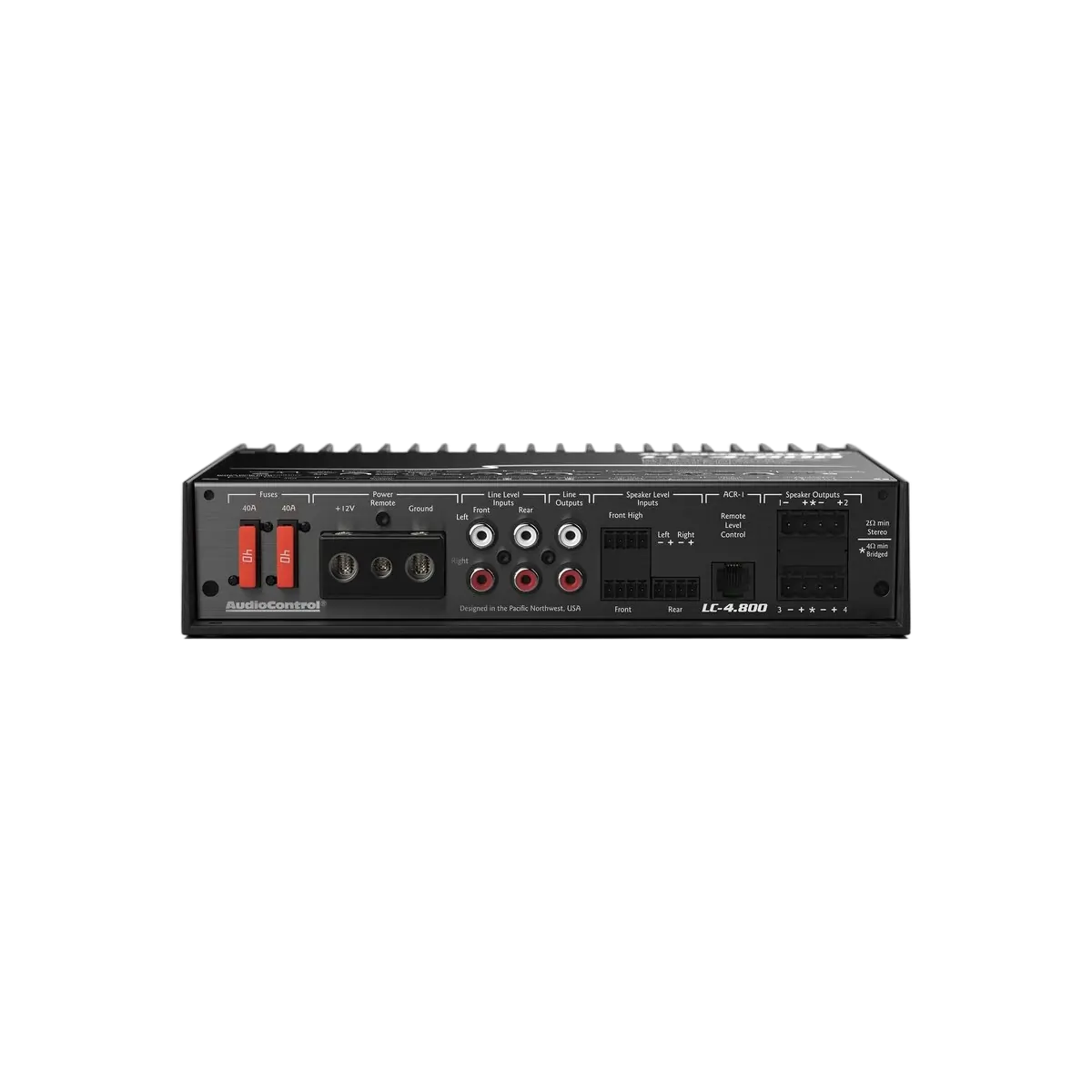

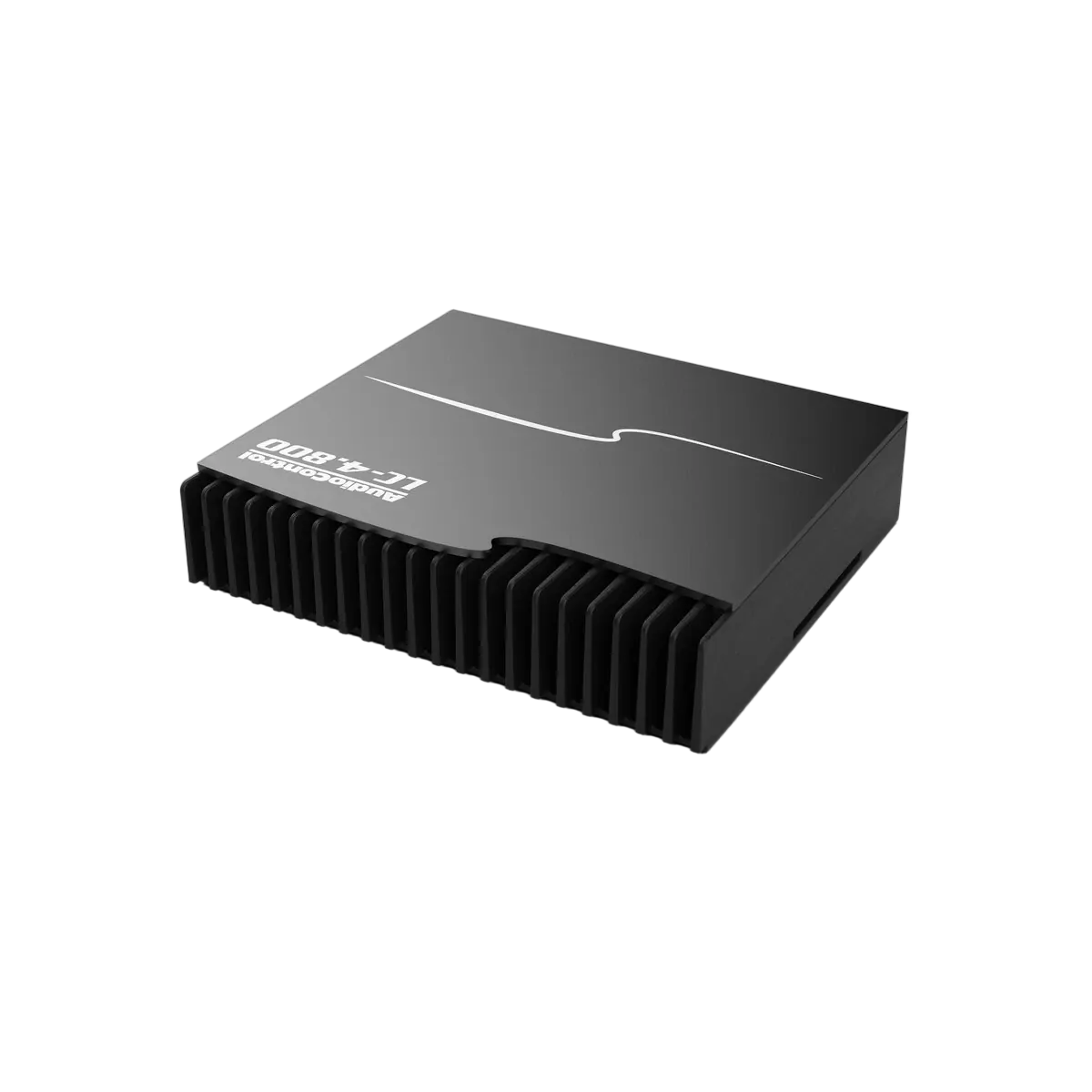

4 Channel Amplifier


“Making Good Sound Great” is our passion at AudioControl and that legacy continues with the LC-4.800 multi-channel amplifier.



Maximum Sound Quality

The AudioControl LC4.1200 Amplifier offers two great features for unlocking amazing sound in your vehicle. Serious power and extensive control. The amplifier can be setup as either 4,3 or 2 channel configurations to suit your needs.



Designed for use with many different combinations including

Active 2 Way Component Speakers

Front and Rear Passive Speakers

Front Passive Speakers & Subwoofer

You could even use it for 2x Subwoofers!



Big On Output

With a long heritage of home audio, AudioControl's 4 Channel Matrix Amplifier offers some serious grunt matched with amazing sound quality.



Thanks to its efficient Class-D topology, the LC-4.800 offers full 20Hz to 20kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.



With up to 200 Watts RMS per channel and over 400w Bridged, this packs a serious punch with its 4 channels of output.



We've even included an assignable stereo RCA output for additional amplifier connection. Great for external mono block amplifiers.



The Input You Need

Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.



With 6 Channels of high level input accepting up-to 400 watts per channel using the same technology found in our LC range of interfaces, the LC-4.800 makes easy work of taking all of these signals and giving you the smooth full range output you want.



Using an aftermarket headunit?

We've got you covered with 4 channels of low level RCA input for direct control of each channel.



Get That BASS!

Using patented technology, each AudioControl LC-4.800 includes the AccuBASS processor system.



Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.







Complete Control

Featuring eight active speaker level inputs with summing, coupled with an intuitive Linkwitz-Riley crossover network, the LC-4.800 can be easily integrated with most factory installed source units.



The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.



All of this can easily be adjusted using the precision indented rotary pot controls and high quality switches at the top of the amplifier for easy setup and control.



Control At Your Fingertips

Control your subwoofer bass level with ease using the optional ACR-1 Bass controller, compatible with the LC-4.800 4 Channel amplifier thanks to the ACR port.



(Available Separately)



Plug & Play Your Audio Away

With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.



Available for a select wide range of makes and models including:

  • Audi
  • BMW
  • Citroen
  • Ford
  • Holden
  • Honda
  • Hyundai
  • GM
  • KIA
  • Mazda
  • Skoda
  • Subaru
  • Toyota
  • Volkswagen and more!

(available Separately. Please check compatibility)







What Do You Get?

Specifications

Inputs

  • Preamp Inputs: 4 Balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 6
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms



Outputs

Rated Continuous (RMS) Power at 14.4V:

  • 4 Ω – 125 W x4 RMS
  • 2 Ω – 200 W x4 RMS
  • 4 Ω – 400 W RMS BRIDGED



Performance

  • Frequency Response: 10 Hz – 30 kHz
  • Signal to Noise: 102 dBA, Ref 200 W @ 4 Ohm
  • THD+N: < 0.1%
  • Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 12x 40 A
  • Crossover: Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz
  • PFM Subsonic Filter: 24 Hz



Whats In The Box

1x Amplifier

1x Speaker Connector

2x 40 Amp Fuse

1x Manual

1x Awesomeness

Check Out These Recommended Accessories

16GA Speaker Cable

Part Number: ST16SPKB

Plug & Play Harness

Part Number: AC-AMPH-3M

Remote Bass Controller

Part Number: AC-ACR-1

4GA Amplifier Wiring Kit

Part Number: SK4241

Product Overview Video

Important Product Compatibility Information
Rated Continuous (RMS) Power @ 14.4v

4 Ω – 125 W x 4 RMS / 2 Ω – 200 W x 4 RMS / 4 Ω – 400 W BRIDGED RMS

High level Input Voltage

40v (400 Watts) Per Channel

Input Channels

4 Channel RCA + 6 Channel High Level Input

RCA Pre-Outs

2 Channel Stereo

Remote Turn On Feature

YES

Total Harmonic Distortion Rating

0.01%

Crossover Frequency

Adjustable From 30 Hz – 300 Hz

Crossover Type

Independent 12 dB Linkwitz-Riley Crossovers

Dimensions

9″W x 7.95″D x 2.1″H

Product Vehicle Applications
SKU AC-LC-4.800
Barcode # 855814005785
Brand AudioControl
Shipping Weight 1.5000kg
