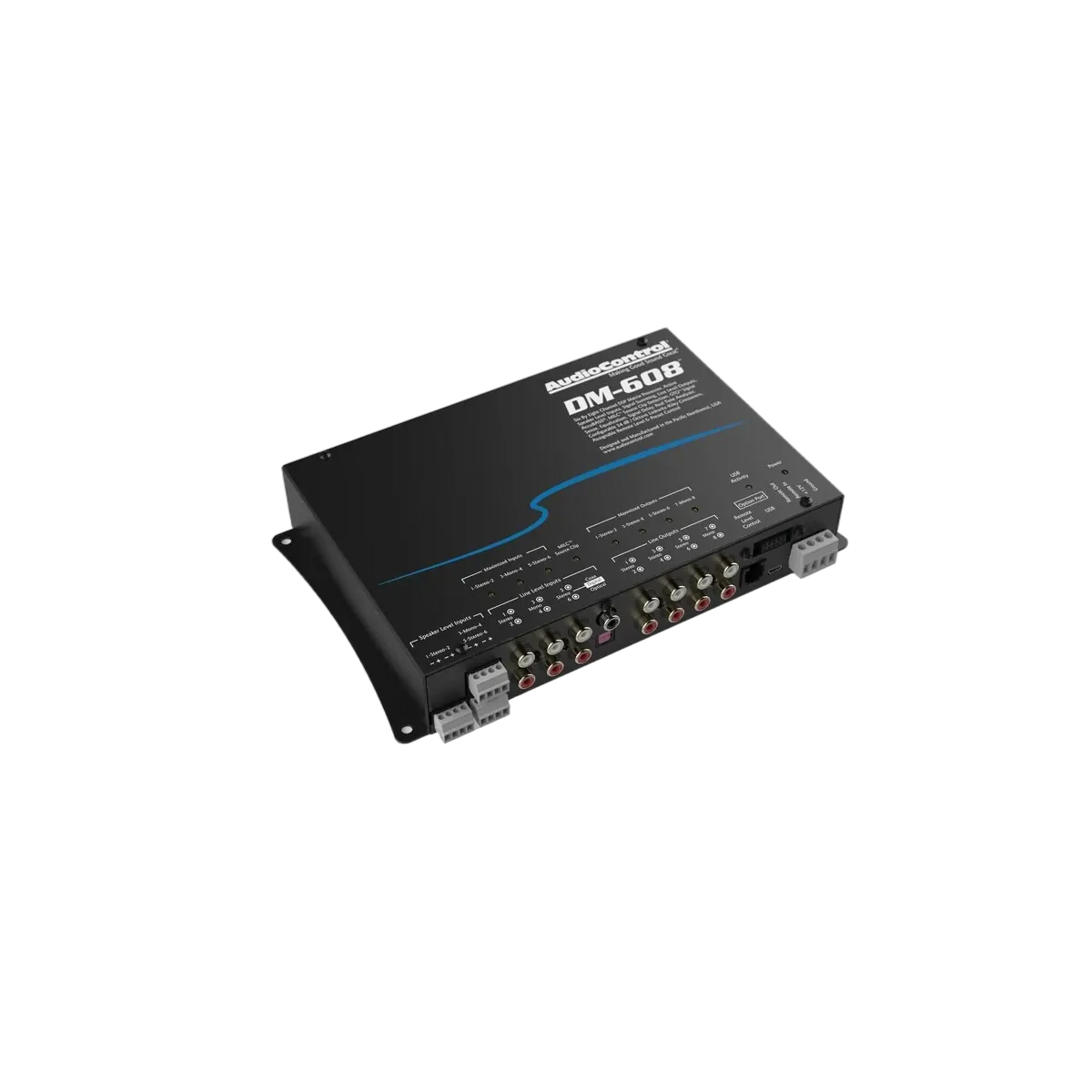

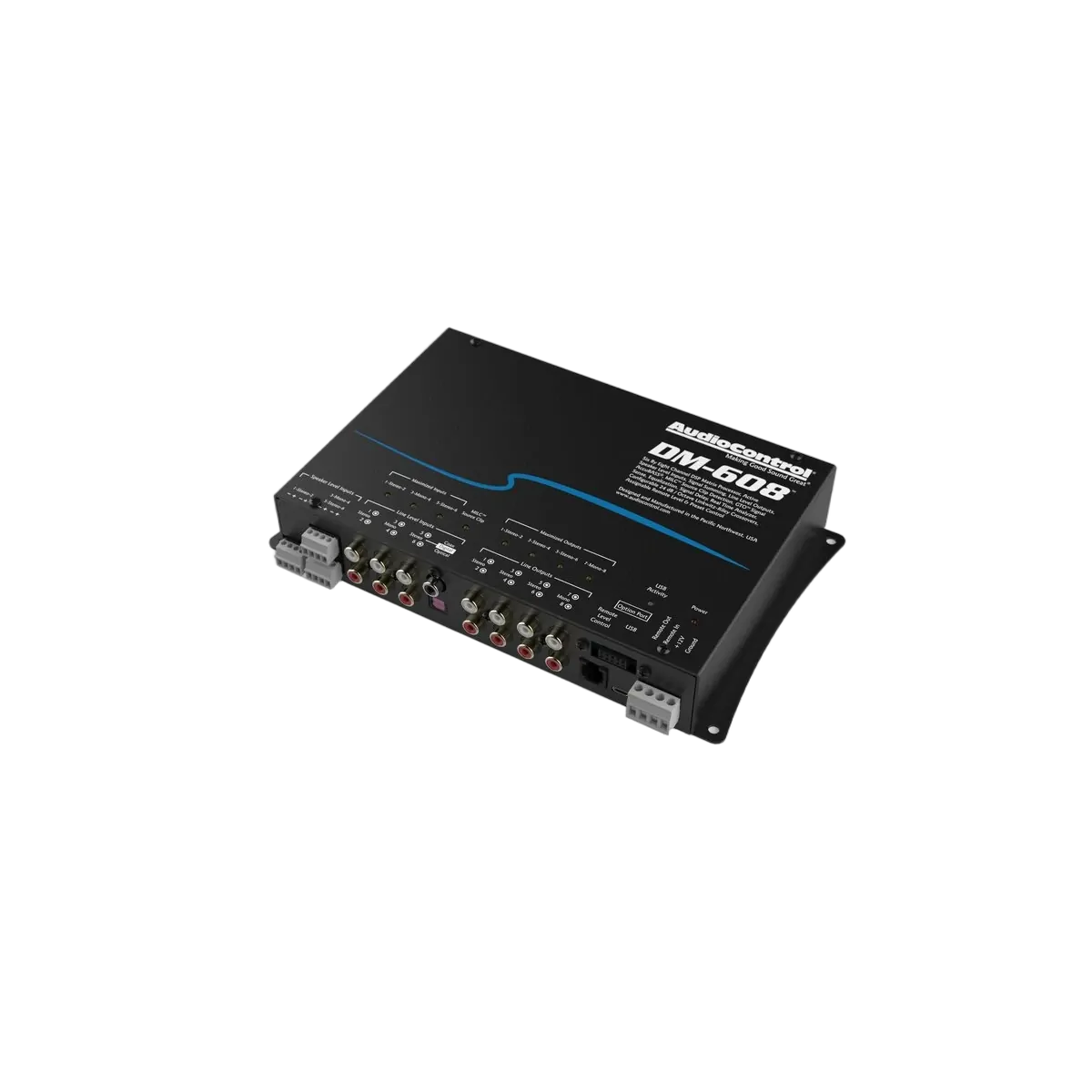

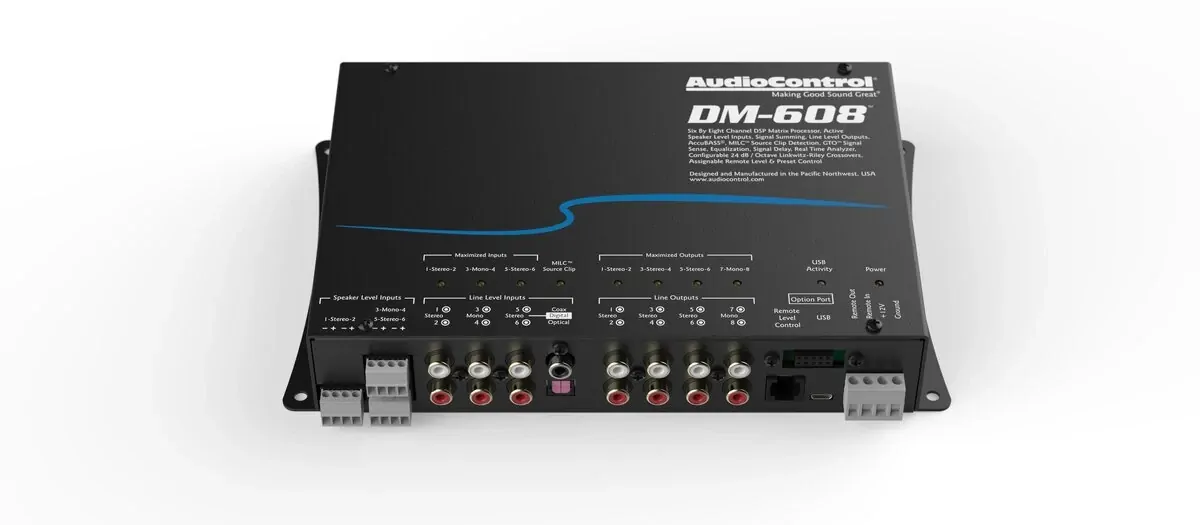

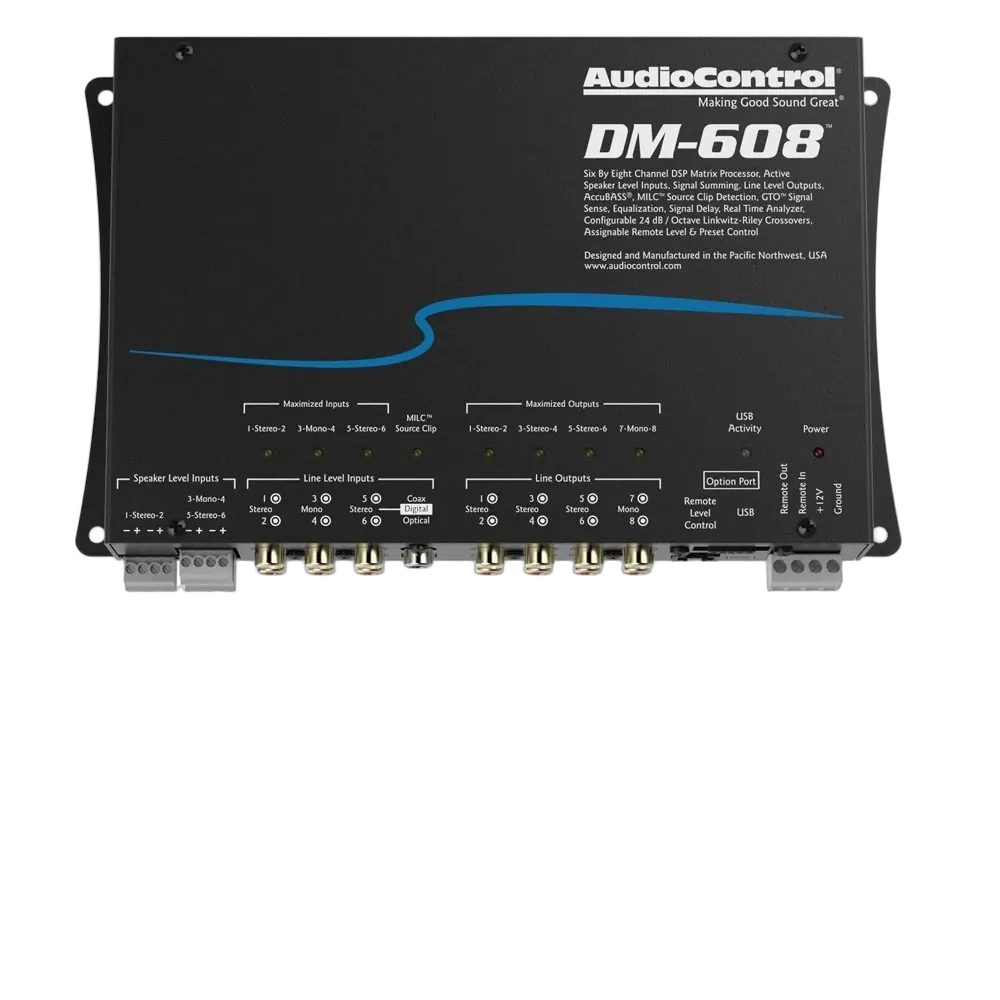

When you require total control and optimization to achieve great sound quality, AudioControl DM-608 Processor is the solution.

The powerful DM-608 processor allows users to truly optimise the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of Making Good Sound Great.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level, and digital audio inputs, providing up to 10 channels of output. AudioControl smart user interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple layout. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay, and phase correction, plus AudioControl proprietary features like AccuBASS, GTO Signal Sense, and MILC as well as integrated input and output RTAs.

The built-in Option Port on the DM-608 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers, and interface solutions.

Designed to be the ultimate in sound quality and enhanced audio performance, the DM-608 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.

Features

• Smart User Interface software included
• Input and Output RTA for precise and informed tuning
• GTO TM Signal Sensing
• MILC TM Clip Detection
• AccuBASS®
• Signal Summing
• Signal Delay
• 12 and 24 dB/octave crossovers
• 30 band equalizer
• Optional ACR-3 remote for preset recall and level control
• Optional AC-BT24 Bluetooth Audio Streaming and Remote Control Device
• Bulletproof 5-year warranty (when installed by an authorized AudioControl dealer)

The DM-608 features AudioControl’s MILC(Maximum Input Level Control) patent-pending source clip detection circuit. MILC calculates when the waveform of an incoming audio signal is clipping, and if it is, the LED will fulfil its prime objective and shine forth, aiding in precise level matching control.

The DM-608 features AudioControl’s MILC(Maximum Input Level Control) patent-pending source clip detection circuit. MILC calculates when the waveform of an incoming audio signal is clipping, and if it is, the LED will fulfil its prime objective and shine forth, aiding in precise level matching control.

The built-in Option Port on the DM-608 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers, and interface solutions. Watch this space for future Option Port expansion options.

























Connect your laptop to the DM-810 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.

Route any input to any output, adjust gain, delay and polarity then precisely tune the DM-810 using a 30-band EQ. High-pass, low-pass, and band-pass can be set up for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers. For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.

With a clear GUI and intuitive workflow, AudioControl’s Smart User Interface will take the guesswork out of tuning your system to your exact specifications.

Output tab of DSP software

Input tab of DSP software

Dashboard view of DSP software



Optional AC-BT24 Bluetooth Interface for aptX HD Bluetooth Audio and DSP Control from your mobile phone or Tablet (iOS and Android)
