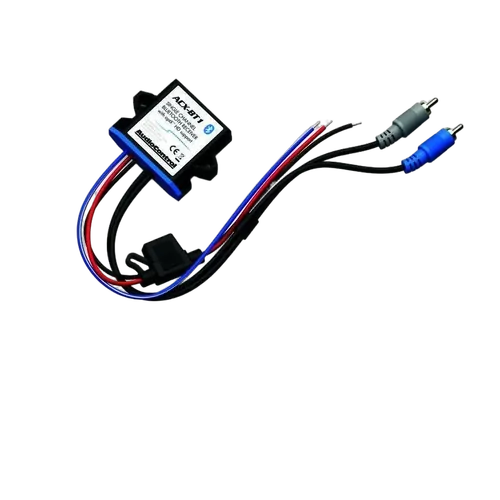

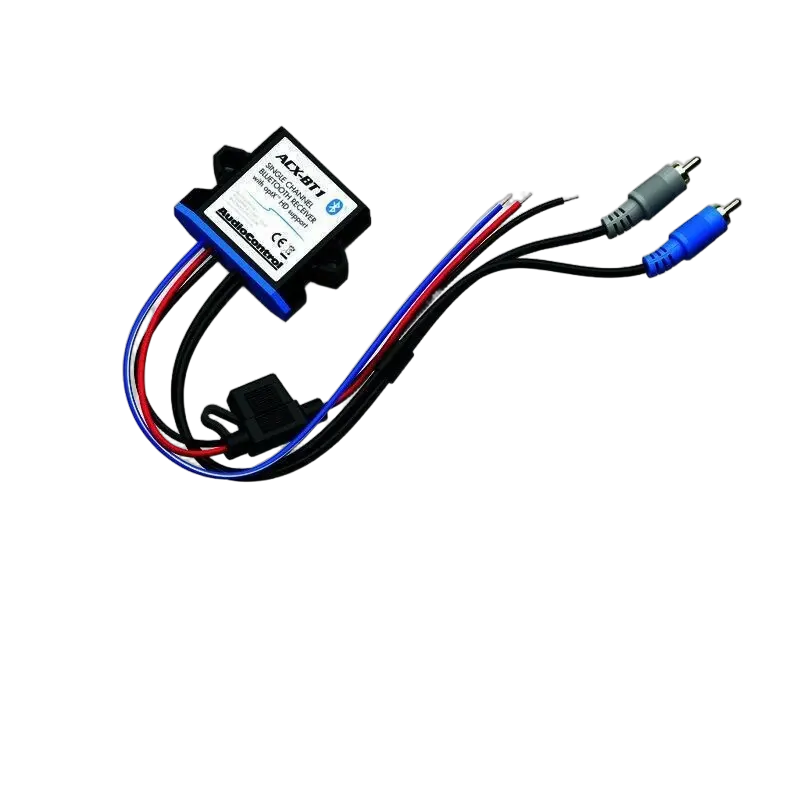

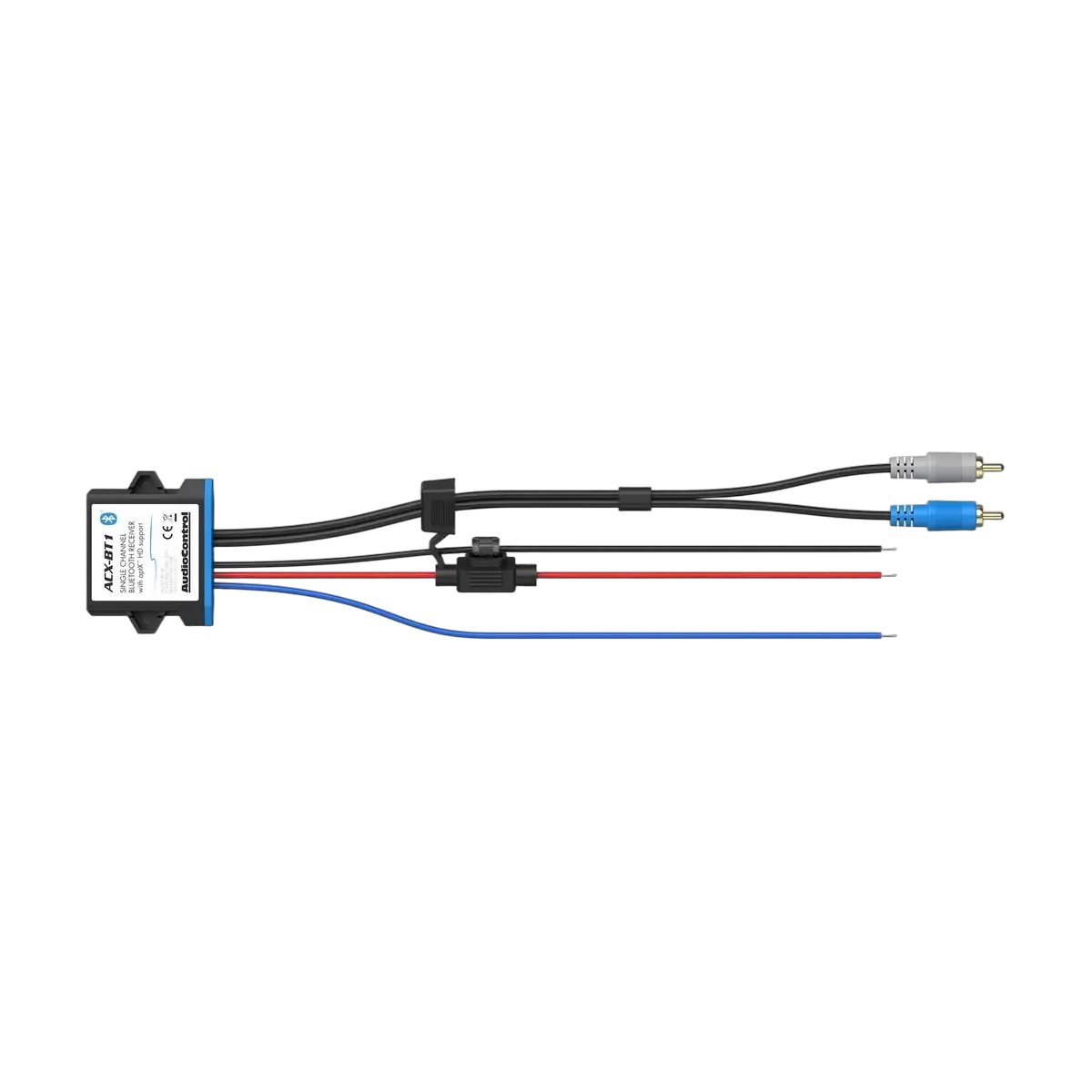

All Weather Bluetooth Streamer
The AudioControl ACX-BT1 is the ultimate solution for giving your audio system
Bluetooth connectivity.
All Weather Bluetooth® Streamer
The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance.
The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more.
Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection
What Do You Get?
Specifications
Features
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- IPX5 rated enclosure
- Built in fuse
Outputs
- Dual Line Level RCA (2CH STEREO)
- Nominal Output Level: 1.5Vrms
Performance
- Maximum Data Rate: 3Mbps (typical 1.6 Mbps)
- Operating Range: 10+ Meters (depending on enviroment)
- Current Draw: 35mA
- Fuse Rating: 2A
Whats In The Box
- Bluetooth Adaptor
- Warranty
RCA Pre-Outs | 2 Channel Stereo |
---|---|
Remote Turn On Feature | YES |
RCA Output Voltage | 1.5 Vrms |
Dimensions | 2.0”L x 2.5”W x 0.7”H |
SKU | ACX-BT1 |
---|---|
Barcode # | 851523007928 |
Brand | AudioControl |
Shipping Weight | 1.5000kg |
