FEATURES |

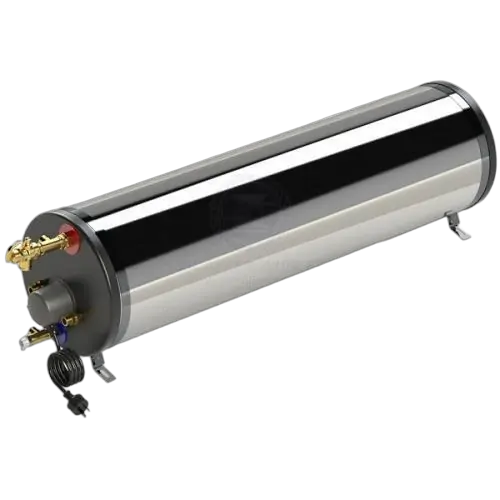

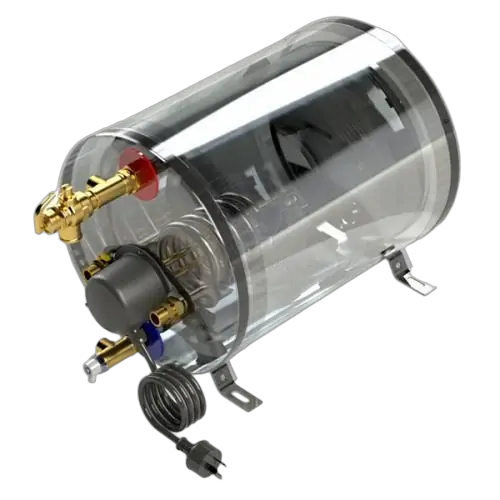

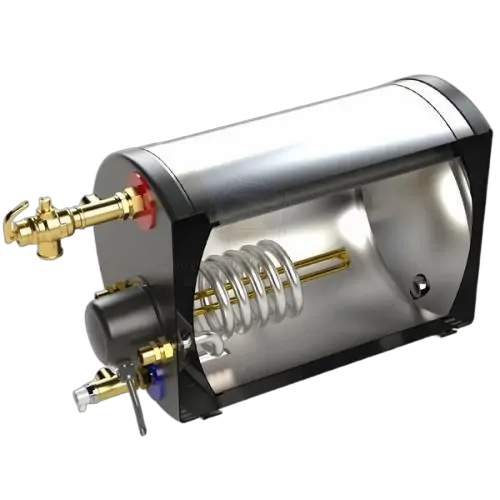

• Dual heating - Incoloy Electric Element and Heat Exchanger Coil. • Incoloy* Electrical Heating Element is 1250 Watts allowing hot water production when engine heat is not available. • Heat Exchanger Coil features a large surface area designed to generate a large output of hot water. • Insulation uses closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free). • Water Heater Tank has both Pickling and Passivation treatment for increased anti-corrosion performance.** • Adjustable safety thermostat. • Pressure relief and non-return valve. • Easy drain connection. • Power cable and Australian plug supplied (AS/NZS 3112). • Purpose built from high-quality materials for the marine environment: Tank: AISI 316L Stainless Steel. Heat Exchanger: AISI 316L Stainless Steel. External Casing: AISI 304 Stainless Steel. Mounting Brackets: AISI 304 Stainless Steel. • RCM Certified: SAA-180560-EA. • CE Certified EN 60335. |
Part No. | 44308 |
Max Pressure | 700 kPa |
Connectors | 1/2 inch |
Dimensions (A x B x C) | 320mm x 1355mm x 331mm |
Capacity | 80Ltr |
Element | 1250W / 5.4A |
Volts | 230V |
Note | * Incoloy refers to a range of superalloys designed for excellent corrosion resistance as well as strength at high temperatures. ** Both Pickling and Passivation are chemical treatments applied to the surface of stainless steel to remove contaminants and assist the formation of a continuous chromium-oxide, passive film which protect the Stainless steel from corrosion. |
SKU | 44308 |
---|---|
Barcode # | 9330420204292 |
Brand | ATI |
Shipping Weight | 18.5000kg |
Shipping Width | 0.350m |
Shipping Height | 1.600m |
Shipping Length | 0.350m |
Shipping Cubic | 0.196000000m3 |
