Description
| FEATURES |
| • Fits most common bow rollers, designed specifically for powerboats. • Angled winglets dig the anchor into the seabed for immediate alignment and setting. • Reinforced double-skinned laminated toe, strengthens the forward section of the anchor when it attacks the seabed. • The anchor presses the concave shape into the fluke, ensuring the anchor cups the seabed and sets much faster. • Raised trim flaps improve the holding power by forcing the flukes downwards creating a 28% deeper setting than other new-generation anchors. • Manson Shackle PreventorTM has one slot in the shank with two docking stations for use in all sea beds. It quickly unscrews and docks on the alternate station to transform the anchor from a fixed shank to a sliding shank for operation in foul ground. • The shank clearance is streamlined to conform to power boat fairleads and bow rollers. • High tensile steel shank made from 800mpa steel. • Regularly available in galvanised steel, but also in black painted steel or highly polished stainless steel to order. Buy-In Only (Enquire for pricing): Galvanised 124146 Anchor Manson-Boss 45kg (100LB) Galvanised 124148 Anchor Manson-Boss 57kg (125LB) Galvanised 124150 Anchor Manson-Boss 68kg (150LB) Galvanised 124152 Anchor Manson-Boss 80kg (175LB) Galvanised 124154 Anchor Manson-Boss 102kg (225LB) Galvanised 124156 Anchor Manson-Boss 125kg (275LB) Galvanised Stainless Steel 124364 Anchor Manson-Boss 7kg (15LB) S/S 124366 Anchor Manson-Boss 11kg (25LB) S/S 124368 Anchor Manson-Boss 9kg (35LB) S/S 124370 Anchor Manson-Boss 12kg (45LB) S/S 124372 Anchor Manson-Boss 14kg (60LB) S/S 124374 Anchor Manson-Boss 37kg (80LB) S/S 124376 Anchor Manson-Boss 45kg (100LB) S/S 124378 Anchor Manson-Boss 57kg (125LB) S/S 124380 Anchor Manson-Boss 68kg (150LB) S/S 124382 Anchor Manson-Boss 80kg (175LB) S/S 124384 Anchor Manson-Boss 102kg (225LB) S/S 124386 Anchor Manson-Boss 125kg (275LB) S/S |

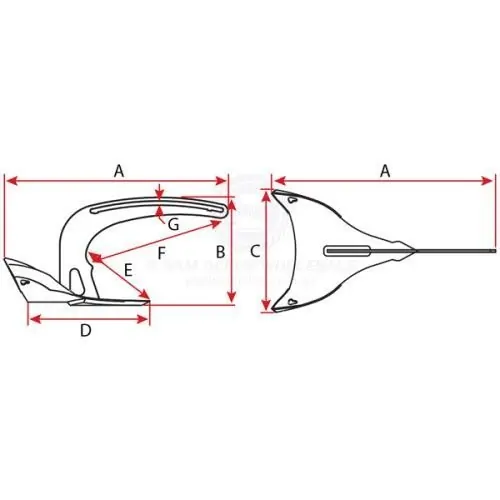

| Part No. | 124140 |
| Length | 1002mm (A) |
| Width | 554mm (C) |
| Weight | 21kg (45LB) |
| Fluke Length Inner (E) | 385mm |
| Shank Length (F) | 643mm |
| Shank Space (G) | 14mm |
| Type | Galvanised |
| Depth (B) | 498mm |
| Fluke Length (D) | 589mm |
| Note | Stainless steel versions, large galvanised and black painted anchors are buy-in only (lead time approx. 16 weeks). Also available in sizes 225lb to 375lb - POA |
Specifications
| SKU | 124140 |
|---|---|
| Barcode # | 9330420035773 |
| Brand | Manson Anchors |
| Shipping Weight | 21.0000kg |
| Shipping Width | 0.554m |
| Shipping Height | 0.385m |
| Shipping Length | 1.002m |
