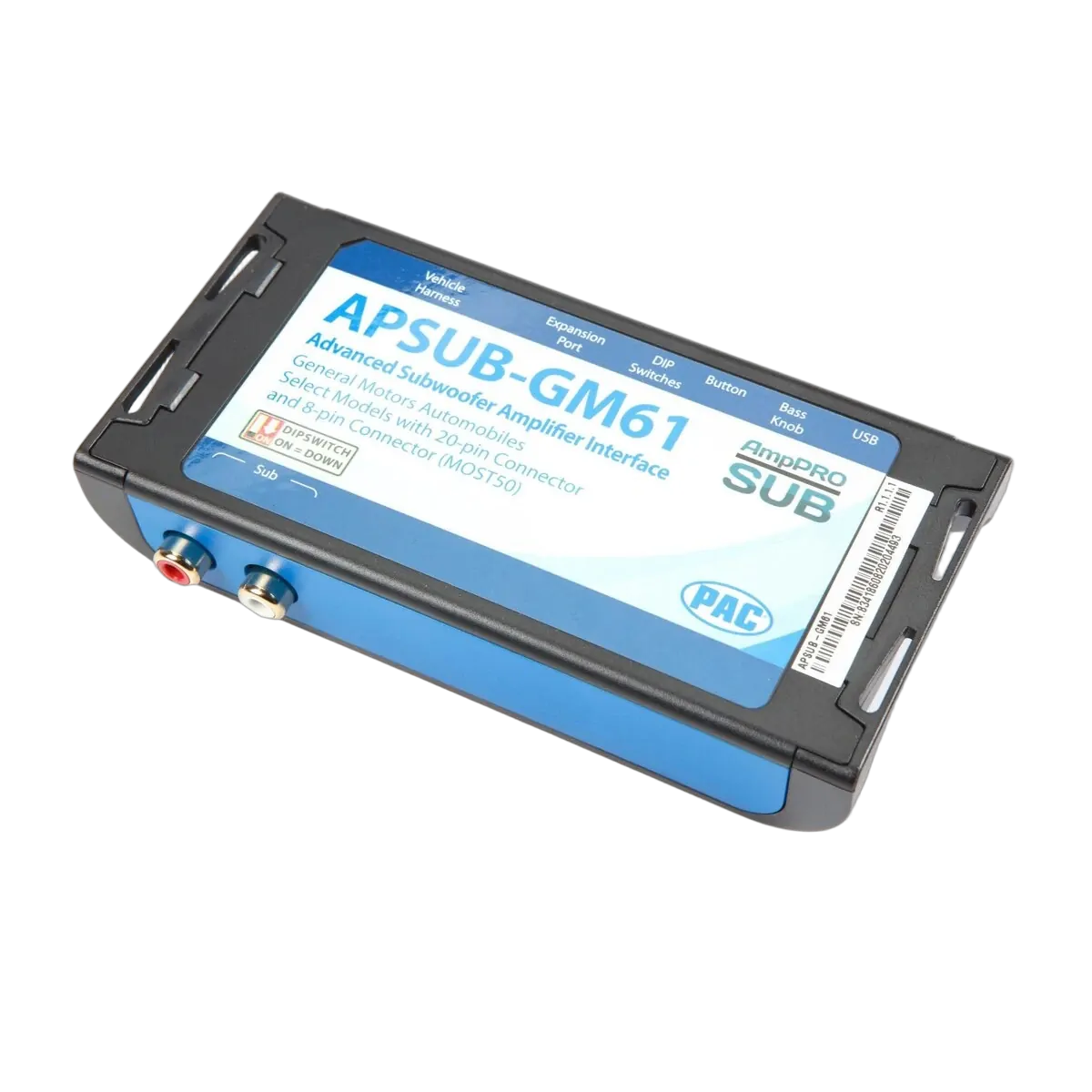

The PAC AmpPRO SUB APSUB-GM61 provides a 2-channel RCA output from the factory infotainment system for use with aftermarket amplifiers to power a subwoofer.
Designed for select GM vehicles with or without BOSE amplified audio system.
Aftermarket Amplifier Integration Made Easy
Many of today's vehicles have fancy radios with lots of features, Bluetooth, vehicle settings, climate control, amplified audio systems and more.
When you want to get better quality sound and more power, adding an amplifier is great way to improve your audio system.
This can be difficult and time consuming on a-lot of vehicles.
PAC simplifies this with AmpPRO, the plug and play amplifier integration solution.
Complete Control At Your Fingertips
Most modern vehicles have extensive data control networks like CANBUS. The AmpPRO SUB Interface is designed to communicate with these networks giving you complete control of your subwoofer RCA output from your factory infotainment system like from factory including
- Bass Frequency (60hz / 80hz / 100hz / 120hz)
- Bass Q Factor (0.5 / 1 / 1.5 / 2.0 )
Plug and Play With Ease

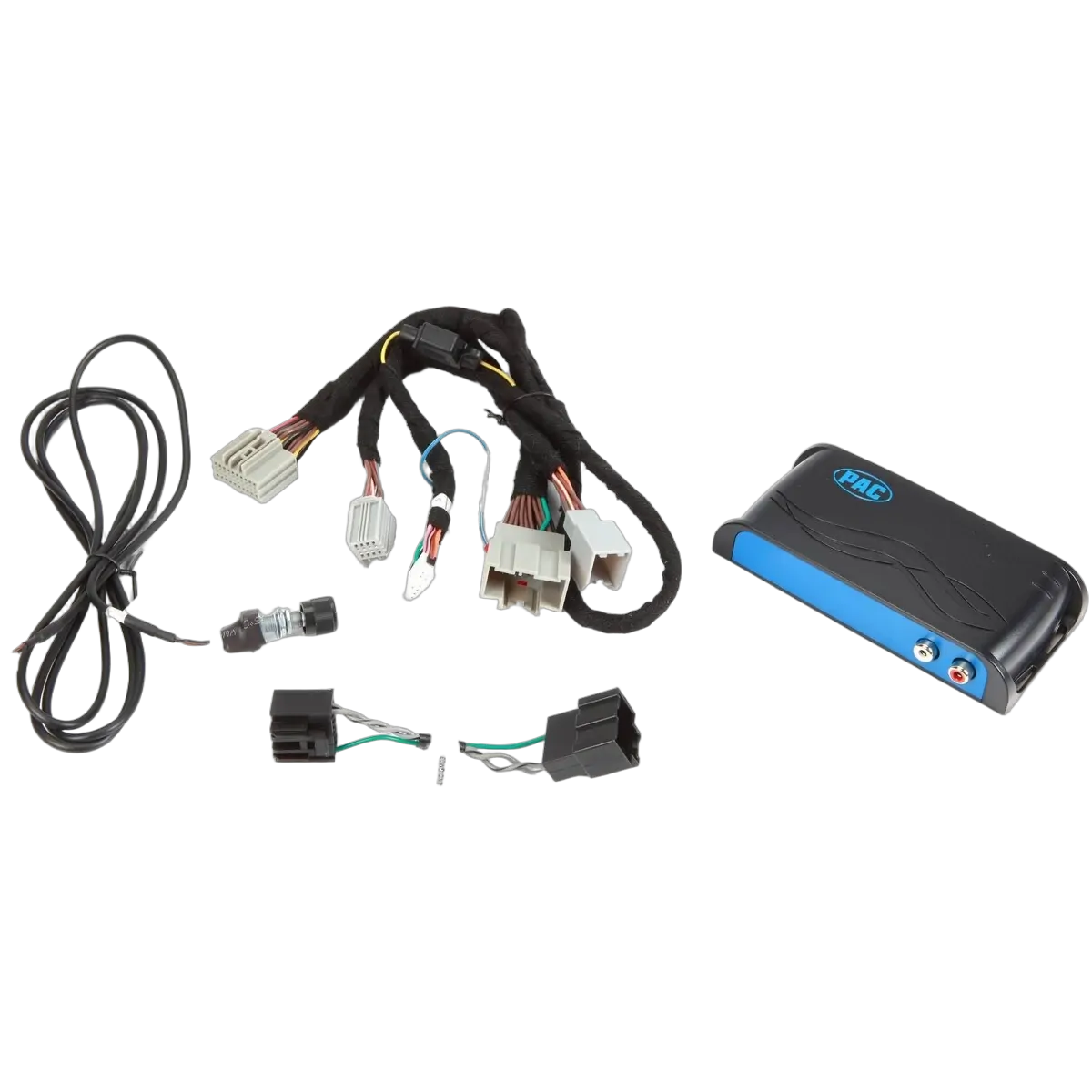

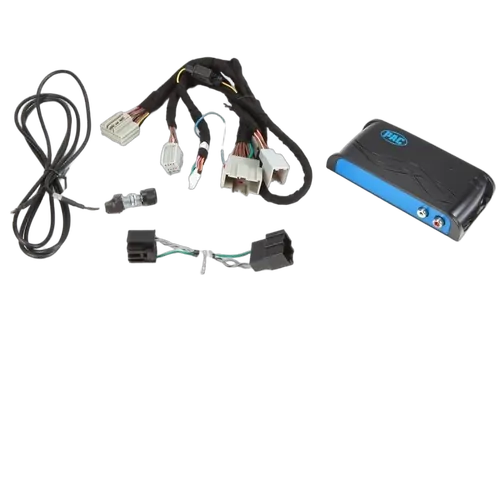

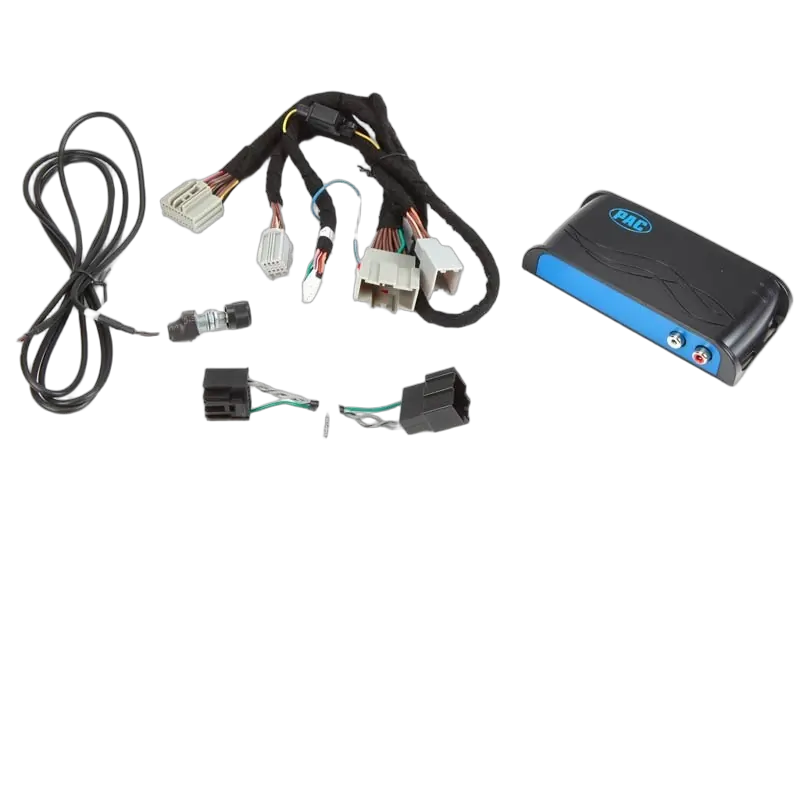

Each AmpPRO interface includes a vehicle specific Plug and Play harness. This harness saves time having to hard-wire in like conventional line out converters and also offers the ability to retain extra factory audio channels like Bluetooth and navigation audio.
Plugs into the OEM Radio at the dash board and away you go.
With the supplied bass control knob, you can directly adjust the volume of the sub-woofer channels even if your factory radio didn't have it.
Compatablity Notes
- In some non-Bose radios, there may be absence of audio from the left channel when in AM, FM, and XM sources. The APSUB-GM61 is capable of providing a work-around by passing the right channel audio through the left and right channels when in the AM, FM and XM sources. All other sources will still offer left and right separation. See the troubleshooting section on page 6 of manual for additional details
- Must have Infotainment system RPO code IO5 or IO6 to be compatible.
- When the bass level control knob is not connected to the APSUB-GM61, the output level will default to 100%
- If originally equipped, the factory amplifier must remain in the vehicle, and connected after the APSUB-GM61 has been installed.
- The factory radio's speed controlled volume and surround sound mode are not supported by the APSUB-GM61 outputs.
- If the vehicle is equipped with Active Noise Cancellation (ANC), the ANC can be disabled using the included ANC-GM03 harness. See page 3.
- To verify the "IO" RPO code on your vehicle, check the glove compartment or spare tire well for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario.
Plug & Play | YES |
---|---|
Vehicle Plug Style | 20PIN & 8PIN GM Style Connectors |
RCA Pre-Outs | 2 Channel Stereo |
Application Notes | Must have Infotainment system RPO code IO5 or IO6 to be compatible. |
Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
---|---|---|
CADILLAC | ESCALADE | 2015 - 2020 (6TH GEN) |
CHEVROLET | CAMARO | 2016 - 2019 (6TH GEN) |
CHEVROLET | SILVERADO | 2015 - 2018 (THIRD GEN) |
GMC | SIERRA | 2015 - 2018 (THIRD GEN) |
HOLDEN | ACADIA | 2018 - 2019 (AC) |
HOLDEN | EQUINOX | 2017 - 2018 (EQ) |
SKU | APSUB-GM61 |
---|---|
Barcode # | 609098834186 |
Brand | Pac Audio |
Shipping Weight | 1.5000kg |
