THIS UNIT HAS REAR ENTRY REG. THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR, RECTIFIER & CLUTCH PULLEY. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.
Specifications
Voltage 12V
Amperage 240A
Mount Leg ID 52mm
C-C Mounts 160mm
Hole ID Top 12mm
Hole ID Bottom M10, 11mm
Shaft Size 17mm
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 65mm
Regulator Type INTERNAL
Series
Connections Plug # EP85-2
Terminals B+, LIN
Excitation EXTERNAL
Ground NEGATIVE
| SKU | BKS-240TP |
|---|---|
| Barcode # | 9356659446081 |
| Brand | Jaylec |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |

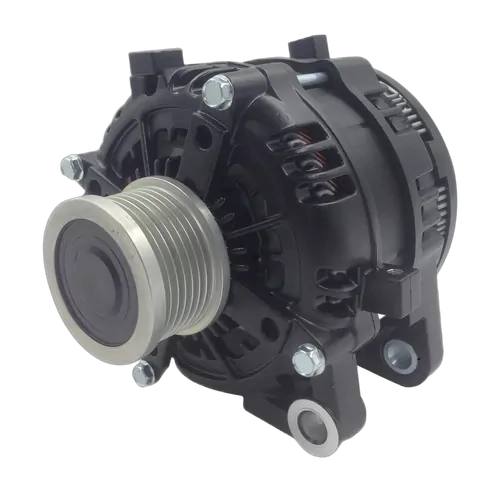

Alternator 12V 240A, Toyota Prado, Granvia, Hiace 1Gdftv, 2Gdftv Black Series Performance
