MATCH BY OE NUMBERS ONLY. WILL NOT SUIT ALL MODELS. THIS ALTERNATOR IS FITTED WITH RECTIFIER AND CLUTCH PULLEY. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.
Specifications
Voltage 12v
Amperage Cold 240A, Hot 217A
Mount Leg ID 74mm.
C-C Mounts 174mm
Hole ID Top 13mm
Hole ID Bottom 13mm
Shaft Size
Pulley Type 7PV Clutch
Pulley Belt Width
Pulley Grooves 7PV
Pulley Diameter 58mm
Regulator Type
Series
Connections Plug # P82-2
Terminals B+, COM/LIN, D
Excitation
Ground
Weight (Kg) 9.2kg
| SKU | BKS-240FR |
|---|---|
| Barcode # | 9356659446906 |
| Brand | Jaylec |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |

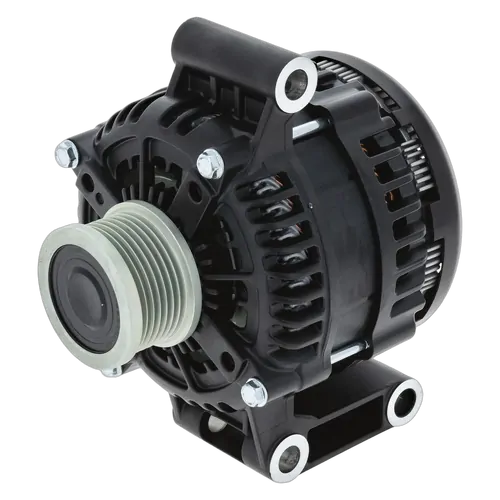

Alternator 12V 240A, Ford Ranger, W - P5At Engine Black Series Performance
