WIRING MUST BE UPGRADED BEFORE FITTMENT
Notes:
THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR AND RECTIFIER. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.
Specifications
Voltage 12V
Amperage 240A
Mount Leg ID 50mm
C-C Mounts 185mm
Hole ID Top M10
Hole ID Bottom 10mm
Shaft Size
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 56mm
Regulator Type INTERNAL
Series HAIR PIN
Connections Plug # EP39
Terminals B+,
Excitation EXTERNAL
Ground NEGATIVE
| SKU | BKS-240GM |
|---|---|
| Barcode # | 9356659166385 |
| Brand | Jaylec |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |

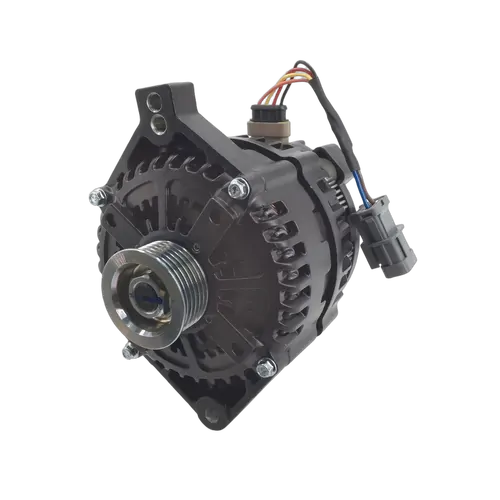

Alternator 12V 240A, Chev, GM Apps, 2 Inch Std Mount Black Series Performance
More infoMake 4 payments of $174.75 over 8 weeks and get it now!
Calculate Shipping
