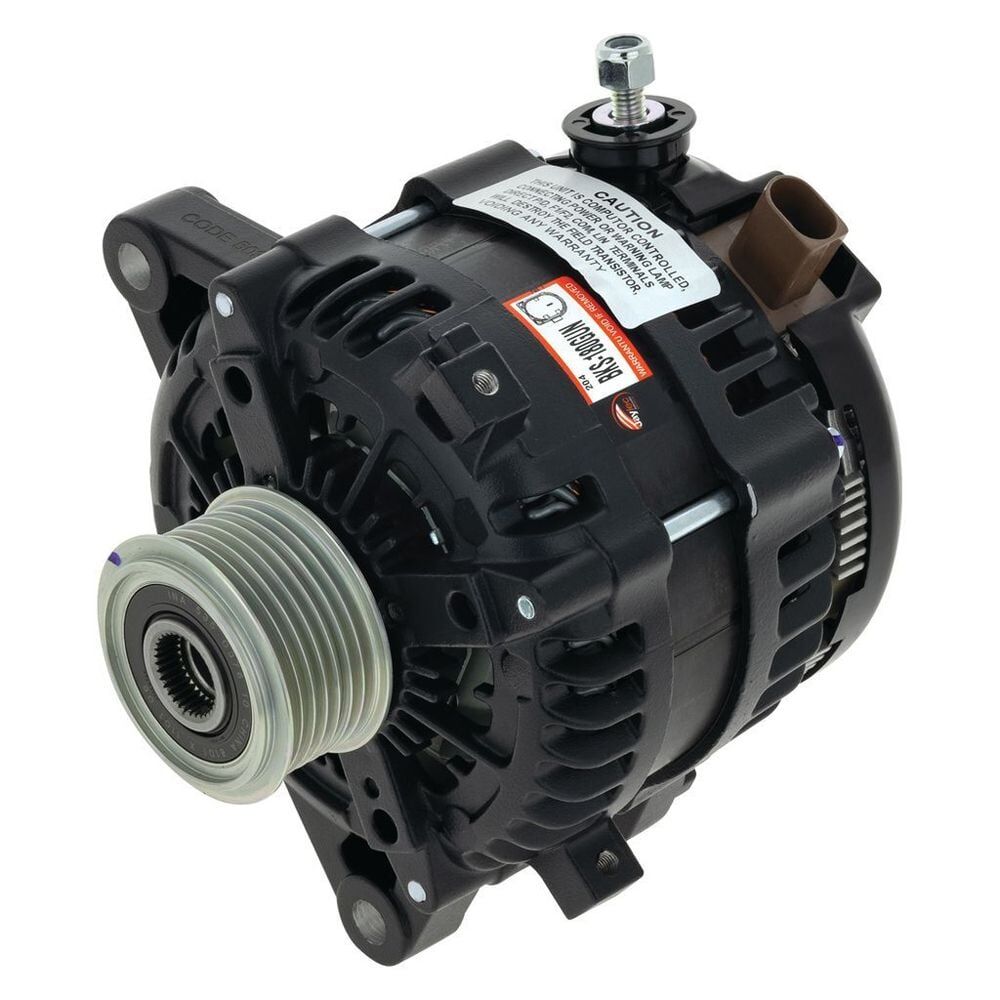

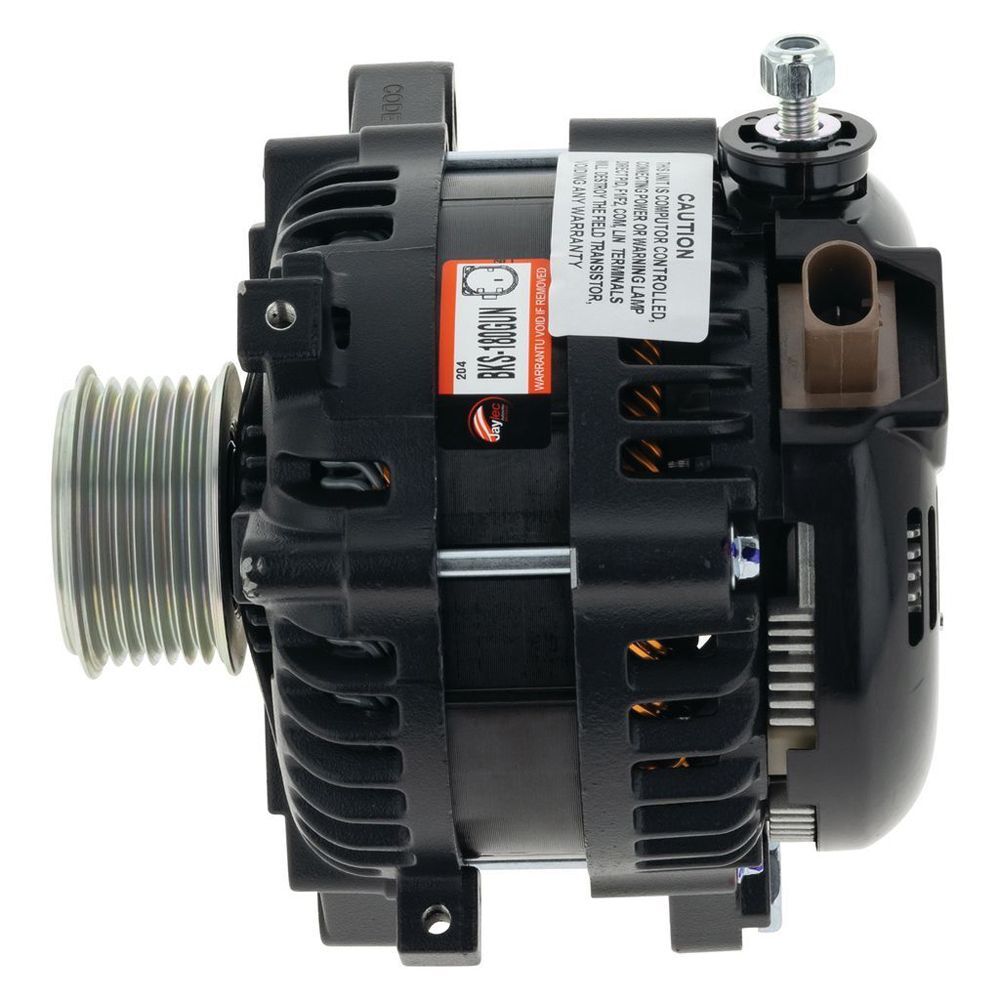

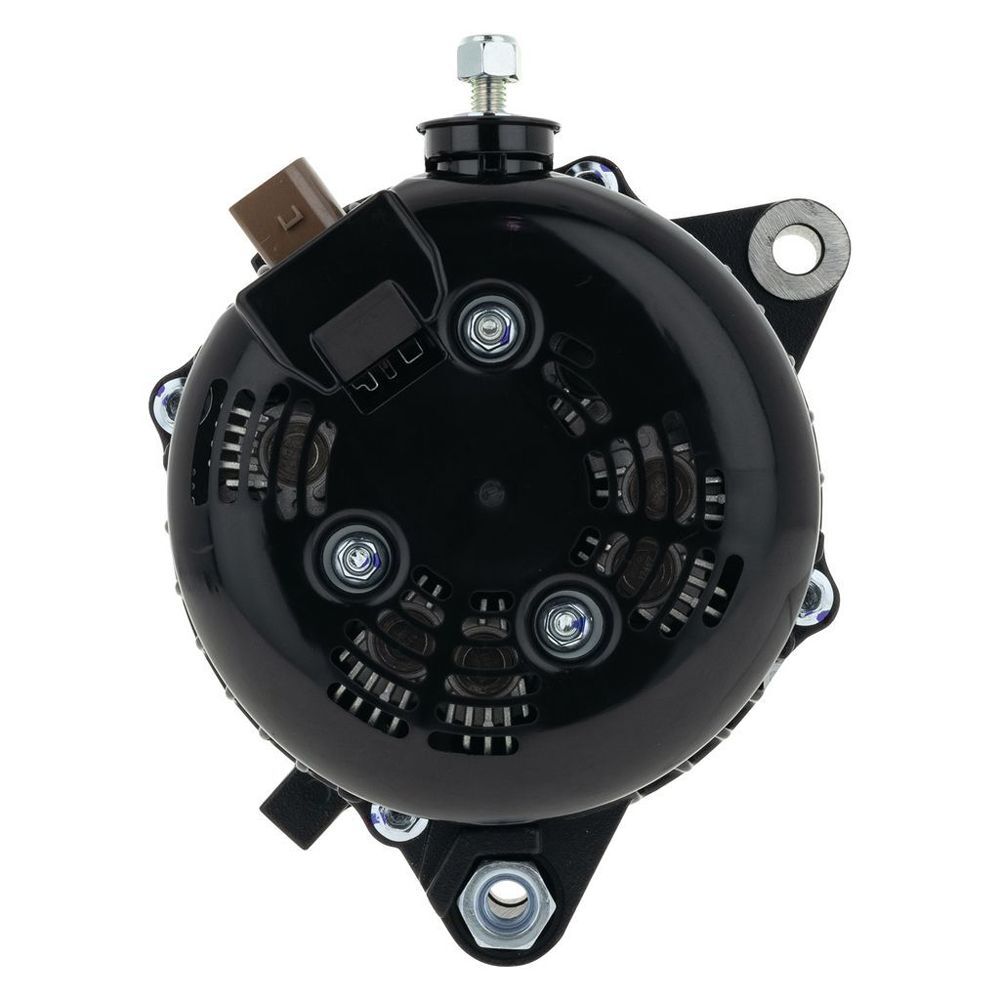

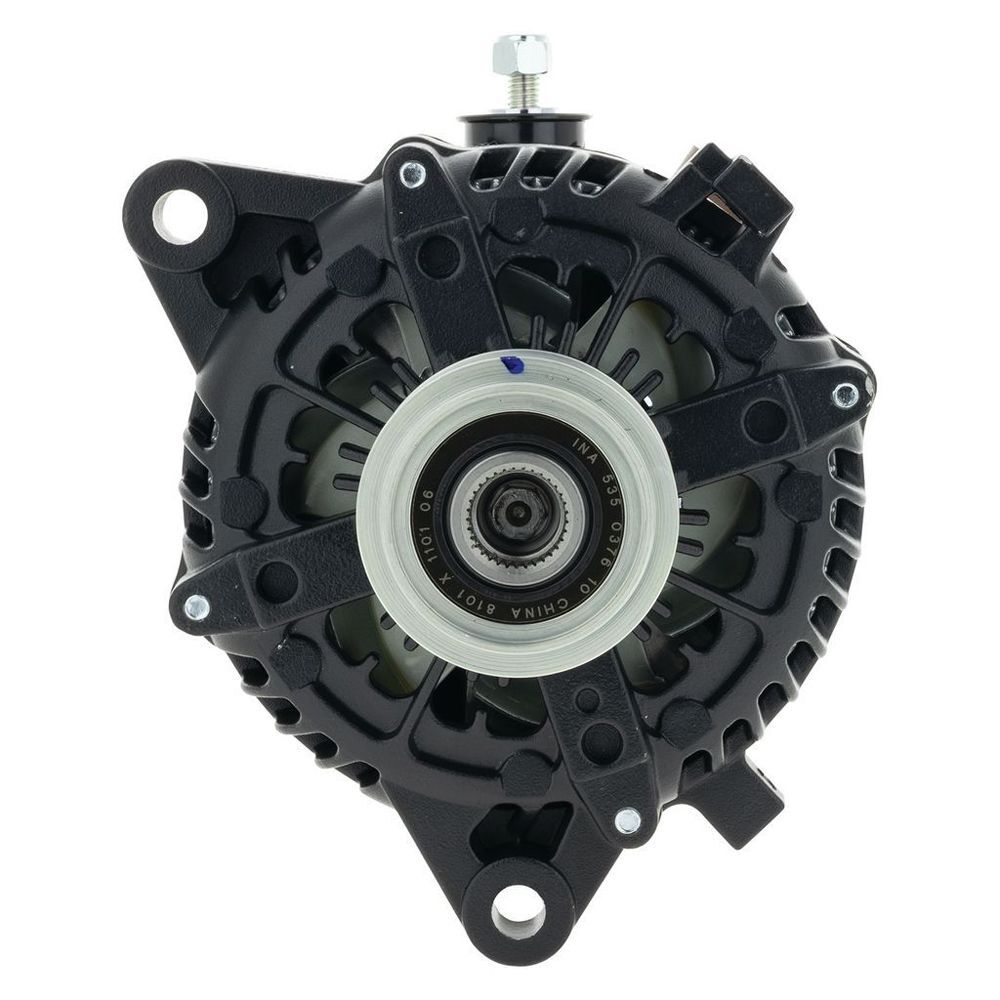

THIS ALT IS SIDE ENTRY REG. IF REAR ENTRY ALT IS NEEDED, USE BKS-180TP. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Specifications
Voltage 12V
Amperage 180A
Mount Leg ID 52mm
C-C Mounts 160mm
Hole ID Top 12mm
Hole ID Bottom M10, 11mm
Shaft Size 17mm
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 65mm
Regulator Type INTERNAL
Series
Connections Plug # EP85-2
Terminals B+, LIN
Excitation EXTERNAL
Ground NEGATIVE
