BATTERY WIRING B+, UPGRADE IS REQUIRED
Notes:
PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR. IF THIS UNIT IS BEING FITTED AS A REPLACMENT FOR AN 80A ALTERNATOR, THE CUSTOMER WILL NEED TO REPLACE THE TOP BELT ADJUSTER BRACKET WHICH IS AVAILABLE FROM TOYOTA. TOYOTA P/N: 16381-17020

Specifications
Voltage 12V
Amperage 170A
Mount Leg ID 58mm
C-C Mounts 165mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type TWIN "A" SECTION
Pulley Belt Width
Pulley Grooves 2
Pulley Diameter 78mm
Regulator Type
Series
Connections Plug # EP7/EP24

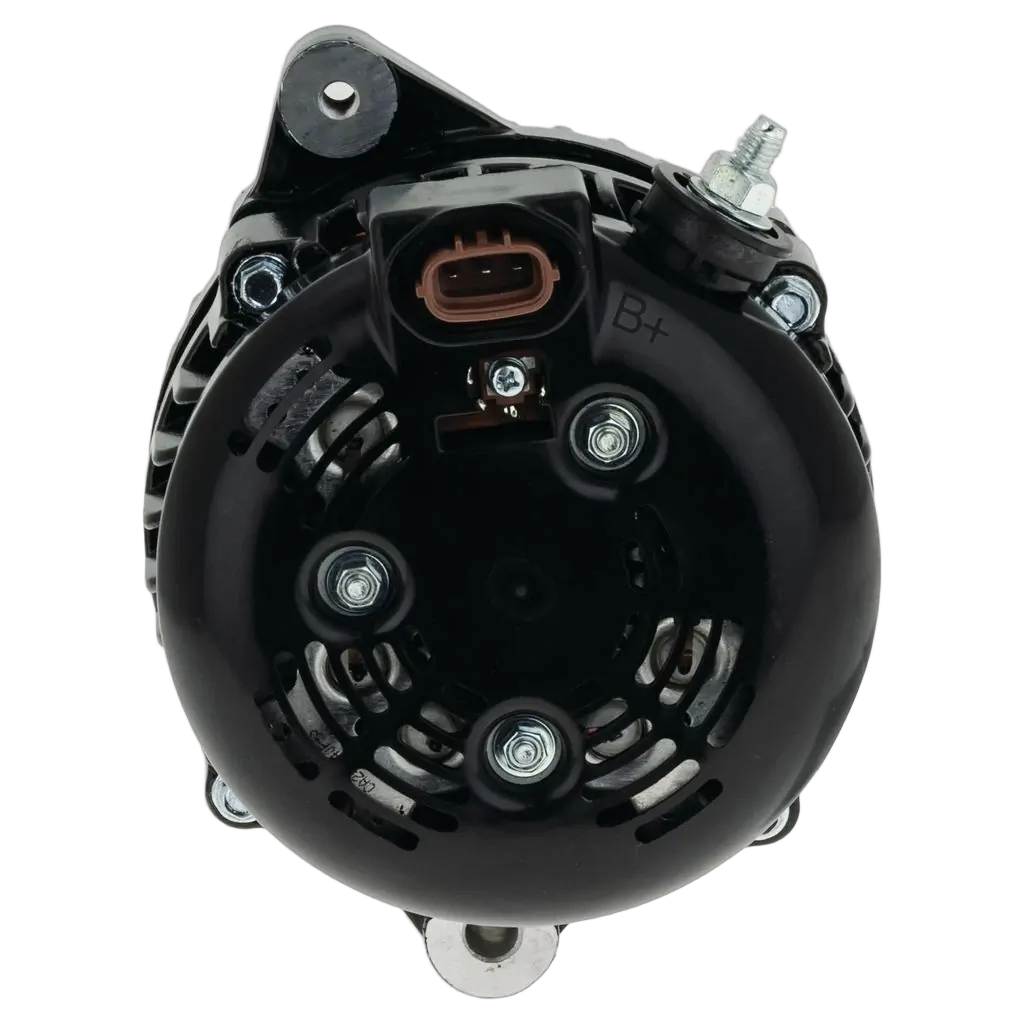

Terminals B+, S, IGN, L
Excitation
Ground
Weight (Kg) 8.2kg
