Specifications
Voltage 12V
Amperage 240A
Mount Leg ID 65mm
C-C Mounts 160mm
Hole ID Top 10mm
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 9PV, FIXED
Pulley Belt Width
Pulley Grooves 9
Pulley Diameter 63mm
Regulator Type INTERNAL
Series

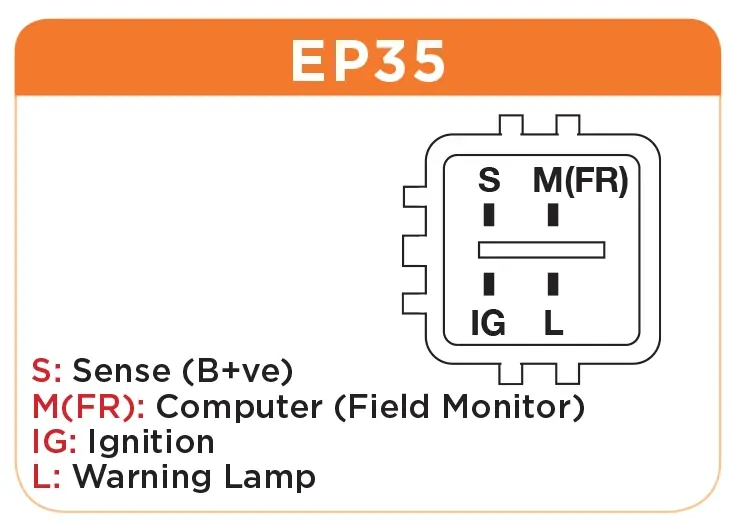

Connections Plug # EP35
Terminals B+, S, IG, L, M(FR)
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg)
Manufacturer Type
Product Release Documents +

Technical Drawings, Wiring Diagrams +

MSDS +

Supplier Website +

Installation Instructions +

SKU BKS-240LC
Barcode # OEBC534304
Brand Jaylec
Shipping Weight 7.5000kg
Shipping Width 0.200m
Shipping Height 0.230m
Shipping Length 0.220m

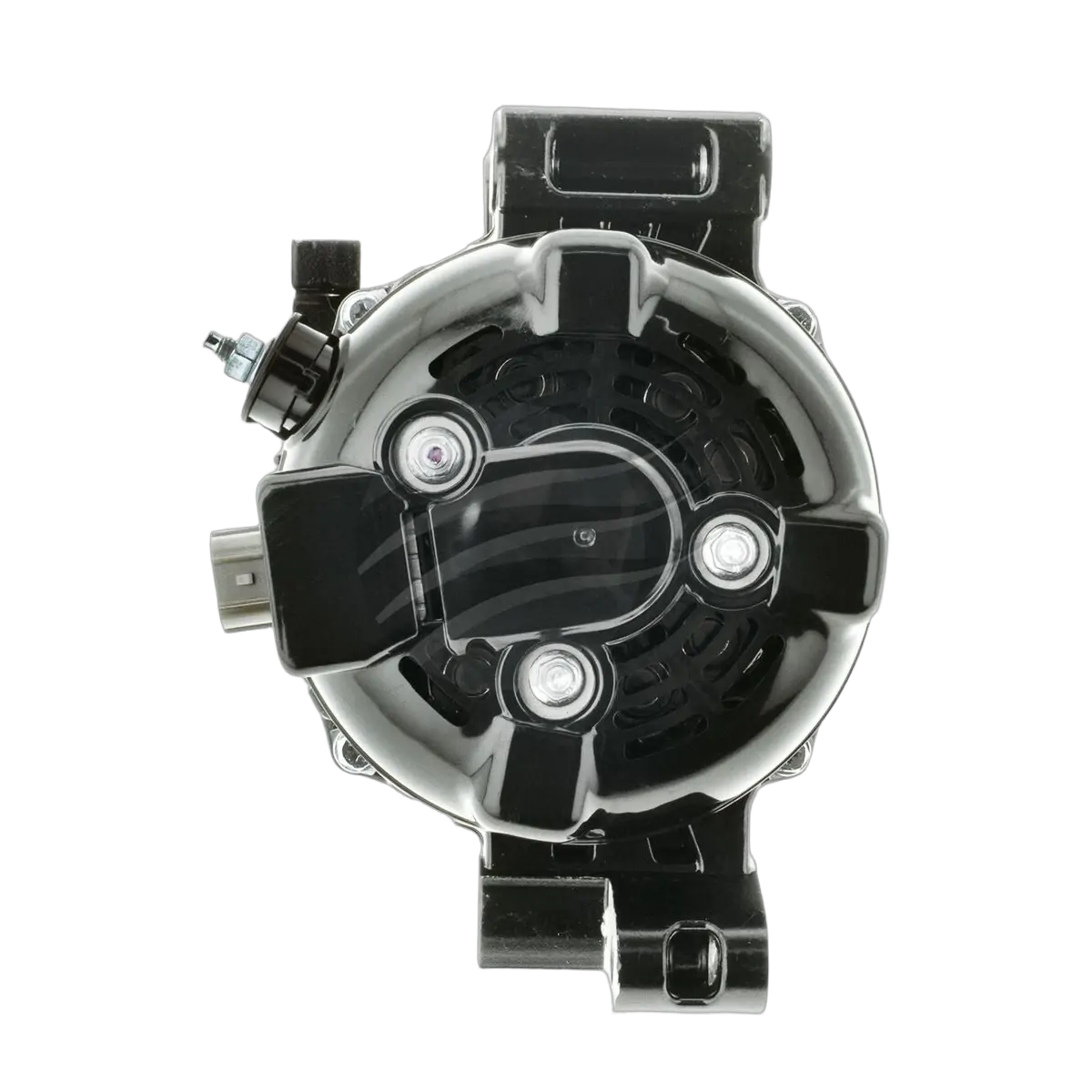

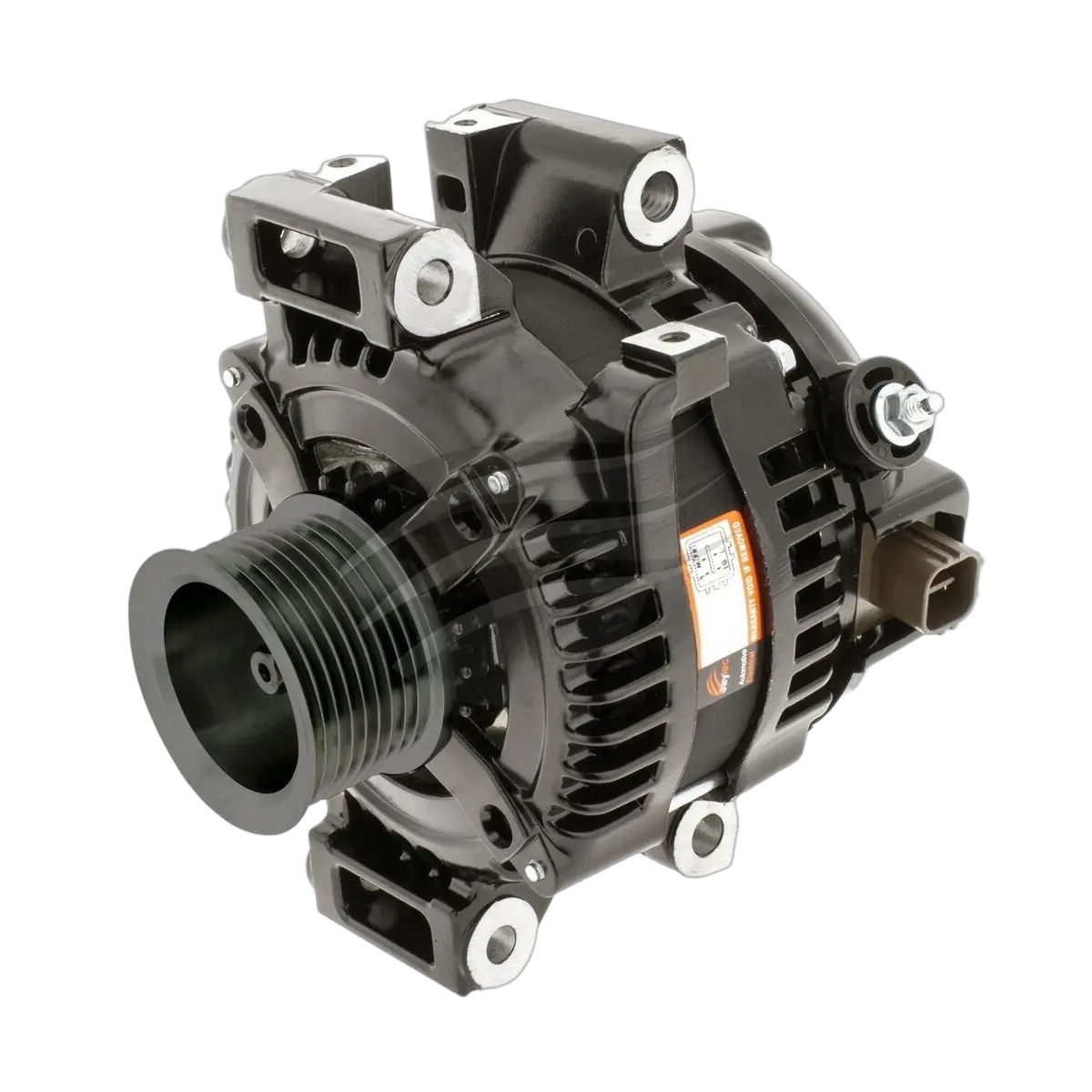

Alt 12V 240A, To Suit Toyota L/Cruiser 76, 79 & 200 Series V8 Dsl

SKU: BKS-240LC
Sold out
Sale price
$999.00
RRP $1,118.04
Earn 9,990 Outback Rewards Points
Sale price
$999.00
DON'T PAY RRP $1,118.04
PayPal Checkout
4 payments of $249.75

afterpay More info.

Make 4 payments of $249.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $249.75
PLEASE NOTE THAT THE VEHICLE WILL NEED A WIRING UPGRADE TO THE BATTERY POSITIVE LEAD
