*please note product is made to order and has a 4-6 week lead time*
Features
With Enerdrive breaking into the 4WD canopy market in recent years, we have been consistently asked by manufactures and end users to come up with a compact power solution to operate all of the electrical equipment that is ending up in the back of these canopies. From a simple system to operate a fridge and a couple of lights to a full on power station, these are the type of systems we have been asked for.
After many brainstorming sessions and 3D modelling designs, Enerdrive have produced 3 models to cover just about any customer request for power in their canopies.

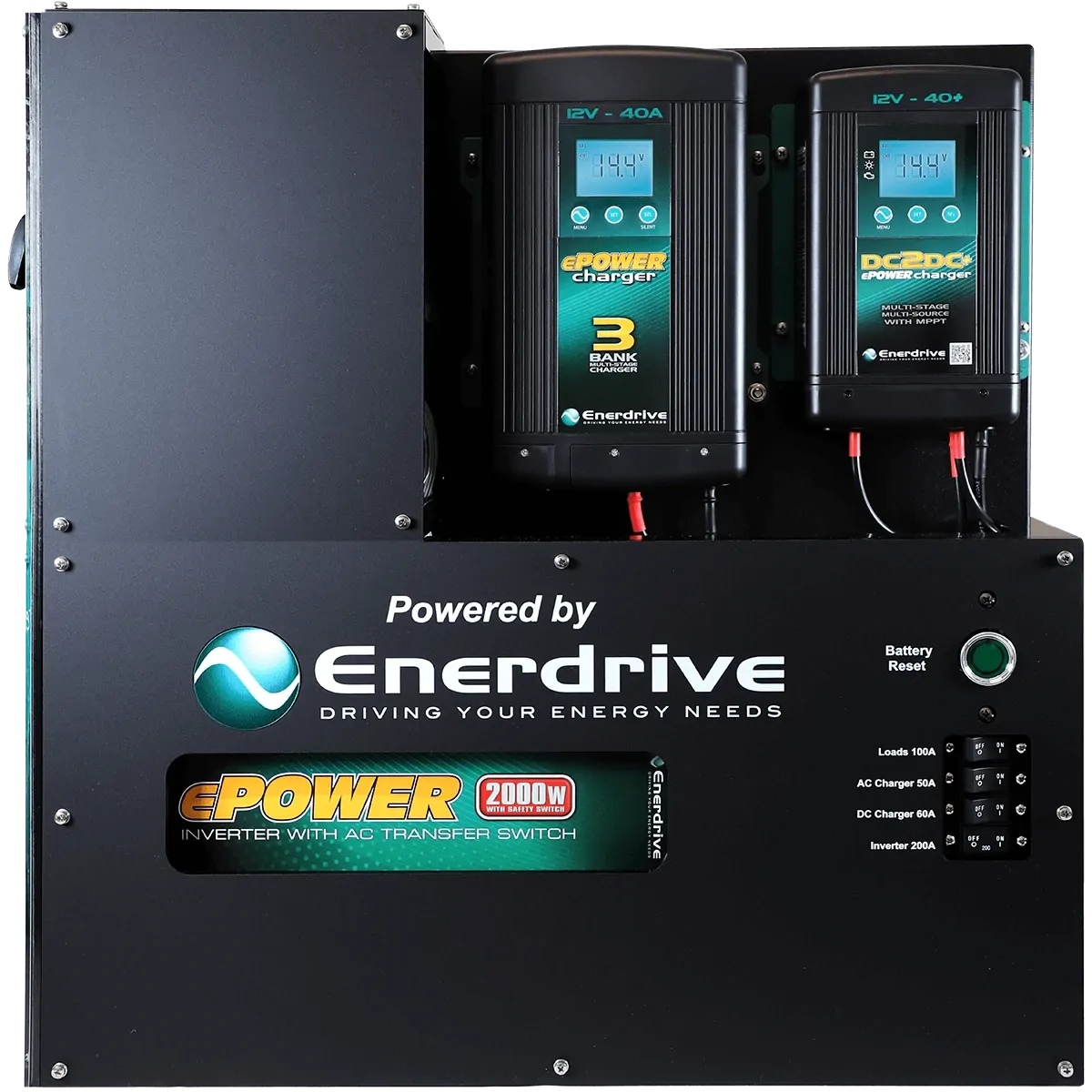

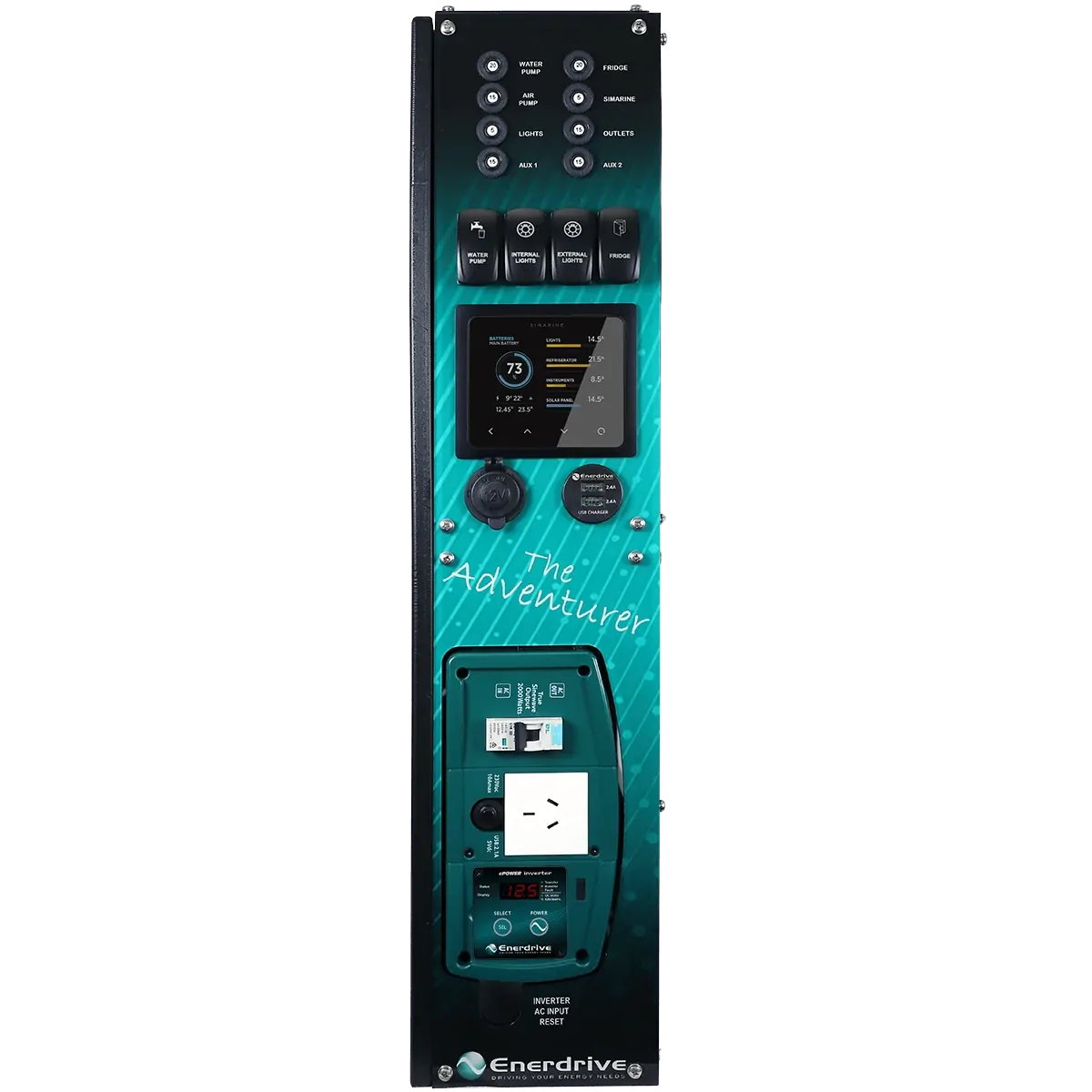

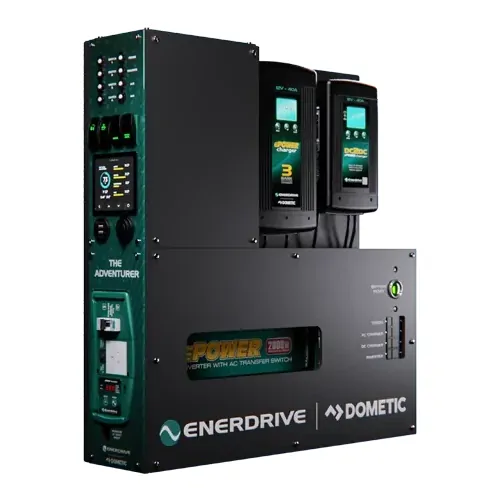

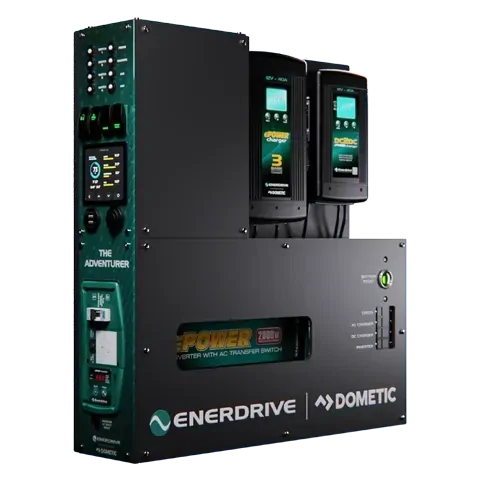

The Adventurer:
This system is designed for the end user requiring maximum power requirements along with AC charging ability and 230v Inverter power. Available in 3 different versions;
- K-ADVENTURER-03 inc Simarine & Individual Load Monitoring
All Adventurer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs, battery connection & vehicle/solar/tank inputs

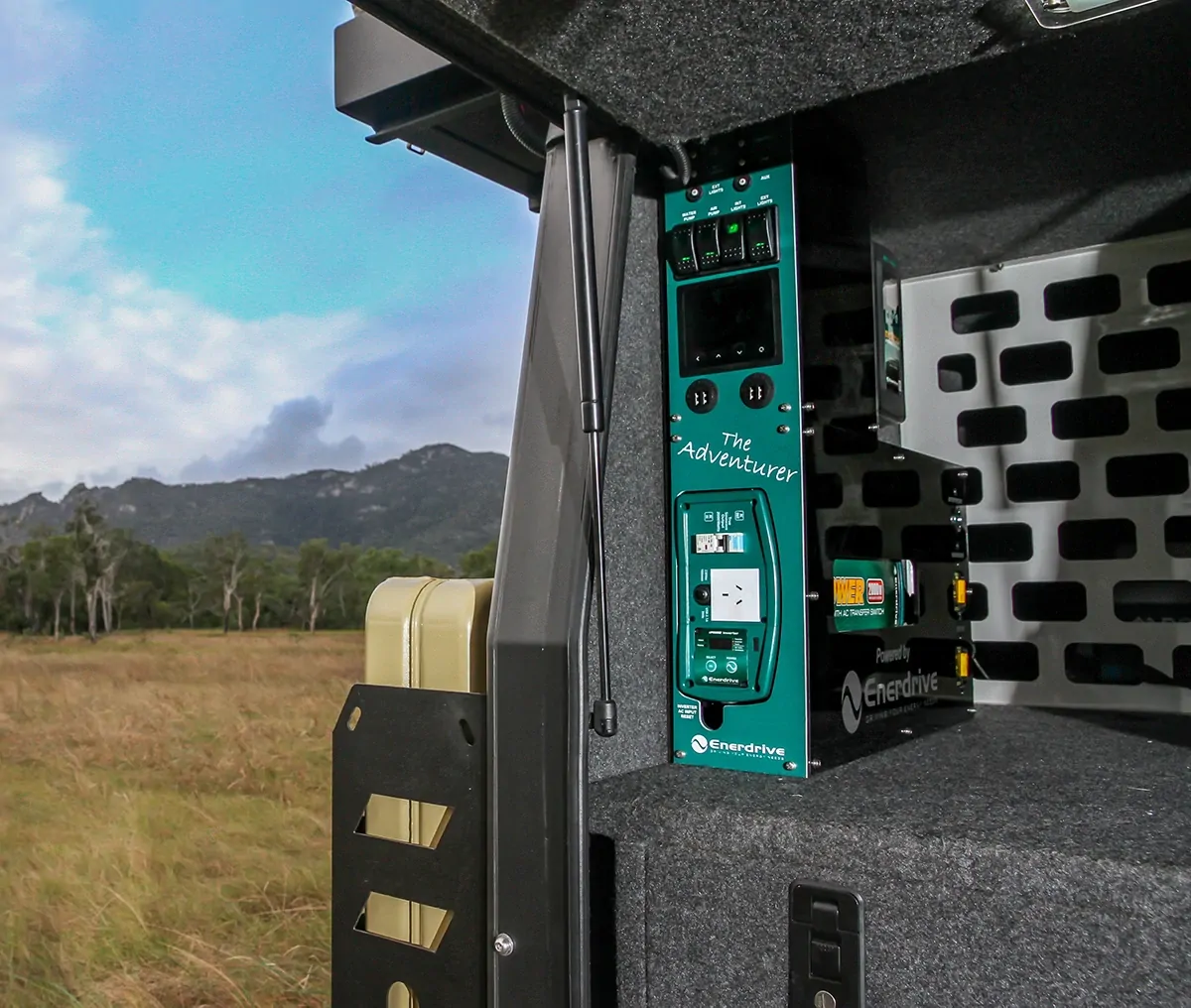

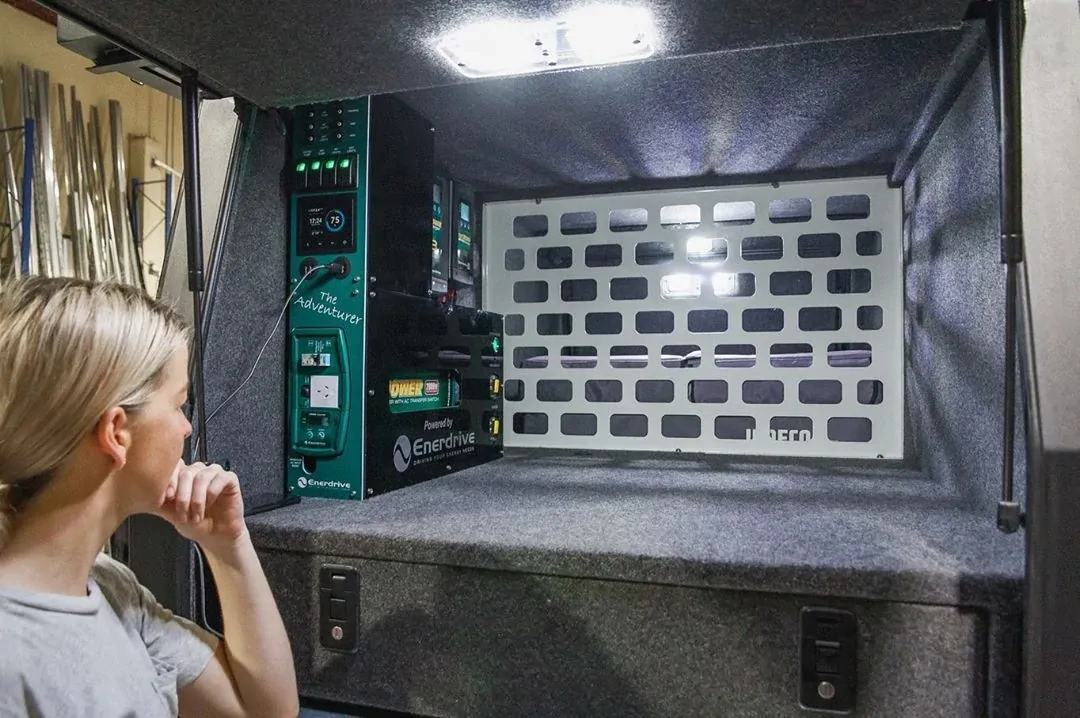

All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicle canopy. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.
If you are interested in having custom engraving for switch/circuit breakers to your specific requirements, this option is available at an additional cost.
Enerdrive are proud to bring to market this innovative design that can be installed by the manufacturer or end user in a neat one piece installation.
*please note product is made to order and has a 4-6 week lead time*
Specifications
Items Included | The Adventurer |
---|---|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * |
ePOWER 40A AC Charger | * |
ePOWER 2000W AC Transfer Inverter | * |
Simarine LCD Battery WIFI Monitoring System | K-ADVENTURER-02 K-ADVENTURER-03 |
1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse | * |
4x Pre-Wired Circuit Breakers for Main Power Equipment | * |
4 x Additional Circuit Breakers | * |
4 x Contura Switches | * |
Twin USB 2.4A Hi Amp Sockets | * |
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order) | Optional |
Battery Reset Button | * |
Main System & Inverter Circuit Breakers | * |
Individual Load/Charge Module for Simarine. (#SI-SCQ50) | K-ADVENTURER-03 |
Water/Fuel Tank Module for Simarine. (#SI-ST107) | K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional) |
Dimensions | 630L x 155W x 665Hmm |
Weight | 18kg |
(*) Indicates Standard Fitment |
SKU | K-ADVENTURER-03-L |
---|---|
Barcode # | OEBC580207 |
Brand | Enerdrive |
Shipping Weight | 26.0000kg |
Shipping Width | 0.700m |
Shipping Height | 0.200m |
Shipping Length | 0.690m |
Shipping Cubic | 0.096600000m3 |
