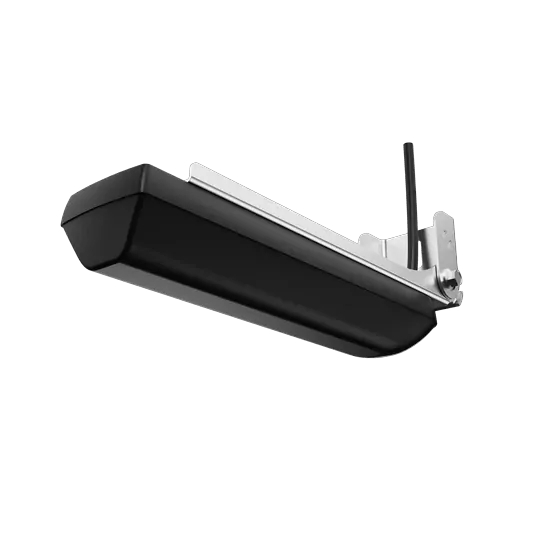

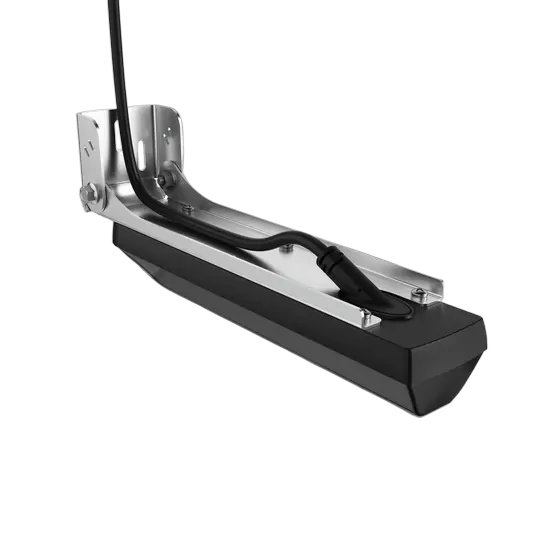

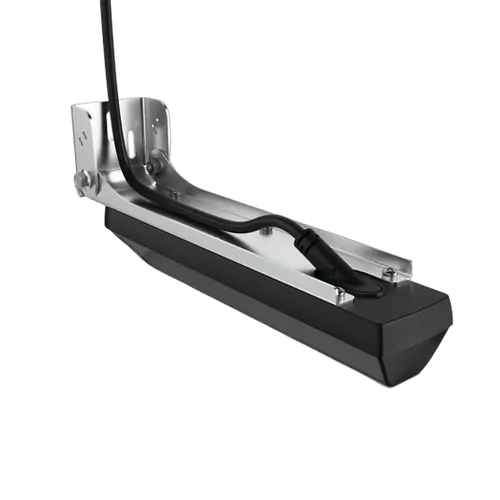

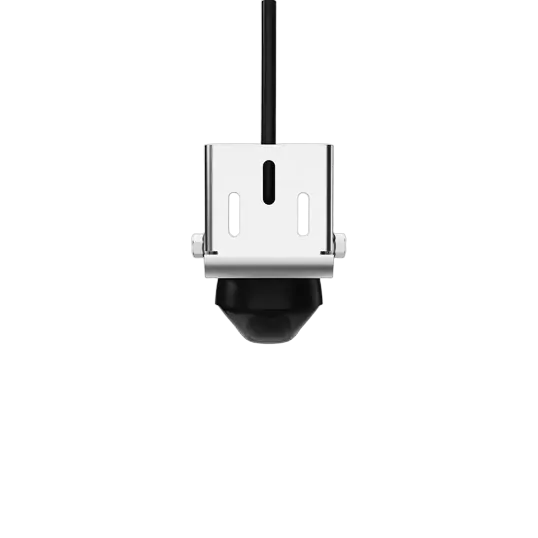

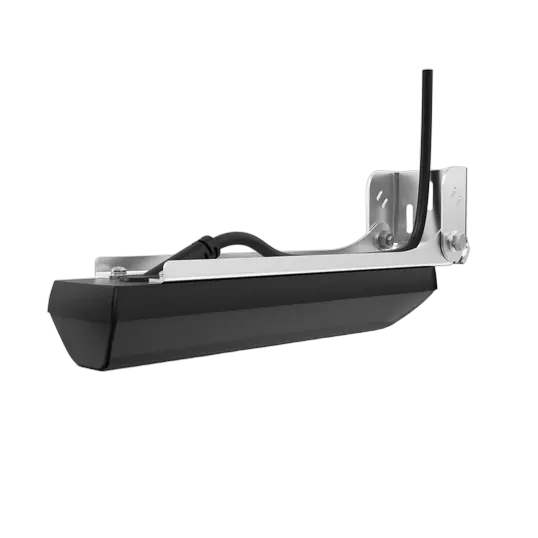

ActiveImaging™ HD 3-in-1 (High/Wide)– SideScan Fish Reveal. Delivers the highest-definition views of CHIRP, SideScan™, and DownScan Imaging™ in one transducer + SideScan Fish Reveal when connected to an S3100 sonar module.

ActiveImaging™ HD

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD sonar. Get the clearest images of fish and structure from CHIRP sonar, SideScan and DownScan Imaging™. Get game-changing clarity in the MHz range with new, ultra high-definition ActiveImaging™ HD.

See the Difference

Our clearest sonar ever, ActiveImaging™ HD delivers the highest-definition views of CHIRP, SideScan* and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weed beds, ditches, drop-offs, and more...

Complete FishReveal™ Views

Get the best of CHIRP sonar and Imaging sonar on a single display with FishReveal™. First introduced with DownScan Imaging™, FishReveal is now available for the first time on SideScan*, making it quicker and easier to recognize fish targets alongside your boat. *The FishReveal SideScan view requires an optional S3100 sonar module.

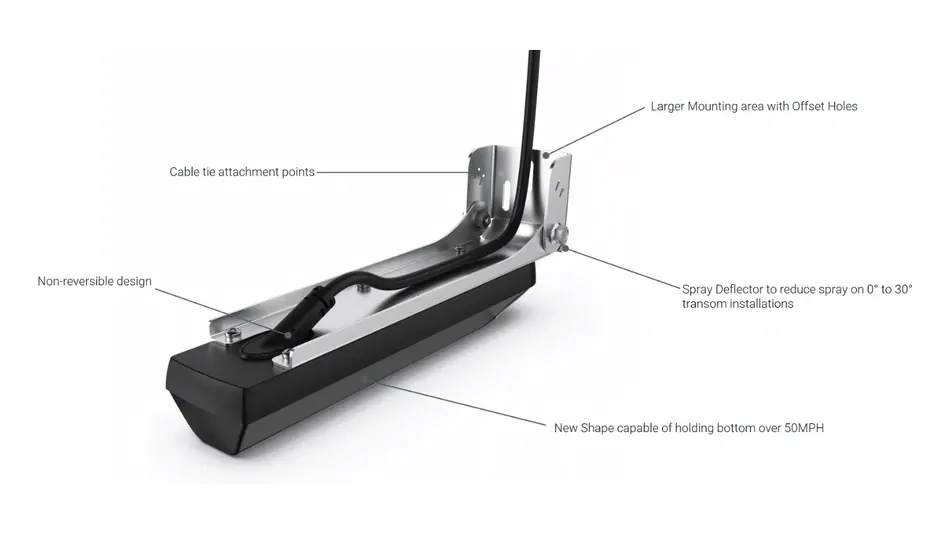

Designed for Clarity

The ActiveImaging™ HD transducer not only delivers three key sonar technologies – CHIRP, SideScan, and DownScan Imaging™ – in one convenient package. It also features an all-new transducer design that boosts signal clarity and brings the underwater world to life on your screen.

Key Features

• MHz Scanning
• High definition up to 1.2MHz SideScan and DownScan Imaging™ delivers the clearest images of fish and structure.
• CHIRP Sonar
• Experience superb clarity and target separation
• FishReveal™ downscan functionality
• Flexible Technology
• Supports Medium and High CHIRP as well as 83/200kHz and 455/1.2MHz frequencies
• Improved Clarity
• Smart transducer design boosts your signal clarity.
• Wide-Ranging Compatibility

Compatibility
