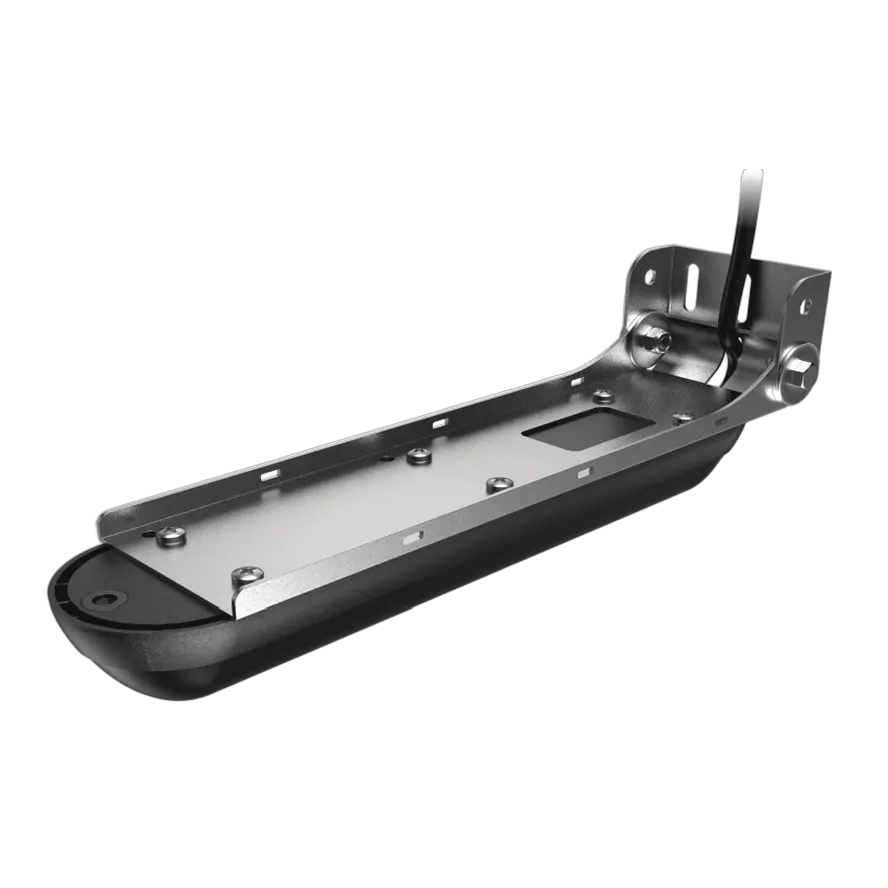

ActiveImaging™ 3-IN-1 combines the new Active Imaging sonar with traditional Medium/High CHIRP sonar for easy single transducer installation. 1.8m (6ft) cable with 9 pin connector.

Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range.

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

  • More refined detail and better range than any other imaging technology
  • Active Imaging 3-in-1 transducer with CHIRP, SideScan and DownScan
  • Easier target identification with FishReveal™ Smart Target View
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
  • Compatible with Simrad NSSevo3/3S and GO Series
  • Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and EliteFS

Ultimate Clarity

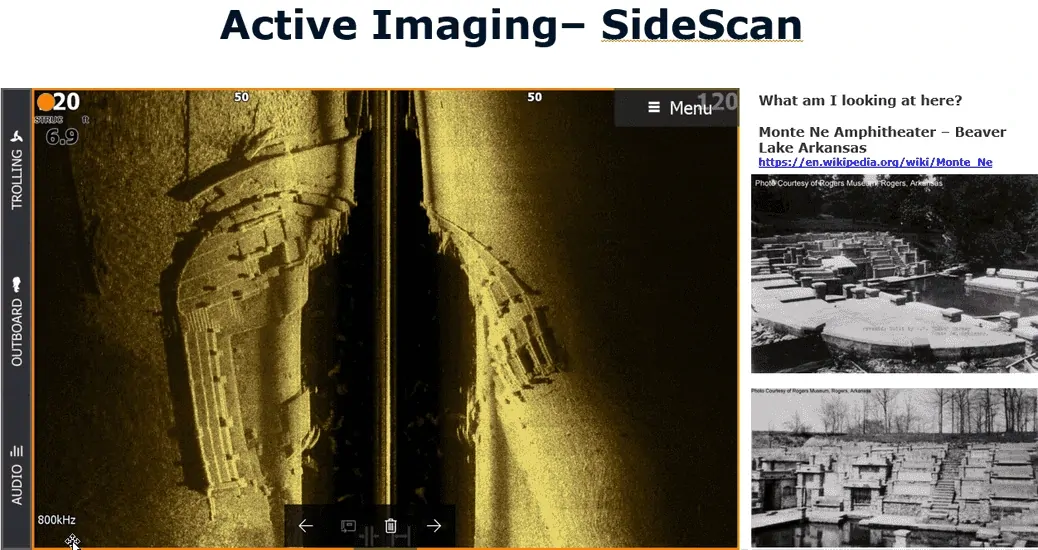

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Active imaging Technology

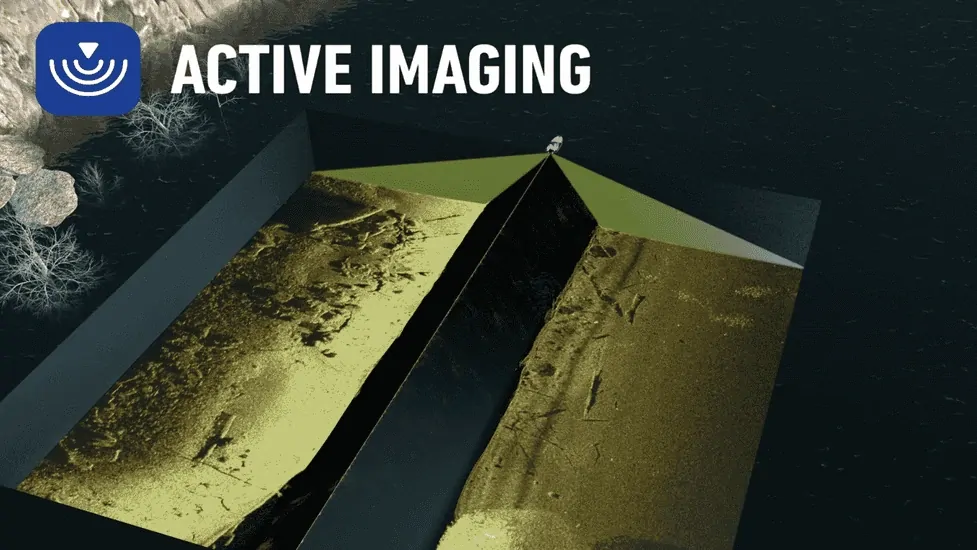

Active Imaging utilizes the latest techniques in sonar signal generation. The transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive. The transducers include separate sonar elements for SideScan transmit and receive. Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance.

Enviromental

Operating temperature -15°C to +55°C (+5°F to +131°F)
Storage temperature -30°C to +70°C (-22°F to +158°F)

Physical

Cable length 7.6 m (25 ft)

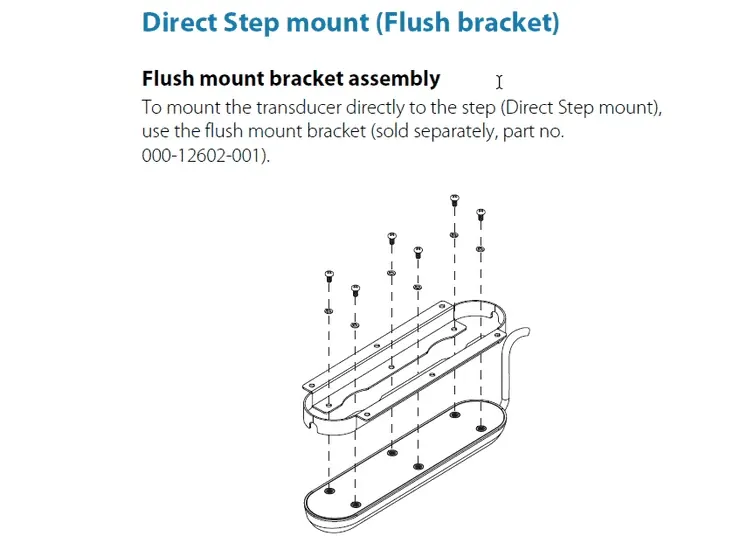

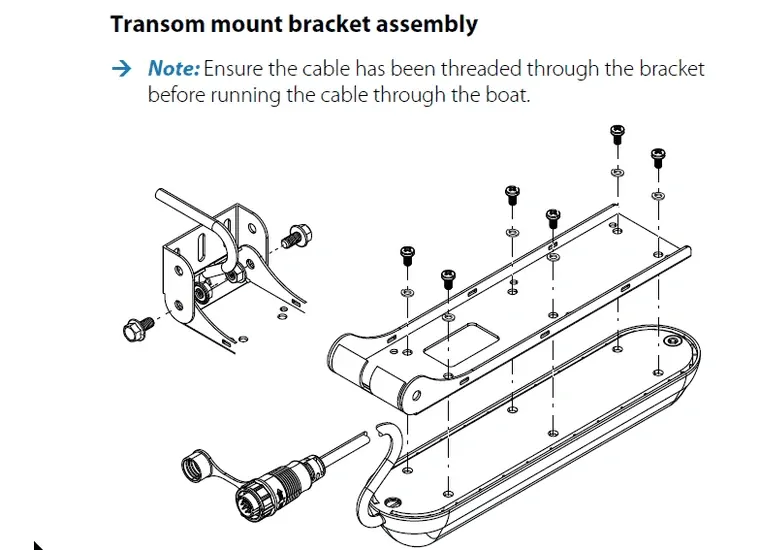

Mounting options Transom, flush step, and jackplate mounting
Connector 9 pin

Transducer

Output Traditional, SideScan imaging, DownScan imaging and temperature
Frequency Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
Max depth Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150

ft) side range at 800 kHz

Operating speed Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)
SKU 000-14814-001
Barcode # 9420024175835
Brand Lowrance
Shipping Weight 1.2000kg
Shipping Width 0.343m
Shipping Height 0.248m
Shipping Length 0.089m

Lowrance ActiveImaging 3-IN-1 Transducer w/ 1.8m (6ft) cable

SKU: 000-14814-001
Sale price
$387.99
PayPal Checkout
4 payments of $97.00

afterpay More info.

Make 4 payments of $97.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $97.00

Calculate Shipping
