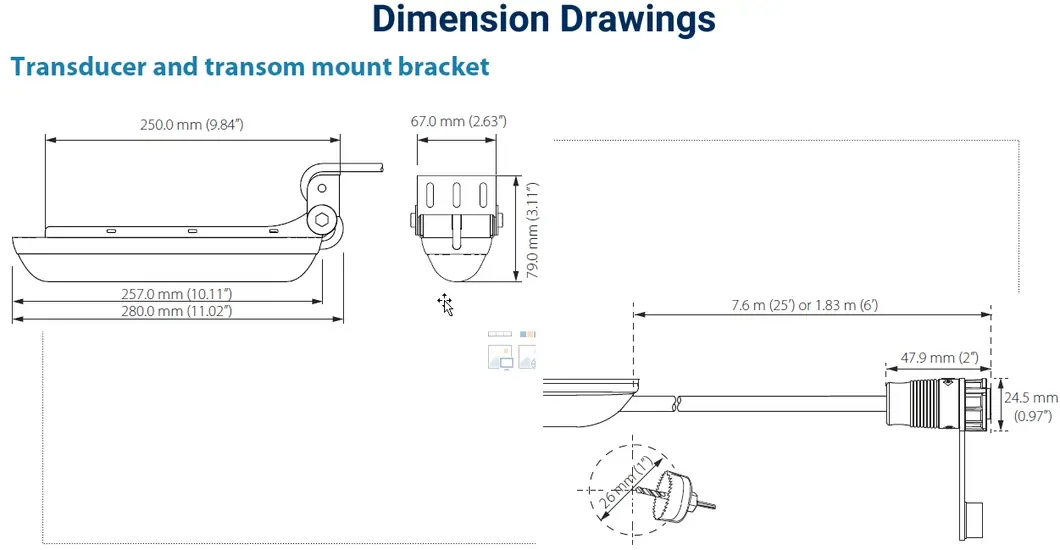

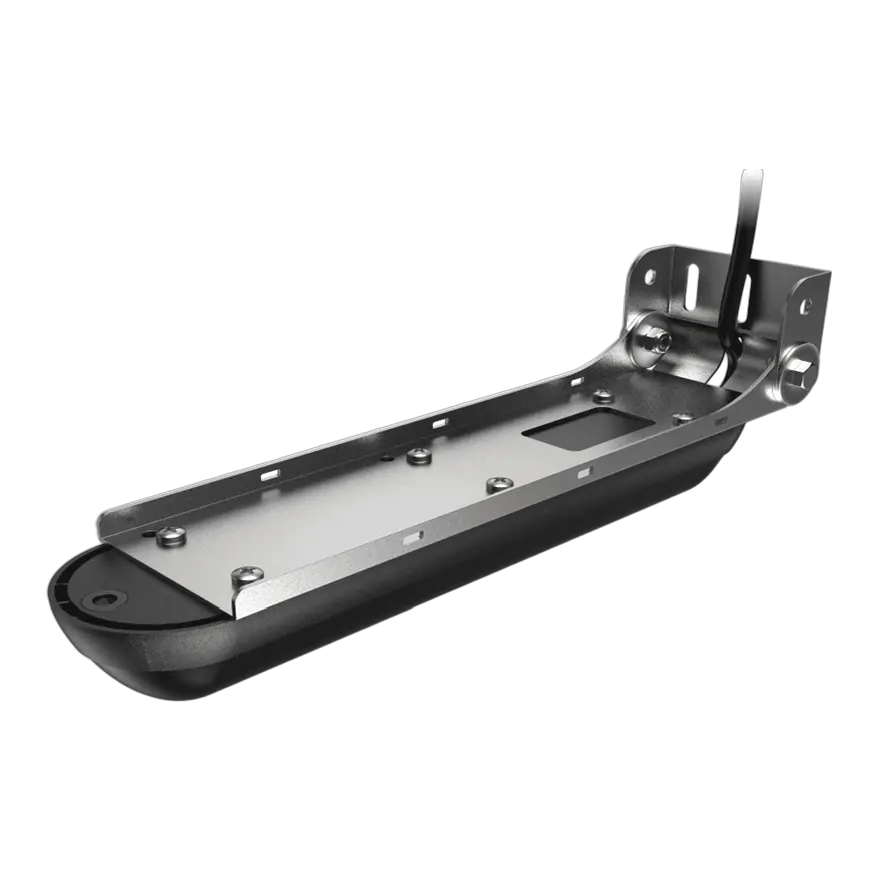

ActiveImaging™ 2-IN-1 Transducer - Provides Active Imaging technology for SideScan and DownScan while leaving you free to select other transducer options for for Traditional/Chirp Sonar. 7.6m (25 ft) cable with 9 pin connector.

Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range.

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

• Perfect for use with a separate traditional sonar transducer
• More refined detail and better range than any other imaging technology
• Supports SideScan and DownScan (455/800kHz)
• Compatible with Simrad NSSevo3/3S and GO Series
• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and EliteFS

Ultimate Clarity

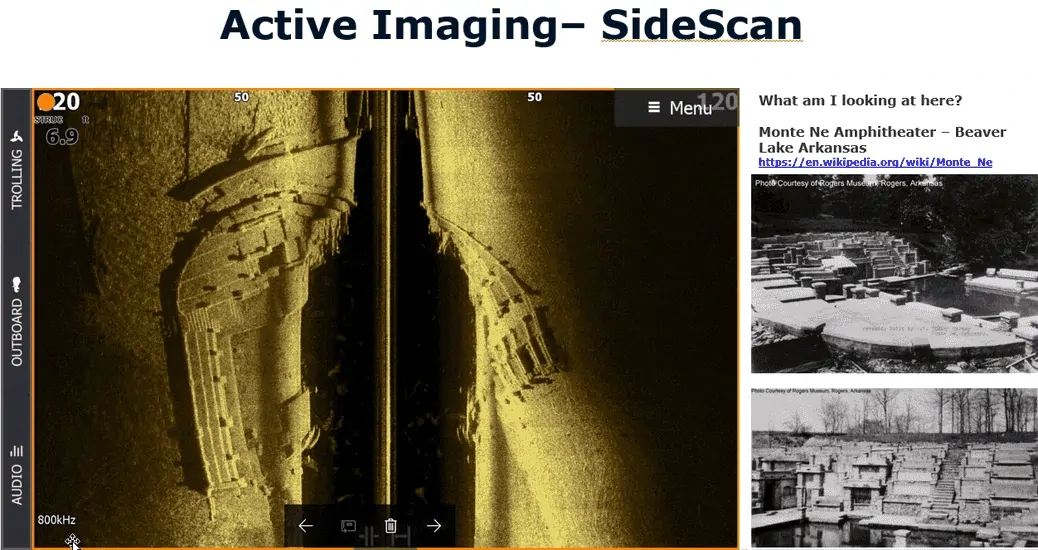

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 2-in-1 sonar featuring SideScan and DownScan. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Active Imaging 2-in-1 sonar is perfect for use with a separate traditional sonar transducer.

Active imaging Technology

Active Imaging utilizes the latest techniques in sonar signal generation. The transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive. The transducers include separate sonar elements for SideScan transmit and receive. Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance.
