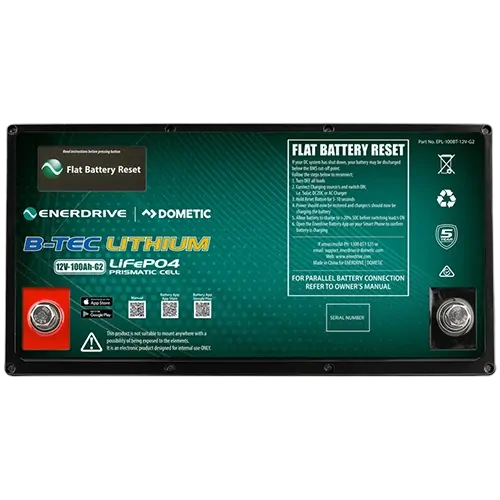

Enerdrive B-TEC LiFeP04 12v 100Ah G2 Lithium Battery
Available in 12v 100Ah, 125Ah, 200Ah and 300Ah capacities and 24v 100Ah & 36v 100Ah, the B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Smart Phone Monitoring System
The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
Specifications
| Normal Specification | EPL-100BT-12V-G2 |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Standard Charge Specification (Lithium profile charger required) | |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 60A @ 25°C for 30mins |
| Recommended Charge Current For Maximum Life, Charge in the lower amperage range |
20~60A |
| Standard Discharge Specification | |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge/Pulse Current | 100A @ 25˚C ±5˚C for 30 mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤11.20V |
| Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
| Over-Charge Protection | |
| Over-charge Protection Per Cell | 3.90V ± 0.03V |
| Over-charge Release Per Cell | 3.60V ± 0.05V |
| Over-charge Release Method | Discharge below release voltage |
| Over-Discharge Protection | |
| Over-discharge Protection Per Cell | 2.80V ± 0.05V |
| Over-discharge Release Per Cell | 3.20V ± 0.05V |
| Over-discharge Release Method | Apply Charge/Voltage ≥12.8V |
| Battery Manual Reset Button | Yes |
| Over Current Protection | |
| Discharge Over Current | 110A for 30s – 450A for 1s |
| Protection Reset Time | Approx 10s Auto Release |
| Over Current Release Method | Disconnect Load |
| Over Temperature Protection | |
| Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
| Release at 50°C ± 5°C | |
| Battery Charge Over Temperature | Protection to 55°C ± 5°C |
| Release at 45°C ± 5°C | |
| Short Circuit Protection | Auto release after 5s |
| Dimensions | |
| Length | 318mm |
| Width | 165mm |
| Height | 232mm |
| Weight | Approx 12.6kg |
| Case Construction | Hi Impact ABS Plastic |
| Storage Information | |
| Temperature & Humidity Range | ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH |
| ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH | |
| SKU | EPL-100BT-12V-G2 |
|---|---|
| Barcode # | OEBC580868 |
| Brand | Enerdrive |
| Shipping Weight | 13.0000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.250m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.014850000m3 |

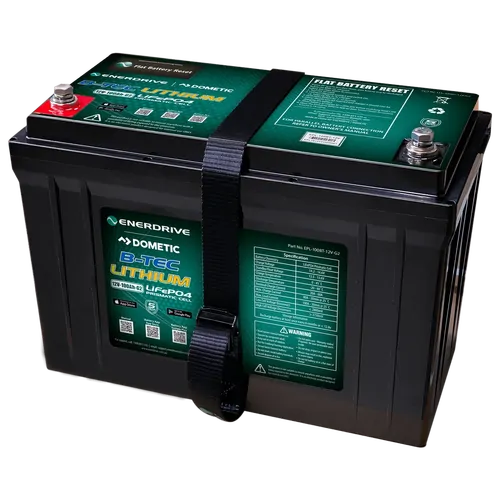

Enerdrive B-TEC 12V 100Ah G2 Lithium Battery
