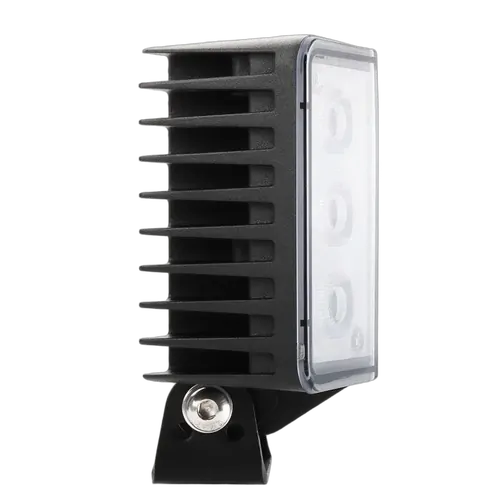

• Polycarbonate Lens • Die cast aluminium housing • Powder coated finish • Sealed Deutsch connector • Stainless steel mounting bracket • Electronic Thermal Management • Approved by ECE R10 EMC: CISPR25 Class 3 • Reverse Polarity Protection • 3 In 1 Optical System • 2 Year Warranty Wattage 90W Input voltage 9-36V DC input Current draw @ 12V/24V 6.2A / 3.0A Colour temperature 5700°K Raw lumens 9,500 Actual lumens 7,800 IP rating IP68 & IP69K LED Qty 9 x 10W LED 1 Lux @93 Metres Lens Polycarbonate Beam type Wide Flood Beam 120° Measurements 146.5 x 105 x 72.4mm
SKU | LV9133 |
---|---|
Barcode # | 9342828208628 |
Brand | LV Automotive |
Shipping Weight | 3.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.150m |
Shipping Length | 0.150m |
