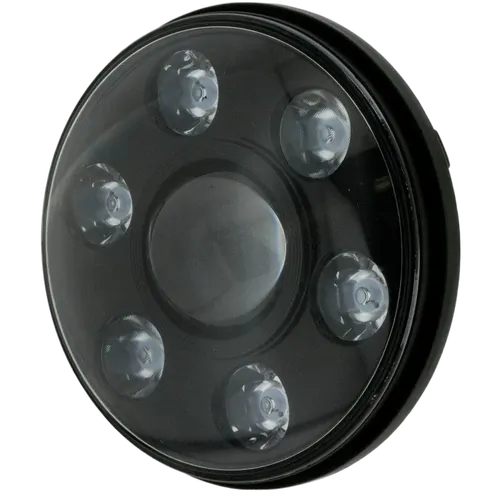

7" LED H/LIGHT 9-36V HIGH /LOW BEAM BLACK FACE 7LEDs 65 Watt

Description
Specifications

Ignite have just released a new 7" headlamp for replacement in a variety of automotive applications. Features both High and Low beam with a brilliant spread of light.

An excellent replacement for the common PAR56 H4 and conventional sealed beams currently in the market. As with all Ignite LED lamps, these headlights have a low current draw.

Low beam is emitted from the single Philips LED in the centre with Ignite patented TIR Lens technology providing the High beam and park lamp functions via the 6 Cree LED's around the outside. H4 and H13 Globe holder connector leads are supplied with each light. IP68 rated.

Beam Angle: LOW/HIGH Beam/front position light
Voltage: 9-36V DC
Current Draw :LB 1.7 A/0.8A @ 12/24 Volt, HB 4.1A/1.8A @ 12V/24 Volt
Phillips LED Low Beam / CREE Led's High Beam
Effective Lumens: LB 1450LM, HB 3100LM
Raw Lumens: LB 1800LM, HB 3900LM
Projection optical structure and TIR potical lens
Integrated Electronic Thermal Management (ETM)
Kelvin: 6,500 K
Lens Material Poly-Carbonate Lens Cover / Glass Inner Lens
Mounting: Replaces PAR56 headlights
Housing: Black powder coated die cast aluminium
Black Fascia
ECER112/R7, DOT, IP68, CE
Connector: H4/H13
Weight: 1.4kg
Size: 177mm x 119mm
Life Span: 50,000 hours

**Please note these lamps are sold and priced individually

Specifications

SKU	IHL7RB
Barcode #	IHL7RB
Brand	Ignite
Shipping Weight	3.0000kg
Shipping Width	0.150m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.006000000m3

Buy in bulk and save
Buy 2 or more	Pay $280.00 each

$290.99

SAVE $30.87

DON'T PAY RRP $321.86
