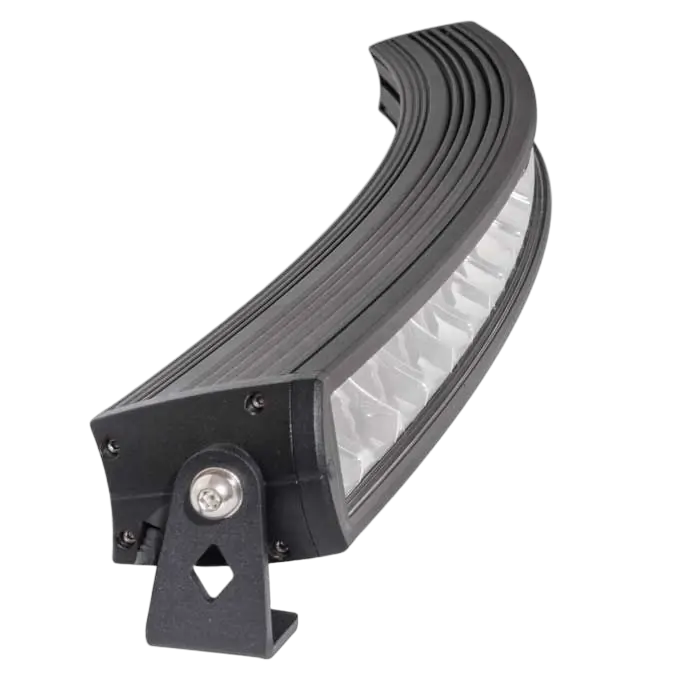

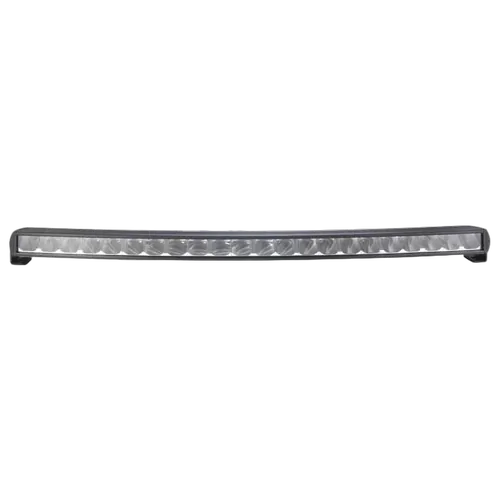

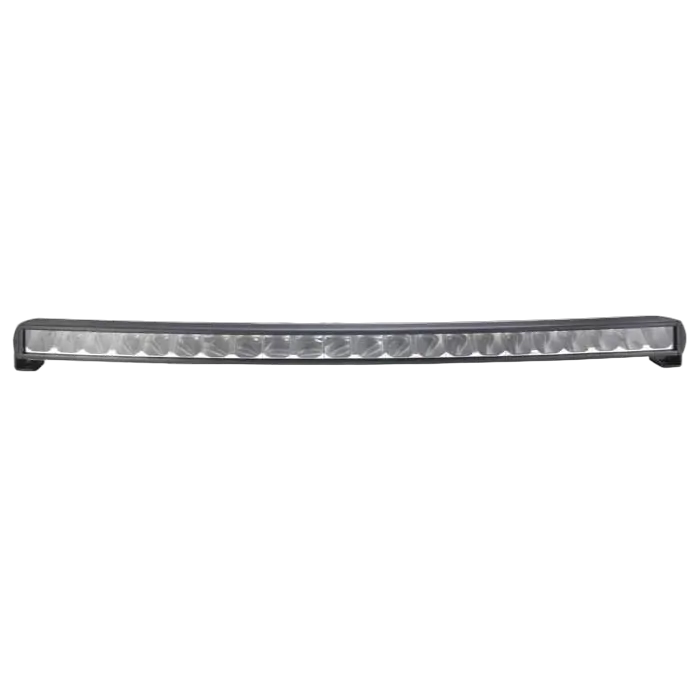

43" Led Curved Light Bar 220W 9-36V 22 X 10W Combo Beam Park Function
Features:
- Free form reflector design
- One piece front cover
- Die cast aluminium housing
- Powder coated finish
- Sealed Deutsch connector
- Electronic Thermal Management
- Dual mounting options
- Approved by ECE R112/R7/R10 (Ref. 45)
- 2 Year Warranty
Specifications:
- Wattage - 220W
- Input voltage 9-36V DC input
- Current draw @ 12V Driving Beam: 14.2A Park Beam: 0.6A
- Colour temperature 6500°K
- Raw lumens 20,900
- Actual lumens 17,765
- IP rating IP68 & IP69K
- LED Qty 22 x 10 Watt ETI® LED (Driving Light)
11 x 1 Watt LUXEON® LED (Park Light) - 1 Lux @ 512 Metres
- Lens Polycarbonate
- Beam type Driving Beam

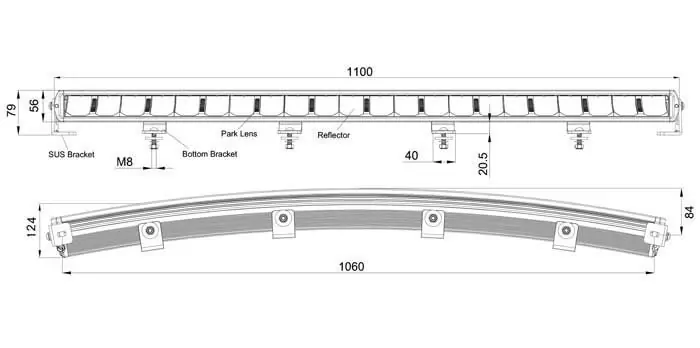

- Measurements 1100 x 56 x 124mm
SKU | LV9120 |
---|---|
Barcode # | 9342828154272 |
Brand | LV Automotive |
Shipping Weight | 14.0000kg |
Shipping Width | 0.150m |
Shipping Height | 1.150m |
Shipping Length | 0.150m |
