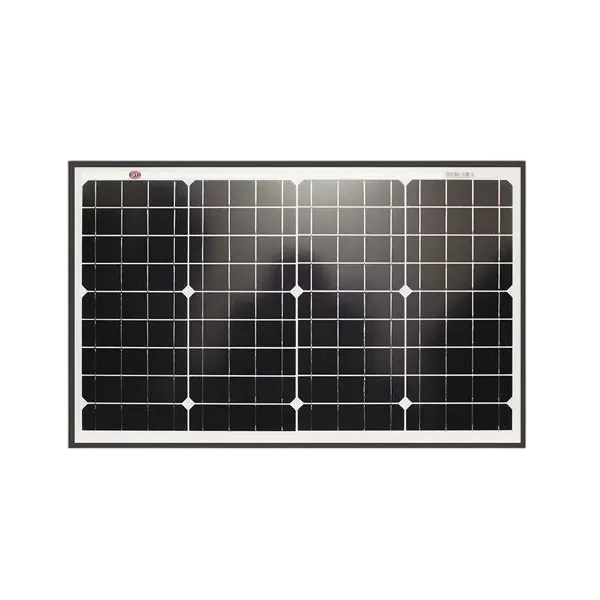

The KT 40 Watt, 12V Single Cell Mono-crystalline Solar Panel (Model No. KT70717) is ideal for a variety of Home, Automotive, Caravanning & Camping, and Marine applications. Some applications include trickle charging small batteries, small boat batteries, moped, scooter and motorcycle batteries, charging small batteries that power garden lighting, electric fencing, electric gates, home security systems and surveillance camera’s. This panel is also ideal for mounting to the roofs of caravan andThis panel offers a 10 Year Warranty and 25 Year Efficiency Guarantee.
Dimensions & Weight:
- Dimensions (Height): 420mm
- Dimensions (Length): 670mm
- Dimensions (Depth): 25mm
- Panel Weight: 3.03Kg
Features:
- 3M Positive/Negative Cables with Alligator Clamps
- Mono-Crystalline Construction
- Fully Sealed Junction Box on Back of Panel
- Quality Construction with Premium Black Framing
- 5 Accreditation Certificates
- Class A
Applications:
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme
Specifications:
Model Number | KT70717 |
Maximum Power (Pmax) | 40Wp |
Power Tolerance | +3% |
Maximum Power Voltage (Vmp) | 18.1V |
Maximum Power Current (Imp) | 2.21A |
Rated Voltage | 12V |
Open Circuit Voltage (Voc) | 22.2V |
Short Circuit Current (Isc) | 2.37A |
Operating Temperature | -40 to +85 Degrees Celcius |
Product Application | Class A |
Maximum System Voltage | 600V DC |
SKU | KT70717 |
---|---|
Barcode # | 9320729039817 |
Brand | KT Cable Accessories |
Shipping Weight | 4.0000kg |
Assembled Length | 0.500m |
Assembled Height | 0.700m |
Assembled Width | 0.100m |
