The AVG PLV is ideal for installation with high-pressure storage water heaters. When fitted to inlet supply line pressure to a pre-set maximum, and to remain in the open position if the pressure in the supply line falls below the pre-set maximum.
Features:
- Manufactured by Australian Valve Group (AVG)

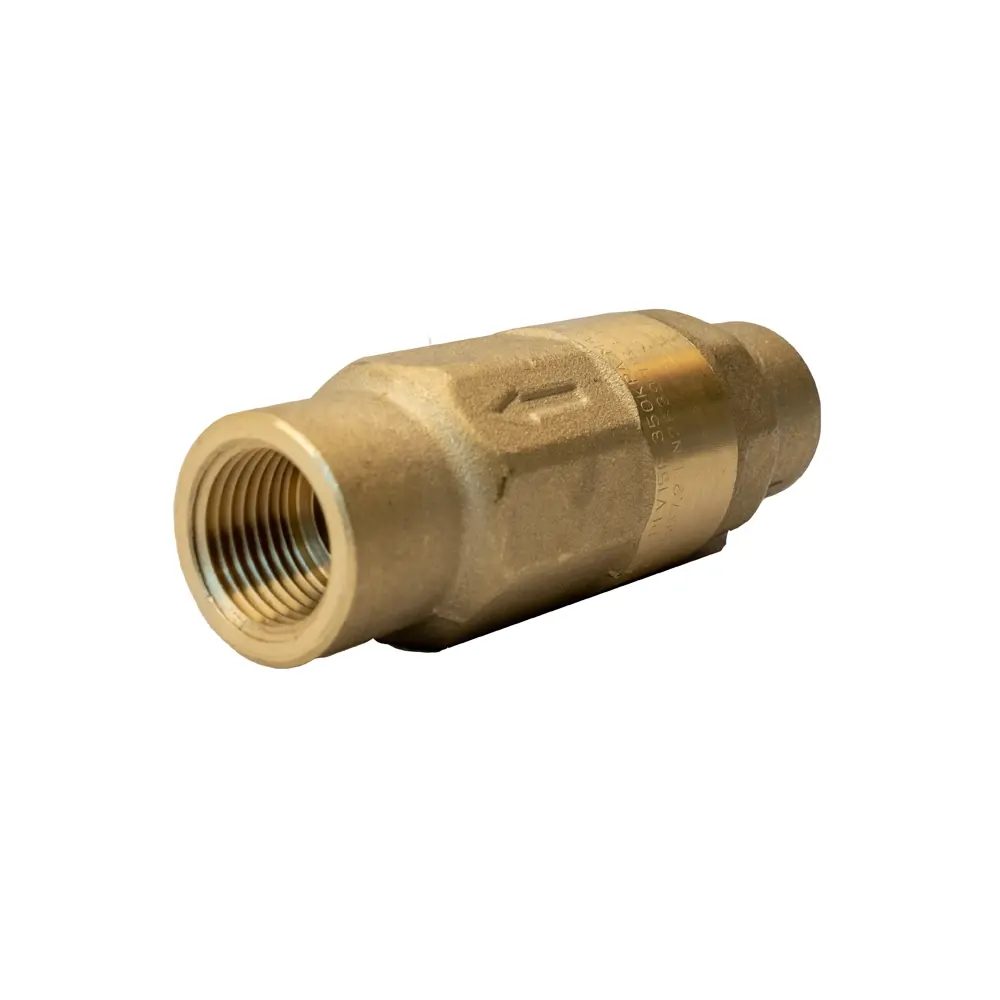

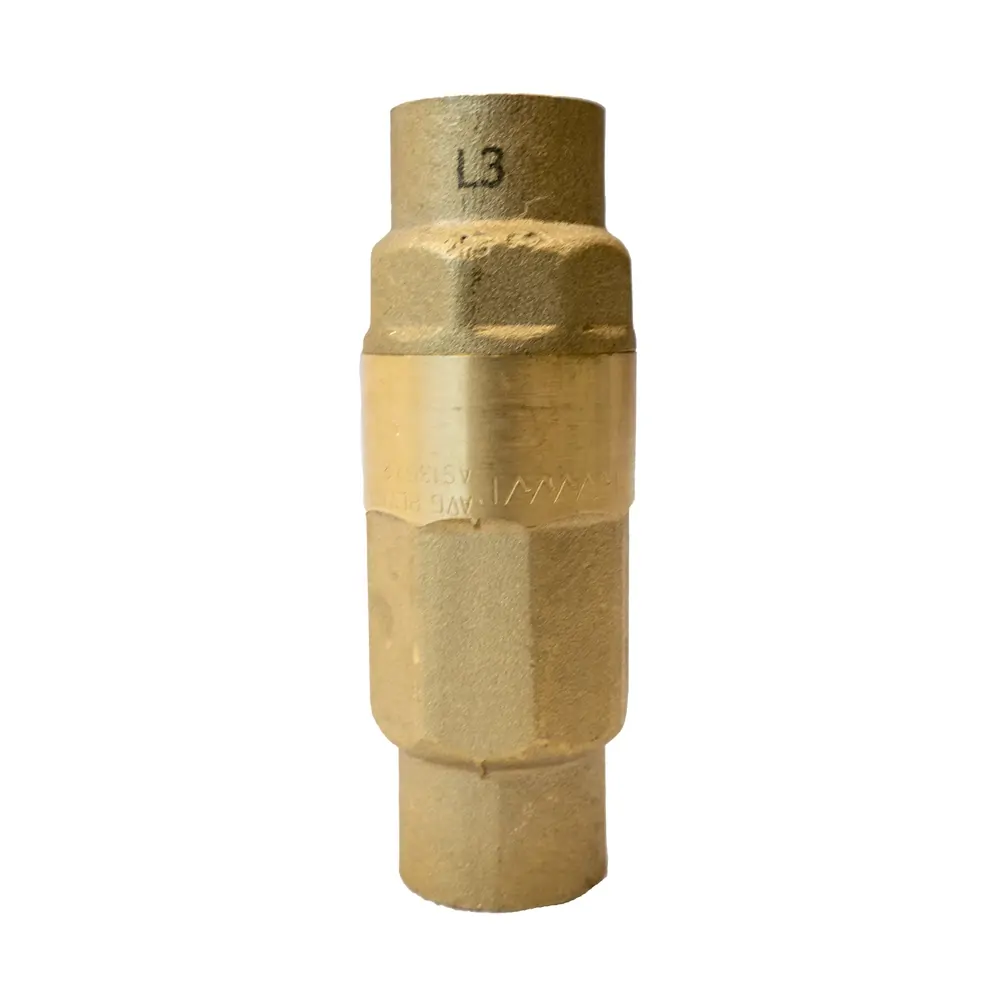

- Brass body pressure limiting valve 350kPa with inbuilt check valve
- The Pressure Limiting Valve is commonly fitted to RV’s and limits the mains pressure running through the caravans plumbing to 350kPa.
- This limiting valve is designed for use in caravan and marine applications only.
- Max Inlet Pressure: 2000kPa
- Outlet Pressure: 350kPa
Specicifcations:
- Suits inlet pressures max. 2000kPa
- Maximum temperature 80 degrees Celsius
- Female connection
- Complies with AS1357.2
- Factory set at 350kPa
- 15 mm
- Body made of DR Brass
- 1/2″ BSP (15mm) Female FI Thread (15FI x 15FI) 95 mm Length
Whats included:

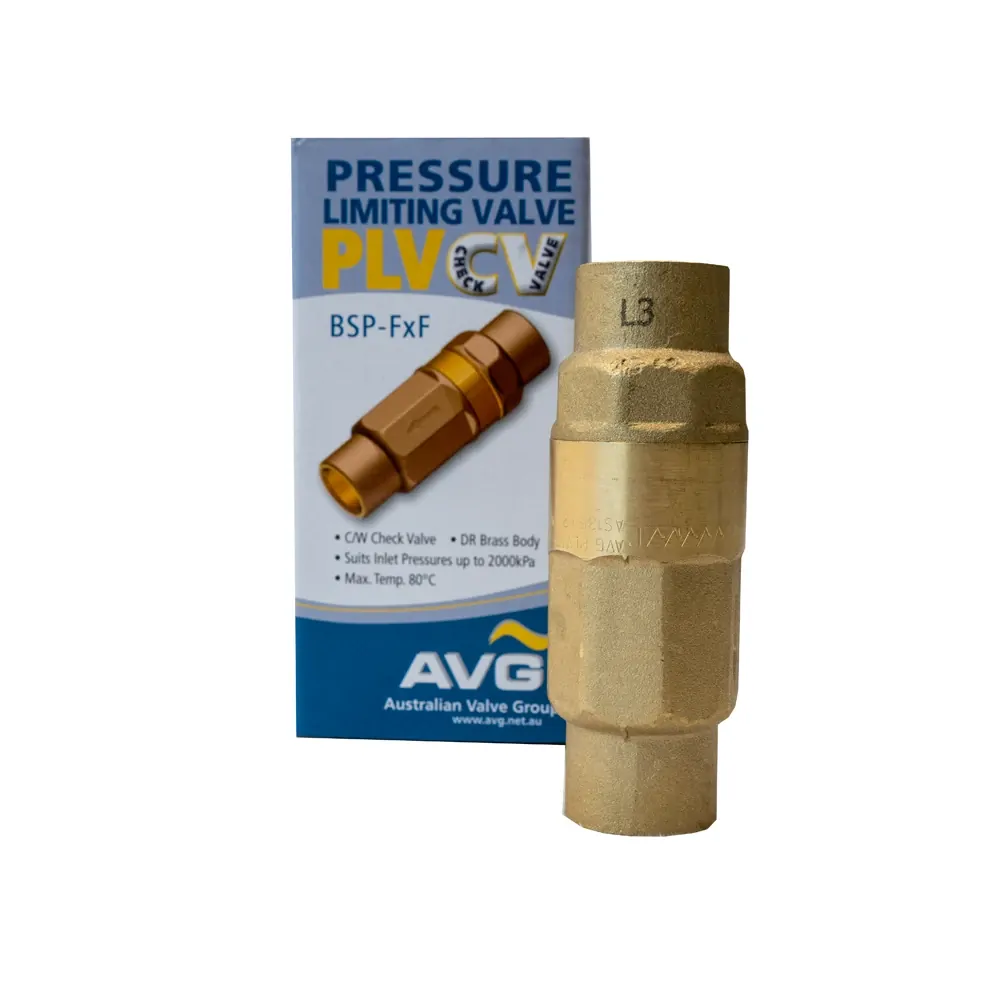

1 x AVG BSP-FxF PLV15CV350F Pressure Limiting Valve with Check Valve
Warranty
We offer 1 year replacement (parts only) warranty from the order date. Proof of purchase is required
SKU | PLVCV150-350 |
---|---|
Barcode # | 9336629002479 |
Brand | AVG |
Shipping Weight | 1.0000kg |
