Selected Part Number: LPA-2.4
General Product Information

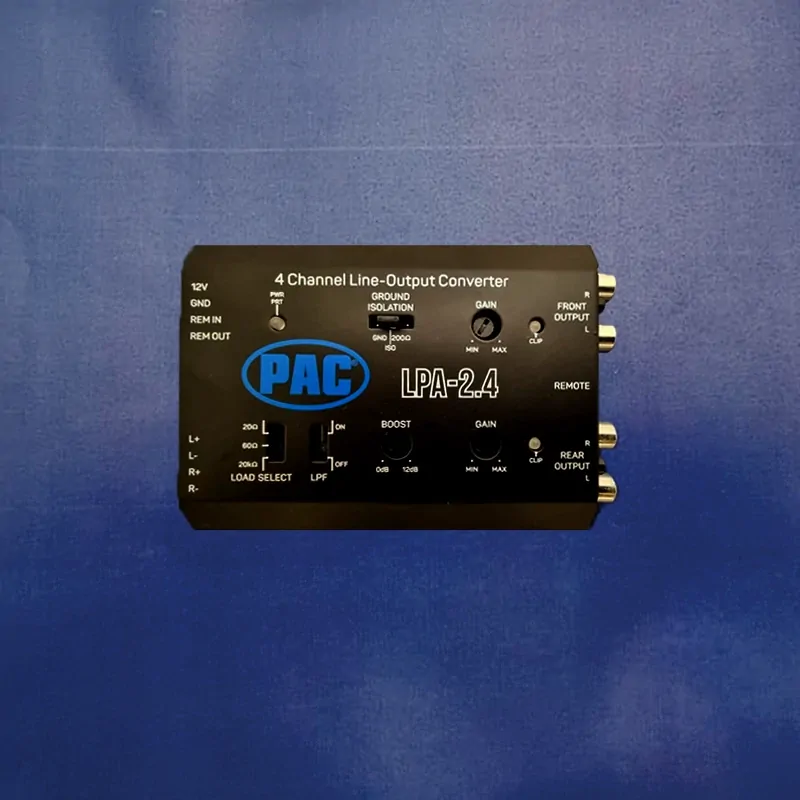

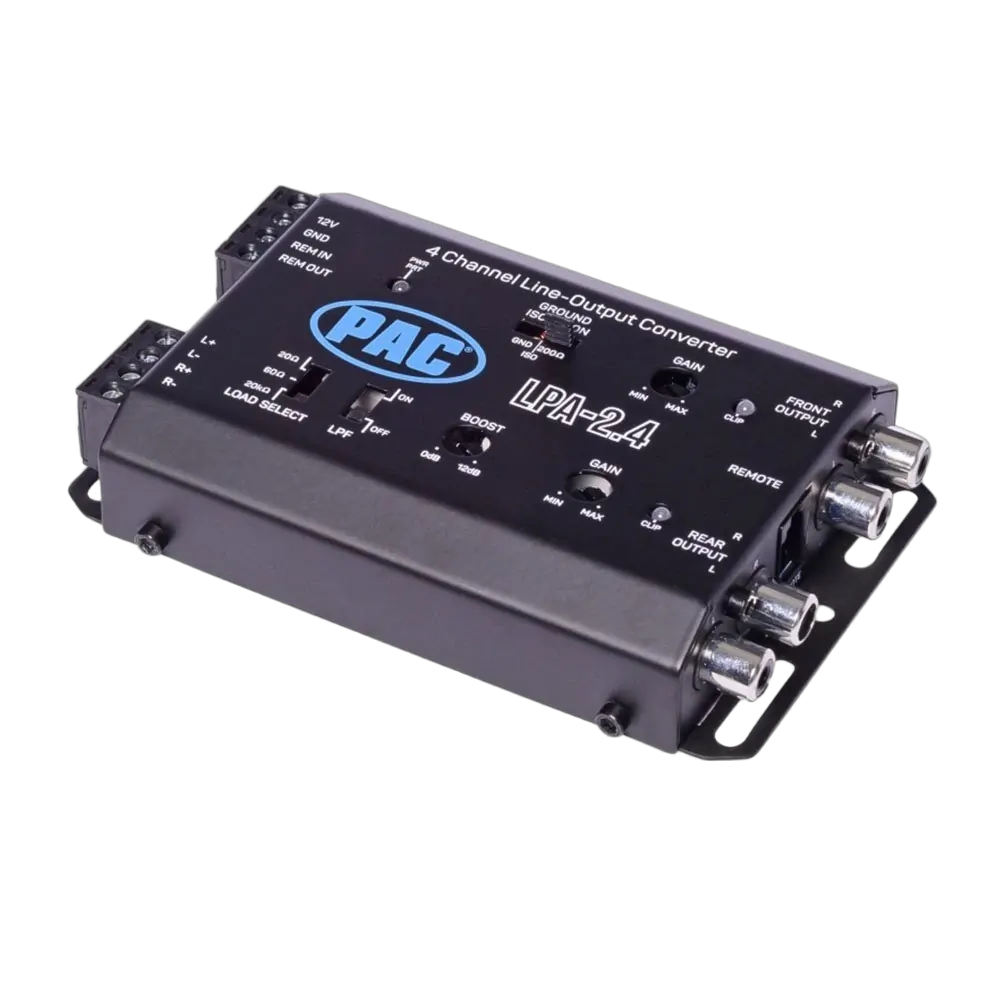

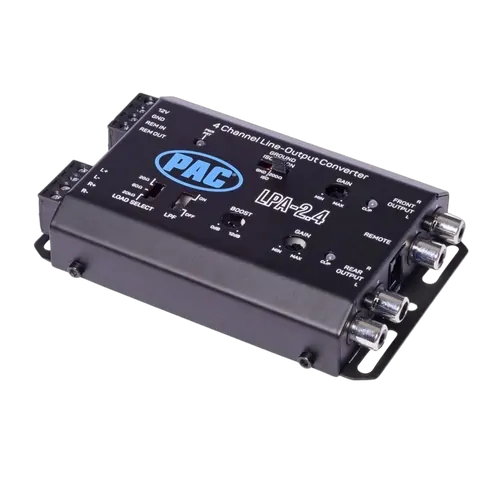

4 Channel Active Line Out Converter


The LOCPro Advanced series of line out converters enable adding an aftermarket amplifier to your factory infotainment audio system with the reliability of PAC

The PAC Legacy Continues

For over 40 years, PAC USA have created and produced vehicle interfaces for audio integration with OEM Radio systems. The New LOCPro Advanced continues this legacy for your audio aspirations.

Universal Application

The LOC PRO Advanced can be sued to add amplifiers to a factory audio system that does not have RCA outputs or when replacing the OEM radio and wanting to retain older analogue amplified systems.


Features Include:

  • Variable Gain Controls
  • Clipping Indicators
  • Selectable Ground Isolation
  • Load Select Feature
  • Remote Turn On

All About That Bass

With its built in selectable filter, the LPA-2.4 allows for 250Hz low pass filter of the rear RCA output channels.


A variable 45Hz bass boost EQ is adjustable when the LPF is enabled up to 12dB for maximum bass output.

2 IN = 4 OUT

The PAC LPA-2.4 features great flexibility for installations with unique output options.


With 2 channel high level (speaker) input, the LPA-2.4 comes with a pair of 2 channel RCA outputs for a total of 4 channels.


Great when using

  • Mono block and 2 channel amplifier
  • 4 channel amplifier where fading isn't a requirement.

What Do You Get?

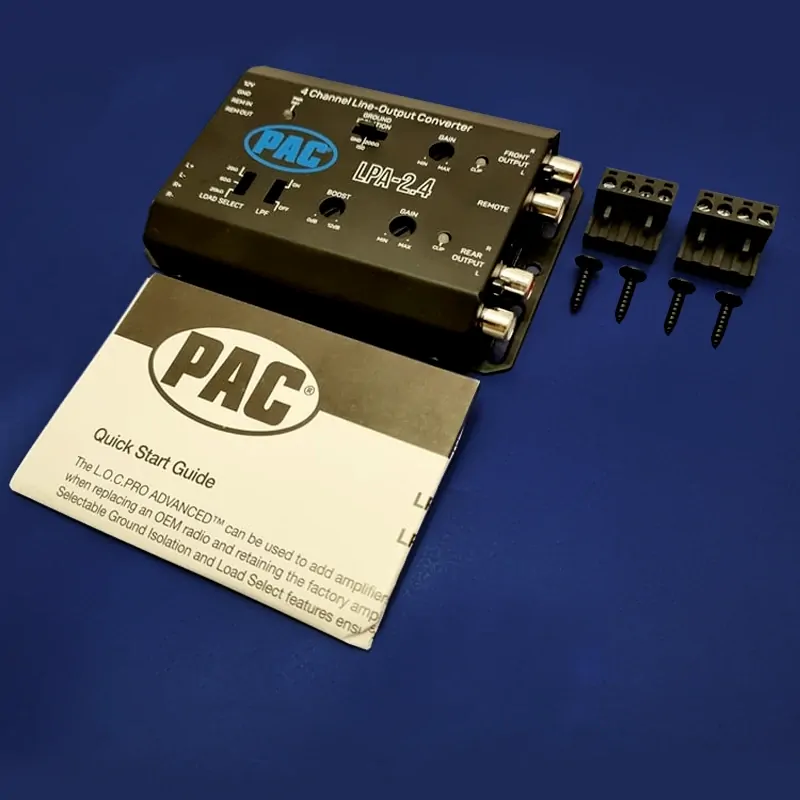

The LPA-2.4 includes

  • Line Out Converter
  • 2x Connector Bricks
  • Mounting Screws
  • Instruction Card


Features

  • 2CH High Level Input (40v Maximum @ 20k Ohm)
  • 4CH Low Level (RCA) Output
  • Selectable 250Hz Low Pass Filter
  • Adjustable 0dB -12dB Bass Boost
  • Single Stereo Gain Pot Control Per Output
  • Selectable Grounding Options (Common Ground, Isolated or 200Ohm)
  • Selectable Input Load Level (20ohm, 60Ohm or 20k Ohm)
  • Clip Indicator
  • Automatic Remote Turn-On (Remote input and DC)
  • Up to 9.5v RCA Preout
  • Removable Quick Connect Brick Connectors
  • Wide Range DC Offset
  • Optional Remote Control (NOT INCLUDED)

Product Overview Video


Important Product Compatibility Information
Plug & Play

NO

High Level Input Channels

2 Channel Stereo Input

High level Input Voltage

40v Maximum @ 20k Ohm

Output Channels

2 Channel Output

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
ALFA ROMEO 147 2000 - 2010 (937)
ALFA ROMEO 156 2001 - 2007 (932)
ALFA ROMEO 159 2005 - 2014 (939)
ALFA ROMEO 4C 2015 - 2016 (960)
ALFA ROMEO BRERA 2006 - 2011 (939)
ALFA ROMEO GIULIETTA 2010 - 2014 (940)
ALFA ROMEO GIULIETTA 2014 - 2015 (940)
ALFA ROMEO GT 2004 - 2008 (937)
ALFA ROMEO GT 2008 - 2010 (937)
ALFA ROMEO GTV 1998 - 2003 (916)
ALFA ROMEO GTV 2003 - 2006 (916)
ALFA ROMEO MITO 2008 - 2014 (955)
ALFA ROMEO MITO 2014 - 2015 (955)
ALFA ROMEO SPIDER 1998 - 2003 (916)
ALFA ROMEO SPIDER 2003 - 2006 (916)
ALFA ROMEO SPIDER 2006 - 2011 (939)
AUDI A1 2010 - 2018 (8X)
AUDI A2 1999 - 2005 (8Z)
AUDI A3 (Incl S3) 1997 - 2003 (8L)
AUDI A3 (Incl S3) 2004 - 2013 (8P)
AUDI A3 (Incl S3) 2012 - 2019 (8V)
AUDI A4 (Incl S4) 1994 - 2000 (B5)
AUDI A4 (Incl S4) 2001 - 2008 (B6-B7)
AUDI A4 (Incl S4) 2009 - 2015 (B8)
AUDI A5 (Incl S5) 2007 - 2011 (8T3 - 8F7 - 8TA)
AUDI A5 (Incl S5) 2016 - 2019 (F5)
AUDI A6 (Incl S6) 2000 - 2004 (C5)
AUDI A6 (Incl S6) 2005 - 2011 (4F)
AUDI A6 (Incl S6) 2011 - 2019 (4G)
AUDI A7 2011 - 2018 (4G)
AUDI A8 (Incl S8) 1999 - 2004 (D2)
AUDI A8 (Incl S8) 2004 - 2009 (D3-4E)
AUDI A8 (Incl S8) 2011 - 2017 (4H)
AUDI Q3 2011 - 2018 (8U)
AUDI Q5 2009 - 2016 (8R)
AUDI Q5 2017 - 2019 (FY)
AUDI Q7 2006 - 2015 (4L)
AUDI Q7 2015 - 2019 (4M)
AUDI R8 2007 - 2015 (42)
AUDI TT 1999 - 2005 (8N)
AUDI TT 2006 - 2014 (8J)
AUDI TT 2014 - 2019 (FV-8S)
BMW 1 SERIES (Incl M1) 2004 - 2013 (E81-E82-E87-E88)
BMW 2 SERIES 2015 - 2019 (F25)
BMW 3 SERIES (Incl M3) 1997 - 2005 (E46)
BMW 3 SERIES (Incl M3) 2005 - 2014 (E90)
BMW 4 SERIES 2013 - 2019 (F32-F33)
BMW 5 SERIES (Incl M5) 1996 - 2003 (E39)
BMW 5 SERIES (Incl M5) 2004 - 2011 (E60)
BMW 6 SERIES 2004 - 2011 (E63)
BMW 6 SERIES 2011 - 2019 (F12-F13)
BMW 7 SERIES 1994 - 2001 (E38)
BMW 7 SERIES 2001 - 2008 (E65-E66-E67-E68)
BMW 7 SERIES 2008 - 2013 (F01-F02)
BMW I3 2014 - 2019 (IO1)
BMW MINI 2002 - 2006 (R50)
BMW MINI 2007 - 2013 (R56)
BMW MINI 2014 - 2016 (F55 - F56)
BMW X1 2009 - 2015 (E84)
BMW X2 2016 - 2019 (F39)
BMW X3 2003 - 2010 (E83)
BMW X3 2011 - 2019 (F25)
BMW X4 2014 - 2018 (F26)
BMW X4 2018 - 2019 (G02)
BMW X5 2000 - 2005 (E53)
BMW X5 2006 - 2011 (E70)
BMW X5 2013 - 2019 (F15)
BMW X6 2008 - 2013 (E71)
BMW Z3 1996 - 2002 (E36-E37-E38)
BMW Z4 2003 - 2008 (E85-E86)
BMW Z4 2009 - 2016 (E89)
CADILLAC ESCALADE 1999 - 2001 (FIRST GEN)
CADILLAC ESCALADE 2002 - 2006 (SECOND GEN)
CADILLAC ESCALADE 2007 - 2014 (THIRD GEN)
CADILLAC ESCALADE 2015 - 2020 (6TH GEN)
CHERY J11 2011 - 2014 (T1X)
CHEVROLET AVALANCHE 1999 - 2002 (FIRST GEN)
CHEVROLET AVALANCHE 2003 - 2006 (SECOND GEN)
CHEVROLET AVALANCHE 2007 - 2011 (THIRD GEN)
CHEVROLET CAMARO 1982 - 1989 (3RD GEN)
CHEVROLET CAMARO 1990 - 1992 (3RD GEN)
CHEVROLET CAMARO 1993 - 2002 (4TH GEN)
CHEVROLET CAMARO 2010 - 2015 (5TH GEN)
CHEVROLET CAMARO 2016 - 2019 (6TH GEN)
CHEVROLET CORVETTE 1984 - 1989 (C4)
CHEVROLET CORVETTE 1990 - 1996 (C4)
CHEVROLET CORVETTE 1997 - 2004 (C5)
CHEVROLET CORVETTE 2005 - 2013 (C6)
CHEVROLET SILVERADO 1999 - 2006 (FIRST GEN)
CHEVROLET SILVERADO 2007 - 2014 (SECOND GEN)
CHEVROLET SILVERADO 2015 - 2018 (THIRD GEN)
CHEVROLET SILVERADO 2019 - 2021 (FOURTH GEN)
CHEVROLET SSR 2003 - 2006 (Super Sports Roadster)
CHEVROLET SUBURBAN 2000 - 2006 (NINTH GEN)
CHEVROLET SUBURBAN 2007 - 2013 (TENTH GEN)
CHRYSLER 300C 2005 - 2008 (FIRST GEN)
CHRYSLER 300C 2009 - 2011 (SECOND GEN)
CHRYSLER 300C 2011 - 2018 (THIRD GEN)
CHRYSLER CROSSFIRE 2004 - 2008 (ZH)
CHRYSLER NEON 1996 - 1999 (FIRST GEN)
CHRYSLER NEON 2000 - 2006 (SECOND GEN)
CHRYSLER PROWLER 2002 - 2002 (GRRRR…)
CHRYSLER PT CRUISER 2001 - 2005 (FIRST GEN)
CHRYSLER PT CRUISER 2006 - 2011 (SECOND GEN)
CHRYSLER SEBRING 2007 - 2011 (JS)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 1996 - 2001 (3RD GEN)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 2001 - 2007 (4TH GEN)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 2008 - 2014 (5TH GEN)
CITROEN BERLINGO 2003 - 2007 (FIRST GEN)
CITROEN BERLINGO 2008 - 2015 (SECOND GEN)
CITROEN C2 2006 - 2008 (FIRST GEN)
CITROEN C3 2002 - 2009 (FIRST GEN)
CITROEN C3 2010 - 2016 (SECOND GEN)
CITROEN C4 2004 - 2010 (FIRST GEN)
CITROEN C4 2011 - 2018 (SECOND GEN)
CITROEN C4 AIRCROSS 2012 - 2014 (AIRCROSS)
CITROEN C5 2001 - 2004 (DC-DE)
CITROEN C5 2004 - 2007 (DC-DE)
CITROEN C5 2008 - 2013 (RD-TD)
CITROEN DS3 2009 - 2016 (FIRST GEN)
DAEWOO LANOS 1999 - 2002 (T100)
DAEWOO LEGANZA 1999 - 2002 (V100)
DAEWOO NUBIRA 1999 - 2002 (J100)
DAIHATSU SIRION 2005 - 2009 ()
DODGE AVENGER 2007 - 2014 (SECOND GEN)
DODGE CALIBER 2006 - 2009 (FIRST GEN)
DODGE CALIBER 2009 - 2012 (SECOND GEN)
DODGE CHALLENGER R/T 2008 - 2014 (THIRD GEN)
DODGE CHALLENGER R/T 2015 - 2020 (THIRD GEN)
DODGE JOURNEY 2008 - 2011 (FIRST GEN)
DODGE JOURNEY 2012 - 2015 (SECOND GEN)
DODGE MONACO (Blues Brothers) 1974 - 1974 (CX7)
DODGE NITRO 2007 - 2012 (IT’S A NITRO BABY)
DODGE RAM 2002 - 2005 (3RD GEN)
DODGE RAM 2006 - 2008 (3RD GEN)
DODGE RAM 2009 - 2012 (4TH GEN)
DODGE RAM 2013 - 2020 (4TH GEN)
DODGE VIPER 1996 - 2002 (FIRST GEN)
DODGE VIPER 2002 - 2009 (SECOND GEN)
FERRARI CALIFORNIA 2008 - 2014 (GO SPEED RACER GO)
FIAT 500 2008 - 2015 (SERIES 1 - SERIES 3)
FIAT 500 2015 - 2018 (SERIES 5)
FIAT BRAVO + RITMO 2007 - 2014 (TYPE 198)
FIAT DUCATO 2006 - 2012 (THIRD GEN)
FIAT DUCATO 2012 - 2014 (THIRD GEN)
FIAT DUCATO 2015 - 2018 (FOURTH GEN)
FIAT FREEMONT 2012 - 2015 (FIRST GEN)
FIAT PUNTO 2005 - 2013 (THIRD GEN)
FIAT SCUDO 2007 - 2011 (SECOND GEN)
FIAT SCUDO 2012 - 2013 (THIRD GEN)
FORD COUGAR 1999 - 2000 (MK1)
FORD COUGAR 2001 - 2003 (MK2)
FORD ECOSPORT 2013 - 2016 (BK)
FORD ESCAPE 2001 - 2007 (FIRST GEN)
FORD ESCAPE 2006 - 2011 (2ND GEN)
FORD ESCAPE 2016 - 2018 (ZG)
FORD EVEREST 2015 - 2016 (UA)
FORD EXPLORER 1995 - 2001 (UN - US)
FORD EXPLORER 2002 - 2005 (UT - UX)
FORD EXPLORER 2006 - 2011 (UZ)
FORD F SERIES 1995 - 2004 (10th Gen)
FORD F SERIES 2005 - 2008 (11th Gen)
FORD F SERIES 2009 - 2014 (12th Gen)
FORD F SERIES 2015 - 2019 (13th Gen)
FORD FALCON 1998 - 2002 (AU)
FORD FALCON 2003 - 2008 (BA-BF)
FORD FALCON 2009 - 2011 (FG)
FORD FIESTA 2002 - 2005 (WP)
FORD FIESTA 2006 - 2008 (WQ)
FORD FIESTA 2009 - 2016 (WS-WT-WZ)
FORD FOCUS (Incl XR5) 1999 - 2004 (LR)
FORD FOCUS (Incl XR5) 2005 - 2007 (LS-LT)
FORD FOCUS (Incl XR5) 2008 - 2011 (LV)
FORD FOCUS (Incl XR5) 2012 - 2015 (LW)
FORD FOCUS (Incl XR5) 2016 - 2019 (LW)
FORD KA 1997 - 2011 (FIRST GEN)
FORD KUGA 2011 - 2013 (1ST GEN)
FORD KUGA 2013 - 2015 (2ND GEN)
FORD LASER 1997 - 2003 (KN - KQ)
FORD MONDEO 1993 - 2003 (MK2)
FORD MONDEO 2007 - 2014 (MB - MC)
FORD MONDEO 2015 - 2019 (MD)
FORD MUSTANG 1994 - 2005 (4TH GEN)
FORD MUSTANG 2005 - 2011 (5TH GEN)
FORD MUSTANG 2010 - 2014 (5TH GEN)
FORD MUSTANG 2015 - 2017 (6TH GEN)
FORD MUSTANG 2018 - 2020 (6TH GEN)
FORD RANGER 2007 - 2011 (PJ-PK)
FORD RANGER 2011 - 2015 (PX)
FORD RANGER 2015 - 2019 (PX2-PX3)
FORD SUPER DUTY (F SERIES) 2001 - 2007 (1ST GEN)
FORD SUPER DUTY (F SERIES) 2008 - 2010 (2ND GEN)
FORD SUPER DUTY (F SERIES) 2011 - 2016 (3RD GEN)
FORD SUPER DUTY (F SERIES) 2017 - 2019 (4TH GEN)
FORD TERRITORY 2002 - 2008 (SX)
FORD TERRITORY 2009 - 2011 (SY)
FORD TERRITORY 2011 - 2012 (SZ)
FORD TRANSIT 2001 - 2006 (VF-VG-VH-VJ)
FORD TRANSIT 2007 - 2014 (VM)
FORD TRANSIT 2015 - 2017 (VO)
FORD TRANSIT CUSTOM 2013 - 2016 (VN-EURO 5)
FORD TRANSIT CUSTOM 2016 - 2017 (VN-EURO 6)
FORD TRANSIT CUSTOM 2018 - 2019 (VN)
GMC SIERRA 1999 - 2006 (FIRST GEN)
GMC SIERRA 2007 - 2014 (SECOND GEN)
GMC SIERRA 2015 - 2018 (THIRD GEN)
GMC YUKON 2007 - 2014 (GMT900 (3RD GEN))
GREAT WALL STEED 2016 - 2018 (NBP)
GREAT WALL V200 + V240 2009 - 2014 (K2)
GREAT WALL X200 2012 - 2014 (H5)
GREAT WALL X240 2010 - 2011 (H5)
GWM CANNON 2021 - 2022 (GWM)
HAINES HUNTER 1980 - 2019 (NO CHASSIS CODE)
HARLEY DAVIDSON STREET GLIDE 1998 - 2013 (MOTORBIKE)
HARLEY DAVIDSON ULTRA GLIDE 1998 - 2013 (MOTORBIKE)
HOLDEN ACADIA 2018 - 2019 (AC)
HOLDEN ASTRA COUPE 1995 - 1998 (TR)
HOLDEN ASTRA COUPE 1998 - 2004 (TS)
HOLDEN ASTRA COUPE 2005 - 2009 (AH)
HOLDEN ASTRA COUPE 2015 - 2018 (BK)
HOLDEN ASTRA SEDAN 1995 - 1998 (TR)
HOLDEN ASTRA SEDAN 1998 - 2004 (TS)
HOLDEN ASTRA SEDAN 2005 - 2009 (AH)
HOLDEN ASTRA SEDAN 2017 - 2018 (BL)
HOLDEN ASTRA WAGON 1995 - 1998 (TR)
HOLDEN ASTRA WAGON 1998 - 2004 (TS)
HOLDEN ASTRA WAGON 2005 - 2009 (AH)
HOLDEN ASTRA WAGON 2016 - 2018 (BK)
HOLDEN BARINA 2000 - 2005 (XC)
HOLDEN BARINA 2006 - 2011 (TK)
HOLDEN BARINA 2012 - 2016 (TM)
HOLDEN BARINA 2017 - 2018 (TM)
HOLDEN BARINA SPARK 2010 - 2016 (MJ)
HOLDEN CAPTIVA 2016 - 2017 (CG)
HOLDEN CAPTIVA 5 (Incl MAXX) 2006 - 2015 (CG)
HOLDEN CAPTIVA 7 (Incl Variants) 2006 - 2015 (CG)
HOLDEN COLORADO (Incl 7) 2009 - 2011 (RC)
HOLDEN COLORADO (Incl 7) 2012 - 2013 (RG)
HOLDEN COLORADO (Incl 7) 2014 - 2016 (RG)
HOLDEN COLORADO (Incl 7) 2016 - 2019 (RG)
HOLDEN COMBO 2002 - 2012 (XC)
HOLDEN COMMODORE 1997 - 2002 (VT-VX)
HOLDEN COMMODORE 2002 - 2007 (VY-VZ)
HOLDEN COMMODORE 2007 - 2010 (VE)
HOLDEN COMMODORE 2010 - 2013 (VE)
HOLDEN COMMODORE 2013 - 2015 (VF)
HOLDEN CRUZE 2002 - 2005 (1ST GEN)
HOLDEN CRUZE 2008 - 2016 (J300)
HOLDEN EPICA 2006 - 2011 (EP)
HOLDEN EQUINOX 2017 - 2018 (EQ)
HOLDEN MALIBU 2013 - 2016 (EM)
HOLDEN RODEO 2003 - 2009 (RA)
HOLDEN SPARK 2016 - 2017 (M400)
HOLDEN SUBURBAN 1998 - 2001 (K8)
HOLDEN TIGRA 2004 - 2009 (XC)
HOLDEN TRAX 2013 - 2017 (TJ)
HOLDEN TRAX 2017 - 2018 (TJ)
HOLDEN VECTRA 1995 - 2002 (JS)
HOLDEN VECTRA 2003 - 2011 (ZC)
HOLDEN VIVA 2006 - 2011 (JF)
HOLDEN ZAFIRA 2001 - 2005 (TT)
HONDA ACCORD 1989 - 1993 (4TH GEN)
HONDA ACCORD 1993 - 1997 (5TH GEN)
HONDA ACCORD 2003 - 2007 (7TH GEN)
HONDA ACCORD 2008 - 2012 (8TH GEN)
HONDA ACCORD 2013 - 2015 (9TH GEN)
HONDA ACCORD EURO 2003 - 2007 (7TH GEN)
HONDA ACCORD EURO 2008 - 2015 (8TH GEN)
HONDA CITY 2009 - 2013 (GM)
HONDA CITY 2013 - 2015 (GM)
HONDA CITY 2015 - 2019 (GM)
HONDA CIVIC HATCH 2001 - 2005 (7TH GEN)
HONDA CIVIC HATCH 2006 - 2011 (8TH GEN)
HONDA CIVIC HATCH 2012 - 2015 (9TH GEN)
HONDA CIVIC HATCH 2015 - 2016 (9TH GEN)
HONDA CIVIC HATCH 2016 - 2018 (10TH GEN)
HONDA CIVIC SEDAN 2001 - 2005 (7TH GEN)
HONDA CIVIC SEDAN 2006 - 2011 (8TH GEN)
HONDA CIVIC SEDAN 2012 - 2015 (9TH GEN)
HONDA CIVIC SEDAN 2015 - 2016 (9TH GEN)
HONDA CIVIC SEDAN 2016 - 2018 (10TH GEN)
HONDA CRV 1997 - 2006 (RD)
HONDA CRV 2007 - 2011 (RE)
HONDA CRV 2012 - 2015 (RM)
HONDA CRV 2015 - 2016 (RM)
HONDA CRV 2017 - 2018 (RW)
HONDA CRZ 2010 - 2014 (ZF)
HONDA HRV 2015 - 2017 (2ND GEN)
HONDA HRV 2017 - 2019 (2ND GEN)
HONDA INSIGHT 2009 - 2013 (ZE)
HONDA INTEGRA 1993 - 2001 (DB - DC1 - DC2)
HONDA INTEGRA 2002 - 2006 (DC5)
HONDA JAZZ 2001 - 2007 (GD)
HONDA JAZZ 2008 - 2013 (GE)
HONDA JAZZ 2014 - 2016 (GF)
HONDA JAZZ 2017 - 2019 (GF)
HONDA LEGEND 1990 - 1996 (KA7-KA8)
HONDA LEGEND 1996 - 2003 (KA9)
HONDA MDX 2001 - 2006 (YD1)
HONDA NSX 2002 - 2005 (1ST GEN)
HONDA ODYSSEY 1995 - 1999 (1ST GEN (RA1 - RA5))
HONDA ODYSSEY 2000 - 2003 (2ND GEN (RA6 - RA9))
HONDA ODYSSEY 2004 - 2009 (3RD GEN (RB1 - RB2))
HONDA ODYSSEY 2009 - 2013 (4TH GEN (RB3 - RB4))
HONDA ODYSSEY 2014 - 2018 (5TH GEN (RC1 - RC2))
HONDA PRELUDE 1991 - 1996 (4TH GEN (BA - BB))
HONDA PRELUDE 1997 - 2001 (5TH GEN (BB5-BB9))
HONDA S2000 1999 - 2011 (AP1 - AP2)
HUMMER H2 2002 - 2007 (H2)
HUMMER H2 2008 - 2011 (H2)
HUMMER H3 2006 - 2011 (H3)
HYUNDAI ACCENT 2000 - 2005 (LC)
HYUNDAI ACCENT 2006 - 2008 (MC)
HYUNDAI ACCENT 2011 - 2019 (RB)
HYUNDAI ELANTRA 1992 - 1995 (J1)
HYUNDAI ELANTRA 1995 - 2000 (J2 - RD)
HYUNDAI ELANTRA 2001 - 2006 (XD)
HYUNDAI ELANTRA 2007 - 2010 (HD)
HYUNDAI ELANTRA 2011 - 2013 (MD-MD2)
HYUNDAI ELANTRA 2014 - 2015 (MD3)
HYUNDAI ELANTRA 2016 - 2018 (AD)
HYUNDAI ELANTRA 2019 - 2019 (AD2)
HYUNDAI EXCEL 1986 - 1994 (X1-X2-X3)
HYUNDAI GETZ 2002 - 2010 (TB)
HYUNDAI GRANDEUR 1998 - 2005 (XG)
HYUNDAI GRANDEUR 2006 - 2010 (TG)
HYUNDAI i20 2010 - 2012 (PB)
HYUNDAI i20 2012 - 2015 (PB)
HYUNDAI i30 2007 - 2011 (FD)
HYUNDAI i30 2012 - 2016 (GD-GD2)
HYUNDAI i30 2017 - 2021 (PD)
HYUNDAI i40 2012 - 2018 (VF-VF2-VF3)
HYUNDAI i45 2010 - 2012 (YF)
HYUNDAI ILOAD (Incl IMAX) 2008 - 2016 (TQ)
HYUNDAI ILOAD (Incl IMAX) 2016 - 2018 (TQ3-V Series II)
HYUNDAI ILOAD (Incl IMAX) 2018 - 2019 (TQ4)
HYUNDAI ix35 2010 - 2013 (LM)
HYUNDAI ix35 2014 - 2015 (LM) - WITH NAV
HYUNDAI ix35 2014 - 2015 (LM) - WITHOUT NAV
HYUNDAI KONA 2017 - 2018 (OS - OS2)
HYUNDAI SANTA FE 2001 - 2006 (SM)
HYUNDAI SANTA FE 2007 - 2009 (CM)
HYUNDAI SANTA FE 2009 - 2012 (CM)
HYUNDAI SANTA FE 2012 - 2018 (DM)
HYUNDAI SONATA 1995 - 2001 (Y3)
HYUNDAI SONATA 2002 - 2005 (EF)
HYUNDAI SONATA 2006 - 2008 (NF)
HYUNDAI SONATA 2009 - 2011 (YF)
HYUNDAI SONATA 2014 - 2016 (LF)
HYUNDAI TIBURON 1997 - 2002 (RD - RD2)
HYUNDAI TIBURON 2003 - 2008 (GK)
HYUNDAI TRAJET 2002 - 2007 (1ST GEN)
HYUNDAI TUCSON 2005 - 2010 (JM)
HYUNDAI TUCSON 2015 - 2018 (TL)
HYUNDAI TUCSON 2018 - 2019 (TL)
HYUNDAI VELOSTER 2012 - 2017 (1ST GEN)
ISUZU DMAX 2009 - 2011 (RA - RC)
ISUZU DMAX 2012 - 2016 (RT50 - RT85)
ISUZU DMAX 2016 - 2019 (RT50 - RT85)
ISUZU DMAX 2019 - 2021 (RG)
ISUZU MUX 2013 - 2015 (RF10)
ISUZU MUX 2016 - 2017 (RF20)
ISUZU MUX 2018 - 2021 (RF20)
IVECO DAILY 2007 - 2014 (5TH GEN)
IVECO DAILY 2015 - 2017 (6TH GEN)
IVECO DAILY 2018 - 2019 (6TH GEN)
JAGUAR S-TYPE 2000 - 2002 (No Chassis Code)
JAGUAR S-TYPE 2003 - 2008 (No Chassis Code)
JAGUAR X-TYPE 2002 - 2015 (No Chassis Code)
JAGUAR XJ8 2003 - 2008 (No Chassis Code)
JEEP CHEROKEE 1994 - 2001 (XJ)
JEEP CHEROKEE 2001 - 2007 (KJ)
JEEP CHEROKEE 2007 - 2012 (KK)
JEEP CHEROKEE 2014 - 2018 (KL)
JEEP COMMANDER 2005 - 2008 (XK)
JEEP COMMANDER 2008 - 2010 (XK)
JEEP COMPASS 2007 - 2009 (MK)
JEEP COMPASS 2009 - 2017 (MK)
JEEP COMPASS 2017 - 2018 (M6)
JEEP GLADIATOR 2020 - 2021 (JT)
JEEP GRAND CHEROKEE 1993 - 1998 (ZG)
JEEP GRAND CHEROKEE 1999 - 2004 (WJ-WG)
JEEP GRAND CHEROKEE 2005 - 2007 (WH-WK)
JEEP GRAND CHEROKEE 2008 - 2011 (WH-WK)
JEEP GRAND CHEROKEE 2012 - 2013 (WK2)
JEEP GRAND CHEROKEE 2014 - 2020 (WK2)
JEEP PATRIOT 2007 - 2009 (MK)
JEEP PATRIOT 2010 - 2016 (MK)
JEEP RENEGADE 2015 - 2016 (BU-520)
JEEP WRANGLER 1986 - 2004 (YJ - TJ)
JEEP WRANGLER 2003 - 2006 (TJ)
JEEP WRANGLER 2007 - 2018 (JK)
JEEP WRANGLER 2019 - 2021 (JL)
JMC VIGUS 2015 - 2018 (No Chassis Code)
KIA CARNIVAL 2015 - 2017 (YP)
KIA CARNIVAL 2018 - 2019 (YP)
KIA CARNIVAL (Incl Grand) 1998 - 2005 (KV-II)
KIA CARNIVAL (Incl Grand) 2006 - 2015 (VQ)
KIA CERATO 2004 - 2009 (LD)
KIA CERATO 2010 - 2012 (TD)
KIA CERATO 2013 - 2018 (YD)
KIA MAGENTIS 2006 - 2010 (MG)
KIA OPTIMA 2001 - 2006 (EF)
KIA OPTIMA 2006 - 2010 (MG)
KIA OPTIMA 2010 - 2013 (TF1)
KIA OPTIMA 2013 - 2015 (TF2)
KIA OPTIMA 2016 - 2017 (JF)
KIA PICANTO 2016 - 2017 (TA)
KIA PICANTO 2017 - 2018 (JA)
KIA PRO CEED 2014 - 2015 (JD)
KIA RIO 2001 - 2004 (DC)
KIA RIO 2006 - 2009 (JB)
KIA RIO 2010 - 2014 (UB)
KIA RIO 2014 - 2017 (UB)
KIA RONDO 2007 - 2012 (UN)
KIA RONDO 2013 - 2018 (RP)
KIA SORENTO 2007 - 2008 (BL)
KIA SORENTO 2009 - 2012 (XM)
KIA SORENTO 2013 - 2015 (XM)
KIA SORENTO 2015 - 2018 (UM)
KIA SORENTO EX 2003 - 2009 (BL)
KIA SORENTO LX 2001 - 2003 (BL)
KIA SORENTO LX 2007 - 2009 (BL)
KIA SOUL 2009 - 2011 (AM)
KIA SOUL 2011 - 2013 (AM)
KIA SOUL 2014 - 2018 (PS)
KIA SPORTAGE 1995 - 2004 (NB)
KIA SPORTAGE 2002 - 2004 (JA)
KIA SPORTAGE 2005 - 2009 (KM)
KIA SPORTAGE 2010 - 2015 (SL)
KIA SPORTAGE 2016 - 2018 (QL)
KIA SPORTAGE 2018 - 2019 (QL)
KIA STINGER 2017 - 2018 (CK)
LAMBORGHINI GALLARDO 2005 - 2011 (No Chassis Code)
LAND ROVER DEFENDER 2008 - 2015 (No Chassis Code)
LAND ROVER DISCOVERY II 1998 - 2004 (L318)
LAND ROVER DISCOVERY III 2005 - 2010 (L319)
LAND ROVER DISCOVERY IV 2010 - 2016 (L319)
LAND ROVER EVOQUE 2011 - 2013 (L538)
LAND ROVER FREELANDER 1997 - 2003 (L314)
LAND ROVER FREELANDER 2004 - 2006 (L314)
LAND ROVER FREELANDER II 2007 - 2011 (L359)
LAND ROVER FREELANDER II 2012 - 2014 (L359)
LAND ROVER RANGE ROVER 1995 - 2002 (P38)
LAND ROVER RANGE ROVER (Incl HSE - VOGUE) 2002 - 2012 (L322)
LAND ROVER RANGE ROVER SPORT 2005 - 2010 (L320)
LAND ROVER RANGE ROVER SPORT 2010 - 2013 (L320)
LAND ROVER RANGE ROVER SPORT 2013 - 2015 (L494)
LEXUS CT 2011 - 2013 (C10)
LEXUS CT 2014 - 2018 (A10)
LEXUS ES 1992 - 1996 (XV10)
LEXUS ES 1997 - 2001 (XV20)
LEXUS ES 2002 - 2006 (XV30)
LEXUS ES 2012 - 2018 (XV60)
LEXUS ES 2019 - 2021 (XV70)
LEXUS GS 1998 - 2006 (S160)
LEXUS IS 1999 - 2005 (XE10)
LEXUS IS 2006 - 2015 (XE20)
LEXUS IS 2016 - 2018 (XE30)
LEXUS LS 1989 - 1994 (UCF10)
LEXUS LS 1995 - 2000 (UCF20)
LEXUS LS 2001 - 2006 (UCF30) with NAV
LEXUS LS 2001 - 2006 (UCF30) without NAV
LEXUS LX 1998 - 2007 (J100)
LEXUS NX 2014 - 2018 (AZ10)
LEXUS NX 2019 - 2021 (AZ20)
LEXUS RC 2014 - 2018 (XC10)
LEXUS RX 2003 - 2008 (XU30)
LEXUS RX 2010 - 2015 (AL10)
LEXUS RX 2016 - 2018 (AL20)
LEXUS RX 2019 - 2021 (GGL25R)
LEXUS SC 1988 - 1998 (Z30 - Z31)
LEXUS SC 2001 - 2010 (Z40)
LINCOLN FUTURA 1965 - 1966 (BATMOBILE)
MASERATI QUATTROPORTE 2014 - 2014 (No Chassis Code)
MAZDA 121 1996 - 2002 (DW)
MAZDA 2 2003 - 2007 (DY)
MAZDA 2 2007 - 2015 (DE)
MAZDA 2 2015 - 2016 (DJ)
MAZDA 3 2004 - 2009 (BK)
MAZDA 3 2009 - 2013 (BL)
MAZDA 3 2013 - 2016 (BM) - WITH COLOR OEM RADIO
MAZDA 3 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY
MAZDA 3 2016 - 2018 (BN)
MAZDA 323 1986 - 1994 (BF - BG)
MAZDA 323 1995 - 2003 (BJ)
MAZDA 6 2003 - 2005 (GG)
MAZDA 6 2005 - 2008 (GG)
MAZDA 6 2008 - 2010 (GH)
MAZDA 6 2010 - 2012 (GH)
MAZDA 6 2013 - 2015 (GJ)
MAZDA 626 1993 - 2002 (CG - GE - GF - GW)
MAZDA 929 1992 - 1997 (HD - HE)
MAZDA BRAVO 1998 - 2006 (B Series)
MAZDA BT-50 2007 - 2011 (B Series)
MAZDA BT-50 2012 - 2015 (B32Q)
MAZDA BT-50 2015 - 2019 (UR)
MAZDA BT-50 2015 - 2019 (UR) WITH 7inch NAV
MAZDA BT-50 2020 - 2021 (RG04)
MAZDA CX-3 2015 - 2021
MAZDA CX5 2012 - 2015 (KE)
MAZDA CX5 2015 - 2017 (KE)
MAZDA CX5 2017 - 2021 (KF)
MAZDA CX7 2006 - 2010 (ER)
MAZDA CX7 2010 - 2011 (ER)
MAZDA CX9 2006 - 2011 (TB)
MAZDA CX9 2012 - 2015 (TB)
MAZDA MPV 1990 - 1995 (LV)
MAZDA MPV 1996 - 1999 (LV)
MAZDA MPV 2000 - 2006 (LW)
MAZDA MX5 1998 - 2005 (NB)
MAZDA MX5 2006 - 2008 (NC)
MAZDA MX5 2009 - 2013 (ND)
MAZDA MX6 1986 - 1992 (1ST GEN)
MAZDA MX6 1991 - 1997 (GE)
MAZDA PREMACY 2000 - 2006 (1ST GEN)
MAZDA RX-7 1984 - 1991 (FC)
MAZDA RX-7 1992 - 2000 (FD)
MAZDA RX8 2004 - 2008 (FE)
MAZDA RX8 2008 - 2012 (FE)
MAZDA TRIBUTE 2001 - 2006 (1ST GEN)
MAZDA TRIBUTE 2006 - 2011 (2ND GEN)
MERCEDES A CLASS 2005 - 2007 (W169)
MERCEDES A CLASS 2007 - 2011 (W169)
MERCEDES A CLASS 2013 - 2016 (W176)
MERCEDES B CLASS 2005 - 2007 (W245)
MERCEDES B CLASS 2007 - 2011 (W245)
MERCEDES C CLASS 1993 - 2000 (W202)
MERCEDES C CLASS 2000 - 2004 (W203)
MERCEDES C CLASS 2005 - 2008 (W203)
MERCEDES C CLASS 2008 - 2011 (W204)
MERCEDES C CLASS 2011 - 2014 (W204)
MERCEDES C CLASS 2014 - 2019 (W205)
MERCEDES CLK 1999 - 2002 (W208)
MERCEDES CLK 2002 - 2004 (W208)
MERCEDES CLK 2005 - 2011 (W209)
MERCEDES CLS 2005 - 2010 (W219)
MERCEDES E CLASS 1999 - 2002 (W210)
MERCEDES E CLASS 2002 - 2007 (W211)
MERCEDES E CLASS 2008 - 2011 (W212)
MERCEDES G CLASS 2006 - 2012 (W463)
MERCEDES GL CLASS 2006 - 2012 (X164)
MERCEDES M CLASS 1999 - 2004 (W163)
MERCEDES M CLASS 2005 - 2011 (W164)
MERCEDES R CLASS 2006 - 2012 (W251)
MERCEDES S CLASS 1998 - 2006 (W220)
MERCEDES S CLASS 2013 - 2019 (W222)
MERCEDES SL CLASS 1989 - 2002 (R129)
MERCEDES SL CLASS 2005 - 2013 (R230)
MERCEDES SLK CLASS 1996 - 2003 (R170)
MERCEDES SLK CLASS 2004 - 2011 (R171)
MERCEDES SPRINTER 2000 - 2006 (W905)
MERCEDES SPRINTER 2007 - 2018 (W906)
MERCEDES SPRINTER 2019 - 2020 (907 - 910)
MERCEDES VITO (Inc VIANO or VALENTE) 1998 - 2004 (W638)
MERCEDES VITO (Inc VIANO or VALENTE) 2004 - 2007 (W639)
MERCEDES VITO (Inc VIANO or VALENTE) 2007 - 2015 (W639)
MERCEDES VITO (Inc VIANO or VALENTE) 2015 - 2019 (W447)
MERCEDES X CLASS 2017 - 2020 (W470)
MITSUBISHI 380 2004 - 2011 (DB)
MITSUBISHI ASX 2010 - 2013 (XA)
MITSUBISHI ASX 2013 - 2019 (XB - XC)
MITSUBISHI ASX 2020 - 2020 (XD)
MITSUBISHI CHALLENGER 1996 - 2008 (PA)
MITSUBISHI CHALLENGER 2009 - 2013 (PB)
MITSUBISHI CHALLENGER 2013 - 2015 (PC)
MITSUBISHI COLT 2004 - 2007 (RG)
MITSUBISHI COLT 2007 - 2011 (RZ)
MITSUBISHI DELICA 2007 - 2010 (5TH GEN)
MITSUBISHI ECLIPSE 2017 - 2020 (S3/T3)
MITSUBISHI EXPRESS 1989 - 2014 (SF - SG - SH - SJ)
MITSUBISHI GALANT 1985 - 1998 (HG - HH)
MITSUBISHI GRANDIS 2004 - 2011 (BA)
MITSUBISHI LANCER (Inc Evolution) 1996 - 2003 (CE - CG)
MITSUBISHI LANCER (Inc Evolution) 2000 - 2007 (CH)
MITSUBISHI LANCER (Inc Evolution) 2007 - 2013 (CJ)
MITSUBISHI LANCER (Inc Evolution) 2014 - 2018 (CF)
MITSUBISHI MAGNA (Inc Verada) 1991 - 1996 (TE)
MITSUBISHI MAGNA (Inc Verada) 1997 - 2005 (TF)
MITSUBISHI MIRAGE 2013 - 2019 (LA)
MITSUBISHI OUTLANDER 2003 - 2006 (ZE-ZF)
MITSUBISHI OUTLANDER 2007 - 2012 (ZG-ZH)
MITSUBISHI OUTLANDER 2013 - 2018 (ZJ-ZK)
MITSUBISHI PAJERO 1996 - 2006 (NL-NM-NP)
MITSUBISHI PAJERO 2006 - 2015 (NS-NT-NW)
MITSUBISHI PAJERO 2015 - 2021 (NT-NX)
MITSUBISHI PAJERO SPORT 2016 - 2018 (KR - KS - QE)
MITSUBISHI PAJERO SPORT 2019 - 2021 (QF)
MITSUBISHI TRITON 2004 - 2007 (MK)
MITSUBISHI TRITON 2007 - 2013 (ML)
MITSUBISHI TRITON 2013 - 2015 (MN)
MITSUBISHI TRITON 2015 - 2018 (MQ)
MITSUBISHI TRITON 2019 - 2021 (MR)
MITSUBISHI TRITON 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM
NISSAN 180SX 1989 - 1994 (S13)
NISSAN 200SX 1995 - 1998 (S15)
NISSAN 200SX 1999 - 2002 (S14)
NISSAN 300ZX 1984 - 1988 (Z31)
NISSAN 300ZX 1989 - 2002 (Z32)
NISSAN 350Z 2003 - 2005 (Z33)
NISSAN 350Z 2006 - 2008 (Z33)
NISSAN 370Z 2009 - 2011 (Z34)
NISSAN ALTIMA 2013 - 2016 (L33)
NISSAN CUBE 1998 - 2016 (Z11 - Z12)
NISSAN DUALIS 2007 - 2013 (J10)
NISSAN ELGRAND 2001 - 2004 (E51)
NISSAN ELGRAND 2005 - 2010 (E51)
NISSAN GLORIA 1999 - 2004 (Y34)
NISSAN JUKE 2013 - 2015 (F15)
NISSAN JUKE 2016 - 2018 (F15)
NISSAN MAXIMA 1995 - 2003 (A33)
NISSAN MAXIMA 2004 - 2008 (A34)
NISSAN MAXIMA 2009 - 2012 (A34)
NISSAN MICRA 2003 - 2009 (K12)
NISSAN MICRA 2010 - 2014 (K13)
NISSAN MICRA 2015 - 2016 (K13)
NISSAN MURANO 2005 - 2008 (Z50)
NISSAN MURANO 2009 - 2011 (Z51)
NISSAN MURANO 2012 - 2018 (Z51)
NISSAN NAVARA 1998 - 2004 (D22)
NISSAN NAVARA 2005 - 2015 (D22-D40)
NISSAN NAVARA 2015 - 2019 (D23 - NP300) RX-DX MODELS
NISSAN NAVARA 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS
NISSAN NAVARA 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM
NISSAN NAVARA 2019 - 2020 (D23)
NISSAN PATHFINDER 1996 - 2005 (R50)
NISSAN PATHFINDER 2003 - 2004 (WX-WX2)
NISSAN PATHFINDER 2005 - 2013 (R51)
NISSAN PATHFINDER 2013 - 2015 (R52)
NISSAN PATROL 1998 - 2009 (Y61)
NISSAN PATROL 2010 - 2013 (Y61)
NISSAN PATROL 2013 - 2016 (Y62)
NISSAN PULSAR 1995 - 1999 (N15)
NISSAN PULSAR 2000 - 2005 (N16)
NISSAN PULSAR 2013 - 2016 (C12)
NISSAN QASHQAI 2014 - 2017 (J11)
NISSAN QASHQAI 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM
NISSAN QASHQAI 2017 - 2019 (J11)
NISSAN QASHQAI 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM
NISSAN SKYLINE 1991 - 1993 (R32)
NISSAN SKYLINE 1993 - 1998 (R33)
NISSAN SKYLINE 1999 - 2002 (R34)
NISSAN SKYLINE 2001 - 2004 (V35)
NISSAN SKYLINE 2005 - 2007 (V35)
NISSAN SKYLINE 2009 - 2011 (R35)
NISSAN TIIDA 2006 - 2011 (C2)
NISSAN XTRAIL 2003 - 2007 (T30)
NISSAN XTRAIL 2007 - 2013 (T31)
NISSAN XTRAIL 2014 - 2017 (T32)
NISSAN XTRAIL 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM
NISSAN XTRAIL 2018 - 2019 (T32)
NISSAN XTRAIL 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM
NISSAN XTRAIL 2019 - 2020 (T32)
OPEL ASTRA 2012 - 2013 (AS)
OPEL CORSA 2012 - 2014 (D)
OPEL INSIGNIA 2012 - 2014 (A - MK 1)
PEUGEOT 106 1992 - 2003 (No Chassis Code)
PEUGEOT 107 2005 - 2011 (No Chassis Code)
PEUGEOT 206 1998 - 2001 (T1)
PEUGEOT 206 2002 - 2010 (No Chassis Code)
PEUGEOT 207 2006 - 2011 (A7)
PEUGEOT 208 2012 - 2014 (A99)
PEUGEOT 3008 2009 - 2015 (T8)
PEUGEOT 306 1993 - 2001 (N3 - N5)
PEUGEOT 307 2001 - 2012 (T5-T6-T7)
PEUGEOT 308 2007 - 2014 (T7)
PEUGEOT 308 2015 - 2016 (T9)
PEUGEOT 4007 2009 - 2011 (No Chassis Code)
PEUGEOT 4008 2010 - 2014 (No Chassis Code)
PEUGEOT 4008 2014 - 2017 (No Chassis Code)
PEUGEOT 406 1995 - 2004 (No Chassis Code)
PEUGEOT 407 2004 - 2011 (SERIES 1 - SERIES 2)
PEUGEOT 508 2011 - 2014 (No Chassis Code)
PEUGEOT 607 2005 - 2011 (No Chassis Code)
PEUGEOT PARTNER 2002 - 2014 (B9P)
PEUGEOT RCZ 2010 - 2015 (No Chassis Code)
PONTIAC FIREBIRD 1982 - 1989 (3rd GEN)
PONTIAC FIREBIRD 1990 - 1992 (4th GEN)
PONTIAC FIREBIRD 1993 - 2002 (5th GEN)
PONTIAC GRAND AM 1992 - 1997 (3rd GEN)
PONTIAC TRANS-AM 1982 - 1992 (3RD GEN)
PORSCHE 911 1998 - 2005 (996)
PORSCHE 911 2005 - 2012 (997)
PORSCHE 911 2011 - 2016 (991)
PORSCHE BOXSTER 1998 - 2004 (986)
PORSCHE BOXSTER 2004 - 2012 (987)
PORSCHE BOXSTER 2012 - 2016 (981)
PORSCHE CAYENNE 2002 - 2012 (9PA)
PORSCHE CAYENNE 2013 - 2018 (92A)
PORSCHE CAYMAN 2005 - 2011 (987C)
PORSCHE CAYMAN 2012 - 2016 (981)
PROTON JUMBUCK 2002 - 2011 (Arena)
RENAULT CLIO 2006 - 2011 (X85)
RENAULT CLIO 2012 - 2014 (X85)
RENAULT FLUENCE 2011 - 2013 (L38 (PHASE 1 - 2))
RENAULT KANGOO 2000 - 2007 (I)
RENAULT KANGOO 2008 - 2012 (F61)
RENAULT KANGOO 2013 - 2017 (II (F61))
RENAULT KOLEOS 2008 - 2015 (H45 PHASE 1 - 2 - 3)
RENAULT LAGUNA 2002 - 2005 (B74)
RENAULT LAGUNA 2007 - 2011 (III (B91))
RENAULT MASTER 1997 - 2010 (X70)
RENAULT MASTER 2011 - 2018 (X62)
RENAULT MEGANE 1996 - 2000 (I)
RENAULT MEGANE 2002 - 2006 (II (X64))
RENAULT MEGANE 2007 - 2009 (II (B84))
RENAULT MEGANE 2010 - 2011 (III (B95 - B35))
RENAULT MEGANE 2012 - 2013 (III (B95 - B35))
RENAULT SCENIC 2000 - 2004 (J64)
RENAULT SCENIC 2005 - 2011 (II (J84 PHASE 1 - 2))
RENAULT TRAFIC 2002 - 2005 (X83)
RENAULT TRAFIC 2005 - 2011 (X83)
RENAULT TRAFIC 2011 - 2014 (X83)
RENAULT TRAFIC 2015 - 2018 (X82)
RENAULT TWINGO 2007 - 2011 (I)
SAAB 93 1998 - 2004 (440)
SAAB 93 2004 - 2014 (442)
SAAB 95 1997 - 2000 (YS3E)
SAAB 95 2000 - 2005 (YS3E)
SAAB 95 2005 - 2011 (YS3G)
SAAB 97 2006 - 2011 (No Chassis Code)
SCANIA TRUCKS RS70 (Incl R480) 2004 - 2011 (No Chassis Code)
SKODA FABIA 2007 - 2015 (5J)
SKODA FABIA 2015 - 2019 (NJ)
SKODA OCTAVIA 2004 - 2008 (1U)
SKODA OCTAVIA 2009 - 2012 (1Z)
SKODA OCTAVIA 2013 - 2019 (NE - 5E)
SKODA RAPID 2013 - 2015 (NH)
SKODA ROOMSTER 2006 - 2011 (5J)
SKODA SUPERB 2009 - 2015 (3T)
SKODA SUPERB 2015 - 2019 (3V)
SKODA YETI 2009 - 2019 (5L)
SMART CITY (Incl CABRIO) 1998 - 2003 (C450)
SMART FOR FOUR 2004 - 2006 (W454)
SMART FOR TWO 2002 - 2007 (C450)
SMART FOR TWO 2008 - 2014 (451)
SMART ROADSTER 2003 - 2011 (R452)
SUBARU BRUMBY (Incl BRAT) 1982 - 1987 (No Chassis Code)
SUBARU BRZ 2012 - 2017 (PRE-FACELIFT)
SUBARU BRZ 2017 - 2020 (POST-FACELIFT)
SUBARU FORESTER 1998 - 2006 (SF - SG)
SUBARU FORESTER 2007 - 2012 (SH)
SUBARU FORESTER 2013 - 2014 (SJ)
SUBARU FORESTER 2015 - 2018 (SJ)
SUBARU FORESTER 2019 - 2021 (SK)
SUBARU GL (Incl DL) 1981 - 1989 (No Chassis Code)
SUBARU IMPREZA 2016 - 2018 (GK-GT)
SUBARU IMPREZA (Inc WRX) 1993 - 2006 (GC-GD-GG)
SUBARU IMPREZA (Inc WRX) 2007 - 2012 (GE-GH-GR-GV)
SUBARU IMPREZA (Inc WRX) 2012 - 2014 (GP-GJ)
SUBARU IMPREZA (Inc WRX) 2015 - 2016 (GP-GJ)
SUBARU JUSTY 1987 - 1994 (No Chassis Code)
SUBARU LEVORG 2016 - 2018 (V1)
SUBARU LIBERTY (Inc Outback) 1995 - 2003 (BE-BH-BT)
SUBARU LIBERTY (Inc Outback) 2004 - 2005 (BL-BP)
SUBARU LIBERTY (Inc Outback) 2006 - 2008 (BL-BP)
SUBARU LIBERTY (Inc Outback) 2009 - 2014 (BM-BR) WITH NAV
SUBARU LIBERTY (Inc Outback) 2009 - 2014 (BM-BR) WITHOUT NAV
SUBARU LIBERTY (Inc Outback) 2015 - 2017 (BN-BS)
SUBARU LIBERTY (Inc Outback) 2018 - 2020 (BN-BS)
SUBARU OUTBACK 2021 - 2021 (BT)
SUBARU TRIBECA 2005 - 2014 (B9)
SUBARU WRX (Inc STI) 2015 - 2018 (VA)
SUBARU XV 2012 - 2014 (GP)
SUBARU XV 2015 - 2016 (GP Facelift)
SUBARU XV 2017 - 2021 (GT)
SUZUKI ALTO 2009 - 2013 (GF)
SUZUKI APV 2004 - 2011 (No Chassis Code)
SUZUKI BALENO 2016 - 2018 (EW)
SUZUKI CELERIO 2015 - 2016 (LF)
SUZUKI GRAND VITARA 1999 - 2002 (SQ625)
SUZUKI GRAND VITARA 2003 - 2005 (SQ625)
SUZUKI GRAND VITARA 2005 - 2014 (JB)
SUZUKI GRAND VITARA 2015 - 2018 (JB)
SUZUKI IGNIS 2017 - 2018 (MF)
SUZUKI JIMNY 2005 - 2017 (SN413)
SUZUKI JIMNY 2018 - 2021 (JB74W)
SUZUKI JIMNY SIERRA 2002 - 2004 (SN413)
SUZUKI KIZASHI 2010 - 2014 (FR)
SUZUKI LIANA 2002 - 2004 (RH416)
SUZUKI LIANA 2005 - 2008 (RH416 - RH518)
SUZUKI SWIFT 2006 - 2010 (RS416)
SUZUKI SWIFT 2011 - 2016 (FZ)
SUZUKI SWIFT 2017 - 2020 (AZ)
SUZUKI SX4 (Incl S-Cross) 2007 - 2011 (GYB - GYC)
SUZUKI SX4 (Incl S-Cross) 2014 - 2016 (GYA)
SUZUKI VITARA 2001 - 2002 (FT - GT)
SUZUKI VITARA 2015 - 2016 (LY)
SUZUKI XL7 2003 - 2005 (JA)
SUZUKI XL7 2007 - 2009 (JA)
TOYOTA 4 RUNNER 1990 - 2001 (N120 - N130 - N180 Series)
TOYOTA 86 2012 - 2017 (PRE-FACELIFT)
TOYOTA 86 2017 - 2020 (POST-FACELIFT)
TOYOTA ALPHARD 2008 - 2014 (AH20 Series)
TOYOTA ALPHARD 2015 - 2017 (AH30 Series)
TOYOTA ARISTO 1993 - 1997 (S140 Series)
TOYOTA AURION 2006 - 2011 (XV40 Series)
TOYOTA AURION 2012 - 2015 (XV50 Series)
TOYOTA AURION 2015 - 2017 (XV50 Series)
TOYOTA AVALON 1994 - 2005 (XX10 Series)
TOYOTA AVENSIS VERSO 2005 - 2010 (ACM20 - ACM21R Series)
TOYOTA C-HR 2017 - 2019 (AX10 Series)
TOYOTA CAMRY 1983 - 1996 (XV10 Series)
TOYOTA CAMRY 2002 - 2006 (XV30 Series)
TOYOTA CAMRY 2007 - 2011 (XV40 Series)
TOYOTA CAMRY 2012 - 2017 (XV50 Series)
TOYOTA CAMRY 2018 - 2020 (XV70 Series)
TOYOTA CAMRY 2021 - 2022 (XV70 Series)
TOYOTA CELICA 1989 - 1997 (T180 - T200 Series)
TOYOTA CELICA 2000 - 2005 (T230 Series)
TOYOTA COROLLA 1993 - 1997 (E100 Series)
TOYOTA COROLLA 1998 - 2002 (E110 Series)
TOYOTA COROLLA 2003 - 2009 (E140 - E160 Series)
TOYOTA COROLLA 2009 - 2012 (E120 Series)
TOYOTA COROLLA HATCH 2013 - 2015 (E180 Series)
TOYOTA COROLLA HATCH 2015 - 2018 (E180 - E200 Series)
TOYOTA COROLLA HATCH 2019 - 2021 (E210 Series)
TOYOTA COROLLA SEDAN 2014 - 2016 (E170 Series)
TOYOTA COROLLA SEDAN 2017 - 2018 (E170 Series)
TOYOTA CROWN 2003 - 2008 (S180)
TOYOTA ECHO 2000 - 2004 (XP10 Series)
TOYOTA ESTIMA 2000 - 2005 (XR30-XR40 Series)
TOYOTA ESTIMA 2006 - 2016 (XR50 Series)
TOYOTA FJ CRUISER 2010 - 2016 (GSJ10 Series)
TOYOTA FORTUNER 2015 - 2019 (AN150 - AN160 Series)
TOYOTA HIACE 1989 - 2005 (H100 Series)
TOYOTA HIACE 2005 - 2019 (H200 Series)
TOYOTA HILUX 1997 - 2004 (N140 - N150 - N160 - N170 Series)
TOYOTA HILUX 2005 - 2010 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2011 - 2013 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2013 - 2015 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2015 - 2020 (AN120 - AN130 Series)
TOYOTA HILUX 2020 - 2021 (AN120 - AN130 Series)
TOYOTA KLUGER 2003 - 2006 (XU20 Series)
TOYOTA KLUGER 2007 - 2013 (XU40 Series)
TOYOTA KLUGER 2014 - 2019 (XU50 Series)
TOYOTA KLUGER 2018 - 2019 (XU50 Series) WITH 360 DEGREE CAMERA
TOYOTA KLUGER 2019 - 2021 (XU70 Series)
TOYOTA LANDCRUISER 1998 - 2000 (80 Series)
TOYOTA LANDCRUISER 2001 - 2008 (100 Series)
TOYOTA LANDCRUISER 2002 - 2009 (120 Series)
TOYOTA LANDCRUISER 2007 - 2019 (70 Series - 79 Series)
TOYOTA LANDCRUISER 2008 - 2012 (200 Series)
TOYOTA LANDCRUISER 2013 - 2015 (200 Series)
TOYOTA LANDCRUISER 2016 - 2021 (200 Series)
TOYOTA LANDCRUISER PRADO 2002 - 2009 (120 Series)
TOYOTA LANDCRUISER PRADO 2009 - 2013 (150 Series with NAV)
TOYOTA LANDCRUISER PRADO 2009 - 2013 (150 Series without NAV)
TOYOTA LANDCRUISER PRADO 2013 - 2017 (150 Series)
TOYOTA LANDCRUISER PRADO 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM
TOYOTA LANDCRUISER PRADO 2017 - 2020 (150 Series)
TOYOTA LANDCRUISER PRADO 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM
TOYOTA MR2 1989 - 1999 (W20 Series)
TOYOTA MR2 2000 - 2005 (W30 Series)
TOYOTA PRIUS 1997 - 2003 (XW10 Series)
TOYOTA PRIUS 2004 - 2009 (XW20 Series)
TOYOTA PRIUS 2010 - 2015 (XW30 Series)
VOLKSWAGEN AMAROK 2011 - 2015 (2H Series)
VOLKSWAGEN AMAROK 2015 - 2020 (2H Series)
VOLKSWAGEN BEETLE 2000 - 2011 (1Y Series)
VOLKSWAGEN BEETLE 2013 - 2015 (1L Series)
VOLKSWAGEN BEETLE 2016 - 2017 (A5 Series)
VOLKSWAGEN BORA 1999 - 2004 (1J Series)
VOLKSWAGEN CADDY 2005 - 2015 (2K Series)
VOLKSWAGEN CADDY 2015 - 2019 (2K Series)
VOLKSWAGEN JETTA 1999 - 2004 (A4 Series)
VOLKSWAGEN JETTA 2005 - 2015 (A5 - A6 Series)
VOLKSWAGEN JETTA 2016 - 2017 (A5 Series)
VOLVO 240 + 260 1973 - 1994 (200 Series)
VOLVO 740 + 760 + 780 1983 - 1994 (700 Series)
VOLVO 850 1992 - 1997 (1st Generation)
VOLVO 940 + 960 1993 - 1998 (900 Series)
VOLVO C30 2007 - 2013 (1st Generation)
VOLVO C70 2000 - 2004 (1st Generation)
VOLVO C70 2005 - 2014 (2nd Generation)
VOLVO S40 1995 - 2004 (1st Generation)
VOLVO S60 2001 - 2009 (1st Generation)
VOLVO S70 1998 - 2000 (1st Generation)
VOLVO S80 1998 - 2006 (1st Generation)
VOLVO V50 2004 - 2012 (1st Generation)
VOLVO V70 1996 - 2000 (1st Generation)
VOLVO V70 2000 - 2004 (2nd Generation)
VOLVO V70 2004 - 2007 (2nd Generation)
VOLVO V70 2008 - 2011 (3rd Generation)
VOLVO XC70 2003 - 2007 (2nd Generation)
VOLVO XC90 2002 - 2014 (1st Generation)
SKU LPA-2.4
Barcode # 609098834803
Brand Pac Audio
Shipping Weight 1.5000kg

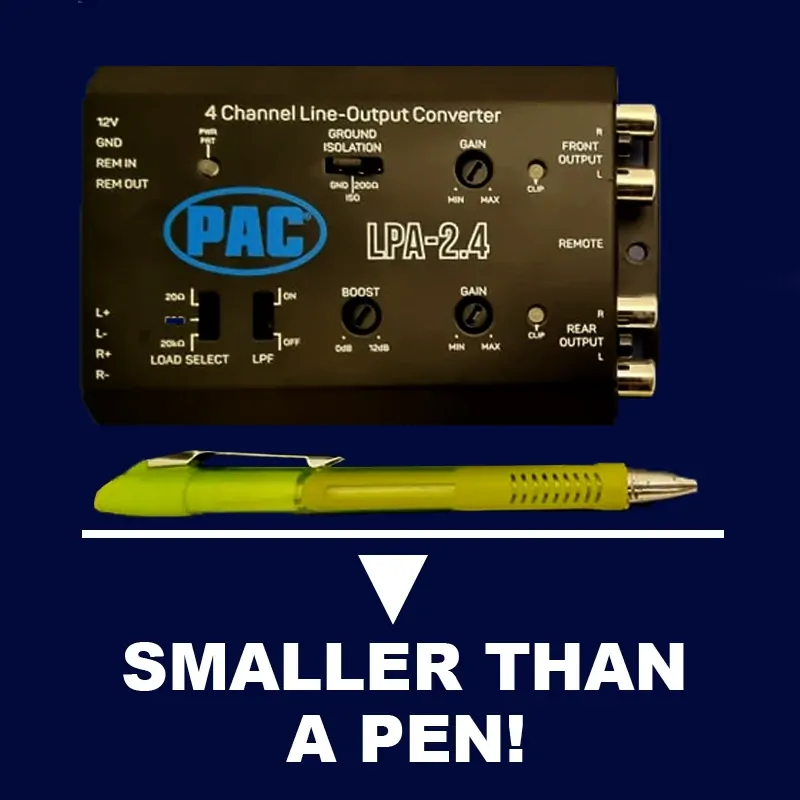

2Ch In / 4Ch Out Locpro Advanced Line Output Converter

SKU: LPA-2.4
Sale price
$189.00
PayPal Checkout
4 payments of $47.25

afterpay More info.

Make 4 payments of $47.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $47.25

Calculate Shipping

Selected Part Number: LPA-2.4
General Product Information

4 Channel Active Line Out Converter


The LOCPro Advanced series of line out converters enable adding an aftermarket amplifier to your factory infotainment audio system with the reliability of PAC

The PAC Legacy Continues

For over 40 years, PAC USA have created and produced vehicle interfaces for audio integration with OEM Radio systems. The New LOCPro Advanced continues this legacy for your audio aspirations.

Universal Application

The LOC PRO Advanced can be sued to add amplifiers to a factory audio system that does not have RCA outputs or when replacing the OEM radio and wanting to retain older analogue amplified systems.


Features Include:

  • Variable Gain Controls
  • Clipping Indicators
  • Selectable Ground Isolation
  • Load Select Feature
  • Remote Turn On

All About That Bass

With its built in selectable filter, the LPA-2.4 allows for 250Hz low pass filter of the rear RCA output channels.


A variable 45Hz bass boost EQ is adjustable when the LPF is enabled up to 12dB for maximum bass output.

2 IN = 4 OUT

The PAC LPA-2.4 features great flexibility for installations with unique output options.


With 2 channel high level (speaker) input, the LPA-2.4 comes with a pair of 2 channel RCA outputs for a total of 4 channels.


Great when using

  • Mono block and 2 channel amplifier
  • 4 channel amplifier where fading isn't a requirement.

What Do You Get?

The LPA-2.4 includes

  • Line Out Converter
  • 2x Connector Bricks
  • Mounting Screws
  • Instruction Card


Features

  • 2CH High Level Input (40v Maximum @ 20k Ohm)
  • 4CH Low Level (RCA) Output
  • Selectable 250Hz Low Pass Filter
  • Adjustable 0dB -12dB Bass Boost
  • Single Stereo Gain Pot Control Per Output
  • Selectable Grounding Options (Common Ground, Isolated or 200Ohm)
  • Selectable Input Load Level (20ohm, 60Ohm or 20k Ohm)
  • Clip Indicator
  • Automatic Remote Turn-On (Remote input and DC)
  • Up to 9.5v RCA Preout
  • Removable Quick Connect Brick Connectors
  • Wide Range DC Offset
  • Optional Remote Control (NOT INCLUDED)

Product Overview Video


Important Product Compatibility Information
Plug & Play

NO

High Level Input Channels

2 Channel Stereo Input

High level Input Voltage

40v Maximum @ 20k Ohm

Output Channels

2 Channel Output

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
ALFA ROMEO 147 2000 - 2010 (937)
ALFA ROMEO 156 2001 - 2007 (932)
ALFA ROMEO 159 2005 - 2014 (939)
ALFA ROMEO 4C 2015 - 2016 (960)
ALFA ROMEO BRERA 2006 - 2011 (939)
ALFA ROMEO GIULIETTA 2010 - 2014 (940)
ALFA ROMEO GIULIETTA 2014 - 2015 (940)
ALFA ROMEO GT 2004 - 2008 (937)
ALFA ROMEO GT 2008 - 2010 (937)
ALFA ROMEO GTV 1998 - 2003 (916)
ALFA ROMEO GTV 2003 - 2006 (916)
ALFA ROMEO MITO 2008 - 2014 (955)
ALFA ROMEO MITO 2014 - 2015 (955)
ALFA ROMEO SPIDER 1998 - 2003 (916)
ALFA ROMEO SPIDER 2003 - 2006 (916)
ALFA ROMEO SPIDER 2006 - 2011 (939)
AUDI A1 2010 - 2018 (8X)
AUDI A2 1999 - 2005 (8Z)
AUDI A3 (Incl S3) 1997 - 2003 (8L)
AUDI A3 (Incl S3) 2004 - 2013 (8P)
AUDI A3 (Incl S3) 2012 - 2019 (8V)
AUDI A4 (Incl S4) 1994 - 2000 (B5)
AUDI A4 (Incl S4) 2001 - 2008 (B6-B7)
AUDI A4 (Incl S4) 2009 - 2015 (B8)
AUDI A5 (Incl S5) 2007 - 2011 (8T3 - 8F7 - 8TA)
AUDI A5 (Incl S5) 2016 - 2019 (F5)
AUDI A6 (Incl S6) 2000 - 2004 (C5)
AUDI A6 (Incl S6) 2005 - 2011 (4F)
AUDI A6 (Incl S6) 2011 - 2019 (4G)
AUDI A7 2011 - 2018 (4G)
AUDI A8 (Incl S8) 1999 - 2004 (D2)
AUDI A8 (Incl S8) 2004 - 2009 (D3-4E)
AUDI A8 (Incl S8) 2011 - 2017 (4H)
AUDI Q3 2011 - 2018 (8U)
AUDI Q5 2009 - 2016 (8R)
AUDI Q5 2017 - 2019 (FY)
AUDI Q7 2006 - 2015 (4L)
AUDI Q7 2015 - 2019 (4M)
AUDI R8 2007 - 2015 (42)
AUDI TT 1999 - 2005 (8N)
AUDI TT 2006 - 2014 (8J)
AUDI TT 2014 - 2019 (FV-8S)
BMW 1 SERIES (Incl M1) 2004 - 2013 (E81-E82-E87-E88)
BMW 2 SERIES 2015 - 2019 (F25)
BMW 3 SERIES (Incl M3) 1997 - 2005 (E46)
BMW 3 SERIES (Incl M3) 2005 - 2014 (E90)
BMW 4 SERIES 2013 - 2019 (F32-F33)
BMW 5 SERIES (Incl M5) 1996 - 2003 (E39)
BMW 5 SERIES (Incl M5) 2004 - 2011 (E60)
BMW 6 SERIES 2004 - 2011 (E63)
BMW 6 SERIES 2011 - 2019 (F12-F13)
BMW 7 SERIES 1994 - 2001 (E38)
BMW 7 SERIES 2001 - 2008 (E65-E66-E67-E68)
BMW 7 SERIES 2008 - 2013 (F01-F02)
BMW I3 2014 - 2019 (IO1)
BMW MINI 2002 - 2006 (R50)
BMW MINI 2007 - 2013 (R56)
BMW MINI 2014 - 2016 (F55 - F56)
BMW X1 2009 - 2015 (E84)
BMW X2 2016 - 2019 (F39)
BMW X3 2003 - 2010 (E83)
BMW X3 2011 - 2019 (F25)
BMW X4 2014 - 2018 (F26)
BMW X4 2018 - 2019 (G02)
BMW X5 2000 - 2005 (E53)
BMW X5 2006 - 2011 (E70)
BMW X5 2013 - 2019 (F15)
BMW X6 2008 - 2013 (E71)
BMW Z3 1996 - 2002 (E36-E37-E38)
BMW Z4 2003 - 2008 (E85-E86)
BMW Z4 2009 - 2016 (E89)
CADILLAC ESCALADE 1999 - 2001 (FIRST GEN)
CADILLAC ESCALADE 2002 - 2006 (SECOND GEN)
CADILLAC ESCALADE 2007 - 2014 (THIRD GEN)
CADILLAC ESCALADE 2015 - 2020 (6TH GEN)
CHERY J11 2011 - 2014 (T1X)
CHEVROLET AVALANCHE 1999 - 2002 (FIRST GEN)
CHEVROLET AVALANCHE 2003 - 2006 (SECOND GEN)
CHEVROLET AVALANCHE 2007 - 2011 (THIRD GEN)
CHEVROLET CAMARO 1982 - 1989 (3RD GEN)
CHEVROLET CAMARO 1990 - 1992 (3RD GEN)
CHEVROLET CAMARO 1993 - 2002 (4TH GEN)
CHEVROLET CAMARO 2010 - 2015 (5TH GEN)
CHEVROLET CAMARO 2016 - 2019 (6TH GEN)
CHEVROLET CORVETTE 1984 - 1989 (C4)
CHEVROLET CORVETTE 1990 - 1996 (C4)
CHEVROLET CORVETTE 1997 - 2004 (C5)
CHEVROLET CORVETTE 2005 - 2013 (C6)
CHEVROLET SILVERADO 1999 - 2006 (FIRST GEN)
CHEVROLET SILVERADO 2007 - 2014 (SECOND GEN)
CHEVROLET SILVERADO 2015 - 2018 (THIRD GEN)
CHEVROLET SILVERADO 2019 - 2021 (FOURTH GEN)
CHEVROLET SSR 2003 - 2006 (Super Sports Roadster)
CHEVROLET SUBURBAN 2000 - 2006 (NINTH GEN)
CHEVROLET SUBURBAN 2007 - 2013 (TENTH GEN)
CHRYSLER 300C 2005 - 2008 (FIRST GEN)
CHRYSLER 300C 2009 - 2011 (SECOND GEN)
CHRYSLER 300C 2011 - 2018 (THIRD GEN)
CHRYSLER CROSSFIRE 2004 - 2008 (ZH)
CHRYSLER NEON 1996 - 1999 (FIRST GEN)
CHRYSLER NEON 2000 - 2006 (SECOND GEN)
CHRYSLER PROWLER 2002 - 2002 (GRRRR…)
CHRYSLER PT CRUISER 2001 - 2005 (FIRST GEN)
CHRYSLER PT CRUISER 2006 - 2011 (SECOND GEN)
CHRYSLER SEBRING 2007 - 2011 (JS)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 1996 - 2001 (3RD GEN)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 2001 - 2007 (4TH GEN)
CHRYSLER VOYAGER (Incl GRAND VOYAGER) 2008 - 2014 (5TH GEN)
CITROEN BERLINGO 2003 - 2007 (FIRST GEN)
CITROEN BERLINGO 2008 - 2015 (SECOND GEN)
CITROEN C2 2006 - 2008 (FIRST GEN)
CITROEN C3 2002 - 2009 (FIRST GEN)
CITROEN C3 2010 - 2016 (SECOND GEN)
CITROEN C4 2004 - 2010 (FIRST GEN)
CITROEN C4 2011 - 2018 (SECOND GEN)
CITROEN C4 AIRCROSS 2012 - 2014 (AIRCROSS)
CITROEN C5 2001 - 2004 (DC-DE)
CITROEN C5 2004 - 2007 (DC-DE)
CITROEN C5 2008 - 2013 (RD-TD)
CITROEN DS3 2009 - 2016 (FIRST GEN)
DAEWOO LANOS 1999 - 2002 (T100)
DAEWOO LEGANZA 1999 - 2002 (V100)
DAEWOO NUBIRA 1999 - 2002 (J100)
DAIHATSU SIRION 2005 - 2009 ()
DODGE AVENGER 2007 - 2014 (SECOND GEN)
DODGE CALIBER 2006 - 2009 (FIRST GEN)
DODGE CALIBER 2009 - 2012 (SECOND GEN)
DODGE CHALLENGER R/T 2008 - 2014 (THIRD GEN)
DODGE CHALLENGER R/T 2015 - 2020 (THIRD GEN)
DODGE JOURNEY 2008 - 2011 (FIRST GEN)
DODGE JOURNEY 2012 - 2015 (SECOND GEN)
DODGE MONACO (Blues Brothers) 1974 - 1974 (CX7)
DODGE NITRO 2007 - 2012 (IT’S A NITRO BABY)
DODGE RAM 2002 - 2005 (3RD GEN)
DODGE RAM 2006 - 2008 (3RD GEN)
DODGE RAM 2009 - 2012 (4TH GEN)
DODGE RAM 2013 - 2020 (4TH GEN)
DODGE VIPER 1996 - 2002 (FIRST GEN)
DODGE VIPER 2002 - 2009 (SECOND GEN)
FERRARI CALIFORNIA 2008 - 2014 (GO SPEED RACER GO)
FIAT 500 2008 - 2015 (SERIES 1 - SERIES 3)
FIAT 500 2015 - 2018 (SERIES 5)
FIAT BRAVO + RITMO 2007 - 2014 (TYPE 198)
FIAT DUCATO 2006 - 2012 (THIRD GEN)
FIAT DUCATO 2012 - 2014 (THIRD GEN)
FIAT DUCATO 2015 - 2018 (FOURTH GEN)
FIAT FREEMONT 2012 - 2015 (FIRST GEN)
FIAT PUNTO 2005 - 2013 (THIRD GEN)
FIAT SCUDO 2007 - 2011 (SECOND GEN)
FIAT SCUDO 2012 - 2013 (THIRD GEN)
FORD COUGAR 1999 - 2000 (MK1)
FORD COUGAR 2001 - 2003 (MK2)
FORD ECOSPORT 2013 - 2016 (BK)
FORD ESCAPE 2001 - 2007 (FIRST GEN)
FORD ESCAPE 2006 - 2011 (2ND GEN)
FORD ESCAPE 2016 - 2018 (ZG)
FORD EVEREST 2015 - 2016 (UA)
FORD EXPLORER 1995 - 2001 (UN - US)
FORD EXPLORER 2002 - 2005 (UT - UX)
FORD EXPLORER 2006 - 2011 (UZ)
FORD F SERIES 1995 - 2004 (10th Gen)
FORD F SERIES 2005 - 2008 (11th Gen)
FORD F SERIES 2009 - 2014 (12th Gen)
FORD F SERIES 2015 - 2019 (13th Gen)
FORD FALCON 1998 - 2002 (AU)
FORD FALCON 2003 - 2008 (BA-BF)
FORD FALCON 2009 - 2011 (FG)
FORD FIESTA 2002 - 2005 (WP)
FORD FIESTA 2006 - 2008 (WQ)
FORD FIESTA 2009 - 2016 (WS-WT-WZ)
FORD FOCUS (Incl XR5) 1999 - 2004 (LR)
FORD FOCUS (Incl XR5) 2005 - 2007 (LS-LT)
FORD FOCUS (Incl XR5) 2008 - 2011 (LV)
FORD FOCUS (Incl XR5) 2012 - 2015 (LW)
FORD FOCUS (Incl XR5) 2016 - 2019 (LW)
FORD KA 1997 - 2011 (FIRST GEN)
FORD KUGA 2011 - 2013 (1ST GEN)
FORD KUGA 2013 - 2015 (2ND GEN)
FORD LASER 1997 - 2003 (KN - KQ)
FORD MONDEO 1993 - 2003 (MK2)
FORD MONDEO 2007 - 2014 (MB - MC)
FORD MONDEO 2015 - 2019 (MD)
FORD MUSTANG 1994 - 2005 (4TH GEN)
FORD MUSTANG 2005 - 2011 (5TH GEN)
FORD MUSTANG 2010 - 2014 (5TH GEN)
FORD MUSTANG 2015 - 2017 (6TH GEN)
FORD MUSTANG 2018 - 2020 (6TH GEN)
FORD RANGER 2007 - 2011 (PJ-PK)
FORD RANGER 2011 - 2015 (PX)
FORD RANGER 2015 - 2019 (PX2-PX3)
FORD SUPER DUTY (F SERIES) 2001 - 2007 (1ST GEN)
FORD SUPER DUTY (F SERIES) 2008 - 2010 (2ND GEN)
FORD SUPER DUTY (F SERIES) 2011 - 2016 (3RD GEN)
FORD SUPER DUTY (F SERIES) 2017 - 2019 (4TH GEN)
FORD TERRITORY 2002 - 2008 (SX)
FORD TERRITORY 2009 - 2011 (SY)
FORD TERRITORY 2011 - 2012 (SZ)
FORD TRANSIT 2001 - 2006 (VF-VG-VH-VJ)
FORD TRANSIT 2007 - 2014 (VM)
FORD TRANSIT 2015 - 2017 (VO)
FORD TRANSIT CUSTOM 2013 - 2016 (VN-EURO 5)
FORD TRANSIT CUSTOM 2016 - 2017 (VN-EURO 6)
FORD TRANSIT CUSTOM 2018 - 2019 (VN)
GMC SIERRA 1999 - 2006 (FIRST GEN)
GMC SIERRA 2007 - 2014 (SECOND GEN)
GMC SIERRA 2015 - 2018 (THIRD GEN)
GMC YUKON 2007 - 2014 (GMT900 (3RD GEN))
GREAT WALL STEED 2016 - 2018 (NBP)
GREAT WALL V200 + V240 2009 - 2014 (K2)
GREAT WALL X200 2012 - 2014 (H5)
GREAT WALL X240 2010 - 2011 (H5)
GWM CANNON 2021 - 2022 (GWM)
HAINES HUNTER 1980 - 2019 (NO CHASSIS CODE)
HARLEY DAVIDSON STREET GLIDE 1998 - 2013 (MOTORBIKE)
HARLEY DAVIDSON ULTRA GLIDE 1998 - 2013 (MOTORBIKE)
HOLDEN ACADIA 2018 - 2019 (AC)
HOLDEN ASTRA COUPE 1995 - 1998 (TR)
HOLDEN ASTRA COUPE 1998 - 2004 (TS)
HOLDEN ASTRA COUPE 2005 - 2009 (AH)
HOLDEN ASTRA COUPE 2015 - 2018 (BK)
HOLDEN ASTRA SEDAN 1995 - 1998 (TR)
HOLDEN ASTRA SEDAN 1998 - 2004 (TS)
HOLDEN ASTRA SEDAN 2005 - 2009 (AH)
HOLDEN ASTRA SEDAN 2017 - 2018 (BL)
HOLDEN ASTRA WAGON 1995 - 1998 (TR)
HOLDEN ASTRA WAGON 1998 - 2004 (TS)
HOLDEN ASTRA WAGON 2005 - 2009 (AH)
HOLDEN ASTRA WAGON 2016 - 2018 (BK)
HOLDEN BARINA 2000 - 2005 (XC)
HOLDEN BARINA 2006 - 2011 (TK)
HOLDEN BARINA 2012 - 2016 (TM)
HOLDEN BARINA 2017 - 2018 (TM)
HOLDEN BARINA SPARK 2010 - 2016 (MJ)
HOLDEN CAPTIVA 2016 - 2017 (CG)
HOLDEN CAPTIVA 5 (Incl MAXX) 2006 - 2015 (CG)
HOLDEN CAPTIVA 7 (Incl Variants) 2006 - 2015 (CG)
HOLDEN COLORADO (Incl 7) 2009 - 2011 (RC)
HOLDEN COLORADO (Incl 7) 2012 - 2013 (RG)
HOLDEN COLORADO (Incl 7) 2014 - 2016 (RG)
HOLDEN COLORADO (Incl 7) 2016 - 2019 (RG)
HOLDEN COMBO 2002 - 2012 (XC)
HOLDEN COMMODORE 1997 - 2002 (VT-VX)
HOLDEN COMMODORE 2002 - 2007 (VY-VZ)
HOLDEN COMMODORE 2007 - 2010 (VE)
HOLDEN COMMODORE 2010 - 2013 (VE)
HOLDEN COMMODORE 2013 - 2015 (VF)
HOLDEN CRUZE 2002 - 2005 (1ST GEN)
HOLDEN CRUZE 2008 - 2016 (J300)
HOLDEN EPICA 2006 - 2011 (EP)
HOLDEN EQUINOX 2017 - 2018 (EQ)
HOLDEN MALIBU 2013 - 2016 (EM)
HOLDEN RODEO 2003 - 2009 (RA)
HOLDEN SPARK 2016 - 2017 (M400)
HOLDEN SUBURBAN 1998 - 2001 (K8)
HOLDEN TIGRA 2004 - 2009 (XC)
HOLDEN TRAX 2013 - 2017 (TJ)
HOLDEN TRAX 2017 - 2018 (TJ)
HOLDEN VECTRA 1995 - 2002 (JS)
HOLDEN VECTRA 2003 - 2011 (ZC)
HOLDEN VIVA 2006 - 2011 (JF)
HOLDEN ZAFIRA 2001 - 2005 (TT)
HONDA ACCORD 1989 - 1993 (4TH GEN)
HONDA ACCORD 1993 - 1997 (5TH GEN)
HONDA ACCORD 2003 - 2007 (7TH GEN)
HONDA ACCORD 2008 - 2012 (8TH GEN)
HONDA ACCORD 2013 - 2015 (9TH GEN)
HONDA ACCORD EURO 2003 - 2007 (7TH GEN)
HONDA ACCORD EURO 2008 - 2015 (8TH GEN)
HONDA CITY 2009 - 2013 (GM)
HONDA CITY 2013 - 2015 (GM)
HONDA CITY 2015 - 2019 (GM)
HONDA CIVIC HATCH 2001 - 2005 (7TH GEN)
HONDA CIVIC HATCH 2006 - 2011 (8TH GEN)
HONDA CIVIC HATCH 2012 - 2015 (9TH GEN)
HONDA CIVIC HATCH 2015 - 2016 (9TH GEN)
HONDA CIVIC HATCH 2016 - 2018 (10TH GEN)
HONDA CIVIC SEDAN 2001 - 2005 (7TH GEN)
HONDA CIVIC SEDAN 2006 - 2011 (8TH GEN)
HONDA CIVIC SEDAN 2012 - 2015 (9TH GEN)
HONDA CIVIC SEDAN 2015 - 2016 (9TH GEN)
HONDA CIVIC SEDAN 2016 - 2018 (10TH GEN)
HONDA CRV 1997 - 2006 (RD)
HONDA CRV 2007 - 2011 (RE)
HONDA CRV 2012 - 2015 (RM)
HONDA CRV 2015 - 2016 (RM)
HONDA CRV 2017 - 2018 (RW)
HONDA CRZ 2010 - 2014 (ZF)
HONDA HRV 2015 - 2017 (2ND GEN)
HONDA HRV 2017 - 2019 (2ND GEN)
HONDA INSIGHT 2009 - 2013 (ZE)
HONDA INTEGRA 1993 - 2001 (DB - DC1 - DC2)
HONDA INTEGRA 2002 - 2006 (DC5)
HONDA JAZZ 2001 - 2007 (GD)
HONDA JAZZ 2008 - 2013 (GE)
HONDA JAZZ 2014 - 2016 (GF)
HONDA JAZZ 2017 - 2019 (GF)
HONDA LEGEND 1990 - 1996 (KA7-KA8)
HONDA LEGEND 1996 - 2003 (KA9)
HONDA MDX 2001 - 2006 (YD1)
HONDA NSX 2002 - 2005 (1ST GEN)
HONDA ODYSSEY 1995 - 1999 (1ST GEN (RA1 - RA5))
HONDA ODYSSEY 2000 - 2003 (2ND GEN (RA6 - RA9))
HONDA ODYSSEY 2004 - 2009 (3RD GEN (RB1 - RB2))
HONDA ODYSSEY 2009 - 2013 (4TH GEN (RB3 - RB4))
HONDA ODYSSEY 2014 - 2018 (5TH GEN (RC1 - RC2))
HONDA PRELUDE 1991 - 1996 (4TH GEN (BA - BB))
HONDA PRELUDE 1997 - 2001 (5TH GEN (BB5-BB9))
HONDA S2000 1999 - 2011 (AP1 - AP2)
HUMMER H2 2002 - 2007 (H2)
HUMMER H2 2008 - 2011 (H2)
HUMMER H3 2006 - 2011 (H3)
HYUNDAI ACCENT 2000 - 2005 (LC)
HYUNDAI ACCENT 2006 - 2008 (MC)
HYUNDAI ACCENT 2011 - 2019 (RB)
HYUNDAI ELANTRA 1992 - 1995 (J1)
HYUNDAI ELANTRA 1995 - 2000 (J2 - RD)
HYUNDAI ELANTRA 2001 - 2006 (XD)
HYUNDAI ELANTRA 2007 - 2010 (HD)
HYUNDAI ELANTRA 2011 - 2013 (MD-MD2)
HYUNDAI ELANTRA 2014 - 2015 (MD3)
HYUNDAI ELANTRA 2016 - 2018 (AD)
HYUNDAI ELANTRA 2019 - 2019 (AD2)
HYUNDAI EXCEL 1986 - 1994 (X1-X2-X3)
HYUNDAI GETZ 2002 - 2010 (TB)
HYUNDAI GRANDEUR 1998 - 2005 (XG)
HYUNDAI GRANDEUR 2006 - 2010 (TG)
HYUNDAI i20 2010 - 2012 (PB)
HYUNDAI i20 2012 - 2015 (PB)
HYUNDAI i30 2007 - 2011 (FD)
HYUNDAI i30 2012 - 2016 (GD-GD2)
HYUNDAI i30 2017 - 2021 (PD)
HYUNDAI i40 2012 - 2018 (VF-VF2-VF3)
HYUNDAI i45 2010 - 2012 (YF)
HYUNDAI ILOAD (Incl IMAX) 2008 - 2016 (TQ)
HYUNDAI ILOAD (Incl IMAX) 2016 - 2018 (TQ3-V Series II)
HYUNDAI ILOAD (Incl IMAX) 2018 - 2019 (TQ4)
HYUNDAI ix35 2010 - 2013 (LM)
HYUNDAI ix35 2014 - 2015 (LM) - WITH NAV
HYUNDAI ix35 2014 - 2015 (LM) - WITHOUT NAV
HYUNDAI KONA 2017 - 2018 (OS - OS2)
HYUNDAI SANTA FE 2001 - 2006 (SM)
HYUNDAI SANTA FE 2007 - 2009 (CM)
HYUNDAI SANTA FE 2009 - 2012 (CM)
HYUNDAI SANTA FE 2012 - 2018 (DM)
HYUNDAI SONATA 1995 - 2001 (Y3)
HYUNDAI SONATA 2002 - 2005 (EF)
HYUNDAI SONATA 2006 - 2008 (NF)
HYUNDAI SONATA 2009 - 2011 (YF)
HYUNDAI SONATA 2014 - 2016 (LF)
HYUNDAI TIBURON 1997 - 2002 (RD - RD2)
HYUNDAI TIBURON 2003 - 2008 (GK)
HYUNDAI TRAJET 2002 - 2007 (1ST GEN)
HYUNDAI TUCSON 2005 - 2010 (JM)
HYUNDAI TUCSON 2015 - 2018 (TL)
HYUNDAI TUCSON 2018 - 2019 (TL)
HYUNDAI VELOSTER 2012 - 2017 (1ST GEN)
ISUZU DMAX 2009 - 2011 (RA - RC)
ISUZU DMAX 2012 - 2016 (RT50 - RT85)
ISUZU DMAX 2016 - 2019 (RT50 - RT85)
ISUZU DMAX 2019 - 2021 (RG)
ISUZU MUX 2013 - 2015 (RF10)
ISUZU MUX 2016 - 2017 (RF20)
ISUZU MUX 2018 - 2021 (RF20)
IVECO DAILY 2007 - 2014 (5TH GEN)
IVECO DAILY 2015 - 2017 (6TH GEN)
IVECO DAILY 2018 - 2019 (6TH GEN)
JAGUAR S-TYPE 2000 - 2002 (No Chassis Code)
JAGUAR S-TYPE 2003 - 2008 (No Chassis Code)
JAGUAR X-TYPE 2002 - 2015 (No Chassis Code)
JAGUAR XJ8 2003 - 2008 (No Chassis Code)
JEEP CHEROKEE 1994 - 2001 (XJ)
JEEP CHEROKEE 2001 - 2007 (KJ)
JEEP CHEROKEE 2007 - 2012 (KK)
JEEP CHEROKEE 2014 - 2018 (KL)
JEEP COMMANDER 2005 - 2008 (XK)
JEEP COMMANDER 2008 - 2010 (XK)
JEEP COMPASS 2007 - 2009 (MK)
JEEP COMPASS 2009 - 2017 (MK)
JEEP COMPASS 2017 - 2018 (M6)
JEEP GLADIATOR 2020 - 2021 (JT)
JEEP GRAND CHEROKEE 1993 - 1998 (ZG)
JEEP GRAND CHEROKEE 1999 - 2004 (WJ-WG)
JEEP GRAND CHEROKEE 2005 - 2007 (WH-WK)
JEEP GRAND CHEROKEE 2008 - 2011 (WH-WK)
JEEP GRAND CHEROKEE 2012 - 2013 (WK2)
JEEP GRAND CHEROKEE 2014 - 2020 (WK2)
JEEP PATRIOT 2007 - 2009 (MK)
JEEP PATRIOT 2010 - 2016 (MK)
JEEP RENEGADE 2015 - 2016 (BU-520)
JEEP WRANGLER 1986 - 2004 (YJ - TJ)
JEEP WRANGLER 2003 - 2006 (TJ)
JEEP WRANGLER 2007 - 2018 (JK)
JEEP WRANGLER 2019 - 2021 (JL)
JMC VIGUS 2015 - 2018 (No Chassis Code)
KIA CARNIVAL 2015 - 2017 (YP)
KIA CARNIVAL 2018 - 2019 (YP)
KIA CARNIVAL (Incl Grand) 1998 - 2005 (KV-II)
KIA CARNIVAL (Incl Grand) 2006 - 2015 (VQ)
KIA CERATO 2004 - 2009 (LD)
KIA CERATO 2010 - 2012 (TD)
KIA CERATO 2013 - 2018 (YD)
KIA MAGENTIS 2006 - 2010 (MG)
KIA OPTIMA 2001 - 2006 (EF)
KIA OPTIMA 2006 - 2010 (MG)
KIA OPTIMA 2010 - 2013 (TF1)
KIA OPTIMA 2013 - 2015 (TF2)
KIA OPTIMA 2016 - 2017 (JF)
KIA PICANTO 2016 - 2017 (TA)
KIA PICANTO 2017 - 2018 (JA)
KIA PRO CEED 2014 - 2015 (JD)
KIA RIO 2001 - 2004 (DC)
KIA RIO 2006 - 2009 (JB)
KIA RIO 2010 - 2014 (UB)
KIA RIO 2014 - 2017 (UB)
KIA RONDO 2007 - 2012 (UN)
KIA RONDO 2013 - 2018 (RP)
KIA SORENTO 2007 - 2008 (BL)
KIA SORENTO 2009 - 2012 (XM)
KIA SORENTO 2013 - 2015 (XM)
KIA SORENTO 2015 - 2018 (UM)
KIA SORENTO EX 2003 - 2009 (BL)
KIA SORENTO LX 2001 - 2003 (BL)
KIA SORENTO LX 2007 - 2009 (BL)
KIA SOUL 2009 - 2011 (AM)
KIA SOUL 2011 - 2013 (AM)
KIA SOUL 2014 - 2018 (PS)
KIA SPORTAGE 1995 - 2004 (NB)
KIA SPORTAGE 2002 - 2004 (JA)
KIA SPORTAGE 2005 - 2009 (KM)
KIA SPORTAGE 2010 - 2015 (SL)
KIA SPORTAGE 2016 - 2018 (QL)
KIA SPORTAGE 2018 - 2019 (QL)
KIA STINGER 2017 - 2018 (CK)
LAMBORGHINI GALLARDO 2005 - 2011 (No Chassis Code)
LAND ROVER DEFENDER 2008 - 2015 (No Chassis Code)
LAND ROVER DISCOVERY II 1998 - 2004 (L318)
LAND ROVER DISCOVERY III 2005 - 2010 (L319)
LAND ROVER DISCOVERY IV 2010 - 2016 (L319)
LAND ROVER EVOQUE 2011 - 2013 (L538)
LAND ROVER FREELANDER 1997 - 2003 (L314)
LAND ROVER FREELANDER 2004 - 2006 (L314)
LAND ROVER FREELANDER II 2007 - 2011 (L359)
LAND ROVER FREELANDER II 2012 - 2014 (L359)
LAND ROVER RANGE ROVER 1995 - 2002 (P38)
LAND ROVER RANGE ROVER (Incl HSE - VOGUE) 2002 - 2012 (L322)
LAND ROVER RANGE ROVER SPORT 2005 - 2010 (L320)
LAND ROVER RANGE ROVER SPORT 2010 - 2013 (L320)
LAND ROVER RANGE ROVER SPORT 2013 - 2015 (L494)
LEXUS CT 2011 - 2013 (C10)
LEXUS CT 2014 - 2018 (A10)
LEXUS ES 1992 - 1996 (XV10)
LEXUS ES 1997 - 2001 (XV20)
LEXUS ES 2002 - 2006 (XV30)
LEXUS ES 2012 - 2018 (XV60)
LEXUS ES 2019 - 2021 (XV70)
LEXUS GS 1998 - 2006 (S160)
LEXUS IS 1999 - 2005 (XE10)
LEXUS IS 2006 - 2015 (XE20)
LEXUS IS 2016 - 2018 (XE30)
LEXUS LS 1989 - 1994 (UCF10)
LEXUS LS 1995 - 2000 (UCF20)
LEXUS LS 2001 - 2006 (UCF30) with NAV
LEXUS LS 2001 - 2006 (UCF30) without NAV
LEXUS LX 1998 - 2007 (J100)
LEXUS NX 2014 - 2018 (AZ10)
LEXUS NX 2019 - 2021 (AZ20)
LEXUS RC 2014 - 2018 (XC10)
LEXUS RX 2003 - 2008 (XU30)
LEXUS RX 2010 - 2015 (AL10)
LEXUS RX 2016 - 2018 (AL20)
LEXUS RX 2019 - 2021 (GGL25R)
LEXUS SC 1988 - 1998 (Z30 - Z31)
LEXUS SC 2001 - 2010 (Z40)
LINCOLN FUTURA 1965 - 1966 (BATMOBILE)
MASERATI QUATTROPORTE 2014 - 2014 (No Chassis Code)
MAZDA 121 1996 - 2002 (DW)
MAZDA 2 2003 - 2007 (DY)
MAZDA 2 2007 - 2015 (DE)
MAZDA 2 2015 - 2016 (DJ)
MAZDA 3 2004 - 2009 (BK)
MAZDA 3 2009 - 2013 (BL)
MAZDA 3 2013 - 2016 (BM) - WITH COLOR OEM RADIO
MAZDA 3 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY
MAZDA 3 2016 - 2018 (BN)
MAZDA 323 1986 - 1994 (BF - BG)
MAZDA 323 1995 - 2003 (BJ)
MAZDA 6 2003 - 2005 (GG)
MAZDA 6 2005 - 2008 (GG)
MAZDA 6 2008 - 2010 (GH)
MAZDA 6 2010 - 2012 (GH)
MAZDA 6 2013 - 2015 (GJ)
MAZDA 626 1993 - 2002 (CG - GE - GF - GW)
MAZDA 929 1992 - 1997 (HD - HE)
MAZDA BRAVO 1998 - 2006 (B Series)
MAZDA BT-50 2007 - 2011 (B Series)
MAZDA BT-50 2012 - 2015 (B32Q)
MAZDA BT-50 2015 - 2019 (UR)
MAZDA BT-50 2015 - 2019 (UR) WITH 7inch NAV
MAZDA BT-50 2020 - 2021 (RG04)
MAZDA CX-3 2015 - 2021
MAZDA CX5 2012 - 2015 (KE)
MAZDA CX5 2015 - 2017 (KE)
MAZDA CX5 2017 - 2021 (KF)
MAZDA CX7 2006 - 2010 (ER)
MAZDA CX7 2010 - 2011 (ER)
MAZDA CX9 2006 - 2011 (TB)
MAZDA CX9 2012 - 2015 (TB)
MAZDA MPV 1990 - 1995 (LV)
MAZDA MPV 1996 - 1999 (LV)
MAZDA MPV 2000 - 2006 (LW)
MAZDA MX5 1998 - 2005 (NB)
MAZDA MX5 2006 - 2008 (NC)
MAZDA MX5 2009 - 2013 (ND)
MAZDA MX6 1986 - 1992 (1ST GEN)
MAZDA MX6 1991 - 1997 (GE)
MAZDA PREMACY 2000 - 2006 (1ST GEN)
MAZDA RX-7 1984 - 1991 (FC)
MAZDA RX-7 1992 - 2000 (FD)
MAZDA RX8 2004 - 2008 (FE)
MAZDA RX8 2008 - 2012 (FE)
MAZDA TRIBUTE 2001 - 2006 (1ST GEN)
MAZDA TRIBUTE 2006 - 2011 (2ND GEN)
MERCEDES A CLASS 2005 - 2007 (W169)
MERCEDES A CLASS 2007 - 2011 (W169)
MERCEDES A CLASS 2013 - 2016 (W176)
MERCEDES B CLASS 2005 - 2007 (W245)
MERCEDES B CLASS 2007 - 2011 (W245)
MERCEDES C CLASS 1993 - 2000 (W202)
MERCEDES C CLASS 2000 - 2004 (W203)
MERCEDES C CLASS 2005 - 2008 (W203)
MERCEDES C CLASS 2008 - 2011 (W204)
MERCEDES C CLASS 2011 - 2014 (W204)
MERCEDES C CLASS 2014 - 2019 (W205)
MERCEDES CLK 1999 - 2002 (W208)
MERCEDES CLK 2002 - 2004 (W208)
MERCEDES CLK 2005 - 2011 (W209)
MERCEDES CLS 2005 - 2010 (W219)
MERCEDES E CLASS 1999 - 2002 (W210)
MERCEDES E CLASS 2002 - 2007 (W211)
MERCEDES E CLASS 2008 - 2011 (W212)
MERCEDES G CLASS 2006 - 2012 (W463)
MERCEDES GL CLASS 2006 - 2012 (X164)
MERCEDES M CLASS 1999 - 2004 (W163)
MERCEDES M CLASS 2005 - 2011 (W164)
MERCEDES R CLASS 2006 - 2012 (W251)
MERCEDES S CLASS 1998 - 2006 (W220)
MERCEDES S CLASS 2013 - 2019 (W222)
MERCEDES SL CLASS 1989 - 2002 (R129)
MERCEDES SL CLASS 2005 - 2013 (R230)
MERCEDES SLK CLASS 1996 - 2003 (R170)
MERCEDES SLK CLASS 2004 - 2011 (R171)
MERCEDES SPRINTER 2000 - 2006 (W905)
MERCEDES SPRINTER 2007 - 2018 (W906)
MERCEDES SPRINTER 2019 - 2020 (907 - 910)
MERCEDES VITO (Inc VIANO or VALENTE) 1998 - 2004 (W638)
MERCEDES VITO (Inc VIANO or VALENTE) 2004 - 2007 (W639)
MERCEDES VITO (Inc VIANO or VALENTE) 2007 - 2015 (W639)
MERCEDES VITO (Inc VIANO or VALENTE) 2015 - 2019 (W447)
MERCEDES X CLASS 2017 - 2020 (W470)
MITSUBISHI 380 2004 - 2011 (DB)
MITSUBISHI ASX 2010 - 2013 (XA)
MITSUBISHI ASX 2013 - 2019 (XB - XC)
MITSUBISHI ASX 2020 - 2020 (XD)
MITSUBISHI CHALLENGER 1996 - 2008 (PA)
MITSUBISHI CHALLENGER 2009 - 2013 (PB)
MITSUBISHI CHALLENGER 2013 - 2015 (PC)
MITSUBISHI COLT 2004 - 2007 (RG)
MITSUBISHI COLT 2007 - 2011 (RZ)
MITSUBISHI DELICA 2007 - 2010 (5TH GEN)
MITSUBISHI ECLIPSE 2017 - 2020 (S3/T3)
MITSUBISHI EXPRESS 1989 - 2014 (SF - SG - SH - SJ)
MITSUBISHI GALANT 1985 - 1998 (HG - HH)
MITSUBISHI GRANDIS 2004 - 2011 (BA)
MITSUBISHI LANCER (Inc Evolution) 1996 - 2003 (CE - CG)
MITSUBISHI LANCER (Inc Evolution) 2000 - 2007 (CH)
MITSUBISHI LANCER (Inc Evolution) 2007 - 2013 (CJ)
MITSUBISHI LANCER (Inc Evolution) 2014 - 2018 (CF)
MITSUBISHI MAGNA (Inc Verada) 1991 - 1996 (TE)
MITSUBISHI MAGNA (Inc Verada) 1997 - 2005 (TF)
MITSUBISHI MIRAGE 2013 - 2019 (LA)
MITSUBISHI OUTLANDER 2003 - 2006 (ZE-ZF)
MITSUBISHI OUTLANDER 2007 - 2012 (ZG-ZH)
MITSUBISHI OUTLANDER 2013 - 2018 (ZJ-ZK)
MITSUBISHI PAJERO 1996 - 2006 (NL-NM-NP)
MITSUBISHI PAJERO 2006 - 2015 (NS-NT-NW)
MITSUBISHI PAJERO 2015 - 2021 (NT-NX)
MITSUBISHI PAJERO SPORT 2016 - 2018 (KR - KS - QE)
MITSUBISHI PAJERO SPORT 2019 - 2021 (QF)
MITSUBISHI TRITON 2004 - 2007 (MK)
MITSUBISHI TRITON 2007 - 2013 (ML)
MITSUBISHI TRITON 2013 - 2015 (MN)
MITSUBISHI TRITON 2015 - 2018 (MQ)
MITSUBISHI TRITON 2019 - 2021 (MR)
MITSUBISHI TRITON 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM
NISSAN 180SX 1989 - 1994 (S13)
NISSAN 200SX 1995 - 1998 (S15)
NISSAN 200SX 1999 - 2002 (S14)
NISSAN 300ZX 1984 - 1988 (Z31)
NISSAN 300ZX 1989 - 2002 (Z32)
NISSAN 350Z 2003 - 2005 (Z33)
NISSAN 350Z 2006 - 2008 (Z33)
NISSAN 370Z 2009 - 2011 (Z34)
NISSAN ALTIMA 2013 - 2016 (L33)
NISSAN CUBE 1998 - 2016 (Z11 - Z12)
NISSAN DUALIS 2007 - 2013 (J10)
NISSAN ELGRAND 2001 - 2004 (E51)
NISSAN ELGRAND 2005 - 2010 (E51)
NISSAN GLORIA 1999 - 2004 (Y34)
NISSAN JUKE 2013 - 2015 (F15)
NISSAN JUKE 2016 - 2018 (F15)
NISSAN MAXIMA 1995 - 2003 (A33)
NISSAN MAXIMA 2004 - 2008 (A34)
NISSAN MAXIMA 2009 - 2012 (A34)
NISSAN MICRA 2003 - 2009 (K12)
NISSAN MICRA 2010 - 2014 (K13)
NISSAN MICRA 2015 - 2016 (K13)
NISSAN MURANO 2005 - 2008 (Z50)
NISSAN MURANO 2009 - 2011 (Z51)
NISSAN MURANO 2012 - 2018 (Z51)
NISSAN NAVARA 1998 - 2004 (D22)
NISSAN NAVARA 2005 - 2015 (D22-D40)
NISSAN NAVARA 2015 - 2019 (D23 - NP300) RX-DX MODELS
NISSAN NAVARA 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS
NISSAN NAVARA 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM
NISSAN NAVARA 2019 - 2020 (D23)
NISSAN PATHFINDER 1996 - 2005 (R50)
NISSAN PATHFINDER 2003 - 2004 (WX-WX2)
NISSAN PATHFINDER 2005 - 2013 (R51)
NISSAN PATHFINDER 2013 - 2015 (R52)
NISSAN PATROL 1998 - 2009 (Y61)
NISSAN PATROL 2010 - 2013 (Y61)
NISSAN PATROL 2013 - 2016 (Y62)
NISSAN PULSAR 1995 - 1999 (N15)
NISSAN PULSAR 2000 - 2005 (N16)
NISSAN PULSAR 2013 - 2016 (C12)
NISSAN QASHQAI 2014 - 2017 (J11)
NISSAN QASHQAI 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM
NISSAN QASHQAI 2017 - 2019 (J11)
NISSAN QASHQAI 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM
NISSAN SKYLINE 1991 - 1993 (R32)
NISSAN SKYLINE 1993 - 1998 (R33)
NISSAN SKYLINE 1999 - 2002 (R34)
NISSAN SKYLINE 2001 - 2004 (V35)
NISSAN SKYLINE 2005 - 2007 (V35)
NISSAN SKYLINE 2009 - 2011 (R35)
NISSAN TIIDA 2006 - 2011 (C2)
NISSAN XTRAIL 2003 - 2007 (T30)
NISSAN XTRAIL 2007 - 2013 (T31)
NISSAN XTRAIL 2014 - 2017 (T32)
NISSAN XTRAIL 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM
NISSAN XTRAIL 2018 - 2019 (T32)
NISSAN XTRAIL 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM
NISSAN XTRAIL 2019 - 2020 (T32)
OPEL ASTRA 2012 - 2013 (AS)
OPEL CORSA 2012 - 2014 (D)
OPEL INSIGNIA 2012 - 2014 (A - MK 1)
PEUGEOT 106 1992 - 2003 (No Chassis Code)
PEUGEOT 107 2005 - 2011 (No Chassis Code)
PEUGEOT 206 1998 - 2001 (T1)
PEUGEOT 206 2002 - 2010 (No Chassis Code)
PEUGEOT 207 2006 - 2011 (A7)
PEUGEOT 208 2012 - 2014 (A99)
PEUGEOT 3008 2009 - 2015 (T8)
PEUGEOT 306 1993 - 2001 (N3 - N5)
PEUGEOT 307 2001 - 2012 (T5-T6-T7)
PEUGEOT 308 2007 - 2014 (T7)
PEUGEOT 308 2015 - 2016 (T9)
PEUGEOT 4007 2009 - 2011 (No Chassis Code)
PEUGEOT 4008 2010 - 2014 (No Chassis Code)
PEUGEOT 4008 2014 - 2017 (No Chassis Code)
PEUGEOT 406 1995 - 2004 (No Chassis Code)
PEUGEOT 407 2004 - 2011 (SERIES 1 - SERIES 2)
PEUGEOT 508 2011 - 2014 (No Chassis Code)
PEUGEOT 607 2005 - 2011 (No Chassis Code)
PEUGEOT PARTNER 2002 - 2014 (B9P)
PEUGEOT RCZ 2010 - 2015 (No Chassis Code)
PONTIAC FIREBIRD 1982 - 1989 (3rd GEN)
PONTIAC FIREBIRD 1990 - 1992 (4th GEN)
PONTIAC FIREBIRD 1993 - 2002 (5th GEN)
PONTIAC GRAND AM 1992 - 1997 (3rd GEN)
PONTIAC TRANS-AM 1982 - 1992 (3RD GEN)
PORSCHE 911 1998 - 2005 (996)
PORSCHE 911 2005 - 2012 (997)
PORSCHE 911 2011 - 2016 (991)
PORSCHE BOXSTER 1998 - 2004 (986)
PORSCHE BOXSTER 2004 - 2012 (987)
PORSCHE BOXSTER 2012 - 2016 (981)
PORSCHE CAYENNE 2002 - 2012 (9PA)
PORSCHE CAYENNE 2013 - 2018 (92A)
PORSCHE CAYMAN 2005 - 2011 (987C)
PORSCHE CAYMAN 2012 - 2016 (981)
PROTON JUMBUCK 2002 - 2011 (Arena)
RENAULT CLIO 2006 - 2011 (X85)
RENAULT CLIO 2012 - 2014 (X85)
RENAULT FLUENCE 2011 - 2013 (L38 (PHASE 1 - 2))
RENAULT KANGOO 2000 - 2007 (I)
RENAULT KANGOO 2008 - 2012 (F61)
RENAULT KANGOO 2013 - 2017 (II (F61))
RENAULT KOLEOS 2008 - 2015 (H45 PHASE 1 - 2 - 3)
RENAULT LAGUNA 2002 - 2005 (B74)
RENAULT LAGUNA 2007 - 2011 (III (B91))
RENAULT MASTER 1997 - 2010 (X70)
RENAULT MASTER 2011 - 2018 (X62)
RENAULT MEGANE 1996 - 2000 (I)
RENAULT MEGANE 2002 - 2006 (II (X64))
RENAULT MEGANE 2007 - 2009 (II (B84))
RENAULT MEGANE 2010 - 2011 (III (B95 - B35))
RENAULT MEGANE 2012 - 2013 (III (B95 - B35))
RENAULT SCENIC 2000 - 2004 (J64)
RENAULT SCENIC 2005 - 2011 (II (J84 PHASE 1 - 2))
RENAULT TRAFIC 2002 - 2005 (X83)
RENAULT TRAFIC 2005 - 2011 (X83)
RENAULT TRAFIC 2011 - 2014 (X83)
RENAULT TRAFIC 2015 - 2018 (X82)
RENAULT TWINGO 2007 - 2011 (I)
SAAB 93 1998 - 2004 (440)
SAAB 93 2004 - 2014 (442)
SAAB 95 1997 - 2000 (YS3E)
SAAB 95 2000 - 2005 (YS3E)
SAAB 95 2005 - 2011 (YS3G)
SAAB 97 2006 - 2011 (No Chassis Code)
SCANIA TRUCKS RS70 (Incl R480) 2004 - 2011 (No Chassis Code)
SKODA FABIA 2007 - 2015 (5J)
SKODA FABIA 2015 - 2019 (NJ)
SKODA OCTAVIA 2004 - 2008 (1U)
SKODA OCTAVIA 2009 - 2012 (1Z)
SKODA OCTAVIA 2013 - 2019 (NE - 5E)
SKODA RAPID 2013 - 2015 (NH)
SKODA ROOMSTER 2006 - 2011 (5J)
SKODA SUPERB 2009 - 2015 (3T)
SKODA SUPERB 2015 - 2019 (3V)
SKODA YETI 2009 - 2019 (5L)
SMART CITY (Incl CABRIO) 1998 - 2003 (C450)
SMART FOR FOUR 2004 - 2006 (W454)
SMART FOR TWO 2002 - 2007 (C450)
SMART FOR TWO 2008 - 2014 (451)
SMART ROADSTER 2003 - 2011 (R452)
SUBARU BRUMBY (Incl BRAT) 1982 - 1987 (No Chassis Code)
SUBARU BRZ 2012 - 2017 (PRE-FACELIFT)
SUBARU BRZ 2017 - 2020 (POST-FACELIFT)
SUBARU FORESTER 1998 - 2006 (SF - SG)
SUBARU FORESTER 2007 - 2012 (SH)
SUBARU FORESTER 2013 - 2014 (SJ)
SUBARU FORESTER 2015 - 2018 (SJ)
SUBARU FORESTER 2019 - 2021 (SK)
SUBARU GL (Incl DL) 1981 - 1989 (No Chassis Code)
SUBARU IMPREZA 2016 - 2018 (GK-GT)
SUBARU IMPREZA (Inc WRX) 1993 - 2006 (GC-GD-GG)
SUBARU IMPREZA (Inc WRX) 2007 - 2012 (GE-GH-GR-GV)
SUBARU IMPREZA (Inc WRX) 2012 - 2014 (GP-GJ)
SUBARU IMPREZA (Inc WRX) 2015 - 2016 (GP-GJ)
SUBARU JUSTY 1987 - 1994 (No Chassis Code)
SUBARU LEVORG 2016 - 2018 (V1)
SUBARU LIBERTY (Inc Outback) 1995 - 2003 (BE-BH-BT)
SUBARU LIBERTY (Inc Outback) 2004 - 2005 (BL-BP)
SUBARU LIBERTY (Inc Outback) 2006 - 2008 (BL-BP)
SUBARU LIBERTY (Inc Outback) 2009 - 2014 (BM-BR) WITH NAV
SUBARU LIBERTY (Inc Outback) 2009 - 2014 (BM-BR) WITHOUT NAV
SUBARU LIBERTY (Inc Outback) 2015 - 2017 (BN-BS)
SUBARU LIBERTY (Inc Outback) 2018 - 2020 (BN-BS)
SUBARU OUTBACK 2021 - 2021 (BT)
SUBARU TRIBECA 2005 - 2014 (B9)
SUBARU WRX (Inc STI) 2015 - 2018 (VA)
SUBARU XV 2012 - 2014 (GP)
SUBARU XV 2015 - 2016 (GP Facelift)
SUBARU XV 2017 - 2021 (GT)
SUZUKI ALTO 2009 - 2013 (GF)
SUZUKI APV 2004 - 2011 (No Chassis Code)
SUZUKI BALENO 2016 - 2018 (EW)
SUZUKI CELERIO 2015 - 2016 (LF)
SUZUKI GRAND VITARA 1999 - 2002 (SQ625)
SUZUKI GRAND VITARA 2003 - 2005 (SQ625)
SUZUKI GRAND VITARA 2005 - 2014 (JB)
SUZUKI GRAND VITARA 2015 - 2018 (JB)
SUZUKI IGNIS 2017 - 2018 (MF)
SUZUKI JIMNY 2005 - 2017 (SN413)
SUZUKI JIMNY 2018 - 2021 (JB74W)
SUZUKI JIMNY SIERRA 2002 - 2004 (SN413)
SUZUKI KIZASHI 2010 - 2014 (FR)
SUZUKI LIANA 2002 - 2004 (RH416)
SUZUKI LIANA 2005 - 2008 (RH416 - RH518)
SUZUKI SWIFT 2006 - 2010 (RS416)
SUZUKI SWIFT 2011 - 2016 (FZ)
SUZUKI SWIFT 2017 - 2020 (AZ)
SUZUKI SX4 (Incl S-Cross) 2007 - 2011 (GYB - GYC)
SUZUKI SX4 (Incl S-Cross) 2014 - 2016 (GYA)
SUZUKI VITARA 2001 - 2002 (FT - GT)
SUZUKI VITARA 2015 - 2016 (LY)
SUZUKI XL7 2003 - 2005 (JA)
SUZUKI XL7 2007 - 2009 (JA)
TOYOTA 4 RUNNER 1990 - 2001 (N120 - N130 - N180 Series)
TOYOTA 86 2012 - 2017 (PRE-FACELIFT)
TOYOTA 86 2017 - 2020 (POST-FACELIFT)
TOYOTA ALPHARD 2008 - 2014 (AH20 Series)
TOYOTA ALPHARD 2015 - 2017 (AH30 Series)
TOYOTA ARISTO 1993 - 1997 (S140 Series)
TOYOTA AURION 2006 - 2011 (XV40 Series)
TOYOTA AURION 2012 - 2015 (XV50 Series)
TOYOTA AURION 2015 - 2017 (XV50 Series)
TOYOTA AVALON 1994 - 2005 (XX10 Series)
TOYOTA AVENSIS VERSO 2005 - 2010 (ACM20 - ACM21R Series)
TOYOTA C-HR 2017 - 2019 (AX10 Series)
TOYOTA CAMRY 1983 - 1996 (XV10 Series)
TOYOTA CAMRY 2002 - 2006 (XV30 Series)
TOYOTA CAMRY 2007 - 2011 (XV40 Series)
TOYOTA CAMRY 2012 - 2017 (XV50 Series)
TOYOTA CAMRY 2018 - 2020 (XV70 Series)
TOYOTA CAMRY 2021 - 2022 (XV70 Series)
TOYOTA CELICA 1989 - 1997 (T180 - T200 Series)
TOYOTA CELICA 2000 - 2005 (T230 Series)
TOYOTA COROLLA 1993 - 1997 (E100 Series)
TOYOTA COROLLA 1998 - 2002 (E110 Series)
TOYOTA COROLLA 2003 - 2009 (E140 - E160 Series)
TOYOTA COROLLA 2009 - 2012 (E120 Series)
TOYOTA COROLLA HATCH 2013 - 2015 (E180 Series)
TOYOTA COROLLA HATCH 2015 - 2018 (E180 - E200 Series)
TOYOTA COROLLA HATCH 2019 - 2021 (E210 Series)
TOYOTA COROLLA SEDAN 2014 - 2016 (E170 Series)
TOYOTA COROLLA SEDAN 2017 - 2018 (E170 Series)
TOYOTA CROWN 2003 - 2008 (S180)
TOYOTA ECHO 2000 - 2004 (XP10 Series)
TOYOTA ESTIMA 2000 - 2005 (XR30-XR40 Series)
TOYOTA ESTIMA 2006 - 2016 (XR50 Series)
TOYOTA FJ CRUISER 2010 - 2016 (GSJ10 Series)
TOYOTA FORTUNER 2015 - 2019 (AN150 - AN160 Series)
TOYOTA HIACE 1989 - 2005 (H100 Series)
TOYOTA HIACE 2005 - 2019 (H200 Series)
TOYOTA HILUX 1997 - 2004 (N140 - N150 - N160 - N170 Series)
TOYOTA HILUX 2005 - 2010 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2011 - 2013 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2013 - 2015 (AN10 - AN20 - AN30 Series)
TOYOTA HILUX 2015 - 2020 (AN120 - AN130 Series)
TOYOTA HILUX 2020 - 2021 (AN120 - AN130 Series)
TOYOTA KLUGER 2003 - 2006 (XU20 Series)
TOYOTA KLUGER 2007 - 2013 (XU40 Series)
TOYOTA KLUGER 2014 - 2019 (XU50 Series)
TOYOTA KLUGER 2018 - 2019 (XU50 Series) WITH 360 DEGREE CAMERA
TOYOTA KLUGER 2019 - 2021 (XU70 Series)
TOYOTA LANDCRUISER 1998 - 2000 (80 Series)
TOYOTA LANDCRUISER 2001 - 2008 (100 Series)
TOYOTA LANDCRUISER 2002 - 2009 (120 Series)
TOYOTA LANDCRUISER 2007 - 2019 (70 Series - 79 Series)
TOYOTA LANDCRUISER 2008 - 2012 (200 Series)
TOYOTA LANDCRUISER 2013 - 2015 (200 Series)
TOYOTA LANDCRUISER 2016 - 2021 (200 Series)
TOYOTA LANDCRUISER PRADO 2002 - 2009 (120 Series)
TOYOTA LANDCRUISER PRADO 2009 - 2013 (150 Series with NAV)
TOYOTA LANDCRUISER PRADO 2009 - 2013 (150 Series without NAV)
TOYOTA LANDCRUISER PRADO 2013 - 2017 (150 Series)
TOYOTA LANDCRUISER PRADO 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM
TOYOTA LANDCRUISER PRADO 2017 - 2020 (150 Series)
TOYOTA LANDCRUISER PRADO 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM
TOYOTA MR2 1989 - 1999 (W20 Series)
TOYOTA MR2 2000 - 2005 (W30 Series)
TOYOTA PRIUS 1997 - 2003 (XW10 Series)
TOYOTA PRIUS 2004 - 2009 (XW20 Series)
TOYOTA PRIUS 2010 - 2015 (XW30 Series)
VOLKSWAGEN AMAROK 2011 - 2015 (2H Series)
VOLKSWAGEN AMAROK 2015 - 2020 (2H Series)
VOLKSWAGEN BEETLE 2000 - 2011 (1Y Series)
VOLKSWAGEN BEETLE 2013 - 2015 (1L Series)
VOLKSWAGEN BEETLE 2016 - 2017 (A5 Series)
VOLKSWAGEN BORA 1999 - 2004 (1J Series)
VOLKSWAGEN CADDY 2005 - 2015 (2K Series)
VOLKSWAGEN CADDY 2015 - 2019 (2K Series)
VOLKSWAGEN JETTA 1999 - 2004 (A4 Series)
VOLKSWAGEN JETTA 2005 - 2015 (A5 - A6 Series)
VOLKSWAGEN JETTA 2016 - 2017 (A5 Series)
VOLVO 240 + 260 1973 - 1994 (200 Series)
VOLVO 740 + 760 + 780 1983 - 1994 (700 Series)
VOLVO 850 1992 - 1997 (1st Generation)
VOLVO 940 + 960 1993 - 1998 (900 Series)
VOLVO C30 2007 - 2013 (1st Generation)
VOLVO C70 2000 - 2004 (1st Generation)
VOLVO C70 2005 - 2014 (2nd Generation)
VOLVO S40 1995 - 2004 (1st Generation)
VOLVO S60 2001 - 2009 (1st Generation)
VOLVO S70 1998 - 2000 (1st Generation)
VOLVO S80 1998 - 2006 (1st Generation)
VOLVO V50 2004 - 2012 (1st Generation)
VOLVO V70 1996 - 2000 (1st Generation)
VOLVO V70 2000 - 2004 (2nd Generation)
VOLVO V70 2004 - 2007 (2nd Generation)
VOLVO V70 2008 - 2011 (3rd Generation)
VOLVO XC70 2003 - 2007 (2nd Generation)
VOLVO XC90 2002 - 2014 (1st Generation)
SKU LPA-2.4
Barcode # 609098834803
Brand Pac Audio
Shipping Weight 1.5000kg
