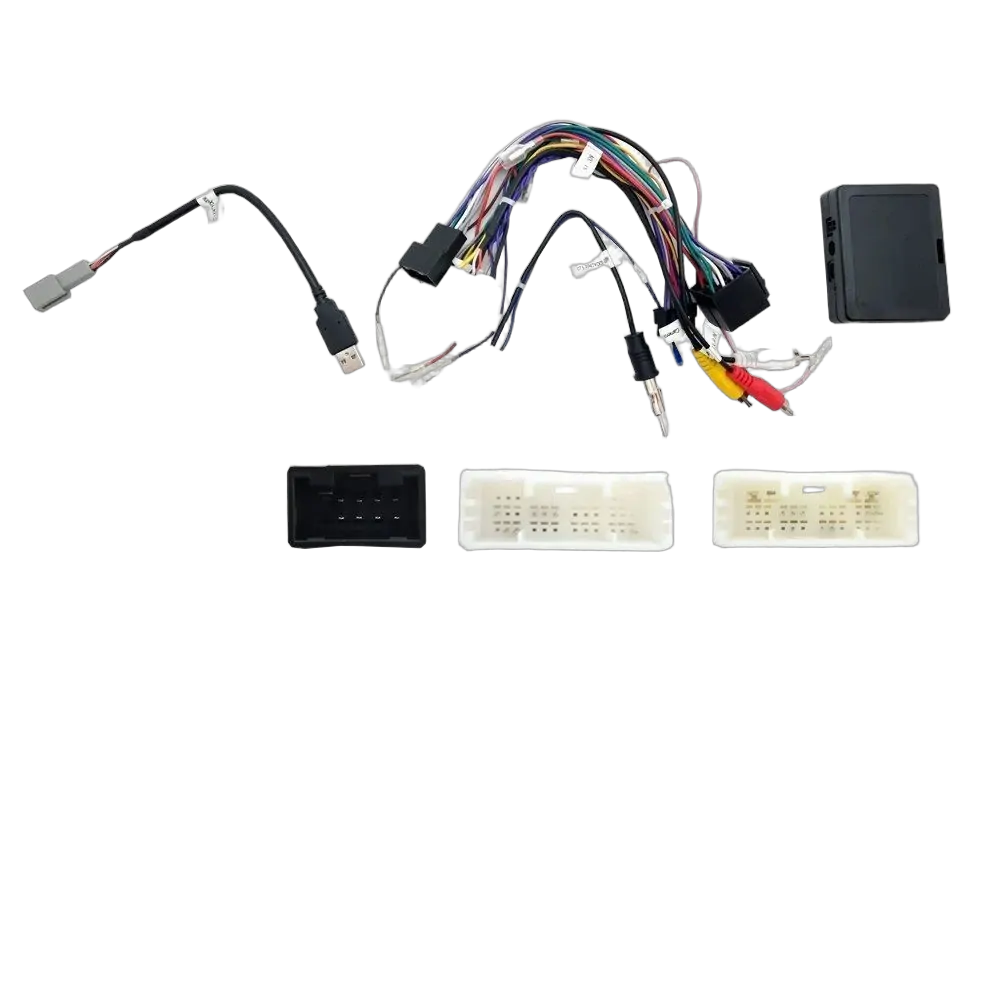

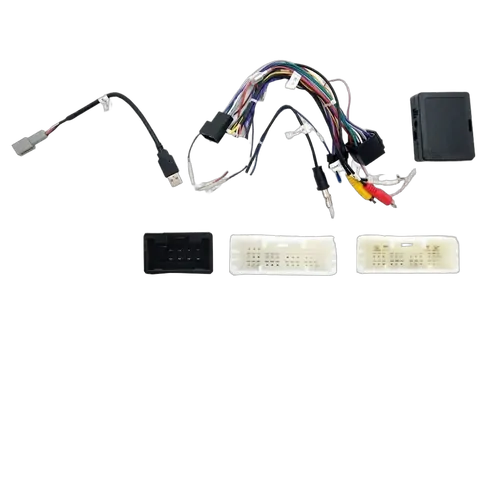

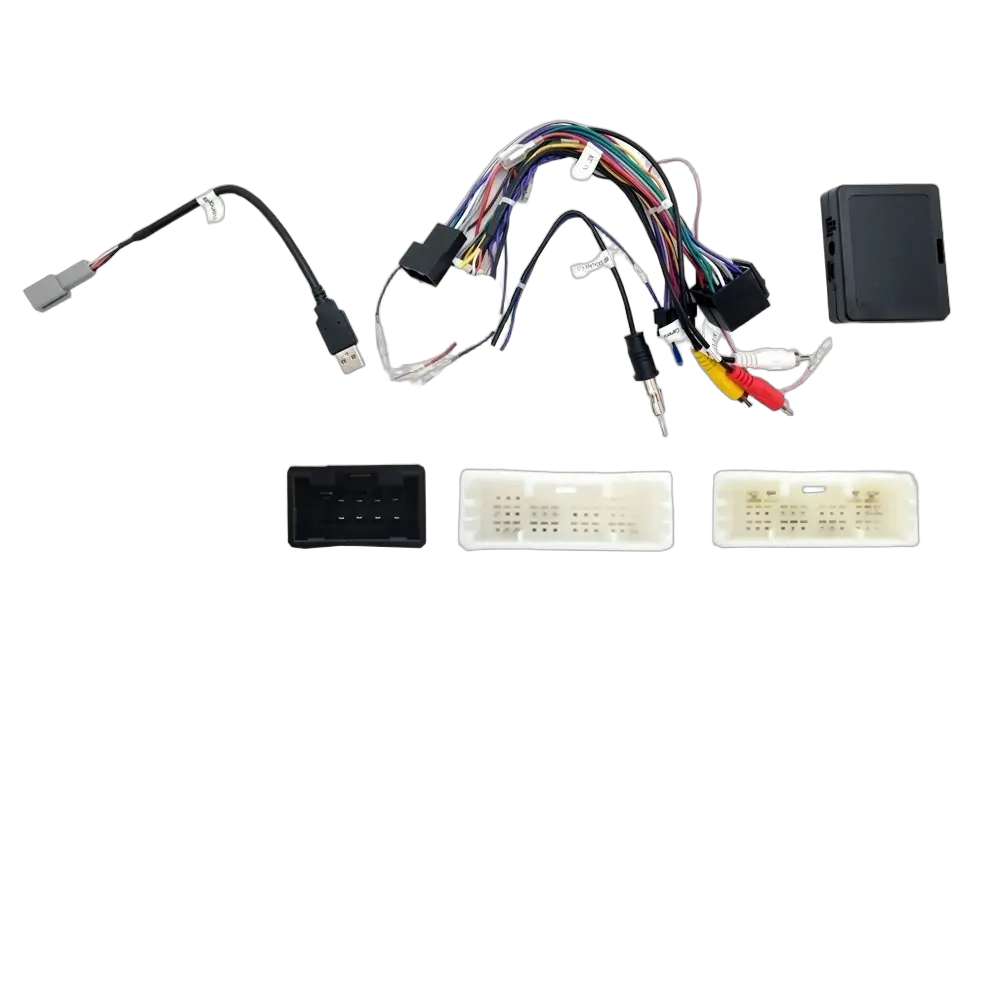

The PC99-XTY020 allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls.
- Plug and play, no cutting of wires required
- Retains phone button functionality
- Retains factory reverse camera (if vehicle is equipped)
- Retains 360-degree camera functionality
- Retains Amplified System
- Provides outputs for speed pulse, park brake and reverse gear
Note: due to multiple vehicle facelifts & updates it is recommended to confirm the connectors on the back of the head unit before purchasing.
| Plug & Play | YES – FACTORY CONNECTOR TO BARE WIRES |
|---|---|
| Include AUX/USB retention? | YES – AUX & USB |
| Retain 360 camera system? | Yes – If equipped from factory |
| Dual Press Steering Wheel Control Function | NO |
| Retain Factory Amplifier? | YES – Factory Amplifier is 2CH Audio Input so no fading capabilities |
| Retain Factory Reverse Camera? | YES – Included With Interface |
| Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
| Connectors | 28, 30, 10 PIN |
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| TOYOTA | RAV4 | 2019 - 2022 (XA50 Series) WITH 360 DEGREE CAMERA SYSTEM |
| SKU | PC99-XTY020 |
|---|---|
| Barcode # | 5056171534870 |
| Brand | Autoleads |
| Shipping Weight | 1.5000kg |
19-Up Toyota Swc & 360 Camera Retention
