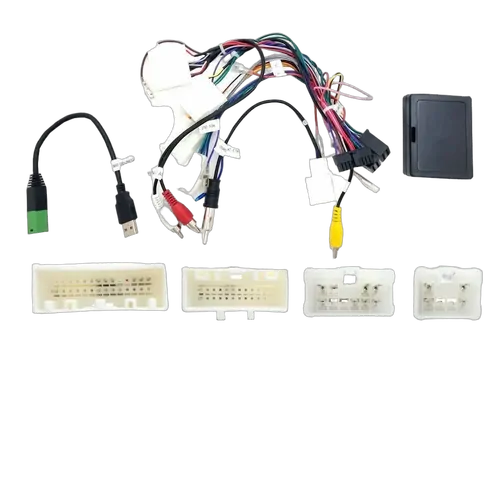

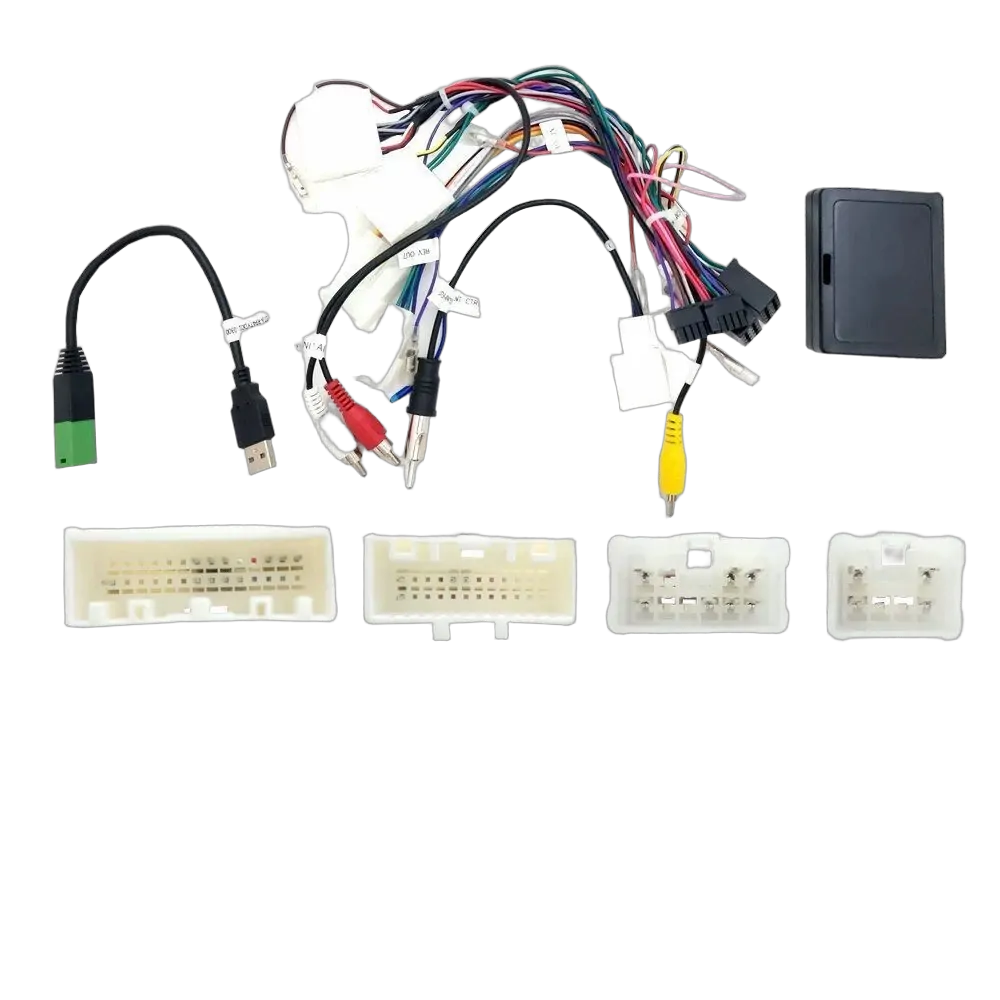

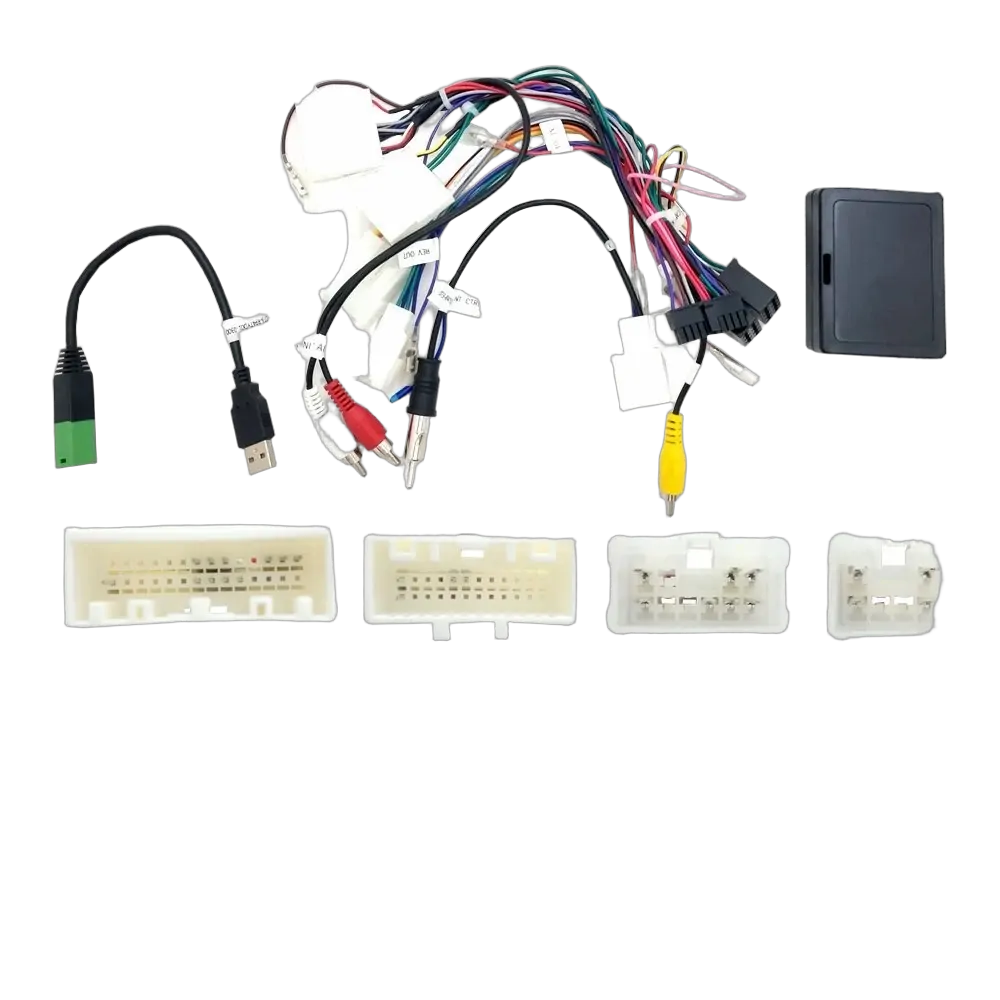

The PC99-XTY019 allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls.
- Plug and play, no cutting of wires required
- Retains phone button functionality
- Retains factory reverse camera (if vehicle is equipped)

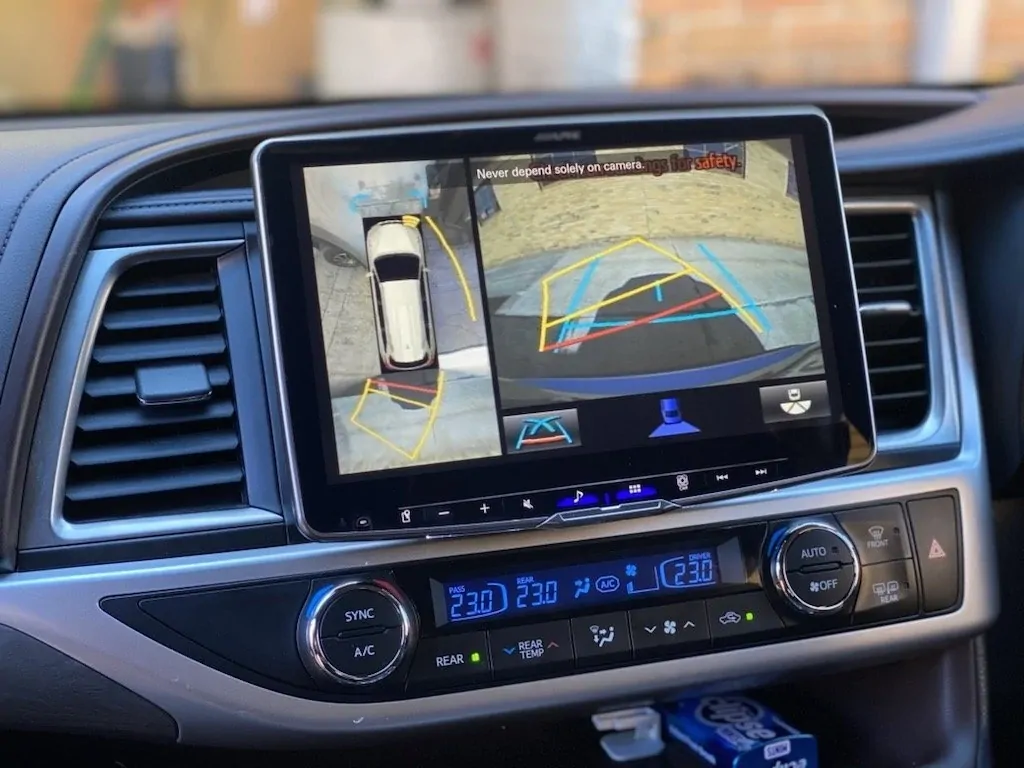

- Retains 360-degree camera functionality
- Retains Amplified System
- Provides outputs for speed pulse, park brake and reverse gear
Note: due to multiple vehicle facelifts & updates it is recommended to confirm the connectors on the back of the head unit before purchasing.
Plug & Play | YES – FACTORY CONNECTOR TO BARE WIRES |
---|---|
Include AUX/USB retention? | YES – AUX & USB |
Retain 360 camera system? | Yes – If equipped from factory |
Dual Press Steering Wheel Control Function | NO |
Retain Factory Amplifier? | YES – Factory Amplifier is 2CH Audio Input so no fading capabilities |
Retain Factory Reverse Camera? | YES – Included With Interface |
Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
Connectors | 24, 28, 6, 10 PIN |
Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
---|---|---|
TOYOTA | KLUGER | 2018 - 2019 (XU50 Series) WITH 360 DEGREE CAMERA |
TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
SKU | PC99-XTY019 |
---|---|
Barcode # | 5056171542493 |
Brand | Autoleads |
Shipping Weight | 1.5000kg |
