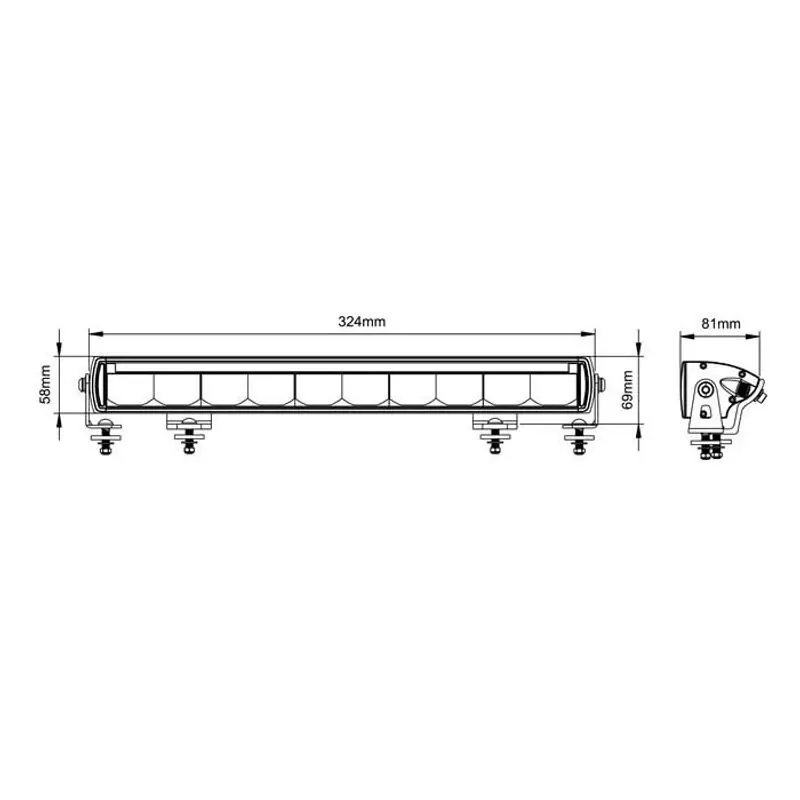

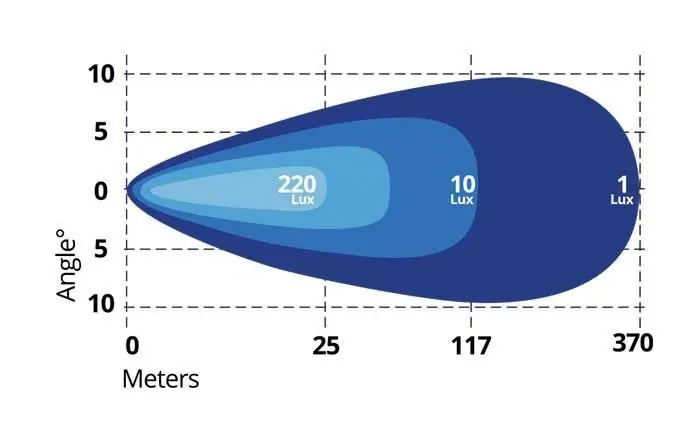

• Free form reflector design • One piece front cover • Die cast aluminium housing • Powder coated finish • Sealed Deutsch connector • Electronic Thermal Management • Dual mounting options • Approved by ECE R112/R7/R10 (Ref. 45) • 2 Year Warranty Wattage 60W Input voltage 9-36V DC input Current draw @ 12V Driving Beam: 6.5A Park Beam: 0.2A Colour temperature 6500°K Raw lumens 5700 Actual lumens 4850 IP rating IP68 & IP69K LED Qty 6 x 10 Watt Cree LED (Driving Light) 2 x 2 Watt LUXEON® LED (Park Light) 1 Lux @ 370 Metres Lens Polycarbonate Beam type Combination Measurements 324 x 58 x 81mm
SKU | LV9114 |
---|---|
Barcode # | OEBC515088 |
Brand | LV Automotive |
Shipping Weight | 5.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.330m |
Shipping Length | 0.120m |
