Victron solar panels:



Victron solar panels are made using high quality Polycrystalline & Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.





Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.


*Note the Victron 12V range of solar panels are suitable for Charging 12V battery systems when using a PWM or MPPT Controller. The Victron range of SmartSolar regulators would be best suited based on price and quality.



See more info about the SmartSolar Regulator - Click here


Features:

- Low voltage-temperature coefficient enhances high-temperature operation.

- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

- 25-Year limited warranty on power output and performance.

- 5-Year Limited warranty on materials and workmanship.

- Sealed, waterproof, multifunctional junction box gives high level of safety.

- High performance bypass diodes minimize the power drop caused by shade.

- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

- Pre wired quick-connect system with PV-ST01 connectors.

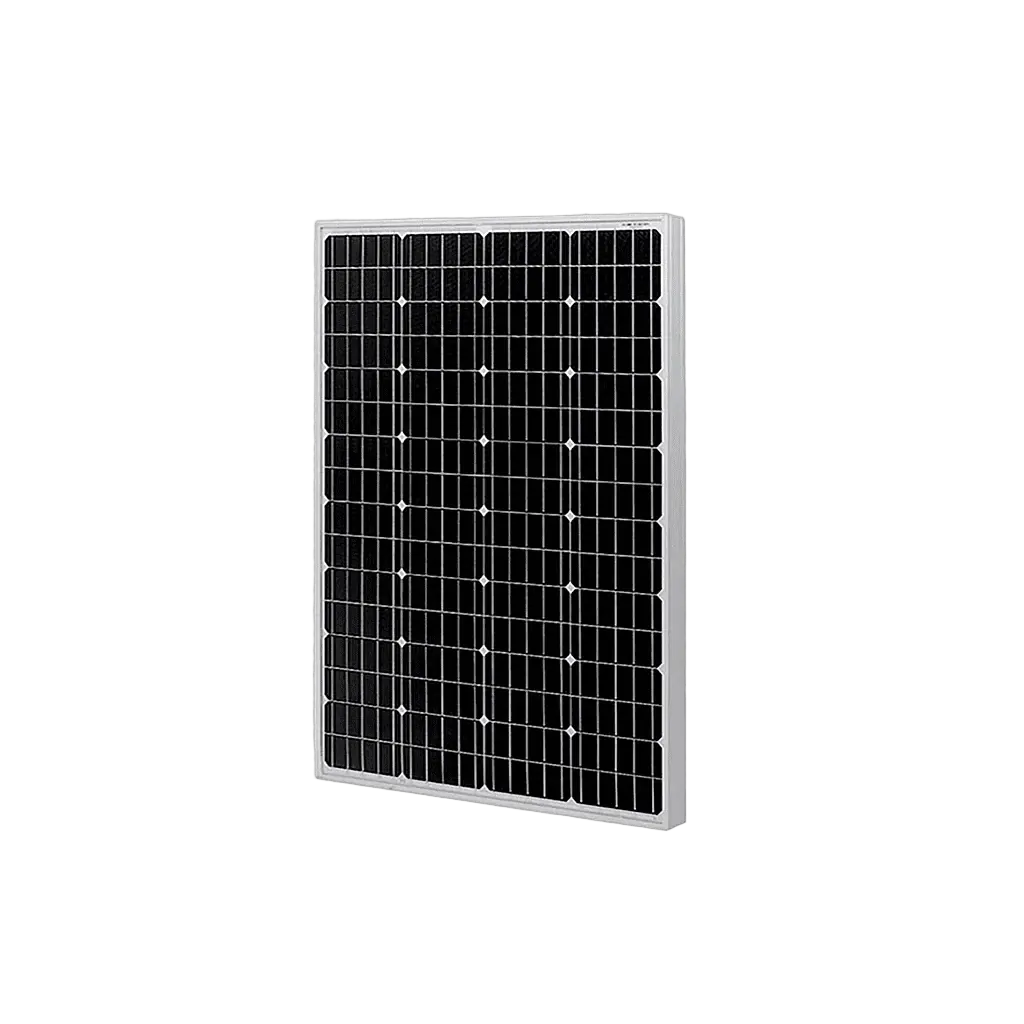

*Image for display purposes only

Specifications





Model





SPM041151200





Cell type





Monocrystalline





Number of cells in series





36





Nominal power (Watts)





115





Open Circuit Voltage (Volts)





23.32





Maximum Power Voltage (Volts)





19.0





Short Circuit Current (Amps)





6.61





Maximum Power Current (Amps)





6.04





Power (Max.)





115W





Temp Range





-40 to +85°C





Length of cable / connector





900mm / MC4





Power Tolerance





±3%





Maximum system voltage





1000V





Size (LxWxH)





1015 x 668 x 30mm





Weight





8kg





Warranty
-Electrical performance



-Product warranty






10 years 90% +25 years 80% of power output






5 Year product Warranty






Victron SPM041151200 spec sheet-



Victron SPM041151200 manual-



SKU SPM041151200
Barcode # 8719076047414
Brand Victron
Shipping Weight 8.5000kg

Victron 115W-12V Mono

SKU: SPM041151200
In Stock
In stock
Sale price
$204.99
RRP $229.90
Earn 2,040 Outback Rewards Points
Sale price
$204.99
DON'T PAY RRP $229.90
PayPal Checkout
4 payments of $51.25

afterpay More info.

Make 4 payments of $51.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $51.25

Calculate Shipping
