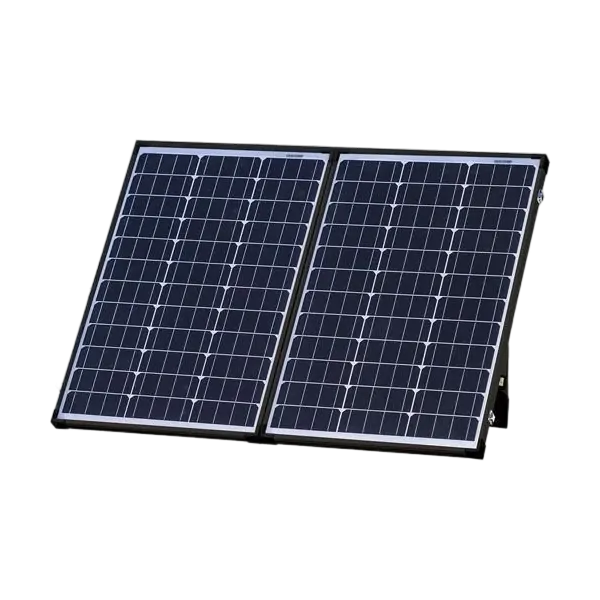

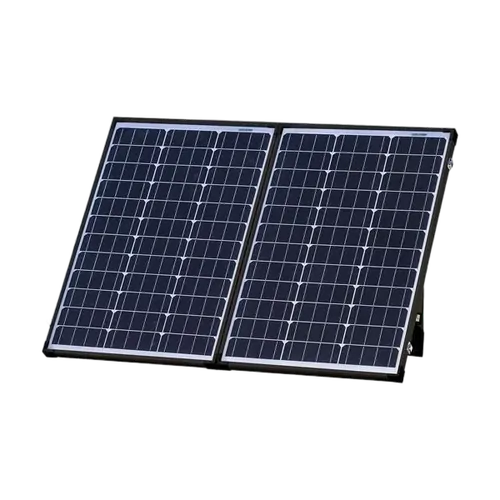

The KT 120W Portable Fold-Up Solar Kit is the ideal transportable solution for outdoors, camping, 4WD and marine applications. Folds away easily to store with sturdy fold away legs when not chaging your 12V batteries.
The KT 120 Watt Folding Kit has several features that are not found on other folding kits.
Dimensions & Weight:
- Dimensions Open: 760mm (H) x 1020mm (W) x 30mm (D)

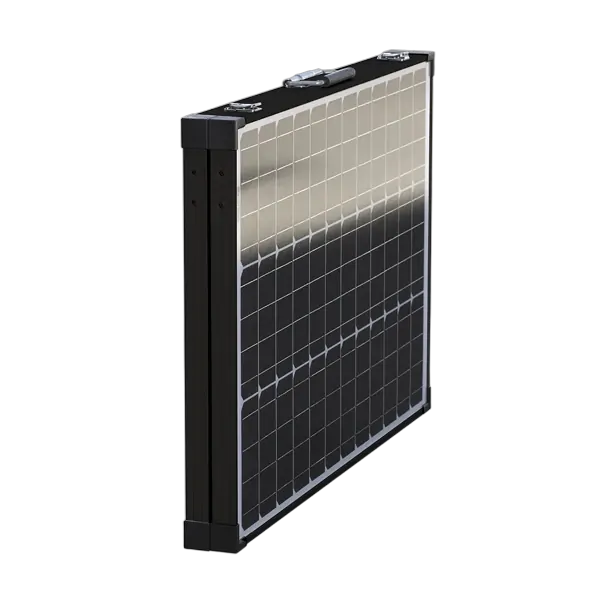

- Dimensions Closed: 760mm (H) x 510mm (W) x 62mm (D)
- Panel Weight: 12Kg

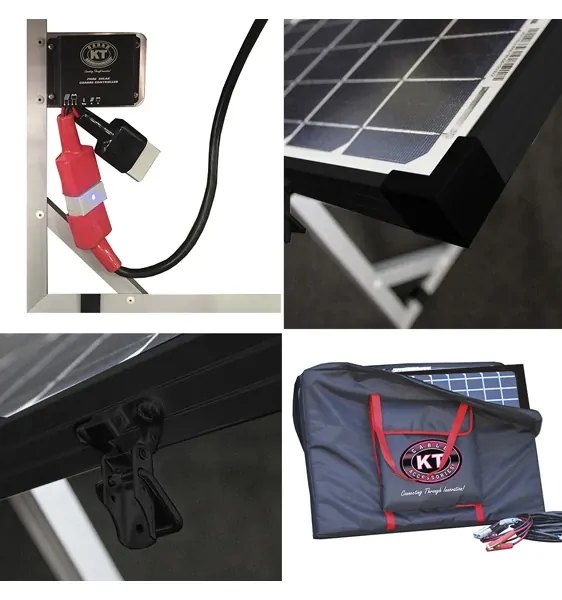

Features:
- Five accreditation certificates
- Kit can be regulated or unregulated for battery charge
- Premium Black Frame
- Sturdy & Secure Leg Function – Set to 45 Degrees
- Heavy Duty Connector Covers – Red for Panel, Black for Lead
- 5M Lead Features a KT Voltmeter Connector to assist in providing live voltage reading at any moment
- Heavy Duty Zip around b-ottom of Bag for easy packing
- Access to heavy duty carry handle through carry bag
- Heavy Duty ABS plastic corners
- 10Amp PWM Solar Charge Controller attached to leg support frame to prevent de-rating
- Unique optional digital voltmeter kit can be connected into all three leads supplied, close to the battery. Check battery volts before/during/ after charge
- Individually barcoded for warranty registration
- All leads are soldered, not crimped
Warranty & Guarantees:
- 3 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Progr-amme
Kit Includes
- 1 x Premium quality 2 x 60 watt monocrystalline cells in parallel
- 1 x Quality pulse width modulation controller

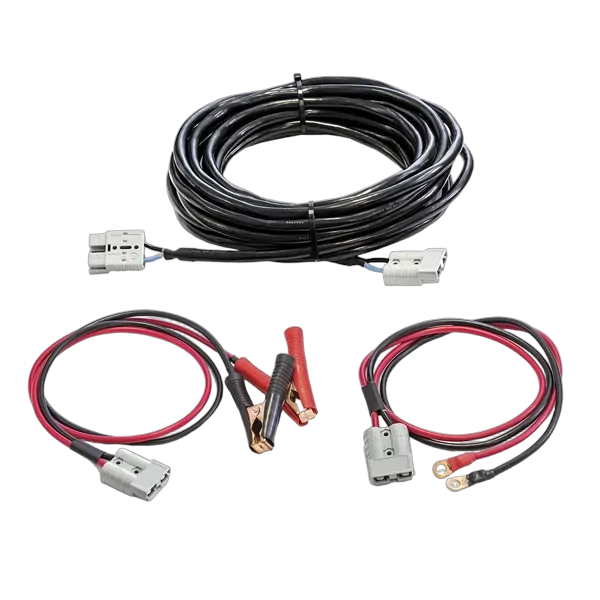

- 1 x 10 Metre extension lead with 4sq mm cabling (no voltage drop)
- 1 x Alligator clamps/heavy duty connector accessory leads
- 1 x 8mm eye terminals for permanent battery pole fixing
- 1 x Heavy duty connector accessory leads
- 1 x Sturdy nylon bag with carry straps
- 1 x Instruction manual included
- 12Kg including carry bag
Specifications:
Model Number | KT70710 |
Maximum Power (Pmax) | 120Wp |
Power Tolerance | +3% |
Maximum Power Voltage (Vmp) | 17.9V |
Maximum Power Current (Imp) | 6.70A |
Rated Voltage | 12V |
Open Circuit Voltage (Voc) | 21.5V |
Short Circuit Current (Isc) | 7.44A |
Operating Temperature | -40 to +85 Degrees Celcius |
Product Application | Class A |
Maximum System Voltage | 1000V DC |
Product Weight | 12Kg |
SKU | KT70710 |
---|---|
Barcode # | 9320729039619 |
Brand | KT Cable Accessories |
Shipping Weight | 12.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.760m |
Shipping Length | 0.510m |
