Features
P.I.R. Sensor Motion Switch
The DCMotion can be used in a number of situations like yacht or ship engine rooms, undercover truck loading bays or RV applications.

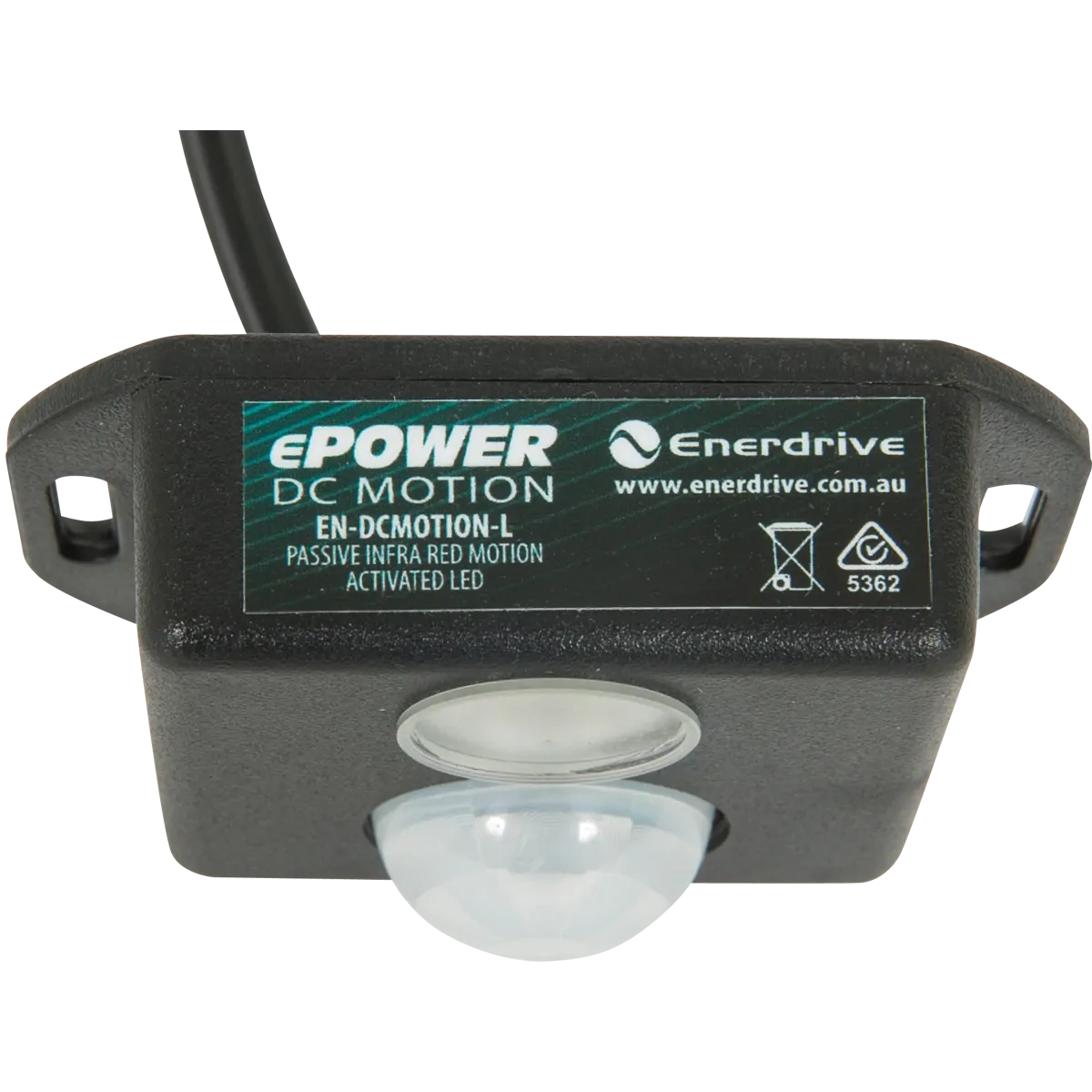

The ePOWER DCMotion-L is a motion activated LED lamp for 12v and 24v systems for which a Passive Infra-Red Detector (PIR) is used. This unit has a built in high efficiency Power CREE LED (1 Watt). The DCMotion-L switches the load as soon as motion is detected. If no motion is detected any more the DCMotion-L switches off with a delay. The delay time can be set by way of an internal potentiometer. This is done in steps of 5 seconds. The minimum delay time is 5 seconds and the maximum delay time is 60 seconds. Default is a delay time of about 30 seconds. The load will be disconnected 30 seconds after the last motion is detected.
Applications
- Recreational vehicles
- Industrial systems
- Service vehicles
- Maritime applications
Model Number | Auto Voltage | Switch Off Time | Power up delay | Detection Angle | Detection Parameter | LED Light | Weight | Dimension LxWxH | |
---|---|---|---|---|---|---|---|---|---|
EN-DCMOTION | 12VDC / 24VDC | 5 min. * | #ERROR! | 60° H – 60° V | 5 meters | No | 30g | 76.5 x 48.5 x 30mm | |
EN-DCMOTION-L | 12VDC / 24VDC | 5 min. * | #ERROR! | 60° H – 60° V | 5 meters | Yes | 107g | 67 x 50 x 30mm |
SKU | EN-DCMOTION-L |
---|---|
Barcode # | EN-DCMOTION-L |
Brand | Enerdrive |
Shipping Weight | 107.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.030m |
Shipping Length | 0.070m |
