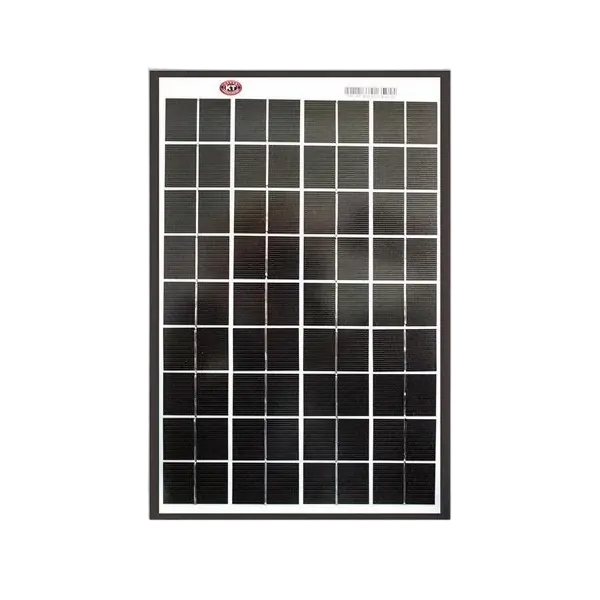

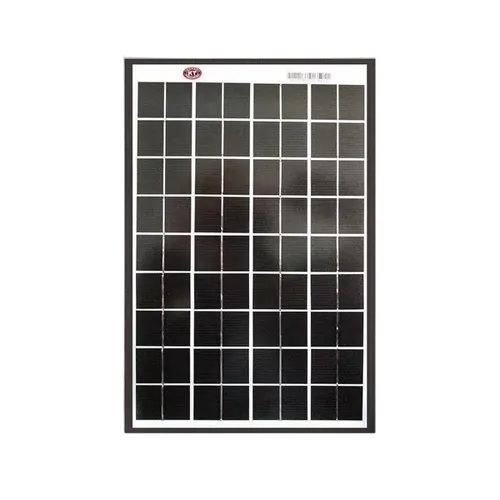

The KT 10 Watt, 12V Single Cell Mono-crystalline Solar Panel (Model No. KT70715) is ideal for a variety of home applications including trickle charging small batteries, charging small batteries that power garden lighting and surveillance camera’s. This panel offers a 10 Year Warranty and 25 Year Efficiency Guarantee.
Dimensions & Weight:
- Dimensions (Height): 355mm
- Dimensions (Length): 225mm
- Dimensions (Depth): 17mm
- Panel Weight: 0.93Kg
Features:
- 3M Positive/Negative Cables with Alligator Clamps
- Mono-Crystalline Construction
- Quality Construction with Premium Black Framing
- Fully Sealed Junction Box on Back of Panel
- 5 Accreditation Certificates
- Class A
Applications:
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme
Specifications:
| Model Number | KT70715 |
| Maximum Power (Pmax) | 10Wp |
| Power Tolerance | +3% |
| Maximum Power Voltage (Vmp) | 18.3V |
| Maximum Power Current (Imp) | 0.55A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 22.1V |
| Short Circuit Current (Isc) | 0.59A |
| Operating Temperature | -40 to +85 Degrees Celcius |
| Product Application | Class A |
| Maximum System Voltage | 600V DC |
| SKU | KT70715 |
|---|---|
| Barcode # | 9320729039794 |
| Brand | KT Cable Accessories |
| Shipping Weight | 1.0000kg |
| Assembled Length | 0.300m |
| Assembled Height | 0.400m |
| Assembled Width | 0.200m |
More infoMake 4 payments of $7.50 over 8 weeks and get it now!
Calculate Shipping
The KT 10 Watt, 12V Single Cell Mono-crystalline Solar Panel (Model No. KT70715) is ideal for a variety of home applications including trickle charging small batteries, charging small batteries that power garden lighting and surveillance camera’s. This panel offers a 10 Year Warranty and 25 Year Efficiency Guarantee.
Dimensions & Weight:
- Dimensions (Height): 355mm
- Dimensions (Length): 225mm
- Dimensions (Depth): 17mm
- Panel Weight: 0.93Kg
Features:
- 3M Positive/Negative Cables with Alligator Clamps
- Mono-Crystalline Construction
- Quality Construction with Premium Black Framing
- Fully Sealed Junction Box on Back of Panel
- 5 Accreditation Certificates
- Class A
Applications:
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme
Specifications:
| Model Number | KT70715 |
| Maximum Power (Pmax) | 10Wp |
| Power Tolerance | +3% |
| Maximum Power Voltage (Vmp) | 18.3V |
| Maximum Power Current (Imp) | 0.55A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 22.1V |
| Short Circuit Current (Isc) | 0.59A |
| Operating Temperature | -40 to +85 Degrees Celcius |
| Product Application | Class A |
| Maximum System Voltage | 600V DC |
| SKU | KT70715 |
|---|---|
| Barcode # | 9320729039794 |
| Brand | KT Cable Accessories |
| Shipping Weight | 1.0000kg |
| Assembled Length | 0.300m |
| Assembled Height | 0.400m |
| Assembled Width | 0.200m |
