The X Grille is the result of a collaboration between leading Australian manufacturers Lightforce and AX4, the aftermarket automotive equipment division of Axiom Precision Manufacturing. The two companies have a long history of partnership, with Axiom being a long-standing supplier to Lightforce. The X Grille’s inspiration comes from a very different sector of the car market: the Shelby GT Mustang from 1967. Sleek and muscular, it’s an aesthetic that translates surprisingly well to today’s superutes.
ENHANCED X GRILLE FEATURES
- Reinforced, UV stable glass-filled nylon
- High strength and shock-resistant
- Vehicle collision avoidance compliant
- Sleek, modern and innovative
- Bright chrome trim
- Weight: 1kg/2.2lb
VENOM INSERT LED FEATURES
- 75W LED / 7850lm (raw) / 4407m (effective) for industry-leading output per light
- 21 Lumileds LEDs per light operate at 5000K colour temperature reducing driver fatigue
- CE Certified
- Vertical and horizontal beam adjustment provides optimal alignment
- IP68 & IP69K rated / Gore water-proof membrane to protect against water and dust ingress
- Reverse polarity / overload protection
- Colour temperature: 5000K
- LED lifespan: 50,000 hours
- Operating temperature: -40C to 63C
The X Grille kit contains a wiring harness, switch and connectors – everything needed for a seamless fit. The instructional video below provides a step-by-step guide, making installation a straightforward DIY job. Alternatively, owners can choose to have the X Grille professionally installed, a process that takes under two hours.
Please note this is not compatible with the PX3 models.
RELIABILITY
Venom LED is filled with innovations and certifications such as IP68 and IP69K. This means every light has the ability to withstand dust and water ingress. Compliment these features with a UV stable powder coat finish and 3 year Lightforce warranty, nothing packs more punch in a compact size than the Venom LED.
| Globe Type | LED |
|---|---|
| Distance: 1 lux at | 850m |
| Distance: 0.25 lux at | 1700m |
| Effective Lumens | 4407 |
| Raw Lumens | 7850 |
| Colour Temperature | 5000K |
| CRI | 70 |
| Current Draw | 5.7Amps @ 13.2V |
| Voltage Range | 12V|24V |
| Wattage | 75W |
| Ingress Protection Rating | IP68 and IP69K |
| Diameter | 150mm |
| Weight | 3kg |
VEHICLE COMPATIBILITY
| MAKE | MODEL | COMPATIBLE FROM | COMPATIBLE TO |
|---|---|---|---|
| Ford | Ranger PX2 | 2015 | 2018 |
| SKU | IG150RKIT |
|---|---|
| Barcode # | 9335712032409 |
| Brand | Lightforce |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.800m |
| Shipping Length | 0.150m |

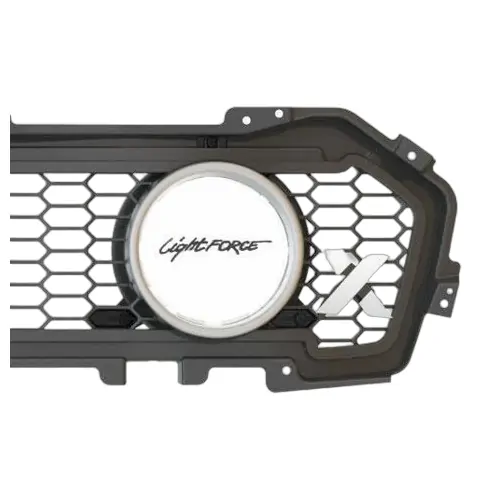

Lightforce X Grille For Ford Ranger Px2 With Integrated Lightforce Venom Led Driving Lights
